Akuvox R26X Manuel utilisateur

R26X

Quick Guide

M4x20 screw x 2

ST4x20 screw x 4

Screw fixing seat x 4

M3x10 screw x 1

M3x5 screw x 4

Cable buckle x 1

Back cover x 1

R26X x 1

Wall bracket x 1

Please make sure the package contains the following items:

Unpacking

R26X

Speaker

RF card reader

Call button

Status LED

Thermal sensor

Photosensitive sensor

Infrared LED

Mic

Camera

R26C

Product Overview

R26X

Infrared LED

Thermal sensor

Photosensitive sensor

Camera

Speaker

Call button

Status LED

Mic

R26P

R26X

R26X

With 86 embedded box in the wall :

Installation

Wall Bracket Installation

Use 2 M4X20 screws to

fix the wall bracket and

embedded box.

Use the pen to mark

the hole location on

the wall bracket

Take down the

M4x20 screws and

remove the wall

bracket

Use 6mm Drill to drill

the red hole you

marked before

Insert the screw fixing seat

into the hole

Use 4 ST4x20 screws

and 2 M4x20 screws

to fix the wall

bracket

R26X

Without 86 embedded box in the wall :

Use the pen to mark the

hole location on the wall

bracket

Use 6mm Drill to drill the

red hole you marked

before ,and dig a 5cm

depth square hole

Insert the screw fixing seat

into the hole

Use 4 St4X20 screws to fix

the wall bracket

R26X

Back cover Installation

Take down the back

cover ,cable buckle.

Make cables go through all the

components of the bottom hole ,

connect with the contacts in the main

board. Then put the cable buckle and

sealing ring into the back cover.

Use 4 M3x5 screws to fix

the back cover

R26X

Device Mounting

1. Insert the screws

of R26X into the

holes on the wall

bracket

2. Push down to fix the

device securely.

3. Lock the M3X10

screw at the bottom

of device.

R26X

Interface Description On PCB Board:

R26X

LAN

PoE

R26P

R26C

R47

PoE

PoE

Network Video Recorder

(third party)

PC

(third party)

PoE

PoE

R26P

R26C

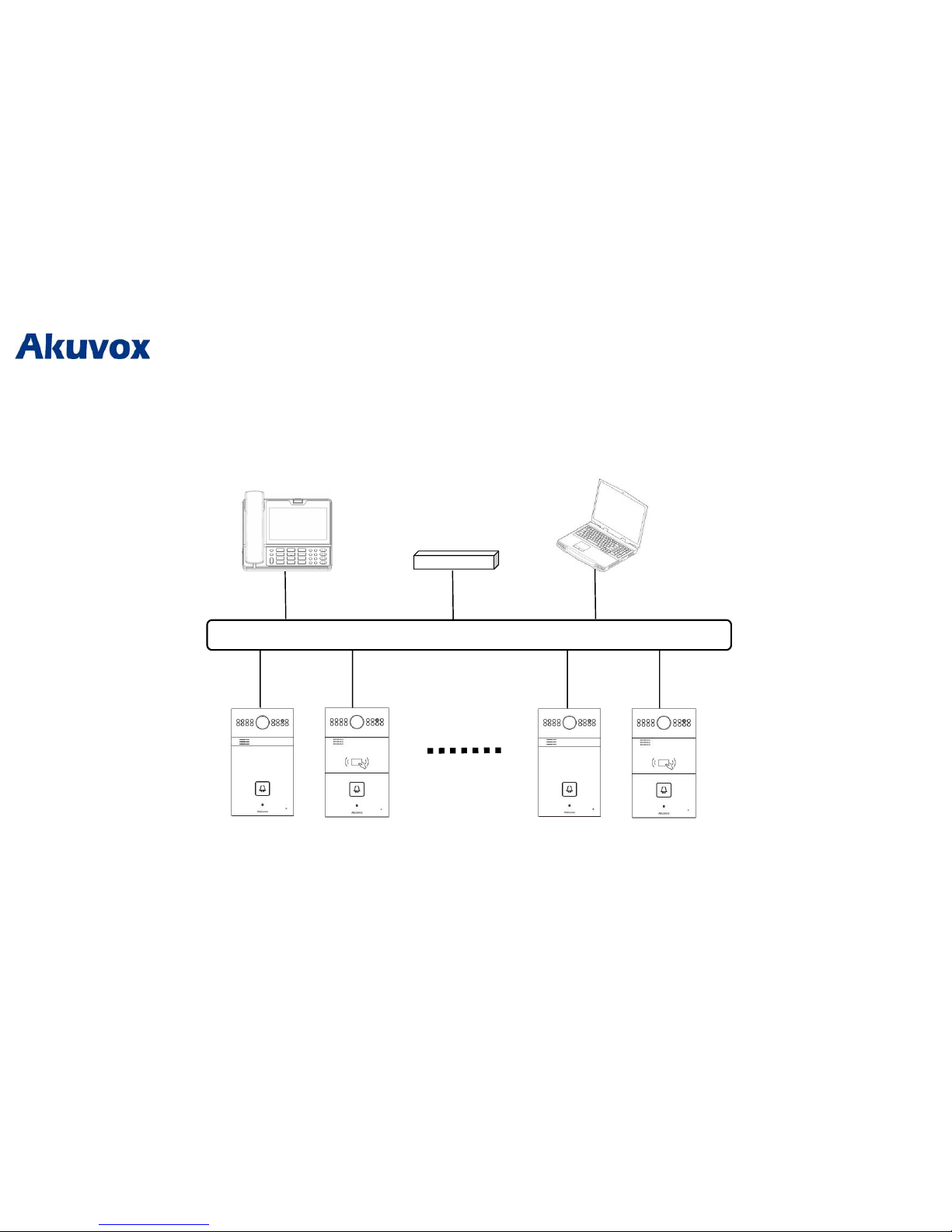

Application Network Topology

Application Network Topology
