Akuvox R20A Manuel utilisateur

Allen wrench x 1

Rotary bracket x 1 ST4x20 screw x 4

Plastic wall anchor x 4

Mainframe Accessories :

Before you begin using the device, please check the version you got and ensure that the following

items are included in the shipped box:

Mark the four holes of the rotary bracket on

the wall.

Use a hand drill with 5mm diameter bit

to make the holes (20 mm in depth) in

the marked positions.

R20A/R20A-2

Torx wrench x1

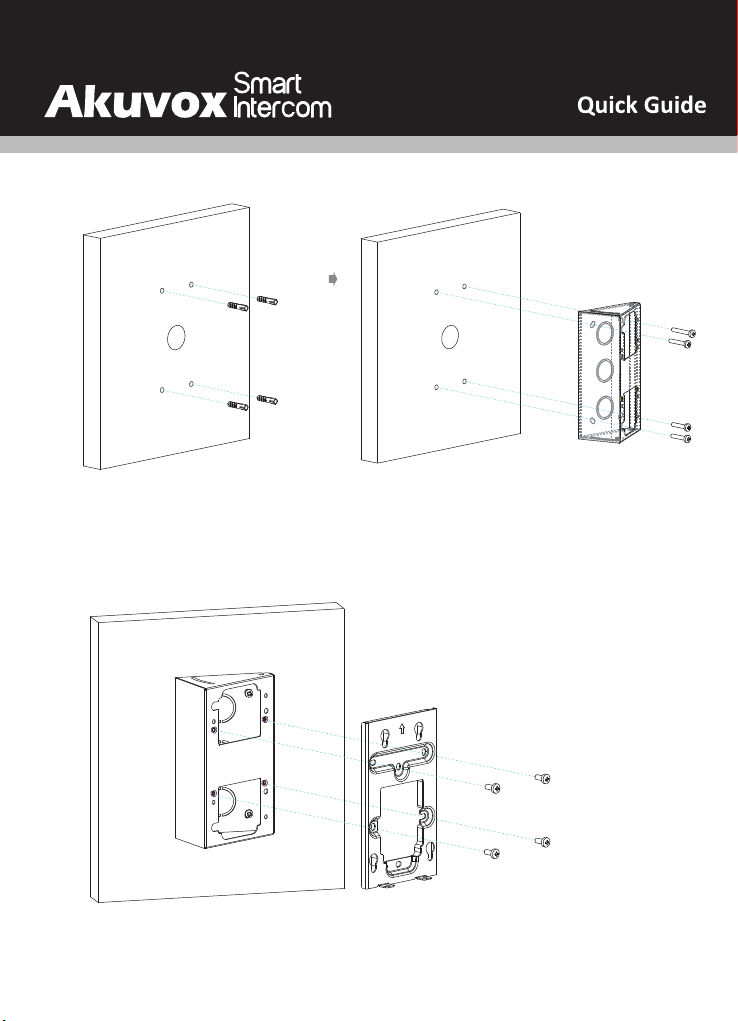

Step1: Rotary Bracket Installaon

M4x10 screw x 4

M3x8 Torx screw x 2

Step2: Wall-mounng Bracket Installaon

Fix the rotary bracket onto the four plastics

wall anchors using four ST4 x20 screws, and

make sure the bracket is square to the wall.

Insert the four plastic wall anchors

into the four drilled holes.

R20A/R20A-2

Fix the the wall-mounting bracket onto the rotary bracket using four M4x10 screws.

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

Notice Information

R20A/R20A-2

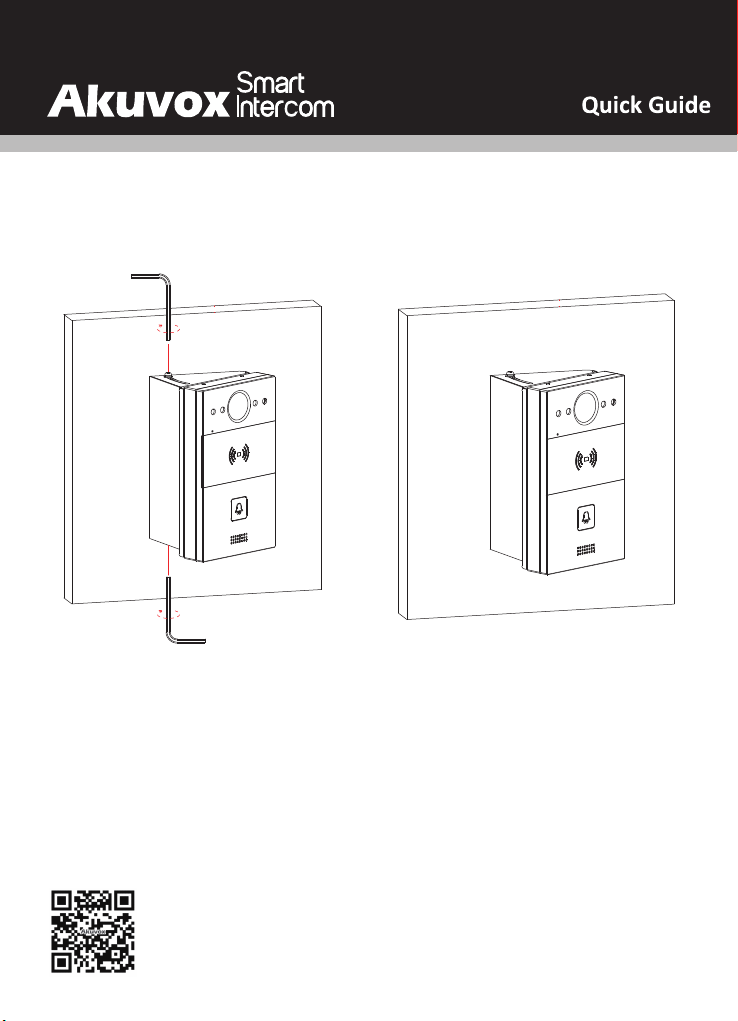

Step3: Rotary Bracket Adjustment

Note: Please refer to R20A or R20A-2 quick guide to install the device back cover and to hang the device

on the wall-mounting bracket.

Fix the M3x8 Torx screws onto the rotary bracket

using the Torx wrench, then tighten the screws at

the appropriate rotary angle.

Installation completed.

Information contained in this document is believed to be accurate and reliable at the time of printing.

This document is subject to change without notice, any update to this document can be viewed on

Akuvox’ s website: http://www.akuvox.com © Copyright 2021 Akuvox Ltd. All rights reserved.
