Akuvox E16 Series Manuel utilisateur
Allen Wrench x 1
A05/E16 x 1
ST4x20 screw x 4
Wall-mounting bracket x 1
Universal Accessories:
Digital Wrist Temperature
Detector x 1
Cable locking plate x 1
Plastic wall anchor x 4
Please make sure the package contains the following items:
Digital Temperature Detector Accessories (Oponal) :
Camera
Photosensitive Sensor
Infrared LED
White Light LED
MIC (For E16 only)
Loudspeaker
RF Card Reader
Back cover x 1
Torx Wrench x 1 Torx Screw x 5
LCD
The bracket for
the device with
temperature
detector
The bracket for
the device with
no temperature
detector
M2.5x6 Screw x 2 Rubber Plug x 3（S,M,L） Diode x 1
M4x30 screw x 2
Digital Forehead Temperature
Detector x 1
E16/A05
M3x10.5 Screw x 2 M3x6 Screw x 2
Installaon
1.1 With embedded one-gang juncon box (86x86 mm or 2x3 inches in size) in the wall
Mark the two positioning
holes of the wall-mounting
bracket on the wall.
Insert two plastic wall
anchors into the two
drilled holes.
Use a hand drill with 5 mm diameter
bit to make two positioning holes
with 25 mm in depth in the marked
positions.
1. Step1: Wall-mounng Bracket Installaon
2
Fix the wall-mounting bracket
with two M4x30 screws and
two ST4x20 screws.
Fix the wall-mounting bracket on
the embedded box with two
M4x30 screws.
Remove the two M4x30 screws
and take off the wall-mounting
bracket.
1.1.1 With 86x86 mm embedded junction box in the wall
1.1.2 With 2x3 inches embedded single-gang box in the Wall
Finish the bracket installation.Fix the wall-mounting bracket on the single-gang
junction box with the two M4x30 screws.
E16/A05
According to the position of the
cable, put the wall-mounting
bracket closely on to the wall
and mark the four positioning
holes, while making sure that
relative positions between
wall-mounting bracket and wire
hole are correct.
Note: The positioning holes
should be marked in the center
of the holes.
Take off the
wall-mounting and
drill the four marked
positioning holes
and the wire holes
using 5 mm hand
drills.
3
Fix the wall-mounting
bracket with four ST4x20
screws.
Insert four plastic wall
anchors into the holes.
2.Step 2: Device Installaon
Lead the wires from the wall-mount bracket and
the detector through the square hole on the back
cover, connecting them to the corresponding
interface of the main board.
Select a suitable size rubber plug to push all the
cables into the back cover. Fix cable locking plate
to the back cover with two M2.5x6 screws.
Fasten the back cover with
four Torx screws using the
Torx wrench attached.
Take out the device along
with the back cover, cable
locking plate, rubber plug
and corresponding screws.
1.2 Without embedded gang box in the wall
2.1 Device Installaon without Digital Forehead or Wrist Temperature Detector
E16/A05
4
Installation is completed.
Hang the device on to the square hanger on the wall mounting bracket,
pull down the device to make it fall completely on to the square hanger
on the wall-mounting bracket, then use the Torx Wrench attached to
tighten the device with the Torx screw.

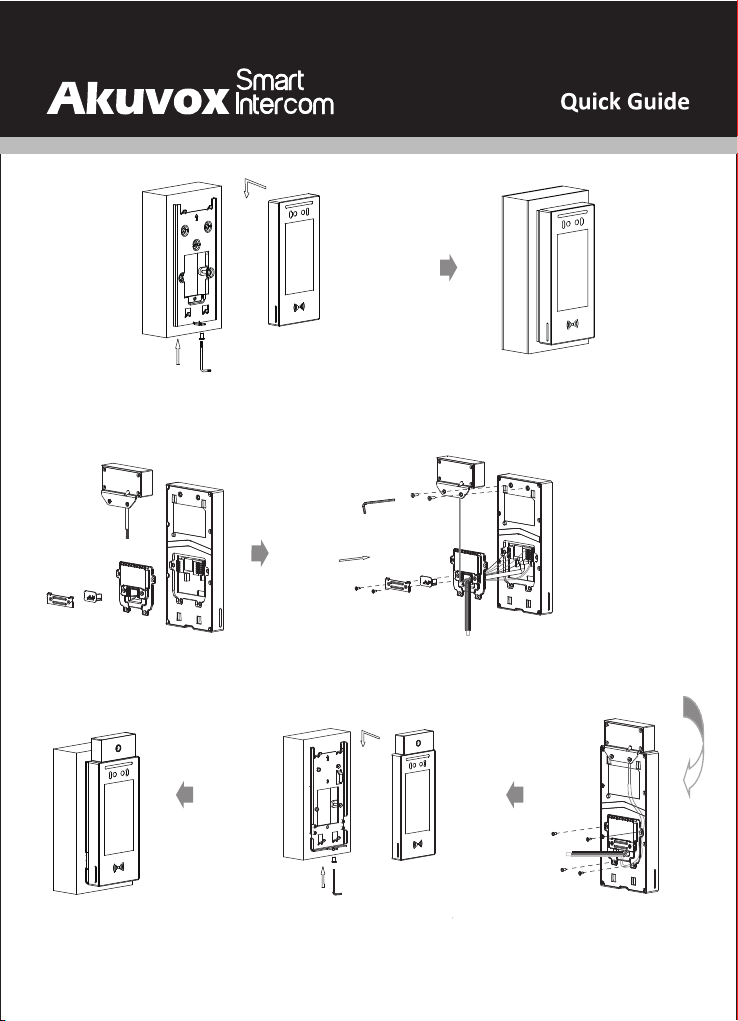

2.2 Device Installaon with Digital Forehead Temperature Detector (Oponal)
Fasten the detector on to the nuts on the device’s rear cover with two M3X10.5
screws using the Allen wrench attached, and lead the wires from the wall-mount
bracket and the detector through the square hole on the back cover, connecting them
to the corresponding interface of the main board. And then select a suitable size
rubber plug to push all the cables into the back cover. Fix the cable locking plate to
the back cover with two M2.5x6 screws.
Hang the device on to the square hanger on the wall mounting
bracket, pull down the device to make it fall completely on to
the square hanger on the wall-mounting bracket, then use the
Torx Wrench attached with to tighten the device with the Torx
screw.
Installation is completed.
Take out the door phone and the
digital forehead temperature
detector and then take out back
cover,cable locking plate,and
rubber plug.
Fasten the back cover with
four Torx screws using the
Torx wrench attached.
E16/A05
5
2.3 Device Installaon with Digital Wrist Temperature Detector (Oponal)
Tighten the detector on to the inner
threaded bolt with two M3x6 screw
using the Allen wrench attached in the
same way on both side.
Fix the two holes of the detector
onto the installation pins on the
wall-bracket either on the left or
right according to your
preference.
Fasten the back cover with four
Torx screws using the Torx
wrench attached.
Take out the device along with
the back cover，cable locking
plate，rubber plug，and
corresponding screws.
Hang the device on to the square hanger on the wall
mounting bracket, pull down the device to make it fall
completely on to the square hanger on the wall-mounting
bracket, then use the Torx wrench attached to tighten the
device with the Torx screws.
Installation is completed.
Lead the wires from the wall-mount bracket and the detector
through the square hole on the back cover, connecting them
to the corresponding interface of the main board. And then
select a suitable size rubber plug to push all the cables into
the back cover. Fix cable locking plate to the back cover with
two M2.5x6 screws.
OR
Wire of detector
E16/A05
6
Device Wiring
When you connect a device containting a
coil, such as a relay or an electromagnetic
lock, it is necessary to protect the
intercom against voltage peak while
switching off the induction load. For this
way of protection we recommend a diode
1 A / 200 V (included in the accessories)
connected antiparallet to the device.
Warning
E16/A05
Applicaon Network Topology
Network Video Recorder
(third party)
SIP Video Phone
LAN
PoE PoE PoE PoE
PC(third party)
PoE PoE
Indoor Monitor
E16 E16 A05 A05
7
Configuraon
1.IP address Checking: Long press any where on the initial screen for approximately five
minutes to go to project PIN screen where you enter the default PIN “admin” and press
Confirm tab to go to Setting screen where you press Info icon to check for the device IP
address. ( for E16 series door phone only)
2.Account Registration:On the web interface, go to the path Account -> Basic page to
register and fill in the account information. (please refer to user manual for more
information)
3.DTMF code configuration: On the web interface, go the path: Access Control->relay to set
up the DTMF code in the corresponding area.
E16/A05
8
AKUVOX (XIAMEN) NETWORKS CO., LTD.
ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA
www.akuvox.com
Notice Information
Akuvox E16/A05 firmware contains third-party open source software under the terms of the GNU General Public
License(GPL). Akuvox is committed to meeting the requirements of the GNU General Public License (GPL) and will
make all required source code available.
The source code of software under the terms of GNU GPL can be downloaded online: http://www.akuvox.com/gpl.
Information contained in this document is believed to be accurate and reliable at the time of printing. This
document is subject to change without notice, any update to this document can be viewed on Akuvox’s website:
http://www.akuvox.com © Copyright 2020 Akuvox Ltd. All rights reserved.
E16/A05
Operaon
Make a call:
Enter the IP or SIP number and press Dial key to make a call
Receive a call:
E16/A05 supports Auto Answer by default. Incoming call from indoor device will be
answered automatically.
Unlock by DTMF:
During the call, press the corresponding DTMF code from the answer unit to unlock
E16/A05 remotely.
Unlock by RF Card：
Place the predefined RF card in the RF reader area to open the door.
