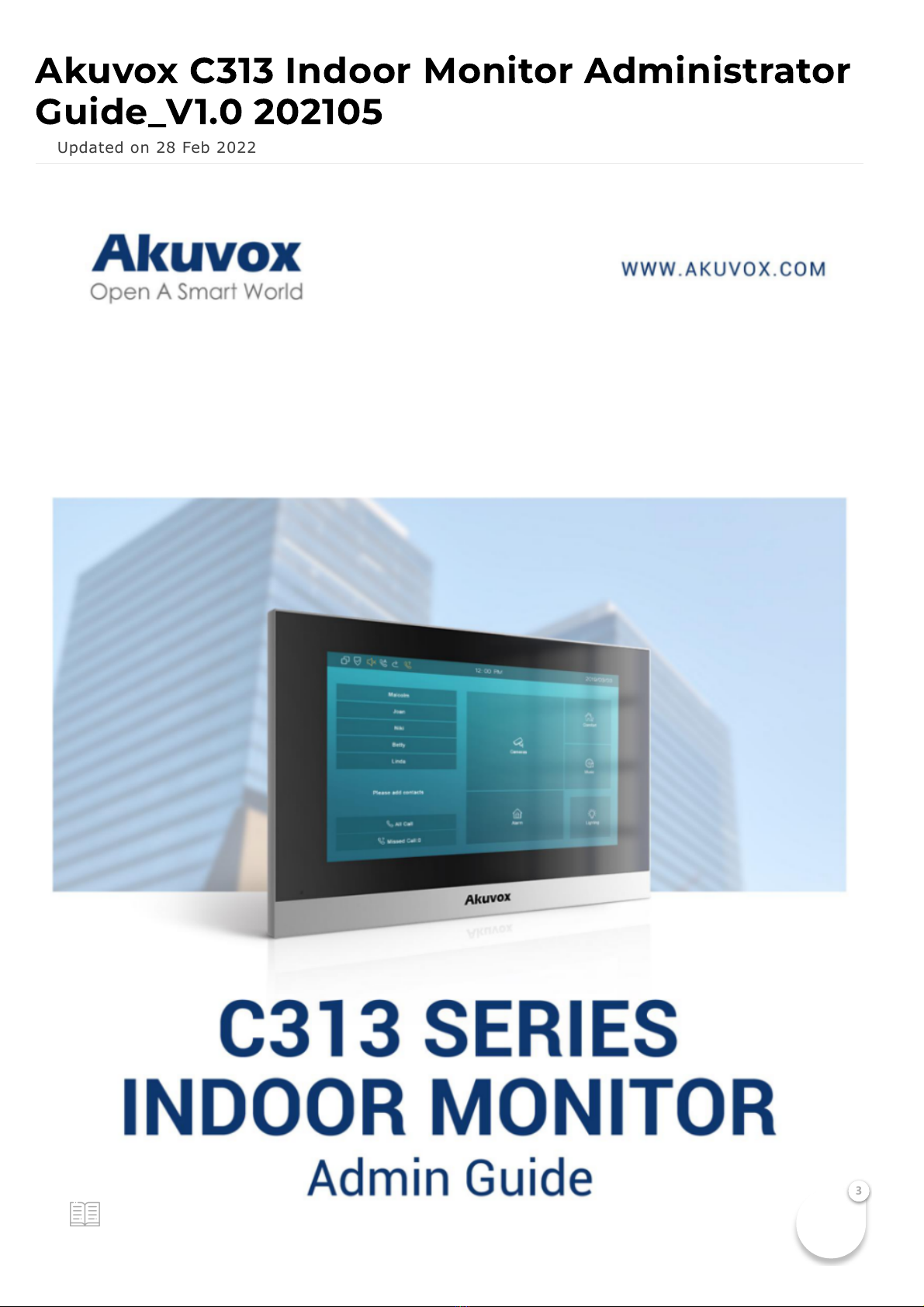

Akuvox C313 Series Manuel de service

AkuvoxC313IndoorMonitorAdministrator

Guide_V1.0 202105

Updated on 28 Feb 2022



Version: 1.0 | Date: Feb.2021

About This Manual

Thank you for choosing the Akuvox C313 series indoor monitor. This manual is

intended for the administrators who need to properly configure the indoor monitor.

This manual applies to the 113.30.6.49 version, and it provides all the configurations

for the functions and features of the C313 series indoor monitor. Please visit the

Akuvox website or consult technical support for any new information or the latest

firmware.

Introduction of Icons and Symbols

Warning:

Always abide by this information in order to prevent the

persons from injury.

Caution:

Always abide by this information in order to prevent the

damages to the device.

Note:

Informative information and advice from the efficient use of

the device.



Related Documentation

You are advised to refer to the related documents for more technical information via

the link below:

https://knowledge.akuvox.com/ (https://knowledge.akuvox.com/v1/en)

1.Product Overview

It can be connected with the Akuvox door phone for audio/video communication,

unlocking, and monitoring. Residents can communicate with visitors via audio/video

call, and it supports unlocking the door remotely. It is more convenient and safer for

residents to check the visitor’s identity through its video preview function. C313

series are often applied to scenarios such as villas, apartments, and buildings.

2.Change Log

The change log will be updated here along with the changes in the new software

version.

3.Model Difference

Model C313W C313S C313N

Feature

OS Linux

Display 7 inch (176 mm) diagonal



Resolution 800*480

Wi-Fi IEEE802.11

b/g/n,

@2.4GHz

X X

Ethernet 2xRJ45, 10/100Mbps

adaptive

1xRJ45,

10/100Mbps

adaptive

PowerSupply 12V DC connector 12V DC

connector

POE 802.3af Power-over-Ethernet

AlarmInput 8

RelayOutput 1

Installation Wallmounting

Operation

Temperature

0°C ~ +45°C

Operation

Humidity

10~90%

Dimensions

(WxHxD)

200*132*17.5mm

4.Introduction to Configuration Menu

Status: This section gives you basic information such as product information,

Network Information, and account information, etc.

Account: This section concerns SIP account, SIP server, proxy server, transport

protocol type, audio&video codec, DTMF, session timer, etc.

Network: This section mainly deals with DHCP&Static IP setting, RTP port setting,

and device deployment, etc.

Phone: This section includes Time&language, call feature, dial management, data

import&export, door log, web relay.

Contacts: This section allows the user to configure the local contact list store in the

device.

Upgrade: This section covers Firmware upgrade, device reset&reboot, configuration

file auto-provisioning, PCAP.

Security: This section is for password modification, account status & session time

out configuration, as well as service location switching.

Settings: This section is including the RTSPD & voice assistance setup.

Arming: This section covers the configuration including, arming zone setting, arming

mode, disarm code, and alarm action.

Mode selection:

Discovery mode: It is a plug and play configuration mode. Akuvox devices will

configure themselves automatically when users power on the devices and connect

them to the network. It is super time-saving mode and it will greatly bring users

convenience by reducing manual operations. This mode requires no prior

configurations previously by the administrator.

Cloud mode: Akuvox SmartPlus is an all-in-one management system. Akuvox Cloud

is the mobile service that allows audio, video, remote access control between

smartphones and Akuvox intercoms. All configurations in the device will be issued

automatically from the cloud. If users decide to use Akuvox SmartPlus, please

contact Akuvox technical support, and they will help you configure the related

settings before using them.

SDMC mode: SDMC (SIP Device Management Controller) is a simple and

comprehensive software for building management. It provides a topography for a

community while offering you a graphical configuration interface for the door access,

intercom, monitoring, alarm, etc. It is a convenient tool for property managers to

manage, operate, and maintain the community.

Tool selection

Akuvox has many configuration tools for you to set up devices more conveniently.

Here we list some common tools, please contact your administrator to get the tool if

you need them.

1. SDMC: SDMC is suitable for the management of Akuvox devices in large

communities, including access control, resident information, remote

device control, etc.

2. Akuvox Upgrade tool: upgrade Akuvox devices in batch on a LAN

(Local Area Network)

3. Akuvox PC Manager: distribute all configuration items in batch on a

LAN.

4. IP scanner: it is used to search Akuvox device IP addresses on a LAN.

5. FacePro: manage face data in batch for the door phone on a LAN.

5. Access the Device

Akuvox indoor monitor system settings can be either accessed on the device directly

or on the device web interface.

5.1. Device Start-up etwork Selection

Akuvox indoor monitor system settings can be either accessed on the device directly

or on the device's web interface. After the device boots up initially, you are required

to select the network connection for the device. You can either select ethernet or

wireless network connection according to your need.

5.2. Device Home Screen Type Selection

Akuvox indoor monitor supports two different home screen display mode- Call list

Mode, Nine Square Mode. To configure home page mode on the device web Phone-

>Key/Display, choose one suitable mode for your scenarios.

5.3. Accessing the Device Setting on the Device

5.3.1. Accessing Device Basic Setting.

Note:

Please refer to the chapter on Network Setting for the

configuration of the Ethernet and wireless network connection.

You can access the device's basic setting and advance setting where you can

configure different types of functions as needed. To access the device basic setting

by pressing More > Settings.

5.3.2. Accessing Device Advanced Setting

To access the advanced setting, press Setting then press Advance icon. Press

password 123456 (by default) to enter the advanced setting.

5.4. Access the Device Setting on the Web

Interface

You can also enter the device IP address on the web browser in order to log in the

device web interface by user name and password admin/admin where you can

configure and adjust parameter etc.

Note:

6. Language and Time Setting

6.1. Language Setting

When you first set up the device, you might need to set the language for your need

or you can do it later if needed. And the language can either be set up directly on the

device or on the device web interface according to your preference.

6.1.1. Language Setting on the Device

Language setting can be configured on the device and on the device web interface

that allows you to select or change the language for screen display to your

preference. To configure the language display on the device Setting > Language

screen.

You can also obtain the device IP address using the Akuvox IP

scanner to log in to the device web interface. Please refer to the URL

below for the IP scanner application instruction:

(https://knowledge.akuvox.com//v1/docs/akuvox-ip-

scanner)https://knowledge.akuvox.com/docs/how-to-obtain-ip-address-via-

ip-scanner-1 (https://knowledge.akuvox.com/docs/how-to-obtain-ip-address-via-

ip-scanner-1)

Google Chrome browser is strongly recommended.

The Initial user's name and password are “admin” and please be

case-sensitive to the user names and passwords entered.

6.1.2. Language Setting on the Web Interface.

To configure the language display on the device web Phone > Time/Lang interface.

You can either setup the device display language or device web interface language

on device web.

6.2. Time Setting

Time setting can be set up on the device and on the device web interface in terms of

time zone, date and time format, etc.

6.2.1. Time Setting on the Device
