AIS Suspended Storage Manuel utilisateur
Suspended Storage
www.ais-inc.com 1
C-CSSINSTALL Revision 03.01.2019
ConditionA:
•Oxygen 30D surfaces
•Aloft 2018 24D surfaces
•Day to Day 24D surfaces
Condition B:
•Oxygen 24D surfaces
•Aloft 2018 30D surfaces
•Aloft 2019 30D surfaces
•Day to Day 30D surfaces
Condition C:
•Aloft 2019 24D surfaces

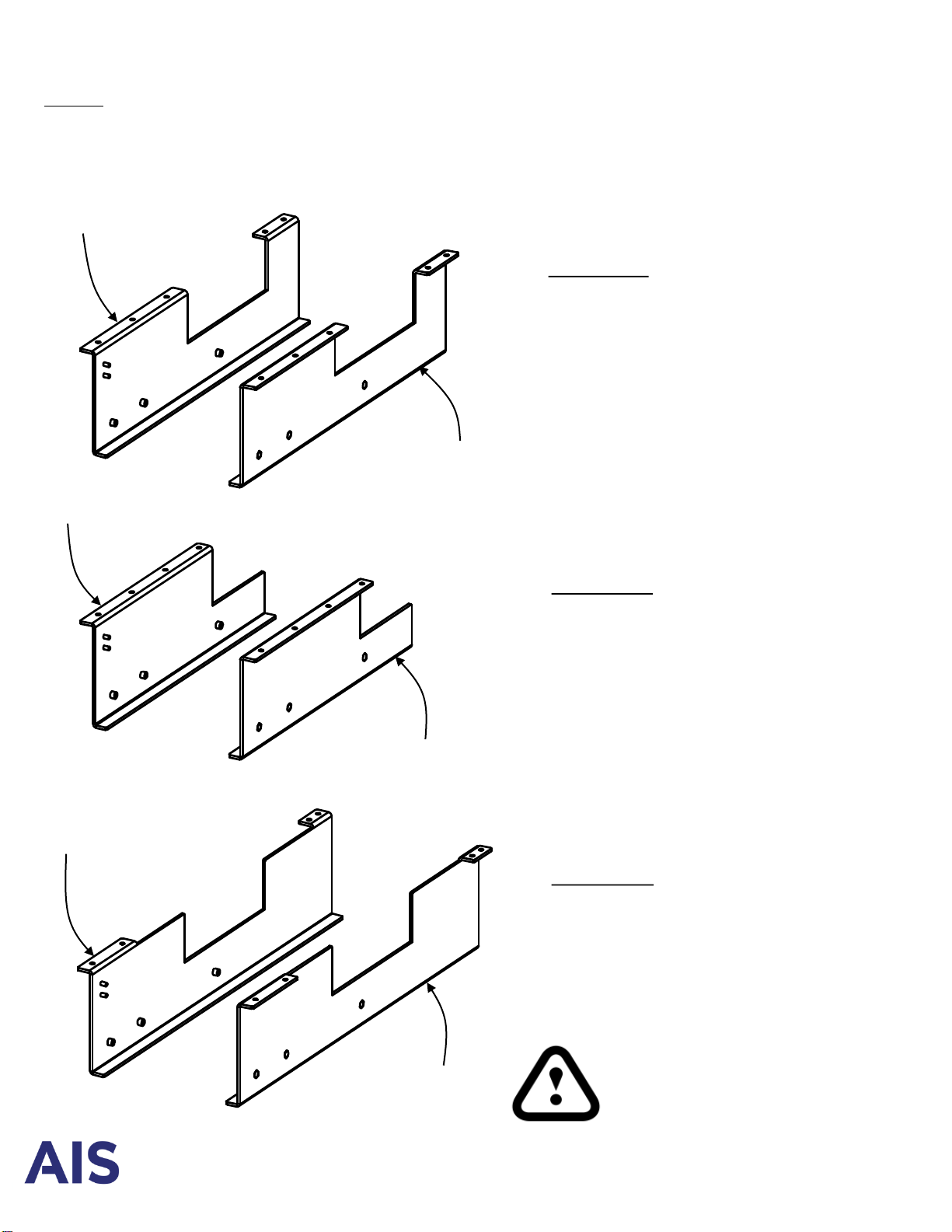

Step 1:
Determine the correct Storage Support Brackets for your application.
The following pages use
Condition B as the example.
ConditionsA and C assemble in
the same manner.
RP-SUBCAL
RP-SUBCAR
RP-SUBCBL
RP-SUBCBR
RP-SUBCCL
RP-SUBCCR
Suspended Storage
www.ais-inc.com 2
C-CSSINSTALL Revision 03.01.2019

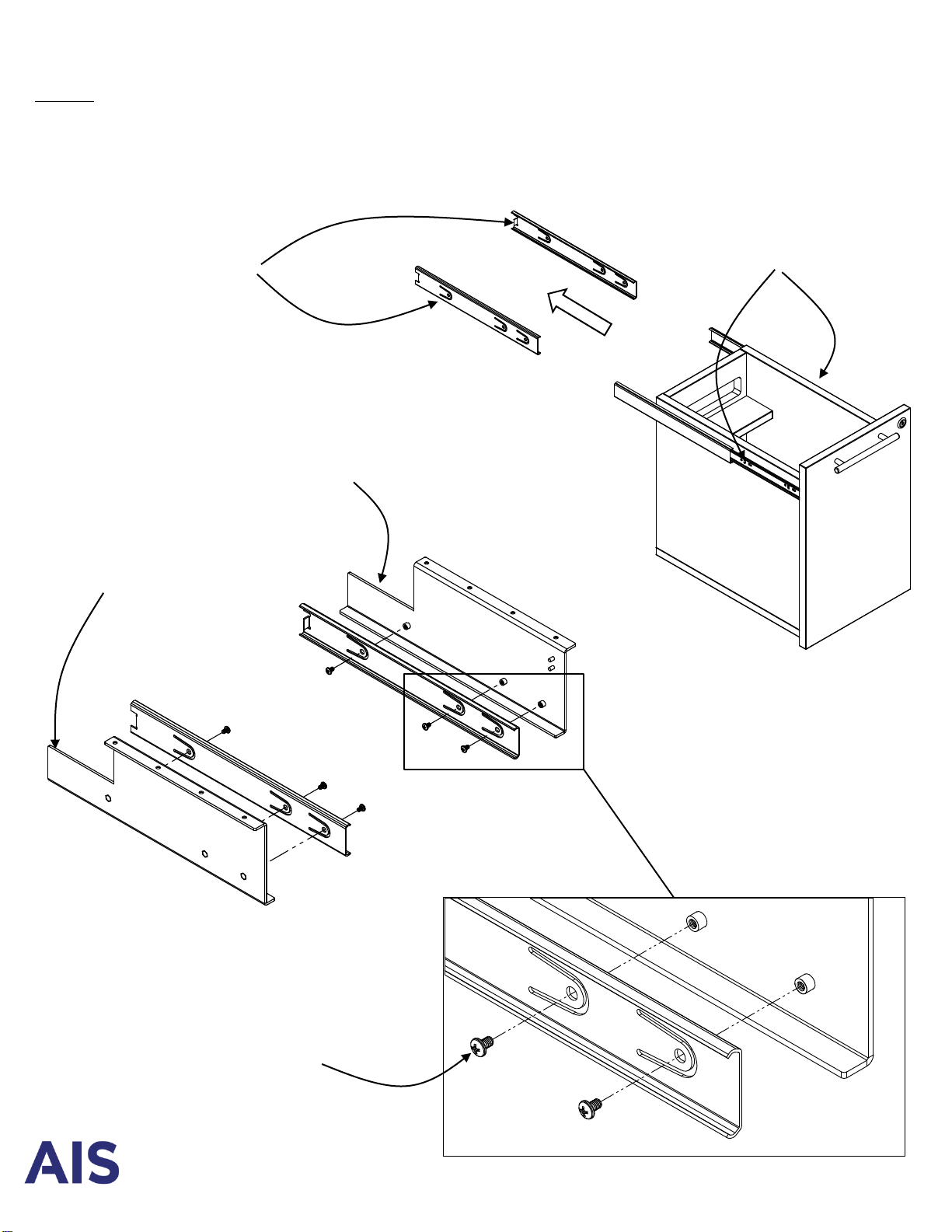

Step 2:
Remove rear slide rails from the storage unit and attach to the
Suspended Storage Support Brackets using #8-32 x ¼” pan
head screws.
Support Bracket Left
Support Bracket Right
Rear Slide Rails
#8-32 x ¼” long
Pan Head Machine Screw
Philips drive #2
6 places
RH-90272A190
To remove rail:
Push / Pull Lever
located each side
Suspended Storage
www.ais-inc.com 3
C-CSSINSTALL Revision 03.01.2019
Lock Bracket
RC-SULB

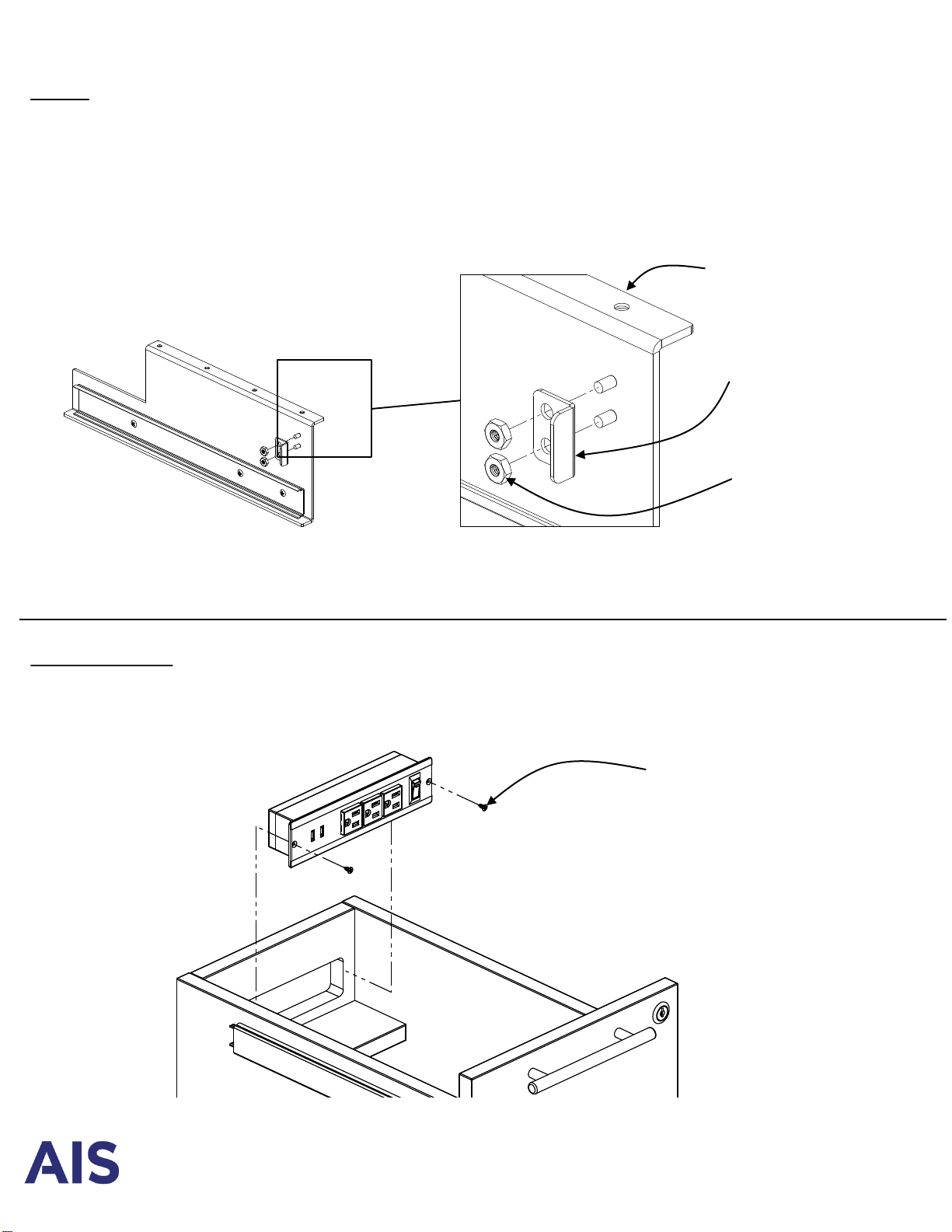

Step 3:
Install Lock Bracket to Right Support Bracket using 8-32 Hex Nut.
8-32 Hex Nut
2 places
RS-HNZF832B
Right Support Bracket
Step 4 (optional):
Install power unit using (2) #6 x 3/8” long screw.
#6 x 3/8” long
Flat Head Sheet Metal Screw
Philips drive #2
2 places
RH-WSZFP638B
Suspended Storage
www.ais-inc.com 4
C-CSSINSTALL Revision 03.01.2019

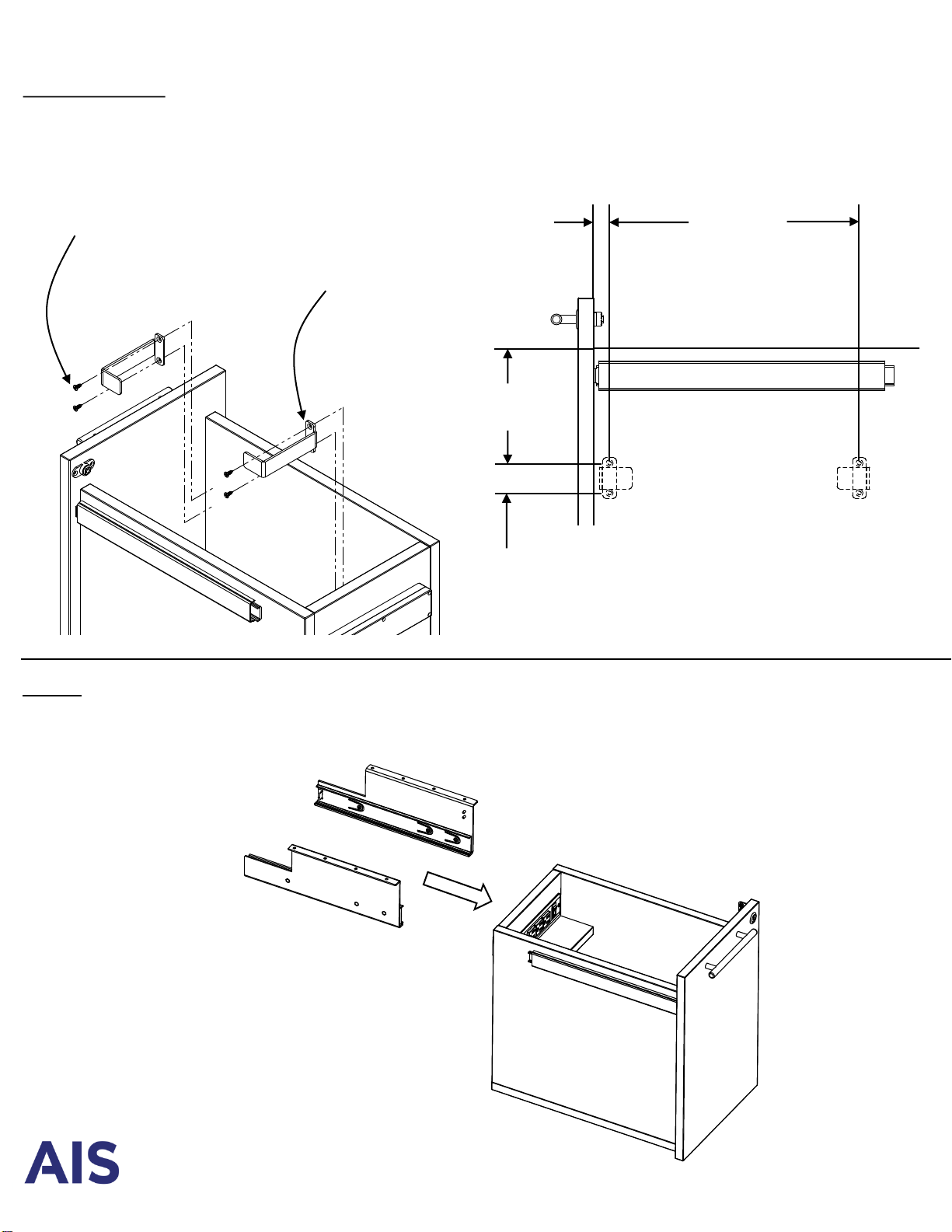

Step 5 (optional):
Install hanging folder brackets using (4) #8 x 1/2” long screw.
11 9/16”
3/4”
5 3/8”
1 3/8”
#8 x 1/2” long
Flat Head Sheet Metal Screw
Philips drive #2
4 places
RH-90048A194 Hanging Folder
Bracket
2 places
RC-SUPFB
Step 6:
Re-install both slide rails to storage unit, making sure to push all the way forward to engage.
Suspended Storage
www.ais-inc.com 5
C-CSSINSTALL Revision 03.01.2019

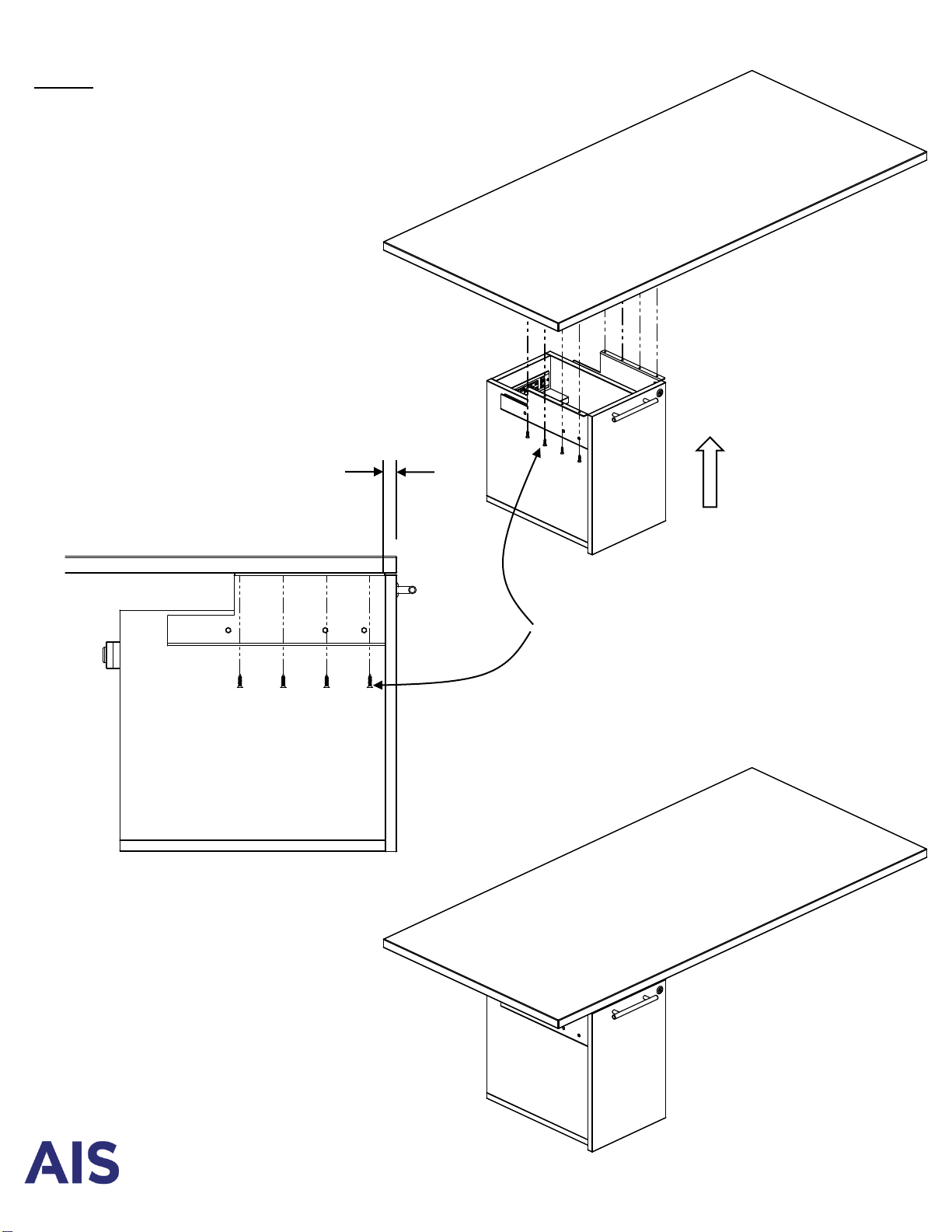

Step 7:
Attach storage unit to worksurface using #9 x 7/8” screws.
3/4”
Flat head wood screw
#9 x 7/8 long with #2
Phillips drive, silver
RH-QS0978
