AIS Laminate End Panel Tables Manuel utilisateur
12345

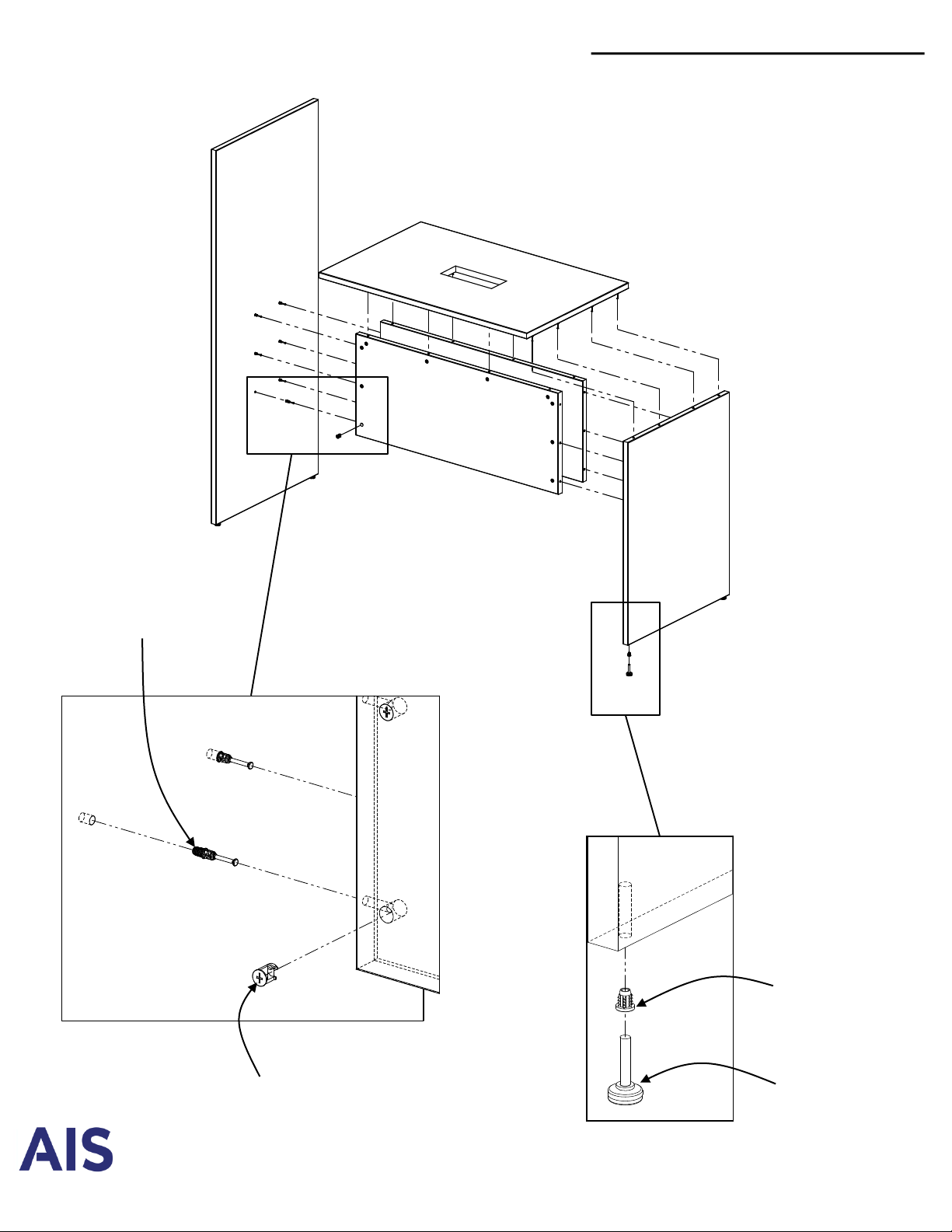

Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 1
(with Monitor Extension)
C-INSTALEPTABLE Rev 04.22.2019
Cam Bushing
RH-9056601
Anchor Pin
RH-DU325
Glide
RWFS-GL51618
Glide Insert
RWFS-IN51618B
12345

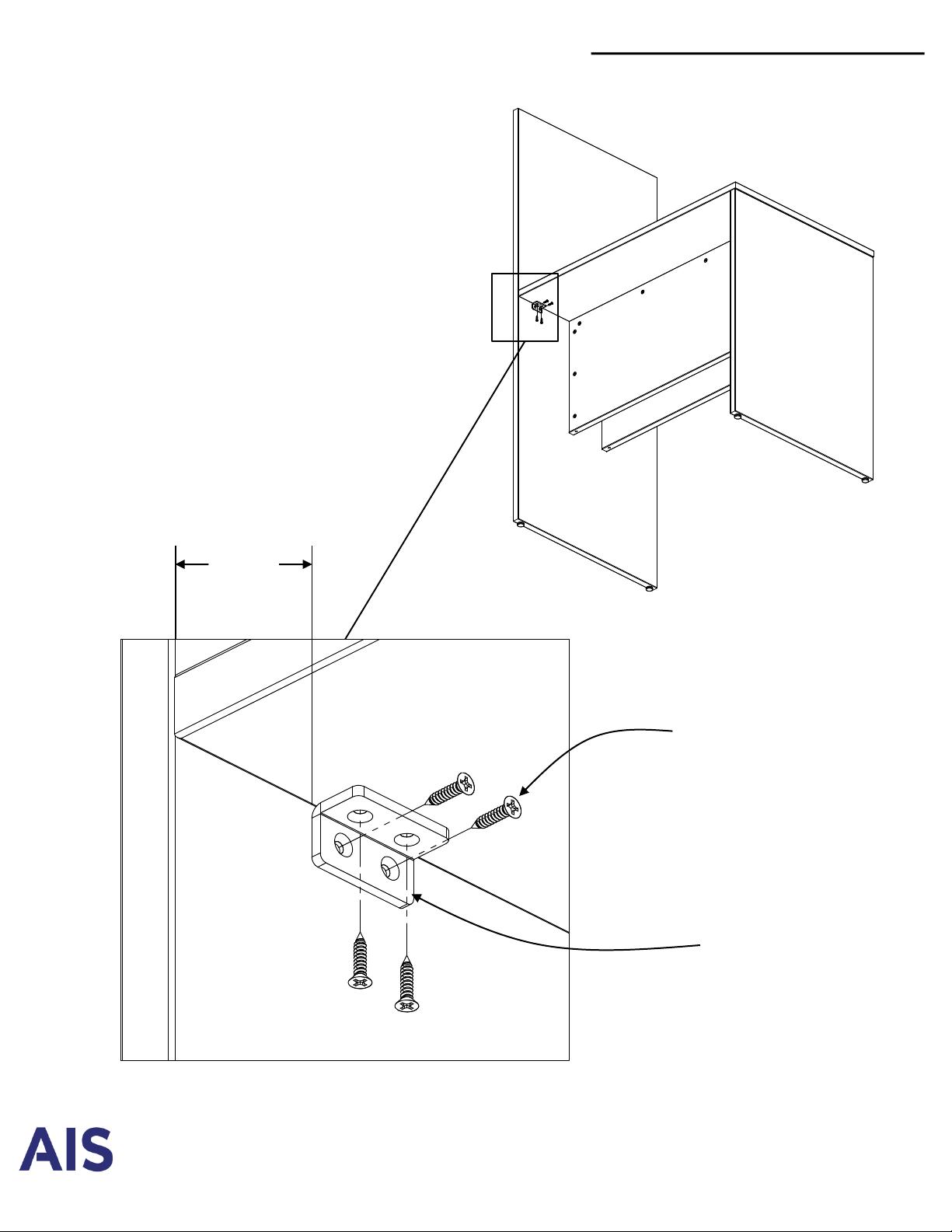

Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 2
(with Monitor Extension)
C-INSTALEPTABLE Rev 04.22.2019
L –Bracket
2 Places
3”
Flat head wood screw
#9 x 7/8 long
#2 Phillips drive
RH-QS0978
4 places per bracket
12345

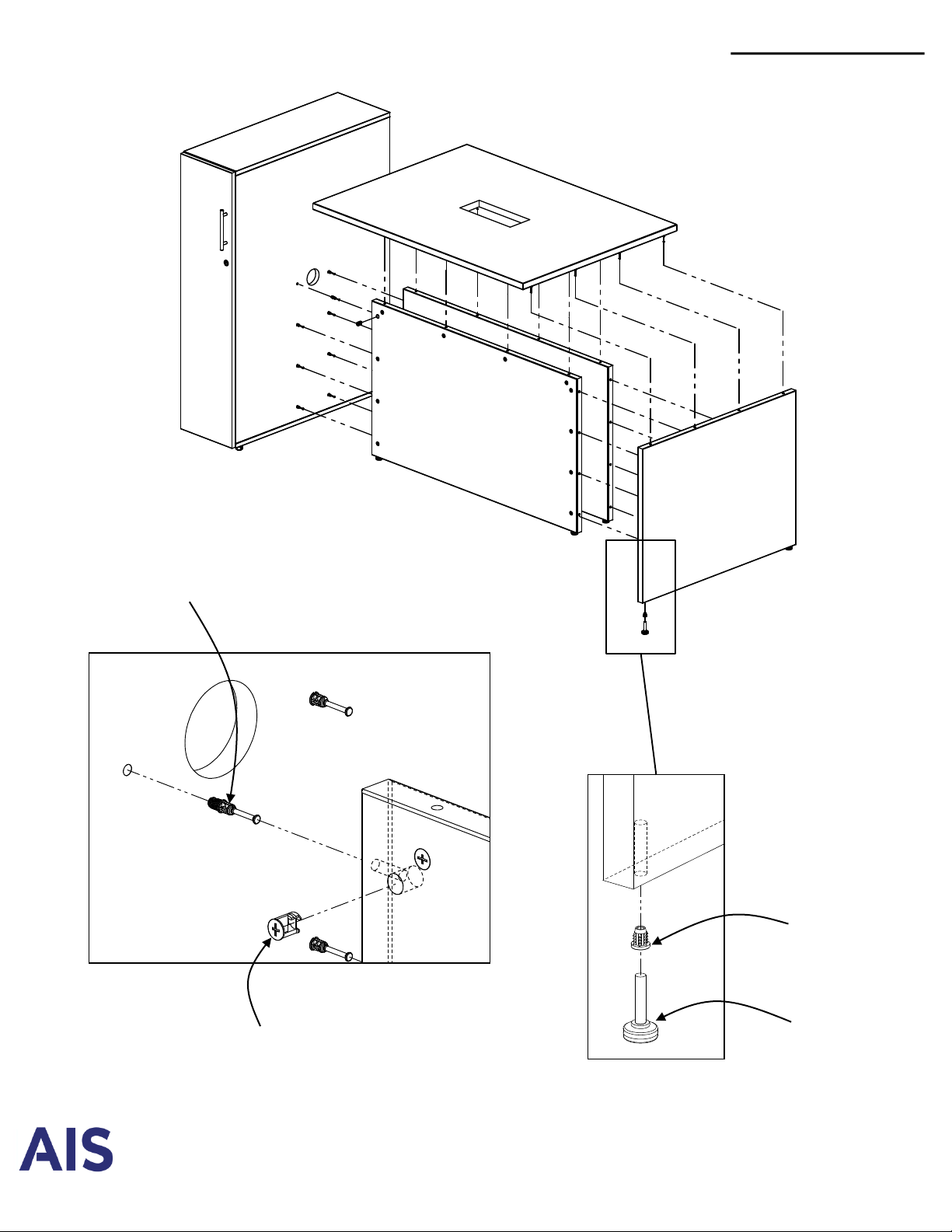

Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 3
(with Lockers)
C-INSTALEPTABLE Rev 04.22.2019
Glide
RWFS-GL51618
Glide Insert
RWFS-IN51618B
Cam Bushing
RH-9056601
Anchor Pin
RH-DU325
12345

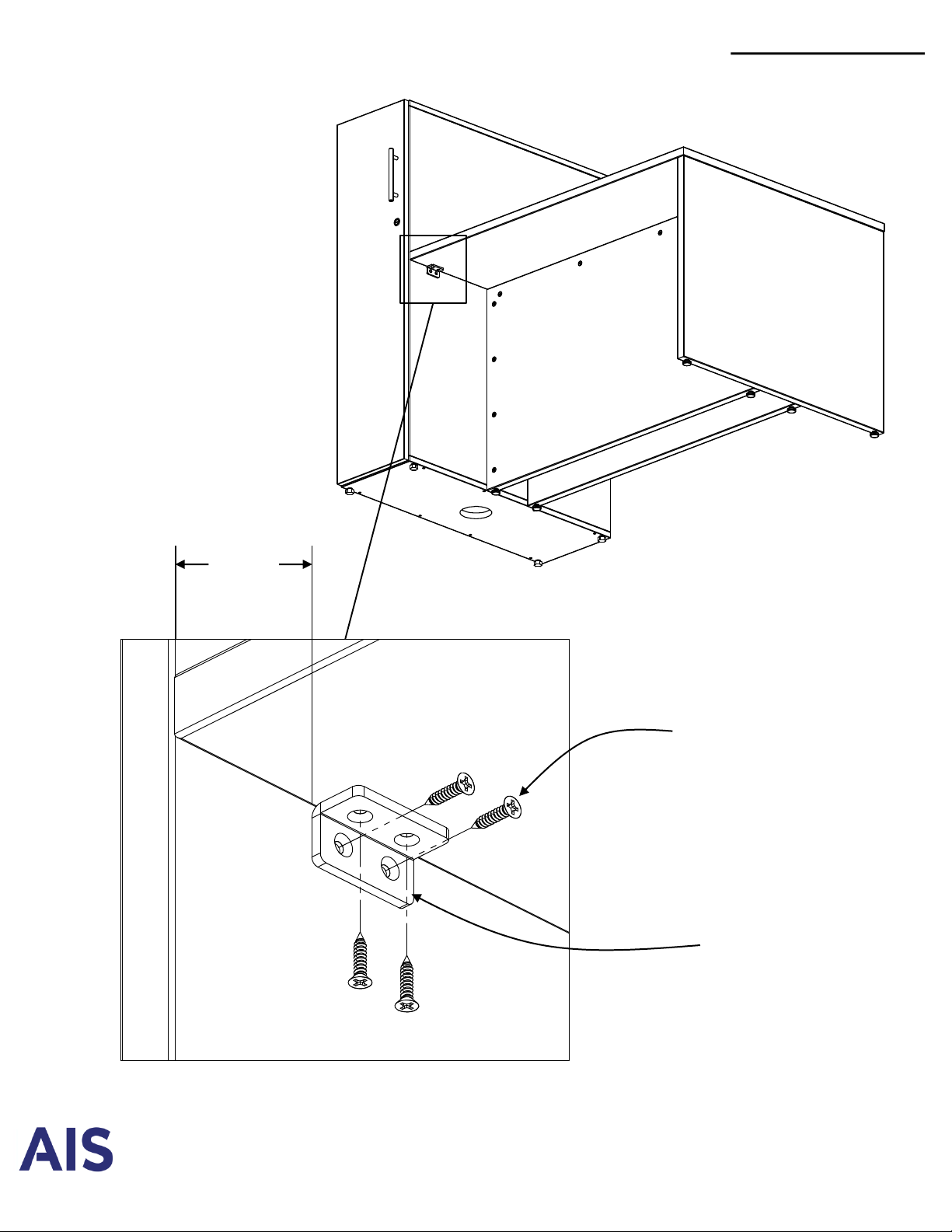

Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 4
(with Lockers)
C-INSTALEPTABLE Rev 04.22.2019
L –Bracket
2 Places
3”
Flat head wood screw
#9 x 7/8 long
#2 Phillips drive
RH-QS0978
4 places per bracket
12345

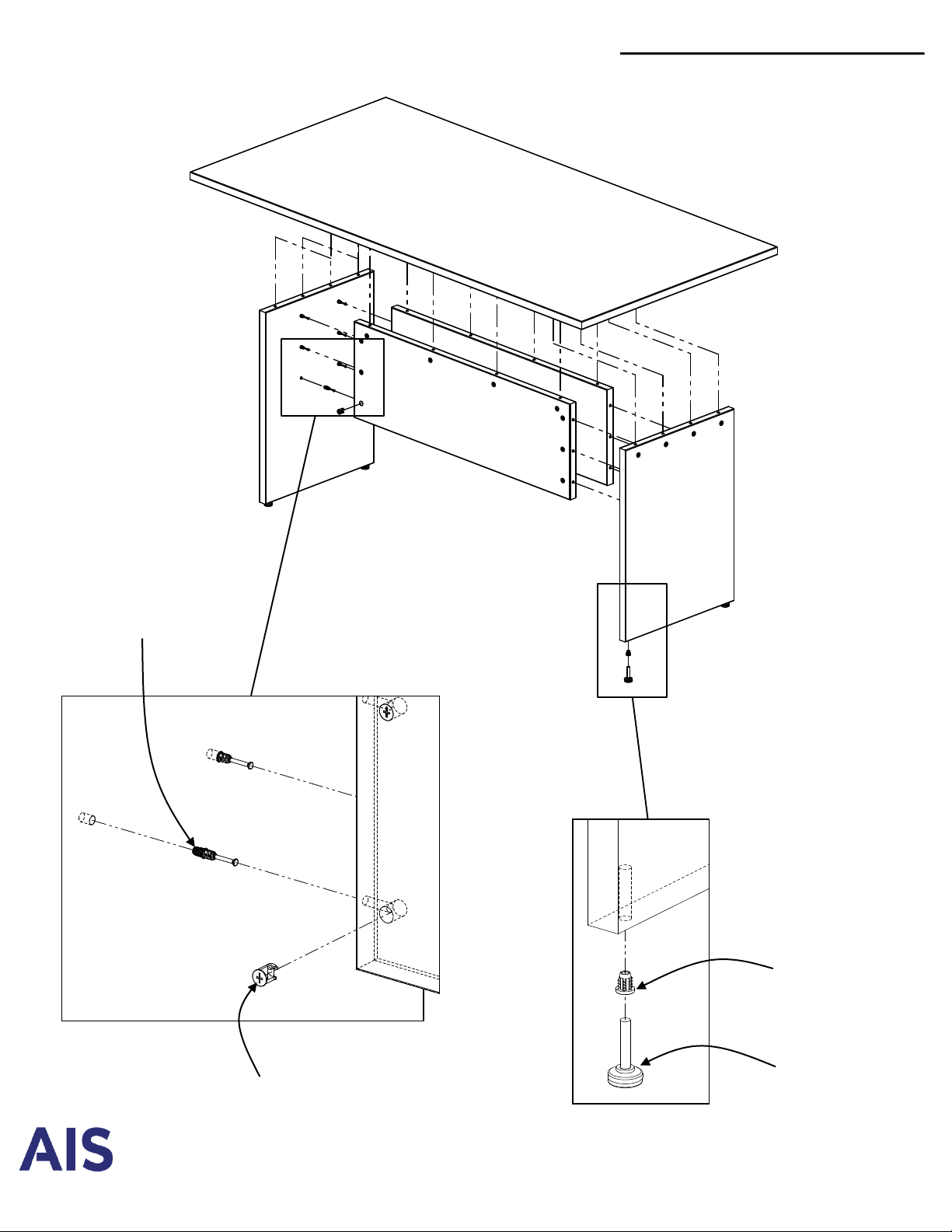

Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 5
(Recessed and Flush)
C-INSTALEPTABLE Rev 04.22.2019
Glide
RWFS-GL51618
Glide Insert
RWFS-IN51618B
Cam Bushing
RH-9056601
Anchor Pin
RH-DU325
12345
Laminate End Panel Tables
www.ais-inc.comwww.ais-inc.com 6

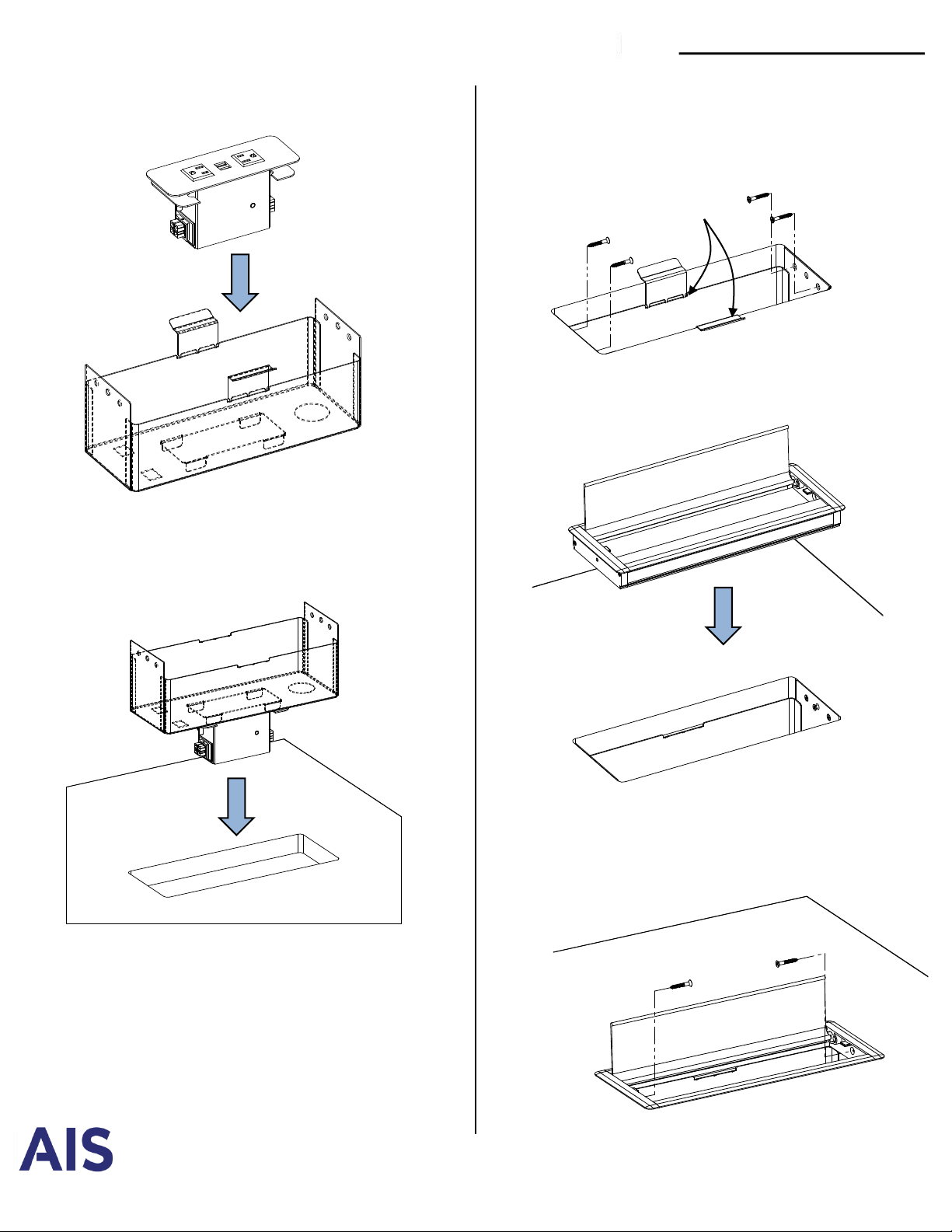

Power Installation
C-INSTALEPTABLE Rev 04.22.2019
1. Install the Power Unit into the Box.
2. Install the Box into the worksurface.
3a. Secure the Box to the worksurface using
(4) #6 x 1” long flat head wood screw.
3b. Break off tabs off of box.
4. Install Cover.
Break tabs
5. Secure Cover using (2) #6 x 1” long
flat head wood screws
