Airwell RCW11 Instructions d'installation

IMPORTANT NOTE:

Read this manual carefully before

installing or operating your wired

remote controller. Make sure to save

this manual for future reference.

RCW11 - WIRED REMOTE CONTROLLER

Installation and Owner’s Manual

COMPATIBLE FOR DDM, CDM, FDM

RCW11-20190318-Rev1.1

●This manual gives detailed description of the precautions that should

be brought to your attention during operation.

●To ensure the correct service of the wired controller, read this manual

carefully before using the unit.

●Keep this manual after reading for future reference.

CONTENTS

1. SAFETY PRECAUTION.................................................................................................... 1

2. INSTALLATION ACCESSORY..........................................................................................2

3. INSTALLATION METHOD...............................................................................................4

5. SPECIFICATION..............................................................................................................16

6.WIRED CONTROLLER FEATURES AND FUNCTIONS...........................................17

7.WIRED CONTROLLER DISPLAY..................................................................................18

8.WIRED CONTROLLER BUTTONS...............................................................................19

9. PREPARATORY OPERATION.......................................................................................20

10. OPERATION...................................................................................................................21

11.TIMER FUNCTIONS.....................................................................................................27

12.WEEKLY TIMER.............................................................................................................30

13. SET EXTERNAL STATIC PRESSURE................................................................37

14. FAULT ALARM HANDING.........................................................................................38

15.TECHNICAL INDICATION AND REQUIREMENT .................................................38

 Read the safety precautions carefully before installing the unit.

 Stated below are important safety issues that must be obeyed.

Means improper handling may lead to personal death or severe injury.

Means improper handling may lead to personal injury or property loss.

WARNING

CAUTION

Please entrust the distributor or professionals to install the unit.

Installation by other persons may lead to imperfect installation, electric shock or fire.

Adhere to this installation manual.

Imporper installation may lead to electric shock or fire.

Reinstallation must be performed by professionals.

WARNING

Do not install the unit in a place vulnerable to leakage of flammable gases.Once

flammable gases are leaked and left around the wire controller, fire may occure.

Do not operate with wet hands or let water enter the wire controller. Otherwise,

electric shock may occur.

The wiring should adapt to the wire controller current. Otherwise, electric leakage or

heating may occur and result in fire.

The specified cables shall be applied in the wiring.No external force may be applied

to the terminal. Otherwise, wire cut and heating may occur and result in fire.

NOTE

Do not uninstall the unit randomly.

Random uninstalling may lead to abnormal operation, heating or fire of the air condition.

1. SAFETY PRECAUTION

2. INSTALLATION ACCESSORY

Don’t install at the place where cover with heavy oil, vapor or sulfureted

gas, otherwise, this product would be deformed that would lead to

system malfunction.

Select the installation location

Preparation before installation

1. Please confirm that all the following parts you have been supply.

2. Prepare the following assemblies on the site.

M4X20 (For Mounting on the Wall)

M4X25 (For Mounting on switch box)

No. Name Qty. Remarks

Wire controller

Installation and owner’s manual

For Mounting on the Wall

Switch box

Wiring Tube(Insulating

Sleeve and Tightening

Screw)

Qty.(embeded

into wall)

Plastic screw bars

Screws

Wall plugs

For fixing on switch box

(Optional)

No. Name Remarks

Specification

(only for reference)

Screws

Battery

The connection cable

2. INSTALLATION ACCESSORY

WIRED CONTROLLER INSTALLATION PRECAUTION

1. This manual provides the wired controller installation method. Refer

to the wiring diagram in this installation manual to wire the wired

controller with the indoor unit.

2. The wired controller works in a low voltage loop circuit. Do not

connect directly to 208/230V and 460V. Do not wire this kind of wire

into a loop. Wiring clearance between the configured tubes should

range 11.81−19.69 inches (30−50 cm) or above.

3. The shielded wire of the wired controller must be properly grounded.

4. Upon finish the wire controller connection, do not employed

tramegger to detect the insulation.

3. INSTALLATION METHOD

Fig 3-1

1.Wired Remote Controller Dimensions

123mm

(4.8”)

120mm

(4.7”) 18.5mm

(0.7”)

83.5mm

(3.3”)

46mm

(1.8”)

62mm

(2.4”)

Fig 3-2

2.Wiring Connection Diagram

red

black

yellow

brown

red

black

yellow

brown

Insert of the

mainboard CN40

Wire controller Indoor unit mainboard

4-Core Shield Cable, the length

is decided by installation

-----------------------------------

3. INSTALLATION METHOD

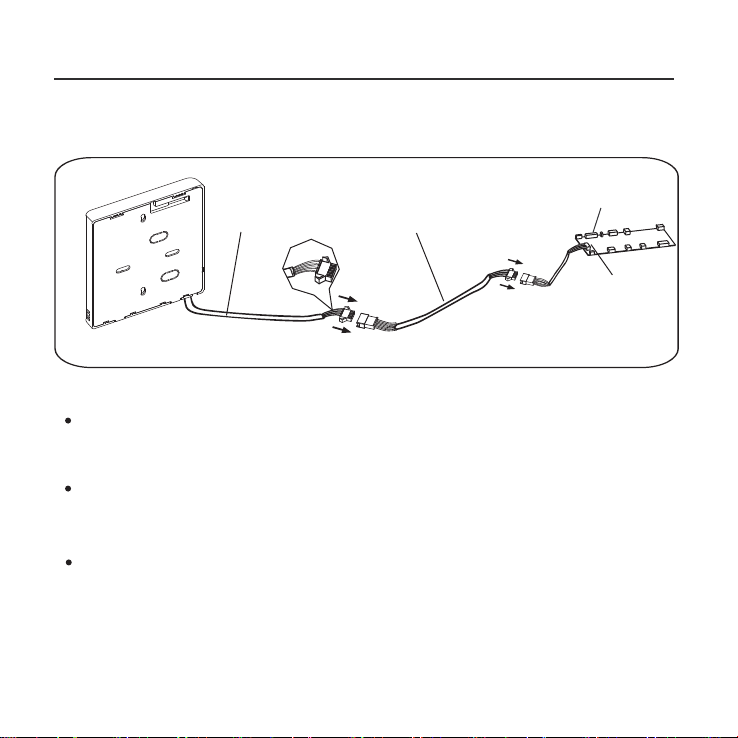

Connect the female joint of the wires group from the mainboard

with the male joint of the connective wires group. (See Fig.3-3)

Connect the other side of the connective wires group with the male

joint of the wires group leads from the wire controller.(See Fig.3-3)

Fig 3-3

Mainboard

4-core shielding wire

3.Wiring figure

The connection cable

CN40

Install the Adapter Board and the Display Board on the High Wall

(See the Appendix for instructions).

3. INSTALLATION METHOD

Fig 3-4

Fig 3-5

4.Wire controller upper part Remove

Insert a flat screwdriver into the slots in the

lower part of the wire controller (2 places).

Remove the upper part of the wire controller

(Fig.3-4)

For surface mounting, fasten the back plate on the wall with the 3

screws (M4x20) and plugs. (Fig.3-5)

Slots

NOTE:The PCB is mounted in the upper part

of the wired controller. Be careful not to

damage the board with the screwdriver.

5. Fasten the wire controller back plate

Back plate

Screws (M4×20)

Place the battery in the unit and ensure the positive side of the

battery is in accordance with the polarity markings.(See Fig.3-7)

Set the correct time before operating. Batteries in the wired controller

can maintain the correct time during a power failure. When the power

is restored and the displayed time is not correct, replace the battery.

Fig 3-7

Fig 3-6

3. INSTALLATION METHOD

For switch box mounting, fasten the back plate on the switch box with

2 screws (M4x25) and fasten it on the wall with 1 screw (M4x20).

(Fig.3-6)

6. Battery installation

NOTE: Place on a flat surface. Be careful not to distort the wire

controller’s back plate by over−tightening the mounting screws.

Switch box

Back plate

Screw (M4×20)

Screws (M4×25)
