AIRLUX HG26A-C-E Manuel utilisateur

448

138

582

208

273

275

226

509

454

481

110

581

455

226

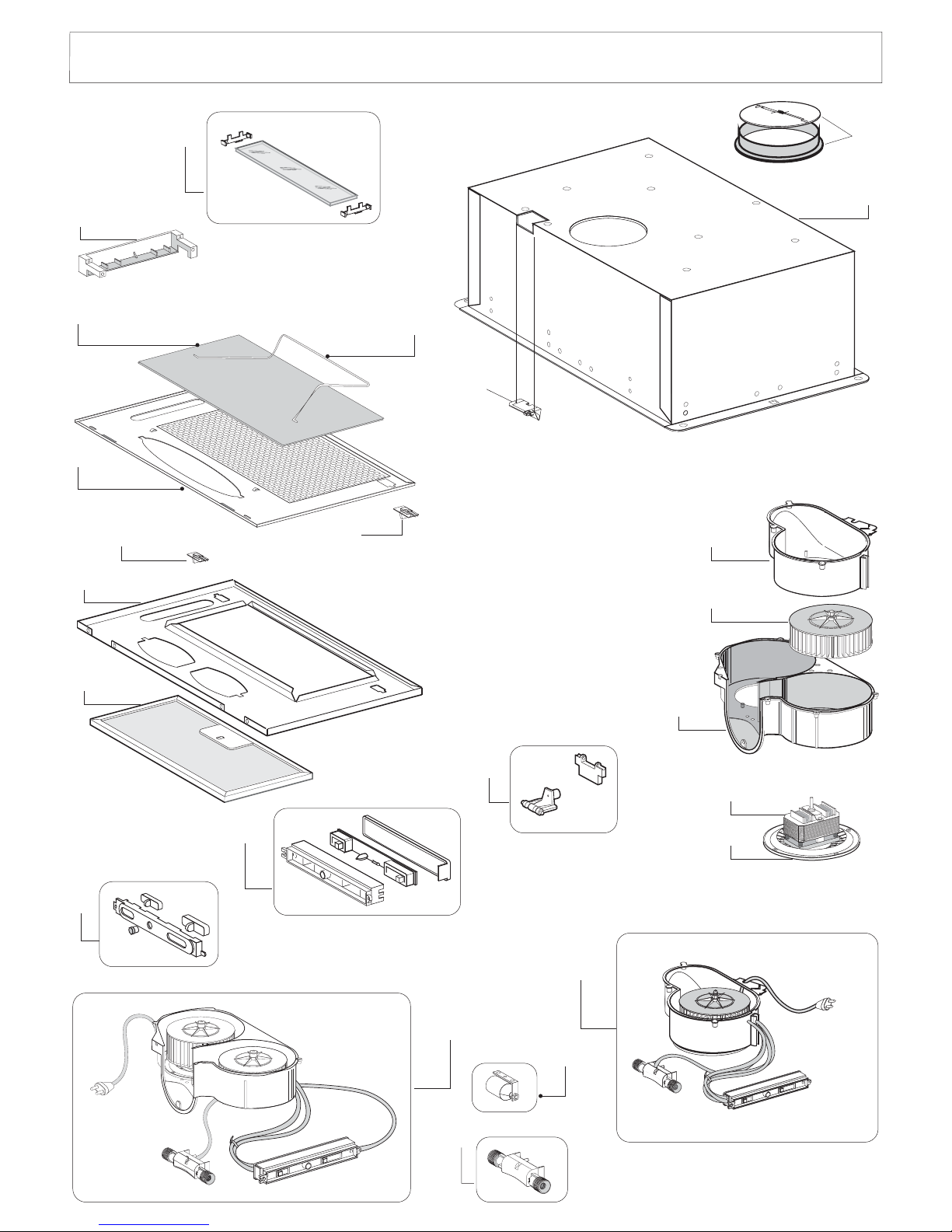

HG26A

COD. DESCRIPTION POSITION

Z00SP0023000 NR.4 FAN WHEEL 23

Z00SP0024004 NR.2 MOTORS 24

Z00SP0038000 MOTOR SUPPORT STANDARD 38

Z00SP0076610 BODY CP 61 76

Z00SP008061B GRID CP 61 WHITE 80

Z00SP0082000 FILTER FIXER CP/SLIM 82

Z00SP0083000 CABLE HOLDER 83

Z00SP0093000 CONTROL BOX SUPPORT 93

ZSPK0221 CONTROL 110

Z00SP0138000 LAMP-HOLDER X 1PIECE (4PZ) 138

Z00SP0208000 CONVEYOR CP/SLIM 1 MOT. 208

Z00SP022600B N.2 CP5/10 OPEN-CLOSED KEY WHITE 226

Z00SP0273600 ALUMINIUM PANEL CP 61+SLIM 58 273

Z00SP027560B GRID CP 61 SLIDER-AL. PANEL WHITE 275

Z00SP0448000 FLANGE 120MM + ALUMINIUM AIR COLD VALVE 448

Z00SP045400B GLASS COVER WITH WHITE SUPPORTS 454

Z00SP0455000 LAMP HOLDER 455

Z00SP048100B WHITE SLIDER PLATE WITH KEYS AND WARNING GEM 481

Z00SP0509000 SET OF 2 HINGES FOR CP GRID 509

Z00SP0582000 CP 1MOTOR MEDIUM PERF. 230/240V-50HZ SLAIDER 2 LAM 582

HG26C

COD. DESCRIPTION POSITION

Z00SP0023000 NR.4 FAN WHEEL 23

Z00SP0024004 NR.2 MOTORS 24

Z00SP0038000 MOTOR SUPPORT STANDARD 38

Z00SP0076610 BODY CP 61 76

Z00SP0082000 FILTER FIXER CP/SLIM 82

Z00SP0083000 CABLE HOLDER 83

Z00SP0093000 CONTROL BOX SUPPORT 93

ZSPK0221 CONTROL 110

Z00SP0138000 LAMP-HOLDER X 1PIECE (4PZ) 138

Z00SP0208000 CONVEYOR CP/SLIM 1 MOT. 208

Z00SP022600N CP5/10 OPEN-CLOSED KEY BLACK N°2 226

Z00SP0273600 ALUMINIUM PANEL CP 61+SLIM 58 273

Z00SP027560X GRID CP 61 SLIDER-AL. PANEL INOX 275

Z00SP0448000 FLANGE 120MM + ALUMINIUM AIR COLD VALVE 448

Z00SP045400N GLASS COVER WITH BLACK SUPPORTS 454

Z00SP0455000 LAMP HOLDER 455

Z00SP048100N BLACK SLIDER PLATE WITH KEYS AND WARNING GEM 481

Z00SP0509000 SET OF 2 HINGES FOR CP GRID 509

Z00SP0582000 CP 1MOTOR MEDIUM PERF. 230/240V-50HZ SLAIDER 2 LAM 582

HG26E

COD. DESCRIPTION POSITION

Z00SP0023000 NR.4 FAN WHEEL 23

Z00SP0024004 NR.2 MOTORS 24

Z00SP0038000 MOTOR SUPPORT STANDARD 38

Z00SP0076610 BODY CP 61 76

Z00SP008161M ALUMINIUM FILTER CP 61 - SLIM 58 81

Z00SP0082000 FILTER FIXER CP/SLIM 82

Z00SP0083000 CABLE HOLDER 83

Z00SP0093000 CONTROL BOX SUPPORT 93

ZSPK0221 CONTROL 110

Z00SP0138000 LAMP-HOLDER X 1PIECE (4PZ) 138

Z00SP0208000 CONVEYOR CP/SLIM 1 MOT. 208

Z00SP022600B N.2 CP5/10 OPEN-CLOSED KEY WHITE 226

Z00SP0273600 ALUMINIUM PANEL CP 61+SLIM 58 273

Z00SP027560B GRID CP 61 SLIDER-AL. PANEL WHITE 275

Z00SP0448000 FLANGE 120MM + ALUMINIUM AIR COLD VALVE 448

Z00SP045400B GLASS COVER WITH WHITE SUPPORTS 454

Z00SP0455000 LAMP HOLDER 455

Z00SP048100B WHITE SLIDER PLATE WITH KEYS AND WARNING GEM 481

Z00SP0509000 SET OF 2 HINGES FOR CP GRID 509

Z00SP0582000 CP 1MOTOR MEDIUM PERF. 230/240V-50HZ SLAIDER 2 LAM 582

321

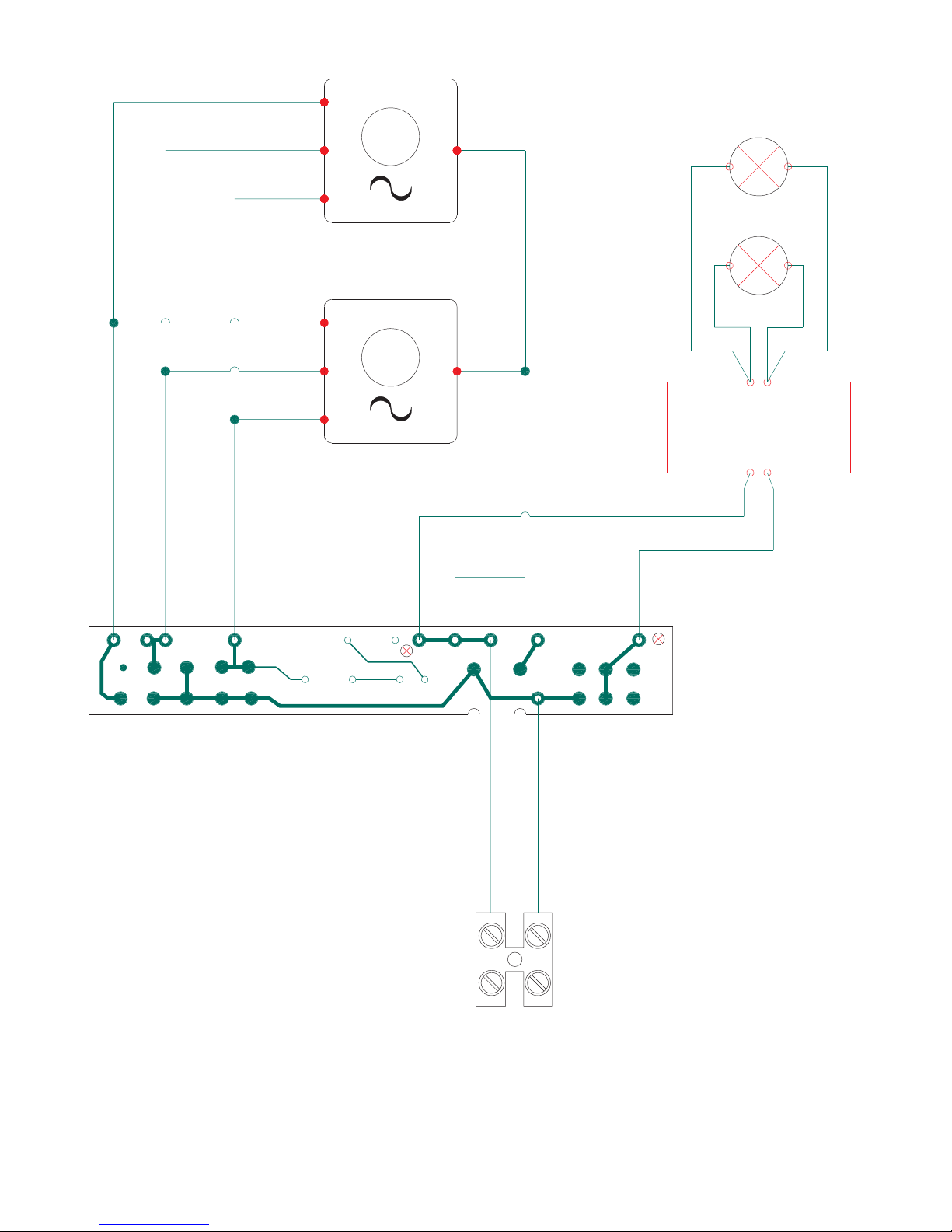

TWPCB001

White

Brown

White

Black

Brown

Black

Blue

Brown

Blue

Brown

Directly to the

the Transformer

Lamps or Through

Blue

Brown

Blue
