AirLive POE-260 CAM Manuel utilisateur



AirLive POE-260CAM User’s Manual



POE-260 CAM

POE Pan-Tilt hision IP Camera

Use

’s Manual



No part of this publication may be reproduced in any form or by any means, whether

electronic, mechanical, photocopying, or recording without the written consent of OvisLink

Corp.

OvisLink Corp. has made the best effort to ensure the accuracy of the information in this

user’s guide. However, we are not liable for the inaccuracies or errors in this guide.

Please use with caution. All information is subject to change without notice

All Trademarks are properties of their respective holders.



BeforeYouUsethisProduct

This product has been designed with safety in mind. However, if not used properly, electrical products can

cause fires which may lead to serious bodily injury. To avoid such accidents, be sure to heed the following:

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in

your local region before using this product for surveillance purposes.

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

In case of a breakdown

In case of system breakdown, discontinue usage and contact your authorized dealer.

In case of abnormal operation

• If the unit emits smoke or an unusual smell,

• If water or other foreign objects enter the cabinet, or

• If you drop the unit or damage the cabinet:

1 Disconnect the cable and the connecting cables.

2 Contact your authorized dealer or the store where you purchased the product.

Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

• Extremely hot or cold places (operating temperature: 0 °C to +50 °C [32 °F to 122°F])

• Exposed to direct sunlight for a long time or close to heating equipment (e.g., near heaters)

• Close to sources of strong magnetism

• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

• Locations subject to strong vibration or shock

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.

Cleaning

• Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a

soft cloth dampened with a small quantity of detergent solution, then wipe dry.

• Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

Table of Content



i

AirLive POE-260CAM User’s Manual



Table of Content

1.Introduction 1

1.1 Overview 1

1.2 How to Use This Guide 2

1.3 Firmware Upgrade and Tech Support 3

1.4 Features 4

2. Hardware Installation 5

2.1 Hardware Installation Steps 5

2.2 Package Contents 6

2.3 Overviews 7

2.4 EZ Install CamPro Express 8

3. UsingIPCameraviaMobilePhone 22

3.1 3G Mobile Phone Viewing 22

3.2 2.5G Mobile Phone Viewing 22

4.Using IP Camera via Web Browser 23

5. Initial accessing the IP Camera 24

6.HowtoUse 25

6.1 Accessing the IP Camera 25

6.2 Configuration of Main Menu 26

7. Setting 29

7.1 Basic 29

7.2 Advance 44

8. CamPro Express 58

8.1 Getting Started 58

8.2 Start Service Program 69

8.3 Admin Program 70

8.4 Monitor Program 102

8.5 Web Monitor 112

8.6 Multi Playback 114

9. Technical Specification 145

1.Introduction

1

AirLive POE-260CAM User’s Manual



1 1. Introduction

1.1 Overview

The POE-260CAM is an advanced POE IP camera with Pan and Tilt function. You can set

a particular patrol area; it will then move its lens in both horizontal and vertical direction

continuously to scan the area. Or you can remote control the camera to look in the

desirable direction.



1.Introduction

2

AirLive POE-260CAM User’s Manual



1.2 How to Use This Guide

The AirLive POE-260CAM is a high performance camera designed for professional indoor

surveillance and security applications. It is recommended that you read through the entire

user’s guide whenever possible. The user guide is divided into different chapters, include

hardware installation and campro express installation.

Recommended Reading

Chapter 2

2.1 Hardware Installation: This section explain the hardware installation and

Package content.

2.4 EZ Install CamPro Express This section inroduces cam pro express

quick installation step and different between instatll server verison and client

verison. This is must read section when you need to setup multiple camera

and recording in the computer.

Chapter 5: This section has default settings information suchs as IP, password,

of the device.

Chapter 6: This chapter is about most of the firmware function in the camera.

This is must of read.

Chapter 7:

7.1 Getting Started: This section inroduces cam pro express quick

installation step and different between instatll server verison and client

verison.

7.3 Admin Program: This section inroduces majoy function in admin

program configurations.

7.4 Monitor Program: This section tells you how to get into the monitor

program and how to using monitor program.

7.5 Web Monitor : This section tells you how to get into the Web UI using

HTTP

7.6 .Multi Playback : This section explain how to using the Multi Play back

function when you need to review your recording file.

1.Introduction

3

AirLive POE-260CAM User’s Manual



APPENDIX –This section tell you most of the case study when you need to Setup

Frame Rate & Bit Rate Table,Storage Requirement Table,DIDO in Motion

detection,DIDO in Cam Pro Express. This is most of read if you need to setup

DIDO.

1.3 Firmware Upgrade and Tech Support

If you encounter a technical issue that can not be resolved by information on this guide, we

recommend that you visit our comprehensive website support at www.airlive.com. The

tech support FAQ are frequently updated with latest information.

In addition, you might find new firmwares that either increase software functions or provide

bug fixes for POE-260CAM. You can reach our on-line support center at the following link:

http://www.airlive.com/support/support_2.jsp

Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.

AirLive Newsletter subscribers receives instant email notifications when there are new

download or tech support FAQ updates for their subscribed airlive models. To become an

AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp

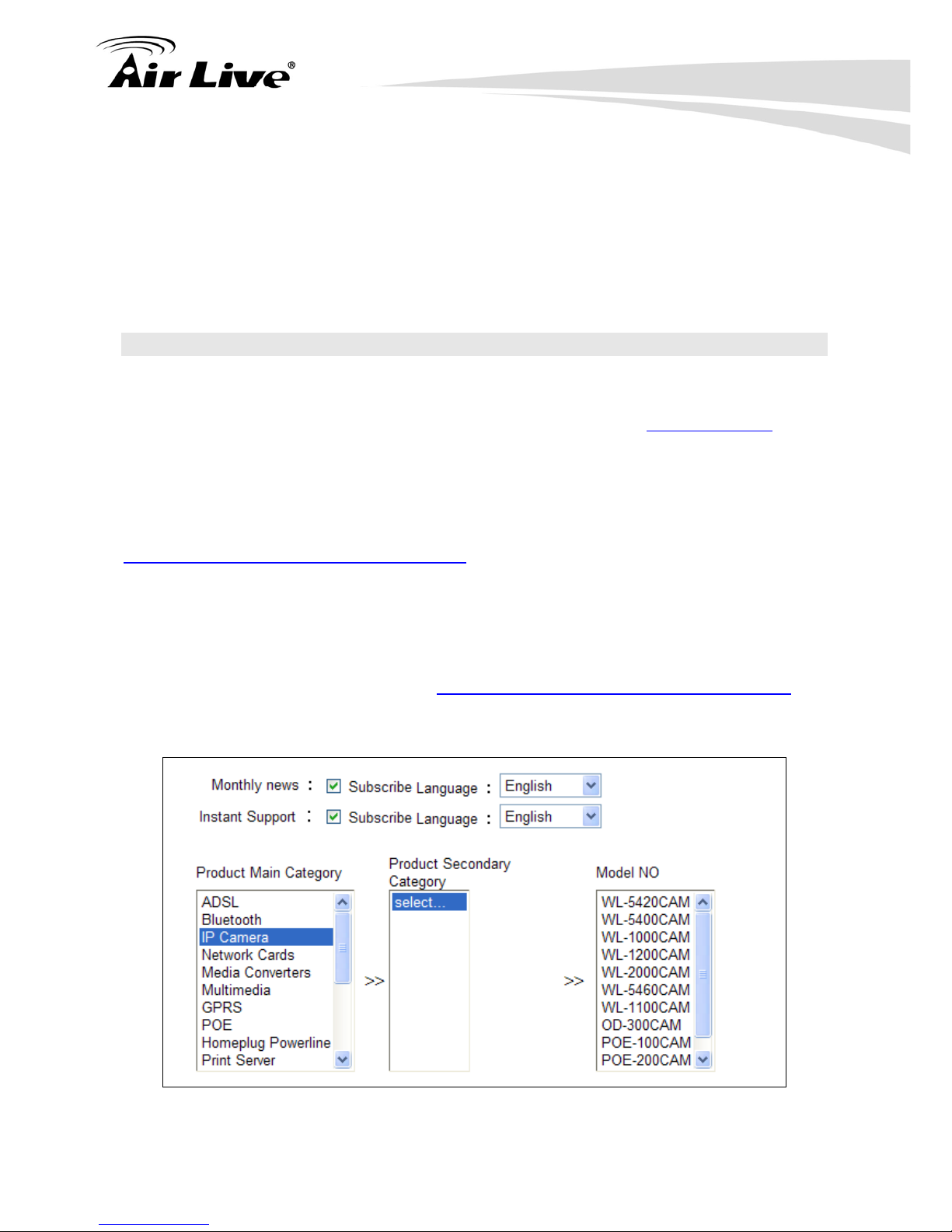

Figure 1.3: AirLive Newsletter Suppport System

1.Introduction

4

AirLive POE-260CAM User’s Manual



1.4 Features

Simultaneous MPEG-4 and Motion JPEG video stream

12 pcs Infrared LEDs for night use up to 10 working distance

IEEE 802.3 af Power over Ethernet Support

2-Way Audio Capability

Support Mac OS Browser

CAMPRO Express- 16 channel recording software.

Support multiple Language firmware and Web Monitor

Support DIDO function.

CAMPRO Express- Support Remote management.

2.HardwareInstallation

5

AirLive POE-260CAM User’s Manual



2 2. Hardware Installation



This section describes the hardware features and the hardware installation procedure for

the POE-260CAM.

For software configuration, please go to chapter 3 for more details.

2.1 Hardware Installation Steps

Follow these steps to install the POE-260CAM on your Ethernet:

1. Check the package contents against the list below.

2. Set the device. See IP Installer User Manual on the available methods.

2.HardwareInstallation

6

AirLive POE-260CAM User’s Manual



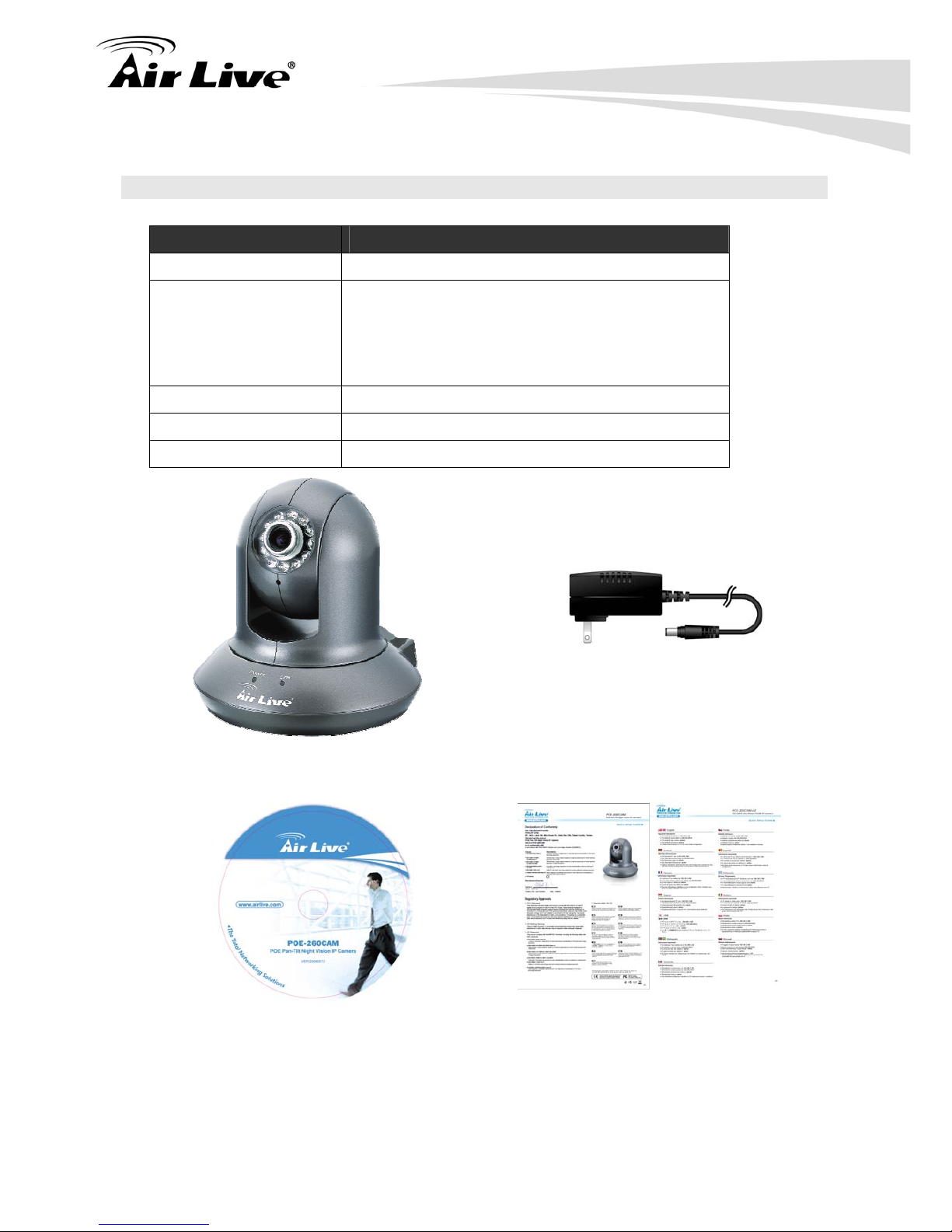

2.2 Package Contents

Camera POE-260CAM Dome IP Camera

Quick Installation Guide Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manuals

Language Packs

Screw Pack Two screws and plastic wall anchors

Adaptor 12V DC, max 6W

Camera POE-260CAM Dome IP Camera



IP Camera Power Adapter, DC12V, 1.25A

Installation CD

Quick Setup Guide
