Airlink101 AICAP650W Manuel utilisateur
Ver. 1.0
Quick Installation Guide
Model # AICAP650W
SkyIPCam650W
Section 1
GettingStarted
System Requirement: Beforeyoubegin,pleasereviewthefollowingsystemrequirement.
• OS: Windows® 98SE/ME/2000/XP.
•CPU: 650MHzor above (2.4GHzrecommended when monitoringmultiplecameras simultaneously)
• Memory Size: 256MB
• Resolution: 1024x768 or above
• Web Browser: Internet Explorer 5.0 or above
This Quick Installation Guide only provides the basic instructions. For more
detailed information, please refer to the User’s Manual in the supplied CD.
Caution: The IP Camera is designed for indoor use only. Direct exposure to sunlight
may cause permanent damage to the CMOS sensor. When operating in extremely
bright environment, an iris lens or sun visor is recommended to protect the IP Camera.
Step 1 Align the camerastandwith the bottom partofthe camera.Then, secure thecamerastandwith
thescrew.
Step 3 Power on the IP Camera by connecting one end of the supplied power adapter to the power jack
ofthe Camera andconnectingthe other endtoan electrical outlet.
Step 4 Verifythat the LED lightsonthe Camera are lit.Ifnot,verify that alltheconnectionsare secure
andtry again.
Step 2 Connect one end of a networkcabletothe IP Camera and connect the other endtooneof the
LAN portsof the wireless router.
Section 2
Installing the Setup Wizard
Step 1Insertthe provided CD andwaitforthe autorun screen to appear.
Step 2 Click on Install Setup Wizard.
Note: If the autorun screen does not appear automatically, go to Start > Run > and type
D:\Setup\Setup.exe (where Dis the letter of your CD drive) and click OK.
Step 3 Click Next.
Step 4 Click Yes to accept the LicenseAgreement.
Step 5 Click Next to accept the default Destination Folder.
Step 6 Click Finish to complete the installation.
Section 3
Using the Setup Wizard
Step 1 Go to Start > (All) Programs >AirLink101 IP Camera Setup Wizard >AirLink101 IP Camera
Setup Wizard.
Step 2 Select theIPCamera youwant toconfigurefromthe listand clickon the Wizard button.
Step 3 IftheCamera’sdefaultIP address is on a differentsubnet, the following messagewillappear.
ClickYes to continue.If youdo notreceive thismessage, skipto Step 6.
Step 5 TheWizardwill automatically generate an IP address for thecamera,ifthis address is not in use
byany other deviceinyour local network,click OK. Otherwise,enteran available IPaddress(ex.
192.168.x.240)and click OK.
Step 4 Enter admin for both theAdmin ID and Password and click OK.
Step 6 Enteradmin forboththeAdmin ID andPassword fieldandclickNext.Optionally,you can
changethe password by checking on the Changeboxandenteringthe new password.
Step 7 If you need tochangetheCamera’s IP address because another networkdeviceisalready using
the same address, you can assign a new address here and click Next.
Step 8 Enter the SSID ofyourwireless router in the SSID fieldandclick Next.If you have encryption
enabled foryour wireless network,follow the subsequentsteps, otherwiseskip to Step 10.
WEP
WPA
Step 9a Select the appropriate Key Format and enter the same WEP Code Key as your wireless
router. Click Next and skip to Step 10.
Step 9bEnter the same WPAShare Key as your wireless router and click Next.
Step 10 Verify that all the fields are correctand click Restart to save the settings and reboot the camera.
Section 4
ViewingImages

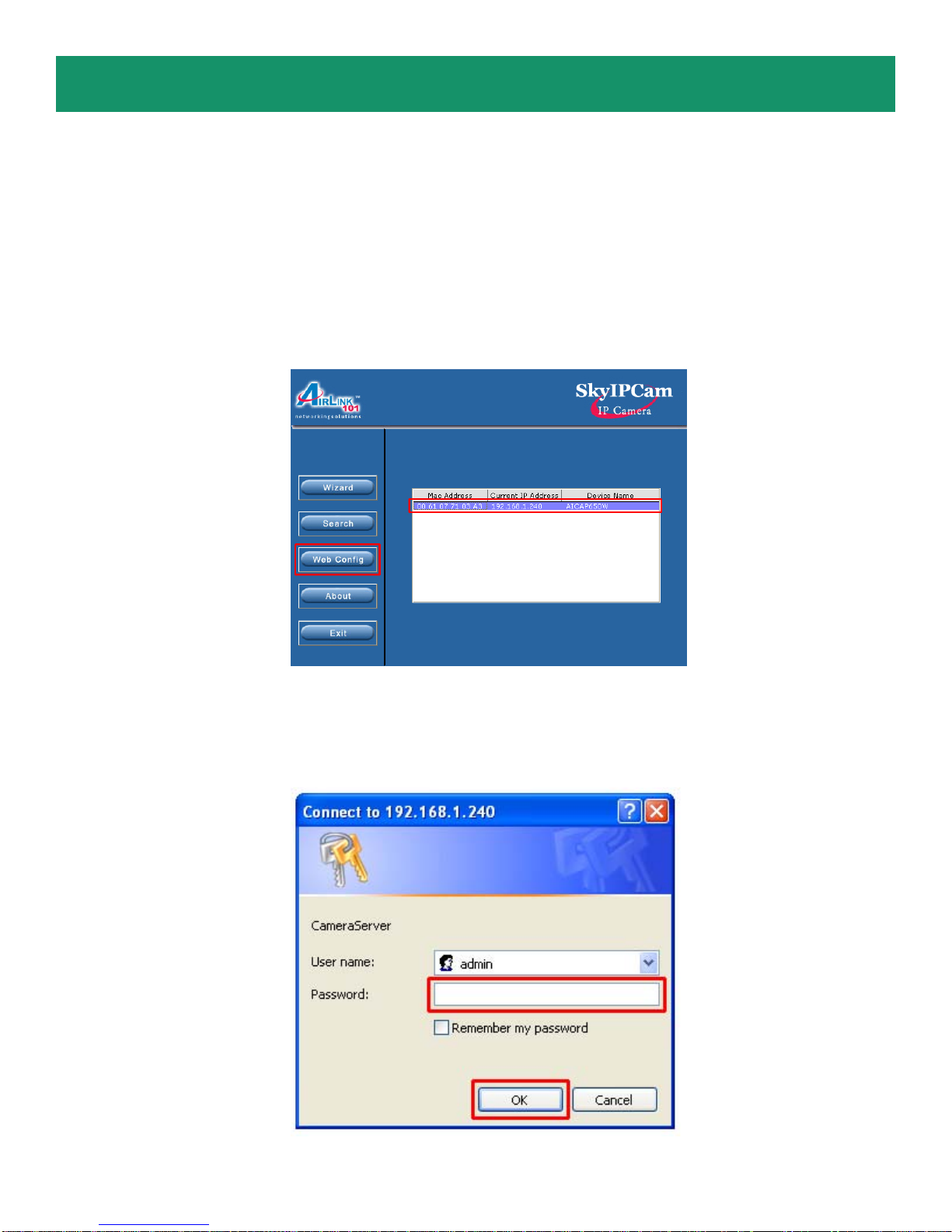

Step 1 At theSetup Wizard,select thedesired camerafrom thelist andclick onthe Web Config button.
Step 2 Enter the password for the camera (Default is admin) and click OK.
Note: The following steps describe how to view images from within the same local area network as the
IPCamera. To view images from an external network such as the Internet, please refer to the User’s
Manual on the provided CD for further instructions.
