AIR SYSTEMS BAC-30RT30 Manuel utilisateur

Printed in U.S.A

AIRSYSTEMSINTERNATIONAL,INC.

829 Juniper Crescent, Chesapeake, Va. , 23320

Telephone (757) 424-3967

Toll Free 1-800-866-8100

Fax No. (757) 424-5348

http://www.airsystems.cc

e-mail: [email protected]

Operating Manual

Model

BAC-30RT30/BAC-30DC

Manual No. BAC012

(Rev 1 October 2002)

-2-

OVERVIEW

Low pressure breathing air compressors supply air for low pressure constant flow type

respirators only. OIlless compressors produce no oil mist, oil vapor, or carbon monoxide (CO).

High temperature alarms and oil/water filters are not required, as they are with conventional air

compressors. Breathing air compressors do not significantly change the air quality of the ambient

air and are not designed to filter carbon monoxide or other toxic gases. An optional carbon mon-

oxide monitor is available where required. Clean, breathable air must be provided to the breathing

air compressor inlet at all times. Note: Tight fitting constant flow respirators require 4cfm

(115lpm) minimum flow rate at the manufacturer’s stated pressure. Loose fitting hoods require

at least 6cfm (170lpm) per respirator.

Caution: Read and Follow All Instructions

1. Do not use kerosene or any oil based solvents for cleaning these compressors.

2. Do not lubricate oilless breathing air compressors.

3. Do not run this compressor in the wrong rotation; check the rotation arrow on the compressor

if you are rewiring the electric motor. Disconnect the power source before servicing the

electric motor.

4. Do not run this compressor without connecting at least one hose and respirator to the manifold

quick disconnect assembly.

5. Compressor must be used with constant flow, low pressure respirators only. Pressure demand

respirators will not operate on this compressor.

6. The breathing air compressor units cannot be operated in an area that is Immediately Danger

ous to Life or Health (IDLH).

7. The air inlet to the breathing air compressor must be located in a clean air environment where

breathable air can be assured at all times. Up to 150ft of extension tubing can be used to re

mote the intake snorkel. Consult the factory for assistance in determining the proper size

tubing for remote intake setup.

8. Vortex tubes require high pressure air, 60-100psi, and will not operate on these breathing air

compressor systems. Use Air Systems’ Cool-BoxTM for air cooling; order model BACB-

196LP. Provides approximately 50º output air temperature.

9. Pump surfaces can become very hot during operation. Do not touch these surfaces until the

unit has been shut off and allowed to cool.

-3-

SPECIFICATIONS

MODEL BAC-30

Output cfm/lpm @ 0psi 32cfm

Motor H.P. HP/kw Electric--3HP

Amps (230/460VAC) 8.4/4.2

Max Number Masks/Hoods

Usable 7/5

Maximum Outlet Pressure 15psi (1.03 bar)

Output pressure gauge 0 - 30psi (0 - 2,1bar)

Intake Filter Efficiency

99% efficiency @ 2.0 micron

particle size

Compressor Filter Efficiency

95% efficiency @ 0.7 micron

particle size

Relief valve Adjustable

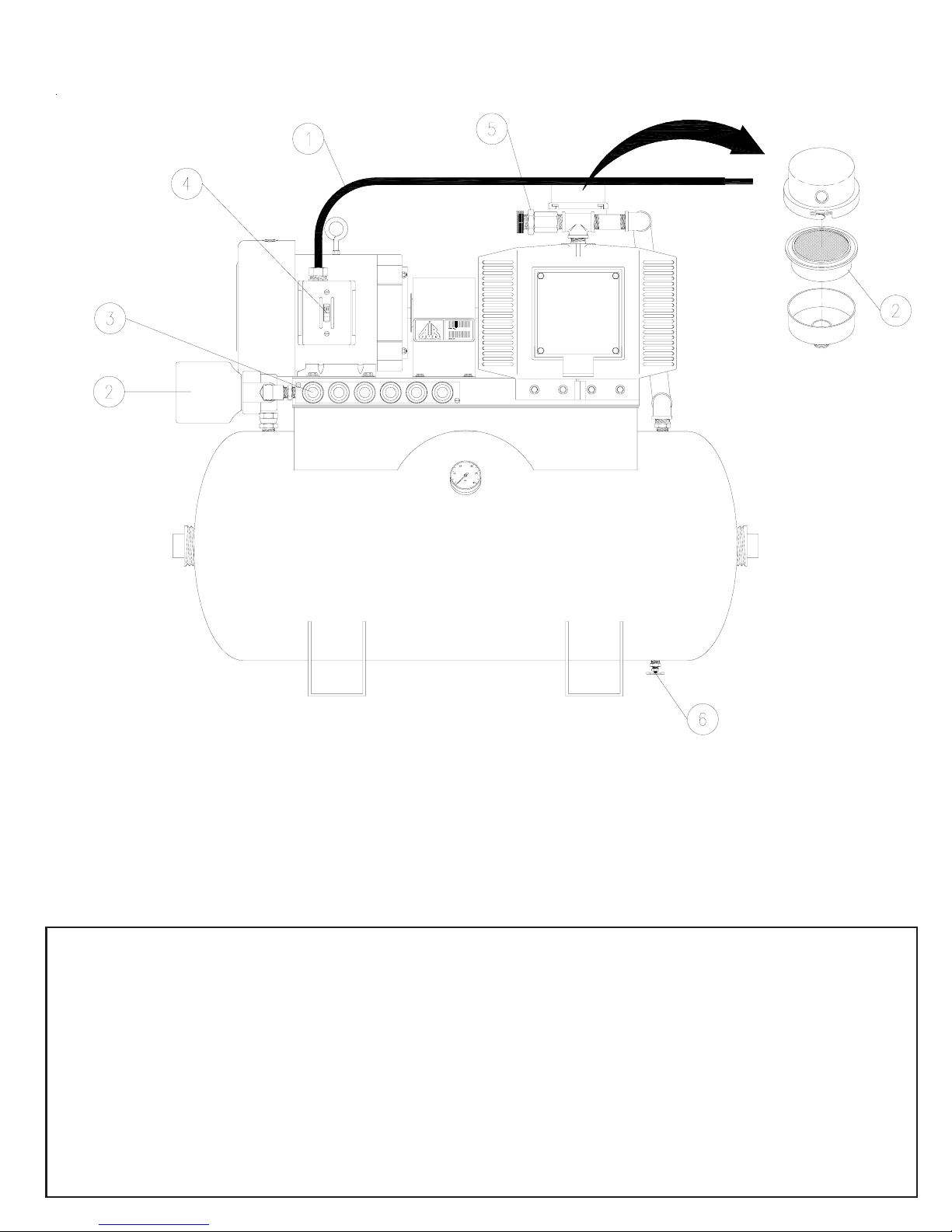

PARTS IDENTIFICATION

ITEM # DESCRIPTION PART #

1 EXHAUST FILTER BAC-393

2 QUICK-DISCONNECT, HANSEN QDH5SL6M

3 ELECTRIC MOTOR MTR034

4 ON/OFF SWITCH ELSW025

5 POWER CORD, 14-4 ELCB017

6 RELIEF VALVE COMPA076

7 COMPRESSOR COMP033

8 INTAKE FILTER BAC-20F

9 CONNECT HOSE HOS201

10 DRAIN COCK BR2DCM

11 PRESSURE GAUGE GA2030B

-4-

SETUP & OPERATION

Step 1)

Wire compressor to electrical box with disconnect or attach an applicable plug to end of power

cord. Compressor can be wired for 230 VAC/3 phase or 460 VAC/3 phase.

Note: Check the tag wire tied to the power cord for the proper voltage. If the voltage needs to be

changed, refer to the electric motor wiring diagram.

Step 2)

Check intake and outlet filters for excessive dirt and change if necessary. Set compressor in a

clean environment, away from hazardous dusts, mists, vapors, and fumes.

Step 3)

Use only constant flow Type-C respirators. Attach hose(s) and mask(s) to system before turning

the unit on. Failure to do so will cause internal motor damage.

Step 4)

Assure that electrical service amperage rating is in accordance with electrical motor specifica-

tions. Turn switch “on” and check for correct motor rotation. If rotation is incorrect, disconnect

power switch 2 power leads. Restart compressor.

Step 5)

With the compressor running, and respirators attached, loosen the relief valve lock nut. Adjust

outlet pressure to the setting recommended by the respirator manufacturer. Turn clockwise to

increase pressure, counterclockwise to decrease pressure.

Step 6)

With compressor running, open drain cock to drain any moisture which may be in receiver tank.

This should be done every 2 hours of operation. Close drain cock when complete.

DO NOT EXCEED 15psi OUTPUT PRESSURE

Turn knob of relief valve clockwise to increase pressure, counterclockwise to decrease pressure

and retighten lock nut. The unit is now operational.

Note: Do not back the adjustment knob all the way out while unit is pressurized. The loss of

internal parts may occur.

-5-

Warranty Disclaimer

Air Systems’ manufactured equipment is warranted to the original user against defects in workmanship or materials under normal use for one year after

date of purchase. Any part which is determined by Air Systems to be defective in material or workmanship will be, as the exclusive remedy, repaired or

replaced at Air Systems’ option. This warranty does not apply to electrical systems or electronic components. Electrical parts are warranted, to the

original user, for 90 days from the date of sale. During the warranty period, electrical components will be repaired or replaced at Air Systems’ option.

NO OTHER WARRANTY, EXPRESSED OR IMPLIED, AS TO DESCRIPTION, QUALITY, MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, OR ANY OTHER MATTER IS GIVEN BY AIR SYSTEMS IN CONNECTION HEREWITH. UNDER NO

CIRCUMSTANCES SHALL THE SELLER BE LIABLE FOR LOSS OF PROFITS, ANY OTHER DIRECT OR INDIRECT COSTS, EX-

PENSES, LOSSES OR DAMAGES ARISING OUT OF DEFECTS IN, OR FAILURE OF THE PRODUCT OR ANY PART THEREOF.

The purchaser shall be solely responsible for compliance with all applicable Federal, State and Local OSHA and/or MSHA requirements. Although Air

Systems International believes that its products, if operated and maintained as shipped from the factory and in accordance with our “operations manual”,
