AIPTEK PocketDV 3300 Manuel utilisateur

Preparing Your Camera

Getting Started

Digital Video Mode

Digital Camera Mode

Voice Recording Mode

Playback Mode

MP3 Mode

Camera Settings

TV Output

Copying Files to PC

Using PC Camera

Users Manual

English

PocketDV 3300

Safty Notice

1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided.

2. Avoid all contact with water and dry hands before using.

3. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may

damage the camera.

4. Use the camera with care. Avoid pressing hard on the camera body.

5. For your own safety, avoid using the camera when there is a storm or lightning.

6. Avoid using batteries of different brands or types at the same time. There is potential of

explosion by doing that.

7. Remove batteries during long periods between usage, as deteriorated batteries may affect

the functionality of the camera.

8. Remove batteries if they show signs of leaking or distortion.

9. Use only the accessories supplied by the manufacturer.

10. Keep the camera out of the reach of children.

Welcome

Dear user, thanks for purchasing this product.

Much investment in time and effort has gone into its development,

and it is our hope that it will give you many years of trouble-free service.

~ 1 ~

~ 2 ~

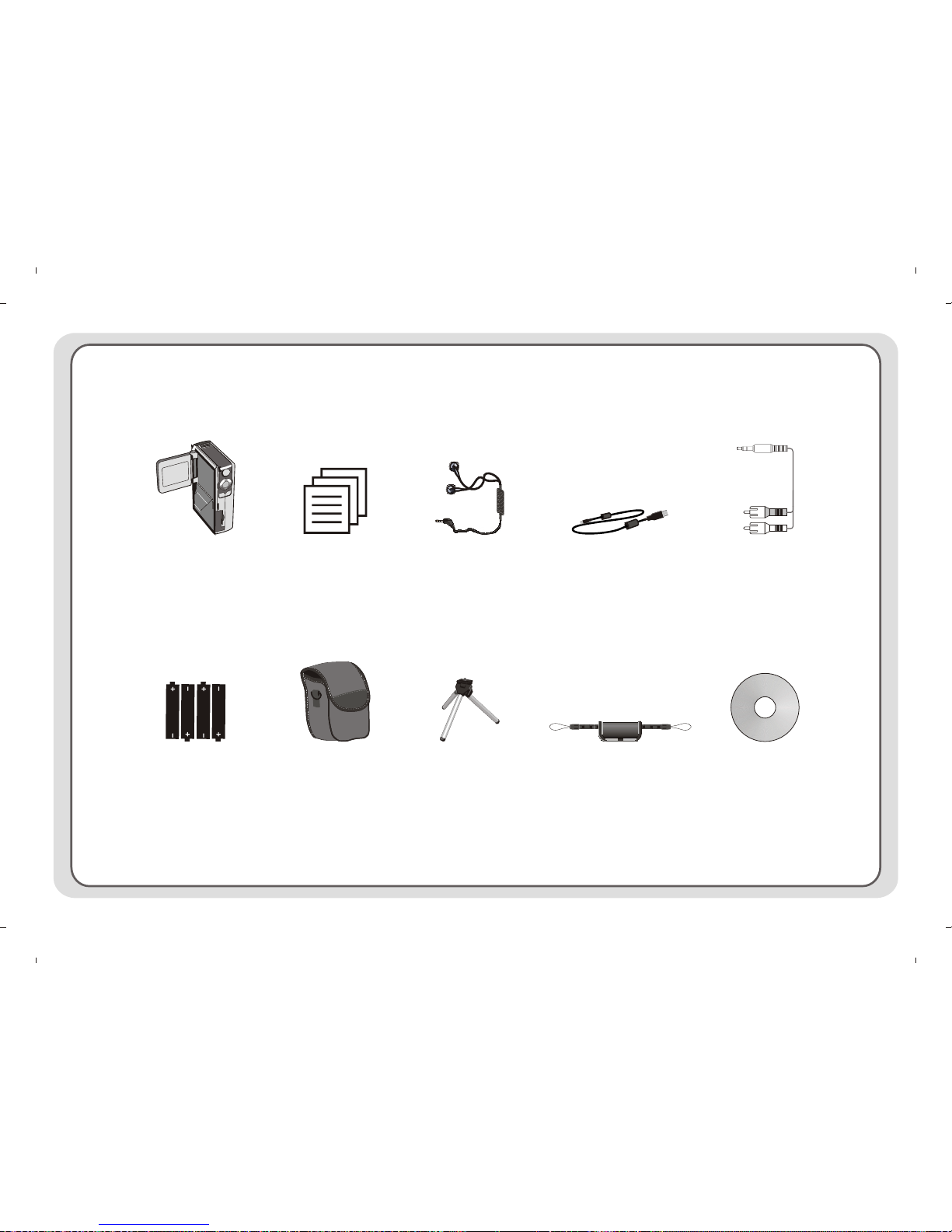

Users guide

Camera

Driver CD

USB cable AV cable

AA Alkaline

batteries x 4 Tripod

Bag Wrist Strap

Earphone

Package Contents

Microphone

Back LED

Shutter/Record Button

Direction Buttons

OK Button

Menu Button

Wrist Strap Hook

SD/MMC Card Slot

Video-out Connector

USB Connector

Earphone Connector

Speaker

LCD Panel

LCD On/Off Detector

Flash Strobe

Lens

Lens Cover

Front LED

Battery Cover

Focus Switch

Power On/Off Button

Mode Switch

Tripod Socket

~ 3 ~

Camera Parts

Loading the batteries

Your camera runs on four AA alkaline batteries. High

performance batteries are recommended for this camera

for maximum battery life.

Preparing Your Camera

1. Slide the battery compartment

cover open in the direction as

indicated.

2. Place the batteries into the compartment. Note that

the positive and negative ends cannot be reversed.

3. After the batteries are properly

installed, replace the battery

compartment cover.

Preparing Your Camera

~ 4 ~

~ 5 ~

Inserting the SD/MMC card (optional) The SD card comes with a write-protect switch. When the

write-protect switch is set to the Lock position, the card

will become non-writable. To ensure that the camera can

operate normally, you should set the write-protect switch

to the Unlock position before inserting the SD card.

In addition to 16MB (128Mbits) built-in flash memory, your

camera can store data on a Secure Digital (SD) card or a

MultiMedia card (MMC). The supported memory size

ranges from 8MB to 256MB.

To insert a SD/MMC card, gently push the card as

indicated until the card reaches the end of the slot. Note

that once a SD/MMC card is inserted, the camera will use

the card as the main storage media. Files stored in the

camera's built-in memory will become inaccessible until

the SD/MMC card is removed.

To remove the SD/MMC card, gently push the card. After the

card pops up, pull the card out of the slot.

Do not remove the SD/MMC card while the camera is

processing data (when the LED is flashing).

If you insert a write-protected card, the media icon on the

LCD display will become red.

Unlock

Lock

Preparing Your Camera

Attaching the wrist strap

Please unfasten and separate the strap into two parts. To

attach the wrist strap to the camera, thread the strap

through the hook on the side of the camera, and then the

one on the bottom part. After threading the strap, fasten

the strap and then use the leather wrap to hold the strap.

~ 6 ~

How to hold your camera

Please put your hand through the wrist strap and firmly

hold the camera as illustrated. While taking stills or

recording AVI movies, avoid blocking the lens to retain

the best result.

Preparing Your Camera

Avoid blocking the lens.

Using the bag

The accessory bag comes handy if you are planning to

carry the camera with you while you are travelling around.

Simply put the camera into the bag as indicated, and you

are ready to carry the camera with you.

~ 7 ~

Using the tripod

Use a tripod to minimize camera movement and ensure

optimal image quality, especially while shooting self-

portraits or video conferencing.

Preparing Your Camera

Avoid severe impact to the camera body even it is placed in

the bag.

Tight

Loose

Turning on your camera

Getting Started

Press and hold down the power button for 2 ~ 3 seconds

to turn on the camera.

If the camera is not turned on after pressing the power

button, please check:

1. There are four AA batteries installed in the camera.

2. The batteries have enough power left.

You can turn on the camera without opening the LCD panel.

Please open the lens cover if you are going to use the digital

video or camera function.

Turning off your camera

Press and hold down the power button for 2 ~ 3 seconds

to turn off the camera.

Getting Started

The LED will light up.

The LED will go out.

~ 8 ~
