VP176X, VP176T, VP176S
Usage and Maintenance Instructions

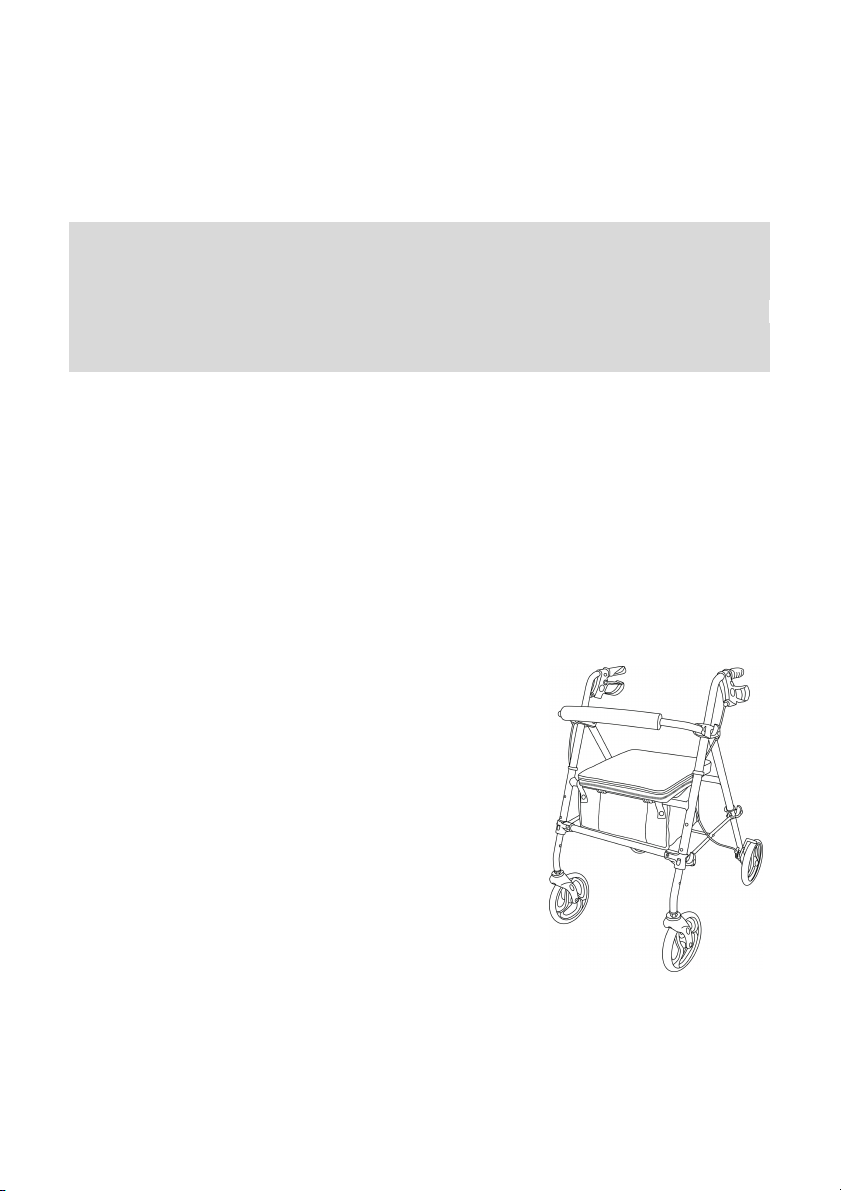

Lightweight Aluminum
Rollator
INTRODUCTION
Thank you for choosing the Aidapt Aluminium Four-Wheeled Rollator.
Our four-wheeled rollator, as with all our products, is manufactured from high-quality
materials.
INTENDED USE
Your Aidapt Rollator has been designed to assist you when walking and carrying small items
of shopping using the bag provided. The bag was designed specifically to fit your rollator,
please only use the bag supplied for your Aidapt Rollator. Do not use or combine bags and/
or baskets from other manufacturers.
When not in use, you can simply fold the Aidapt Rollator and store away until you require it
next. The Aidapt range of rollators are designed to be used both inside and outside the
home.
FEATURES
•User friendly loop brakes with lock
•Simple brake cable adjustment
•Soft plastic solid wheels
•Swivelling front wheels
•Comfortable padded seat and back with
underseat storage
•Height adjustable
•User friendly ergonomic side locking
wheels for height adjustment
•Ergonomic handgrips to reduce pressure
Fig.
N.B. This equipment must be installed by a competent person.
Black Aluminium Rollator............136kg weight limit
Do not exceed the weight limit stated – doing so could put the user at risk.
Usage and Maintenance Instructions
2
Blue Aluminium Rollator..............136kg weight limit
Silver Aluminium Rollator............136kg weight limit
VP176S
VP176X
VP176T
ASSEMBLY INSTRUCTIONS
1. Carefully remove all packaging, including the cardboard tubes covering the
knurled tube part of the brake assembly. Check the product thoroughly for damage
or obvious faults.
If you suspect the unit to be faulty, please do not use, but contact your
supplier immediately for service.
c.
b.
e.
a.
d.
The package contains the following components:
a) 1 x Main body rollator
b) 6 x Thumb wheels
c) 2 x Back legs with combined brake assembly and handle
d) 2 x Front legs
e) 1 x Padded back
Fig. 2
Usage and Maintenance Instructions
3
CENTRAL LOCKING MECHANISM AND USE
1. Open out and fully extend the Main Rollator Body by pulling the cross bars outwards
in opposite directions forming an inverted ‘V’ with the main frame.
2. Ensure that your Rollator is fully extended, and check that the side bars are straight
and level (Fig. 3).
Fig. 3
ATTACHING THE FRONT LEGS
1. Attach the front legs to the front of the rollator (the front legs are cranked).
2. On the wheel of the front leg you will see a large nut. Ensure that the large nuts on
the front leg wheels are facing inwards.
3. Once the leg is at the desired height make sure the locator pins lock into place
(you will hear a click).
4. Ensure that both front legs are to the same height.
Fig. 4
Usage and Maintenance Instructions
4
ATTACHING THE BACK LEGS AND BRAKE ASSEMBLY
•Attach the brake assemblies to the top of the rollator frame byAttach the brake assemblies to the top of the rollator frame by c carefully insert the arefully insert the
brake assembly with pre-punched extension tube within the frame. brake assembly with pre-punched extension tube within the frame.
•At the required height (there are several holes), secure the brake assemblies
using a thumbwheel on either side. (Fig.6)
1. Attach the back legs (the back legs are straight) to the back of rollator frame.
2. When attaching the back legs, ensure that the wheels are on the outside of the frame.
3. Once the legs are at the desired height, make sure the locator pins lock into place
(you will hear a click).
4. Ensure that both legs are set to the same height.
Fig. 5
Fig. 6
Usage and Maintenance Instructions
5
ATTACHING THE ATTACHING THE BRAKE ASSEMBLYBRAKE ASSEMBLY CONTINUED...
•Make sure the the thumbwheel is tightened sufficiently so that the brake
tubes will not move accidentally.
•After setting the height, check that both brakes are even in height and that
the rollator is sitting even onto the ground.
•Make sure that the handgrips face towards the back of the rollator.
•Fix the brake cables into the integral brake cable "U" clip welded onto the
frame if not already assembled (Fig 7).
•Prior to use make sure the brakes are adjusted correctly and working properly.
OPERATING THE BRAKES
The handbrake on your Aidapt Rollator works very similar to a bicycle hand brake:
1. To stop, gently apply a gripping pressure to both brakes simultaneously (Fig. 8),
this will slow down and stop your rollator.
2. The brakes on your Aidapt Rollator have a park option (Fig. 9). To operate the park
option, push downwards on both brakes simultaneously. You will feel the brake
make a very slight click. Your brakes are now in the ‘lock’ position.
3. To unlock, simply pull up the brake again, you will hear a slight click as the ‘park’
disengages.
Fig. 7
Usage and Maintenance Instructions
6
BRAKE ADJUSTMENT
Your Rollator brake system will
require periodic adjustment. The brake
adjust-ment is similar to bicycle brakes;
1. Fig. 8 shows the brake handle in its
default delivered position. Should the brakes
need adjusting they can be tightened by
unlocking nut A and then un-screwing (anti-
clockwise) nut B.
2. When adjusted the brakes should work in
both normal and in parking mode. If needed
then nut B (see fig. 10 and fig. 11) can be
turned further anti-clockwise, which will
tighten the brake cable more. When you are
happy with the brake adjustment
re-tighten nut A.
Fig. 8Fig. 9
g. 10
g. 11
NUT B
NUT B
NUT A
NUT A
DEFAULT
POSITION
USER
ADJUSTED
Usage and Maintenance Instructions
7
BRAKE ADJUSTMENT (CONTINUED)

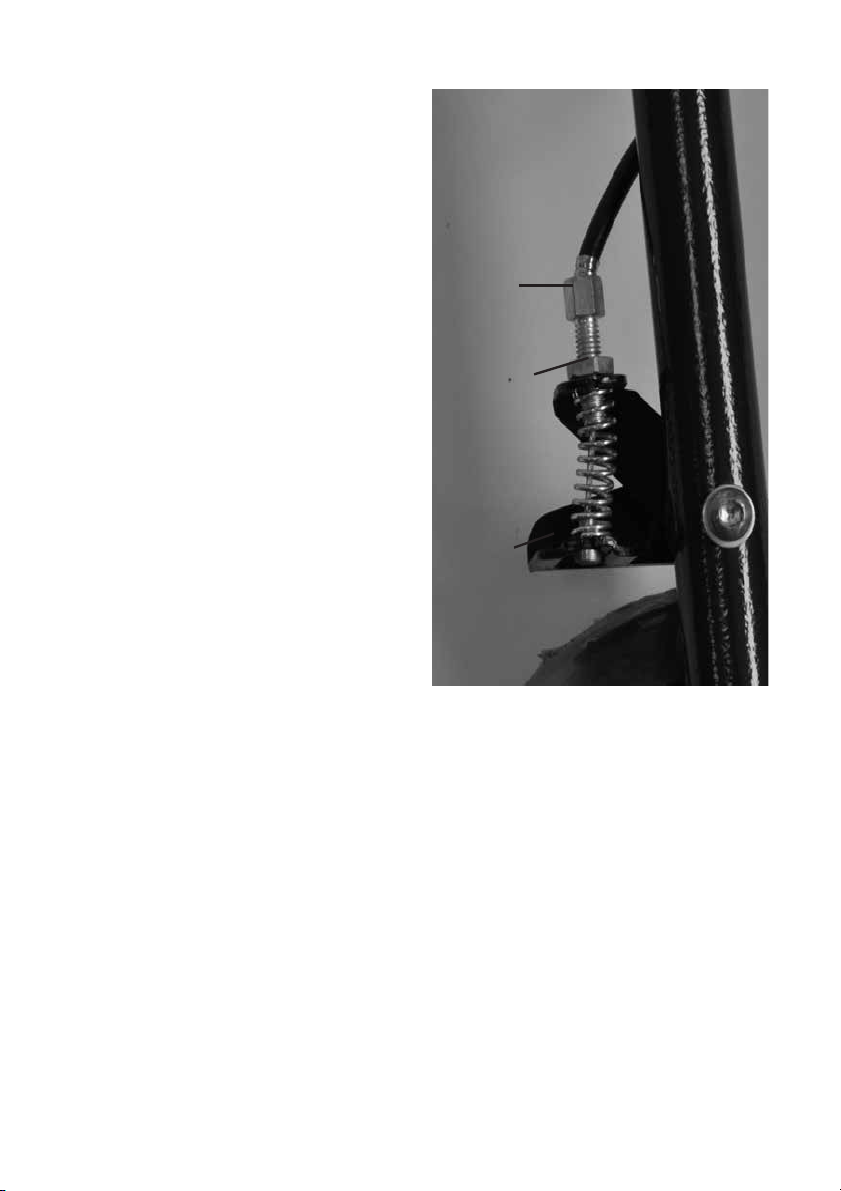

3. If the brake handles are fully adjusted and
more adjustment is required refer to fig. 12.
Whereby screw C is unlocked and nut D is
unscrewed
anti-clockwise to tighten the cable further or
clockwise to loosen the cable.
4. Re-tighten the locking screw C (see fig. 12)
and then adjust brakes via handle notes 2 & 3.
5. After adjustment, check the park brakes by
pushing down on the brake handles,
ensuring that both brakes lock in the ‘park’
position.
6. With the ‘park’ brakes OFF lift the two
‘braked’ wheels off the ground and spin to
ensure they turn freely. If either of the braked
wheels rub onto the brake arm (see fig. 12),
please check for obstructions and repeat the
brake adjustment procedure above.
7. It is important that you check brake
adjustments on a regular basis to take into
account wear and tear. However brake
adjustment must be checked at least once a
month and definitely prior to a change of
user.
g. 12
BRAKE
ARM
NUT D
SCREW C
Usage and Maintenance Instructions
8
PADDED BACK
1. To install the half round padded back first line up the ends of the tubular back with
the locating points. (See Fig. 13).
2. Attach the padded back frame to the main body of the rollator ensuring the locator
pins lock into place (you will hear a click).
WIRE BASKET OR BAG
1. Your rollator is supplied with a bag; raise the padded seat, align the bag with the
frame and close each of the fabric popper ties around the frame to hold the bag in
place and then lower the seat.
Usage and Maintenance Instructions
9
STORAGE
1. Grip the side bar and lift (Fig. 13).
2. Continue lifting until the Rollator fully
closes.
3. You may also wish to remove the half-
round back for storage; to do so pull
the silver coloured locking buttons
located on either side of the tube lock
outwards then lift up the back to
detach.
Fig. 14
Fig. 13
MAKE SURE ALL WHEELS ARE SECURELY FITTED TO THE FRAME AND WORK PROPERLY
REISSUE
If you reissue or are about to reissue this product, please thoroughly check all components
for their safety.
This includes:
•Bent or damaged tubes or cracks at the tube joints.
•Loose or worn horseshoe clips
•Elongated adjustment holes.
•Loose handles.
•Loose or worn wheels and wheel fasteners (where fitted)
•Smooth, worn or split ferrules (rubber tips).
•Brake adjustment.
Replace all worn, missing or damaged parts where necessary. If in any doubt, please do
not issue or use, but immediately contact your supplier for service support.
CARE AND MAINTENANCE & YOUR OBLIGATION
1. Only use your Aidapt Rollator for the purpose for which it intended, which is as an
aid to walking. It is intended your rollator is only used on standard pavements or at
home. It should not be used on rough terrain or pot-holed surfaces. The use of your
rollator on these surfaces can seriously compromise your safety and may damage
your rollator beyond repair.
2. Keep your Aidapt Rollator clean by wiping down with a damp cloth with a mild
detergent. Do not under any circumstances use an abrasive or solvent based
cleaner, as this will seriously damage the rollator and void your warranty.
3. Wipe off all surfaces with a dry cloth and use a water dispersing agent such as
WD40 on all metal joints.
4. Check that all wheels and the folding mechanism function correctly and that all
wheels move freely. Pay particular attention to the front wheels, ensuring that they
rotate freely and without obstruction.
Withdraw your Aidapt Rollator immediately if any of the wheels become
difficult to turn or if you suspect damage or any other fault.
5. Monthly Checks - check that the side locking levers are properly secure.
6. Check that no components are loose. Check the adjustment to your brakes
(Fig. 10, 11, 12).
7. Do not fit any parts or accessories to your Aidapt Rollator manufactured by another
company. To do so will annul your warranty and may seriously compromise your
safety.
8. We suggest that you check your Aidapt Rollator visually every day. However we
recommend that you should have your rollator serviced every three months or less
if used by, or issued to, various users. Servicing should be carried out at an
approved service station or directly by Aidapt.
