Agria 3600 Series Guide rapide

Translation of the original Operating In-

structions

Two-wheel tractor

agria 3600

Petrol engine: Honda

3600 075; 3600 325

Before commissioning please read the operating in-

structions and note the safety and warning information!

Operating Instructions No. 998466GB 04.18

2 agria 3600

Nameplate

Please enter here:

Machine art. no.: .............................................................

ID/machine no.: ..............................................................

Engine type: ...................................................................

Engine no.: .....................................................................

Date of purchase: ...........................................................

For nameplate see page 4, Fig. A/16

Petrol engine: For engine no. see page 75, fig. C/6

Please provide this information for each spare parts order,

to prevent errors in delivery.

Only use genuine Agria spare parts!

The technical data, illustrations and dimensions provided in

these operating instructions are non-binding. No claims may

be derived from them. We reserve the right to make im-

provements without amending this manual.

Scope of delivery

(please check):

•Two-wheel tractor, base machine

•Steering bar

•Switching rods

•Wheel flanges, only 3600 (2+2)

•Oil dipstick

•Tool kit

•Original Operating Instructions

•Original engine operating instructions

•Machine identity card

(in envelope on outside of box)

Please complete the machine identity card and re-

turn it to Agria-Werke.

Two-wheel tractor agria 3600 3

Symbols

Warning symbol, refer-

ence to danger point

Attention

Important information

Fuel

Choke

Engine

Engine start

Engine stop

Engine speed

Engine oil level

Air filter

Clutch

Wheel drive

forward

reverse

Fast

Slow

Transmission oil level

PTO shaft

Closed (locked)

Open (unlocked)

Visual inspection

Attachment point for re-

covery, lashing, towing

Wear protective gloves

Wear safety shoes

Fan cooling

Oil lubrication point

Grease lubrication point

Maintenance interval

Before each start-up

After each cleaning (in

particularly with a high-

pressure cleaner)

Annually

See separate engine op-

erating instructions

-agria-Service -= contact your agria

service centre

4 agria 3600

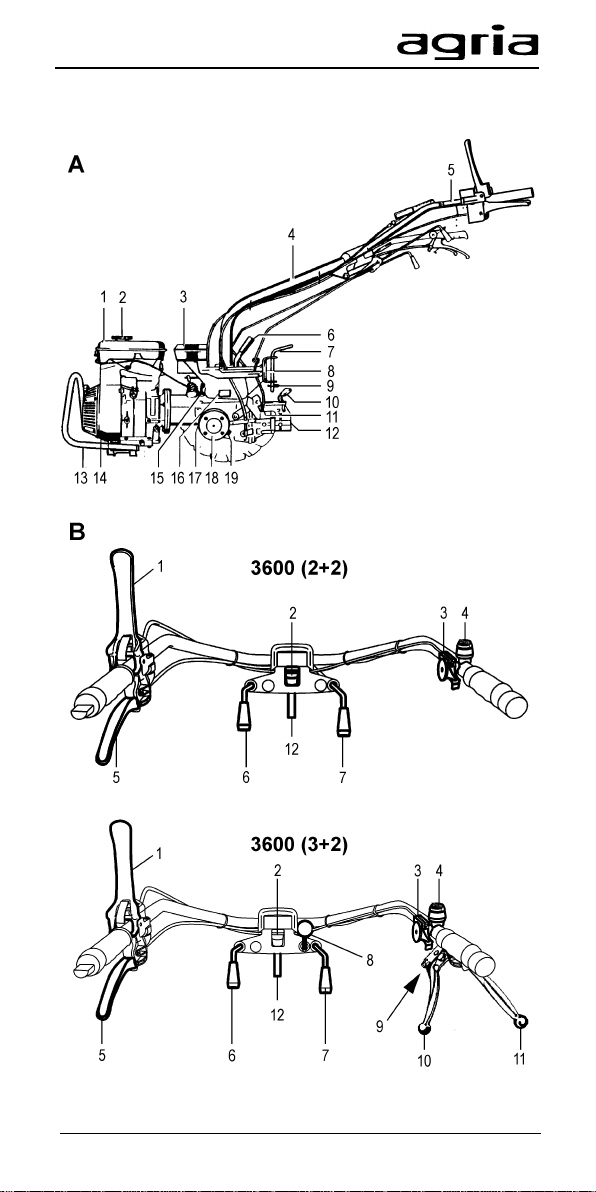

Designation of parts

Two-wheel tractor agria 3600 5

Fig. A

1 Fuel tank

2 Fuel tank cap

3 Toolbox

4 Lower bar

5 Handlebars

6 Latch for lateral and swivel

movements of the steering bar

7 Plug

8 Coupling jaw

9 Lynch pin

10 Latch for implement attachment

11 Reverse locking pin

12 Implement connection with

integrated PTO shaft

13 Ballast carrier and engine safe-

ty bar

14 Engine

15 Gearbox oil filler opening and

dipstick

16 Nameplate

(Ident/machine no.)

(right, in driving direction)

17 Single-wheel brake

18 Wheel flange

19 Transmission oil drain plug

Fig. B

1 Safety lever

2 Notch lever for steering bar

height adjustment

3 Speed control lever

4 Engine stop switch

5 Manual clutch lever

6 Shifting rod for PTO shaft with

rear implement attachment

Gear shifting rod with front im-

plement attachment

7 Gear shifting rod with rear im-

plement attachment

Shifting rod for PTO shaft with

front implement attachment

8 Overdrive shifting rod

9 Stop pawl for wheel switching

10 Hand lever for single-wheel

brake left with rear implement

attachment

Hand lever for single-wheel

brake right with front imple-

ment attachment

11 Hand lever for single-wheel

brake right with rear implement

attachment

Hand lever for single-wheel

brake left with front implement

attachment

12 Latch for lateral and swivel

movements of the steering bar

6 Two-wheel tractor agria 3600

Contents

Nameplate....................................................................................................2

Scope of delivery..........................................................................................2

Symbols...............................................................................................3

Designation of parts...........................................................................4

Unpacking and assembly instructions.............................................8

Version 3600 (2+2): Rigid hexagonal wheel shaft........................................9

Version 3600 (3+2): Steering brake............................................................10

1Safety Instructions ......................................................................11

Intended use...............................................................................................11

2Technical Data .............................................................................18

Machine......................................................................................................18

Petrol engine..............................................................................................21

3Devices and Operating Elements...............................................22

Engine........................................................................................................22

Speed regulating lever................................................................................23

Safety circuit...............................................................................................23

Clutch.........................................................................................................24

Engine stop switch......................................................................................24

Gearbox......................................................................................................25

Steering bar................................................................................................29

Swivel the steering bar through 180°..........................................................30

Driving wheels............................................................................................ 33

Installing and removing implements ........................................................... 36

Attachment points.......................................................................................39

4Commissioning and Operation ..................................................40

Commissioning...........................................................................................40

Before starting the engine .......................................................................... 42

Danger zone...............................................................................................44

Starting the petrol engine ...........................................................................45

Stopping the petrol engine..........................................................................46

Working ...................................................................................................... 47

Working on slopes......................................................................................49

Safety instructions for handling ..................................................................51

5Maintenance and Repair .............................................................52

Two-wheel tractor agria 3600 7

Petrol engine..............................................................................................53

Machine......................................................................................................57

Labels.........................................................................................................60

General.......................................................................................................62

Cleaning.....................................................................................................62

Storage.......................................................................................................63

6Troubleshooting and Remedies.................................................64

Petrol engine..............................................................................................64

Machine......................................................................................................66

7Decommissioning / Disposal......................................................67

Inspection and Maintenance Overview...........................................69

Electric diagram of petrol engine....................................................71

Lubrication plan................................................................................72

Paints, Wear parts.............................................................................73

Declaration of Conformity................................................................74

Designation of parts Fig. C..............................................................75

8 Two-wheel tractor agria 3600

Unpacking and assembly instructions

Unpacking

Open the top lid of the cardboard box. Cut the

cardboard box at all four edges, and fold down

the cardboard walls.

Packaging should be recycled in an environmen-

tally friendly manner.

Assembly

Although handlebars with lower bar and base

engin

e are not assembled, they are connected

with each other via the Bowden cable.

Unpack both modules. Rotate the steering bar

through 180° (put it in two-

wheel tractor position)

and install it into the steering tower:

Unscrew grub screw (3) and hexagonal nut

(locknut) until you can insert the steering bar (1)

into the steering tower (2).

Insert the steering bar.

Route the Bowden cable

s as shown in the figure

in accordance with the version 3600 (2+2) or

(3+2) (the Bowden cables for the clutch at the

left in driving direction).

Take note of the bar turning lock (5).

Screw in the grub screw until you can feel a

slight resistance. Turn the grub screw back by

1/4 revolution and lock it with the hexagonal nut.

•Swivelling the steering bar must be easy.

Install the shifting rods. Insert the shifting rods

for gear and PTO shifting into the joint elements

at the shift levers at the gear side, a

nd secure

them with cotter pins .

Check the Bowden cables to ensure that they

are neither kinked nor pinched.

Install the front ballast at the engine safety bar.

Two-wheel tractor agria 3600 9

The engine is filled with gear oil when it is deliv-

ered. To prevent oil from leaking during the

transport, a

plug is installed instead of the oil

dipstick. Replace the plug with the oil dipstick.

See figure.

The machine tyres are not contained in the cardboard box. They are

delivered separately. Combine only tyres that are approved in the Agria sales

list.

Version 3600 (2+2): Rigid hexagonal wheel shaft

•Installing the driving wheels:

- 4.00-8: Install the driving wheels with wheel bolts and washers to the wheel flang-

es. Slip them on the hexagonal wheel shaft such that the arrow-shaped tyre pattern

points in the driving direction. Insert the lynch pin through the wheel hub and shaft

bore, and close the lynch pin.

- 4.00-10: Screw the wheel adapter flanges on the driving wheels. Install the driving

wheels with the wheel bolts and washers on the wheel flanges. Slip them on the

hexagonal wheel shaft such that the arrow-shaped tyre pattern points in the driving

direction. Insert the lynch pin through the wheel hub and shaft bore, and close the

lynch pins.

10 Two-wheel tractor agria 3600

Version 3600 (3+2): Steering brake

•Installing the driving wheels:

- 4.00-8: Install the driving wheels with the wheel nuts and washers on the wheel

flanges such that the arrow-shaped tyre pattern points in the driving direction.

- 4.00-10: Screw the wheel adapter flanges on the driving wheels. Next, install the

driving wheels with the wheel nuts and washers on the wheel flanges such that the

arrow-shaped tyre pattern points in the driving direction.

•Installing the overdrive shifting rod:

Insert the shifting rod from below into the shifting rod guide (I). Screw on the handle

ball (II), plug the shifting rod on the gearshift lever (III) and secure it with a lynch pin

(IV).

Performing initial startup. See page 40.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Agria Tracteur

Agria

Agria 3900 Manuel utilisateur

Manuels Tracteur populaires d'autres marques

Ariens

Ariens 936051 Manuel utilisateur

MacDon

MacDon M150 Manuel utilisateur

Belarus

Belarus 3522.5 Manuel utilisateur

CARRARO

CARRARO Vigneto Manuel utilisateur

Cub Cadet

Cub Cadet 3208 Manuel utilisateur

GREMO

GREMO 1250F Manuel d'instructions

HATTAT

HATTAT A90 Manuel utilisateur

Kubota

Kubota WSM STV32 Manuel d'instructions

Kubota

Kubota M108DC Manuel utilisateur

Case

Case 385 Diesel Guide d'installation

AL-KO

AL-KO Heritage RS 14/82 Manuel utilisateur

Webb

Webb WE1742SD Manuel utilisateur

MacDon

MacDon 9250 Manuel utilisateur

Toro

Toro 03200 Reelmaster 3100-D Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON 5400 Series Manuel utilisateur

Kubota

Kubota T1880 Manuel utilisateur

Case

Case JX 90 Manuel utilisateur

Iseki

Iseki TXG23 Manuel utilisateur
