ATV MOUNTED

125 LB. BROADCAST SPREADER

• Assembly

• Operation

• Maintenance

• Repair Parts

the fastest way to purchase parts

www.speedepart.com

™

RULES FOR SAFE OPERATION

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate

the equipment. Exercise caution at all times when operating equipment.

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. IT

MEANS — ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED.

CARTON CONTENTS

1. Hopper/Frame Assembly

2. Vinyl Cover

3. Impeller Shaft

4. Impeller

5. Motor Mount Assembly

6. Mounting Bracket, R.H.

•

Read this owners manual before attempting to assemble

or operate the spreader.

•

Read the vehicle owners manual and know how

to operate your vehicle, before using the spreader

attachment.

•

Do not allow anyone to ride on or sit on spreader

attachment frame.

•

Never allow children to operate the vehicle or spreader

attachment.

•

Do not allow adults to operate the vehicle or spreader

attachment without proper instructions.

•

Never operate vehicle and spreader attachment without

wearing solid, substantial footwear.

•

Wear eye and hand protection when handling and using

lawn chemicals.

•

Always begin with the transmission in ﬁ rst (low) and

gradually increase speed as conditions permit.

•

When using broadcast spreader do not drive too close

to a creek or ditch and be alert for holes and other

hazards which could cause you to loose control of the

broadcast spreader and vehicle.

•

Always operate vehicle and spreader up and down a

slope, never across a slope.

•

Read instructions and caution notes for handling and

application of materials purchased for spreading.

•

Follow maintenance and lubrication instructions as

outlined in this manual.

7. Mounting Bracket, L.H.

8. Wire Harness

9. Deﬂ ector

10. Extension Brackets (2)

11. Screen

Hardware Package (See page 3)

L 3 Cotter Pin, 1/8" x 1-1/4"

M 1 Coupler

N 2 Seal

O 4 Adhesive Pad

P 2 Plug

Q 1 Nylon Tie

R 5 Plastic Knob

S 2 Angle Bracket

T 5 Mounting Clamp

KEY QTY. DESCRIPTION

A 4 Hex Bolt, 5/16" x 2"

B 8 Hex Bolt, 5/16" x 1"

C 2 Hex Bolt, 1/4" x 3/4"

D 1 Carriage, 5/16" x 1"

E 5 Carriage Bolt, 5/16" x 1-3/4"

F 4 Nylock Hex Nut, 1/4"

G 12 Nylock Hex Nut, 5/16"

H 2 Flat Washer , 1/4"

I 4 Flat Washer, 5/16"

J 4 Nylon Washer

K 1 Hair Pin Agitator

KEY QTY. DESCRIPTION

A 4 Hex Bolt, 5/16" x 2"

B 8 Hex Bolt, 5/16" x 1"

C 2 Hex Bolt, 1/4" x 3/4"

D 1 Carriage, 5/16" x 1"

E 5 Carriage Bolt, 5/16" x 1-3/4"

F 4 Nylock Hex Nut, 1/4"

G 12 Nylock Hex Nut, 5/16"

H 2 Flat Washer , 1/4"

I 4 Flat Washer, 5/16"

J 4 Nylon Washer

K 1 Hair Pin Agitator

L 3 Cotter Pin, 1/8" x 1-1/4"

M 1 Coupler

N 2 Seal

O 4 Adhesive Pad

P 2 Plug

Q 1 Nylon Tie

R 5 Plastic Knob

S 2 Angle Bracket

T 5 Mounting Clamp

KEY QTY. DESCRIPTION

L 3 Cotter Pin, 1/8" x 1-1/4"

M 1 Coupler

N 2 Seal

O 4 Adhesive Pad

P 2 Plug

Q 1 Nylon Tie

R 5 Plastic Knob

S 2 Angle Bracket

T 5 Mounting Clamp

KEY QTY. DESCRIPTION

SHOWN FULL SIZE

NOT SHOWN FULL SIZE

HARDWARE PACKAGE

A B C E

I J

RS T

M N O

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED FOR ASSEMBLY

(1) Pliers

(2) 7/16" Wrenches

(2) 1/2" Wrenches

(2) 9/16" Wrenches

REMOVAL OF PARTS FROM CARTON

Remove all parts and hardware packages from the carton. Lay

out all parts and hardware and identify using the illustrations

on pages 2 and 3.

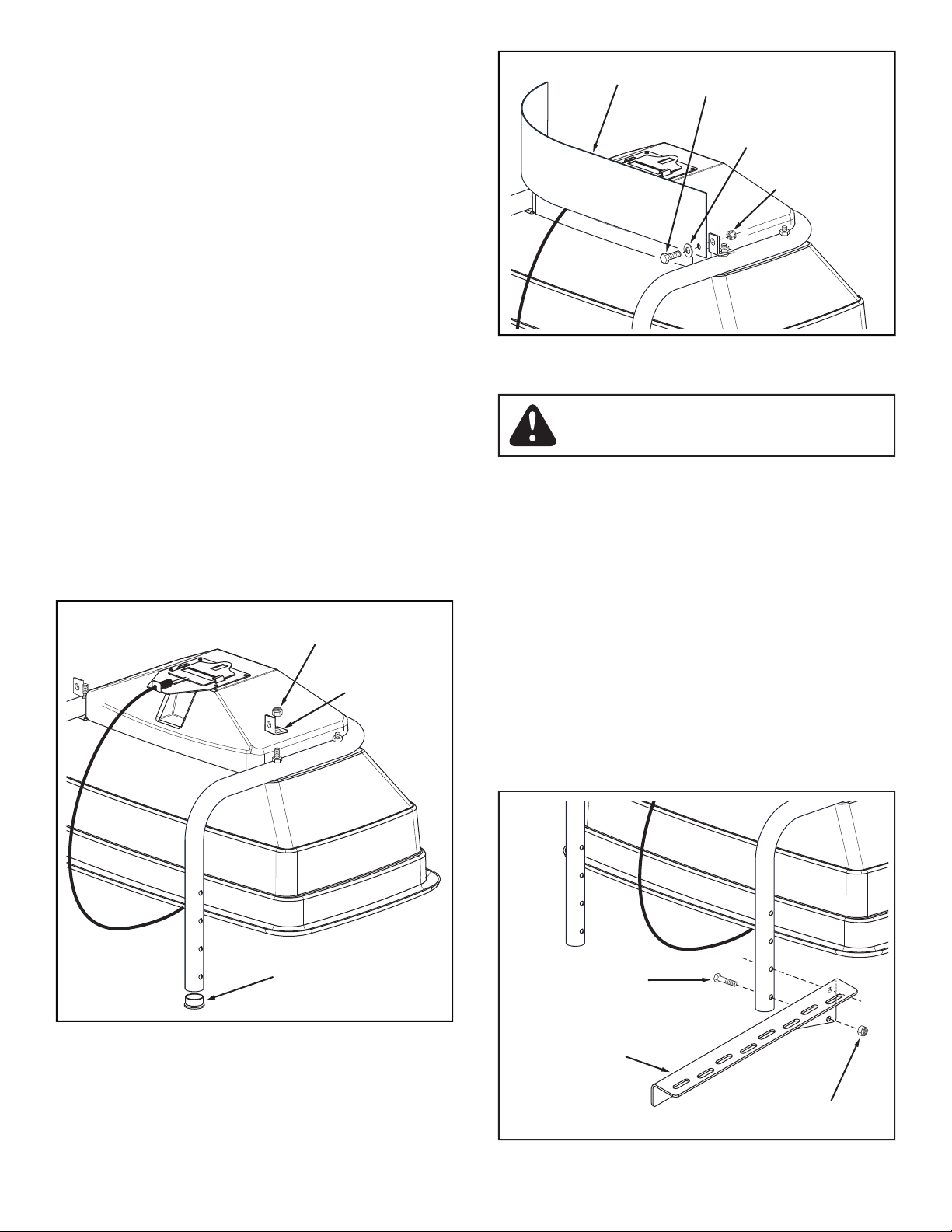

FIGURE 1

FIGURE 2

1. Turn the spreader upside down as shown in ﬁ gure 1.

2. Press the two plugs into the ends of the frame tube.

See ﬁ gure 1.

HINT:

Use a block of wood to help press the plug down

into the end of the tubing.

3. Assemble the two angle brackets and two 1/4" nylock

nuts onto the ends of the longer bolts that are already

assemble to the frame tube.

Do not tighten yet.

See

ﬁ gure 1.

4. Fasten the deﬂ ector to the angle brackets using two 1/4"

x 3/4" hex bolts, 1/4" ﬂ at washers and 1/4" nylock nuts.

Allow the angle brackets to swivel so that the deﬂ ector

curves naturally between the angle brackets and then

tighten all nuts

. See ﬁ gure 2.

1/4" NYLOCK

NUT

1/4" FLAT

WASHER

1/4" x 3/4"

HEX BOLT

DEFLECTOR

ANGLE

BRACKET

1/4" NYLOCK

NUT

PLUG

5/16" x 1-2"

HEX BOLT

5/16" NYLOCK NUT

MOUNTING

BRACKET, R.H.

FIGURE 3

NOTE:

The top of the hopper should be at least 30" above

the ground. The mounting holes shown in ﬁ gures 3 and 4

will make the top of the hopper even with the vehicle's rear

rack. If exhaust blows against spreader, a higher mounting

position may help.

Position the spreader for adequate clearance if

the vehicle mufﬂ er discharges straight toward

the rear.

IMPORTANT:

Before proceeding, determine if the mounting

brackets, when attached directly to the spreader frame, will

ﬁ t onto the vehicle rack. If they need to be farther apart, use

the extension brackets in ﬁ gure 4.

If you are NOT using extension brackets:

5. Attach the R.H. mounting bracket to the frame tube

using two 5/16" x 2" hex bolts and 5/16" nylock nuts as

shown in ﬁ gure 3.

Tighten.

Repeat for the L.H. mounting

bracket.

FIGURE 6

8. Attach the spreader's mounting brackets to the vehicle's

rear rack using four 5/16" x 1-3/4" carriage bolts,

mounting clamps and plastic knobs. Use the adhesive

pads to protect the rack. See ﬁ gure 6.

If you are using extension brackets:

6. Attach the extension brackets to the legs of the spreader

frame. Use two 5/16" x 2" hex bolts and 5/16" nylock

nuts per bracket.

Tighten.

See ﬁ gure 4.

5/16" NYLOCK

NUT

MOUNTING

BRACKET, R.H.

5/16" x 1"

HEX BOLT

If you are using extension brackets:

7. Attach the R.H. mounting bracket to the extension bracket

shown in ﬁ gure 5 using two 5/16" x 1" hex bolts and

5/16" nylock nuts.

Tighten.

Repeat on the other frame

leg with the L.H. mounting bracket.

FIGURE 5

FIGURE 4

5/16" x 1-3/4"

CARRIAGE BOLT

MOUNTING

CLAMP

PLASTIC KNOB

MOUNTING

BRACKET

ADHESIVE PAD

5/16" x 2"

HEX BOLT

EXTENSION

BRACKET

5/16" NYLOCK NUT

IMPELLER

1/8" x 1-1/4"

COTTER PIN

1/8" HAIRPIN

AGITATOR

SEAL

SPREADER

SHAFT

FIGURE 7

9. Insert the 1/8" hairpin agitator into the middle hole in

the spreader shaft. Assemble a seal (turned as shown

in ﬁ gure 7) onto the end of the spreader shaft closest

to the hairpin agitator. See ﬁ gure 7.

10. Slide the end of the spreader shaft having the seal

through the plastic bushing in the bottom of the hopper.

See ﬁ gure 7.

11. Slide the impeller onto the spreader shaft and secure

it with a 1/8" x 1-1/4" cotter pin. See ﬁ gure 7.

FIGURE 9

14. Place the screen down into the hopper.

DO NOT

place

it under the clips in bottom of hopper at this time. See

ﬁ gure 9.

15. Place the motor assembly down into the hopper, inserting

the end of the spreader shaft into the impeller coupler.

Secure it with a 1/8" x 1-1/4" cotter pin, spreading the

ends of the pin around the coupler. See ﬁ gure 9.

16. Fasten the motor mount bracket to the hopper using four

5/16" x 1" hex bolts, 5/16" ﬂ at washers, nylon washers

and 5/16" nylock nuts. See ﬁ gure 9.

12. Assemble a seal (turned as shown in ﬁ gure 8) onto the

motor shaft. Slide it up against the motor.

13. Assemble the impeller coupler onto the motor shaft and

secure it with a 1/8" x 1-1/4" cotter pin. Spread the ends

of the pin around the coupler. See ﬁ gure 8.

5/16" x 1"

HEX BOLT

NYLON

WASHER

5/16" NYLOCK NUT

MOTOR

ASSEMBLY

5/16" FLAT

WASHER

SCREEN

1/8" x 1-1/4"

COTTER PIN

SPREADER

SHAFT

17. Lift the screen up and slide the seal down the spreader

shaft to rest against the plastic bushing in the bottom

of the hopper. See ﬁ gure 10.

18. Slide one edge of the screen under one of the clips.

Then, slightly bow the screen to slide the opposite side

of the screen under the other clip. See ﬁ gure 10.

FIGURE 10

CLIPS

CLIP SCREEN SHAFT

SEAL

BUSHING

1/8" x 1-1/4"

COTTER PIN

SEAL

IMPELLER

COUPLER

FIGURE 8

FIGURE 12

FIGURE 11

FIGURE 13

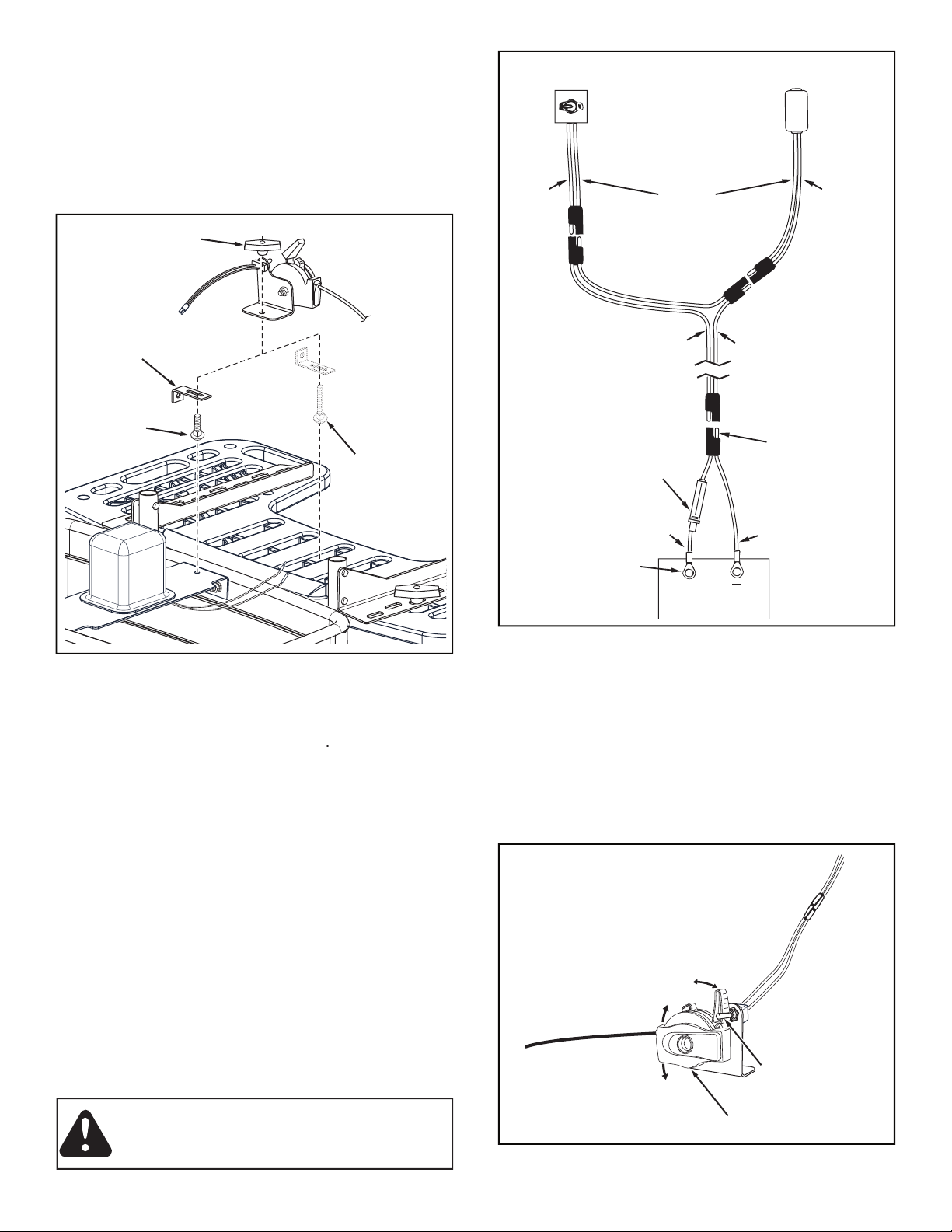

WIRING INSTRUCTIONS

When properly connected, the spreader motor and impeller

will run

clockwise viewed from above

20. Move the spreader's ﬂ ow control lever to the off position

so that the "ON-Off" switch is turned off.

21. Connect the short (fused) wire harness to the vehicle

battery by connecting the red wire to the positive post

and the brown wire to the negative post on the battery.

The wire harness may be left permanently attached to

the battery. See ﬁ gure 12.

22. Connect the long wire harness to the spreader by

connecting the red and white wires to the switch and

the brown and white wires to the spreader motor. Refer

to ﬁ gure 12.

23. Connect the long wire harness to the short (fused) wire

harness. Be sure the wires are clear of any moving parts,

hot engine parts, or pinch points.

24. Use the nylon ties provided to safely secure the wiring

away from hot engine parts, rotating parts and pinch

points.

19. Attach the ﬂ ow control to the motor mount bracket on the

spreader using the 5/16" x 1" carriage bolt, a mounting

clamp and a plastic knob. See ﬁ gure 11.

NOTE:

You can also attach to the rear rack if you use a 5/16"

x 1-3/4" carriage bolt. If you attach to the rear rack, you can

loosely pre-assemble the clamp, bolt and knob to the ﬂ ow

control. The clamp can then be angled down through the

slot in the rack.

NEVER

allow negative pin on plug to come

in contact with positive "hot" post on battery.

Fire or explosion can result!

"ON-OFF"

SWITCH

FLOW CONTROL

ON-OFF

25. Move the ﬂ ow control lever to the "ON" position. Flip

the "ON-OFF" switch on and check that the motor

runs counterclockwise. If it does not, refer to the wiring

diagram on page 6 and recheck the hookup.

26. Move the ﬂ ow control lever to "OFF". This should turn

the "ON-OFF" switch off. If it does not, you can loosen

the control and rotate it enough that the ﬂ ow control

lever, when moved to the "OFF" position will turn the

switch off. See ﬁ gure 13.

BROWN

RED

FUSE AND HOLDER

POSITIVE

"HOT" POST

NEGATIVE PIN

BROWN

RED

BATTERY

SWITCH MOTOR

BROWN

RED WHITE

5/16" x 1"

CARRIAGE

BOLT

MOUNTING

CLAMP

PLASTIC KNOB

5/16" x 1-3/4"

CARRIAGE

BOLT

FIGURE 15

IMPORTANT:

Application rates shown in the chart are

affected by humidity and by the moisture content of

the material (granular and pellet). Some minor setting

adjustments may be necessary to compensate for this

condition.

OVERLAP

REFER

TO CHART

USING YOUR SPREADER

We do not recommend the use of any powdered lawn

chemicals, due to difﬁ culty in obtaining a satisfactory or

consistent broadcast pattern.

1. Determine approximate square footage of area to be

covered and estimate amount of material required.

2. Verify that the spreader motor turns on and off and that

the ﬂ ow control is operating properly.

3. Make sure the ﬂ ow control lever is in the off position

and the closure plate is shut.

4. Set the adjustable stop to the desired ﬂ ow rate, keeping

the ﬂ ow control arm in the off position. Refer to the

application chart on this page and the instructions

on the fertilizer bag to determine the proper ﬂ ow rate

setting. The application chart is calculated for a vehicle

speed of 3 mph (100 ft. in 23 seconds). Faster speeds

require higher ﬂ ow rate settings to maintain the same

application rate.

5. Fill the hopper with the material to be spread, breaking

up any lumps as you ﬁ ll the hopper.

7. Start the vehicle in motion and then open the spreader

closure plate and ﬂ ip the switch to "ON".

OPERATION

HOW TO USE YOUR SPREADER

SETTING THE FLOW CONTROL

1. Slide the Adjustable stop to the desired setting.

2. Move the Flow Control Lever forward until it snaps into

the Adjustable Stop, locking the lever at the desired

setting. See ﬁ gure 14.

OFF

FLOW CONTROL LEVER

ADJUSTABLE STOP

FIGURE 14

STARTING THE SPREADER

1. Move the Flow Control Lever against the Adjustable

Stop and ﬂ ip the "ON-OFF" switch to the on position.

STOPPING THE SPREADER

1. Move the Flow Control Lever to the "OFF" position. Make

sure that the switch is turned off by the Flow Control

Lever.

8. Shut the closure plate before turning or stopping.

9. To insure uniform coverage, make each pass so that the

broadcast pattern slightly overlaps the pattern from the

previous pass as shown in ﬁ gure 15. The approximate

broadcast widths for different materials are shown in

the application chart on this page.

10. When broadcasting weed control fertilizers, make sure

the broadcast pattern does not hit evergreen trees,

ﬂ owers or shrubs.

11. Heavy moisture conditions may require a cover over the

hopper to keep contents dry. The vinyl cover acts as a

wind and moisture shield, but should not be used as a

rain cover.

12. If fertilizer is accidentally deposited too heavily in an

area, soak the area thoroughly with a garden hose or

sprinkler to prevent burning of the lawn.

TYPE FLOW SETTING SPREAD

MATERIAL 3 MPH WIDTH

FERTILIZER

TYPE FLOW SETTING SPREAD

MATERIAL 3 MPH WIDTH

FERTILIZER

APPLICATION CHART

Powder 3 - 5 3' - 4'

Granular 3 - 5 10' - 12'

Pelleted 3 - 5 17' - 19'

Organic 6 - 8 3' - 4'

GRASS SEED

Fine 3 - 4 3' - 4'

Coarse 4 - 5 8' - 9'

ICE MELTER 6 - 8 17' - 19'

SAND 4-10 17' - 19'

OPERATING SPEED

- 3 MPH. (100 ft. in 23 seconds)

MAINTENANCE

CHECK FOR LOOSE FASTENERS

Before each use make a thorough visual check of the

spreader for any bolts and nuts which may have loosened.

Retighten any loose bolts and nuts.

CHECK FOR WORN OF DAMAGED PARTS

2. Check for worn or damaged parts before each use.

Repair or replace parts if necessary.

CLEANING

3. Rinse inside of hopper and exterior of spreader and dry

off before storing.

STORAGE

1. Rinse inside of hopper and exterior of spreader and dry

off before storing.

2. Store in a clean, dry area.

TROUBLE SHOOTING POINTS

1. Material packed around plate

1. Loose connection in spreader

wiring

2. In line fuse is blown.

3. Loose battery connection

4. Battery is run down.

5. Broken spreader wiring

6. Spreader switch is broken.

7. Spreader motor is broken.

1. Wired backwards to battery.

2. Spreader on-off switch is broken.

Hopper closure plate does not open to

the correct position.

Spreader motor doesn't run.

Spreader motor runs backwards.

Motor runs when switch is shut off.

1. Clean out around closure plate

1. Check and reconnect.

2. Replace fuse.

3. Tighten battery terminals.

4. Recharge the battery.

5. Replace damaged wiring.

6. Replace the switch

7. Repair or replace motor.

1. Switch wiring at battery terminals.

2. Replace the switch.

REMOVING THE SPREADER

13. Disconnect the spreader from the vehicle battery by

unplugging the short wire harness from the long wire

harness. The short wire harness may be left permanently

attached to the battery.

14. Remove the ﬂ ow control from the rear rack of the vehicle

if it is attached there.

15. Loosen the knobs on the spreader mounting brackets.

Rotate the clamps fastened underneath the vehicle

rack and lift them up through the rack to remove the

spreader.

REPAIR PARTS FOR ATV MOUNTED

125 LB. BROADCAST SPREADER MODEL 45-0324

25 4

30, 51

Autres manuels pour 45-0324

Table des matières

Autres manuels Agri-Fab Épandeur

Agri-Fab

Agri-Fab 45-02113 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02114 Manuel utilisateur

Agri-Fab

Agri-Fab 45-03641 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0414 Manuel utilisateur

Agri-Fab

Agri-Fab SpeedEPart 45-0463 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02101-101 Manuel utilisateur

Agri-Fab

Agri-Fab 45-04621 Manuel utilisateur

Agri-Fab

Agri-Fab 45-05321 Manuel utilisateur

Agri-Fab

Agri-Fab 45-04631 Manuel utilisateur

Agri-Fab

Agri-Fab 45-03291 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02112 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0527 Manuel utilisateur

Agri-Fab

Agri-Fab 175 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0382 Manuel utilisateur

Agri-Fab

Agri-Fab 45-03881 Manuel utilisateur

Agri-Fab

Agri-Fab 45-04631 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0566 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02102-101 Manuel utilisateur

Agri-Fab

Agri-Fab 45-03152 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02881 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0329 Manuel utilisateur

Agri-Fab

Agri-Fab PRO 125 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0187 Manuel utilisateur

Agri-Fab

Agri-Fab 45-02152 Manuel utilisateur

Manuels Épandeur populaires d'autres marques

PEQUEA

PEQUEA GT-100 Manuel utilisateur

Herculano

Herculano H2RS9 Manuel utilisateur

Epoke

Epoke SKE8 Manuel utilisateur

GEA

GEA EL44 Fiche technique

Boss Snowplow

Boss Snowplow TGS 800 Manuel utilisateur

Fisher

Fisher EMERSON 168 Series Manuel utilisateur

Fisher

Fisher POLY-CASTER 78601 Manuel utilisateur

TurfEx

TurfEx RS7200 Manuel du propriétaire

Ferris

Ferris Pathfinder Series Manuel utilisateur

Fayat Group

Fayat Group DYNAPAC S100 Guide de dépannage

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manuel d'installation et d'exploitation

EASTMAN

EASTMAN CR 500 Manuel utilisateur

Nogueira

Nogueira RoyalFlow-600 Manuel utilisateur

Buyers

Buyers TGS05B Manuel utilisateur

Magnum

Magnum V-BOX PV Series Supplément

Meyer's

Meyer's VB280 Manuel utilisateur

SnowEx

SnowEx VX-4210 Manuel utilisateur

Kramer

Kramer VM-400HDCP Manuel utilisateur
