Agilent Technologies 1200 series Manuel utilisateur

Agilent Technologies

Agilent 1200 Series

Quaternary Pump

User Manual

1200 Series Quarternary P ump User Manual

1200 Series Quarternary Pump User Manual

Notices

2008

No part of this manual may be reproduced

in any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Agilent

Technologies, Inc. as governed by United

States and international copyright laws.

Manual Part Number

G1311-90011

Edition

11/08

Printed in Germany

Agilent Technologies

Hewlett-Packard-Strasse 8

76337 Waldbronn

Research Use Only

Not for use in Diagnostic Procedures.

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of a

U.S. Government prime contract or subcon-

tract, Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June 1995),

or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer soft-

ware” as defined in FAR 52.227-19 (June

1987) or any equivalent agency regulation

or contract clause. Use, duplication or dis-

closure of Software is subject to Agilent

Technologies’ standard commercial license

terms, and non-DOD Departments and

Agencies of the U.S. Government will

receive no greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will receive

no greater than Limited Rights as defined in

FAR 52.227-14 (June 1987) or DFAR

252.227-7015 (b)(2) (November 1995), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could

result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION

notice until the indicated condi-

tions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice,

or the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indi-

cated conditions are fully under-

stood and met.

1200 Series Quarternary Pump User Manual 3

Contents

1 Introduction 7

Introduction to the Quaternary Pump 8

Overview of the Hydraulic Path 9

Instrument Layout 16

The Electronics 17

Electrical Connections 18

Agilent 1200 Series Interfaces 20

2 Site Requirements and Specifications 21

Site Requirements 22

Physical Specifications 25

Performance Specifications 26

3 Installing the Pump 29

Unpacking the Quaternary Pump 30

Optimizing the Stack Configuration 33

Installing the Quaternary Pump 36

Connecting Modules and Control Software 39

Flow Connections of the Quaternary Pump 41

Priming and Purging the System 44

4UsingtheQuaternaryPump 49

Hints for Successful Use of the Quaternary Pump 50

Solvent Information 51

Prevent Blocking of Solvent Filters 52

Algae Growth in HPLC Systems 53

5 Optimizing Performance 55

Operational Hints for the Vacuum Degasser 56

Operational Hints for the Multi Channel Gradient Valve (MCGV) 57

When to use the Seal Wash Option 58

When to Use Alternative Seals 59

4 1200 Series Quarternary Pump User Manual

Contents

Optimize the Compressibility Compensation Setting 60

6 Troubleshooting and Test Funct io ns 63

Agilent Lab Advisor Software 64

Overview of the Pump’s Indicators and Test Functions 65

Status Indicators 66

User Interfaces 68

7 Maintenance 69

Introduction to Repairing the Pump 70

Early Maintenance Feedback (EMF) 73

Overview of Repairing the Pump 75

Simple Repairs 77

8 Parts and Materials for Maintenance 105

Overview of Main Assemblies 106

Pump Head Assembly 110

Pump Head Assembly with Seal Wash Option 112

Outlet Ball Valve Assembly 114

Purge Valve Assembly 115

Active Inlet Valve Assembly 116

Accessory Kit G1311-68705 117

Seal Wash Option Kit G1311-68711 118

9 Identifying Cables 119

Cable Overview 120

Analog Cables 122

Remote Cables 125

BCD Cables 130

External Contact Cable 132

CAN/LAN Cables 133

Auxiliary Cable 134

RS-232 Cables 135

10 Appendix 137

General Safety Information 138

1200 Series Quarternary Pump User Manual 5

Contents

The Waste Electrical and Electronic Equipment (WEEE) Directive

(2002/96/EC) 141

Lithium Batteries Information 142

Radio Interference 143

Sound Emission 144

Agilent Technologies on Internet 145

6 1200 Series Quarternary Pump User Manual

Contents

1200 Series Quarternary Pump User Manual

Agilent Technologies

Introduction

Introduction to the Quaternary Pump 8

Overview of the Hydraulic Path 9

How Does the Pump Work? 11

How Does Compressibility Compensation Work? 14

How Does Variable Stroke Volume Work? 14

Early Maintenance Feedback (EMF) 15

Instrument Layout 16

The Electronics 17

Electrical Connections 18

Agilent 1200 Series Interfaces 20

8 1200 Series Quarternary Pump User Manual

1Introduction

Introduction to the Quaternary Pump

The quaternary pump comprises a solvent cabinet, a vacuum degasser and a

four-channel gradient pump. The four-channel gradient pump comprises a

high-speed proportioning valve and a pump assembly. It provides gradient

generation by low pressure mixing. Degassing is a must for a low-pressure

gradient system therefore the Agilent 1200 Series vacuum degasser is part of

the quaternary pump system. A solvent cabinet provides enough space for four

one-liter bottles. An active seal wash (optional) is available when the

quaternary pump is used with concentrated buffer solutions.

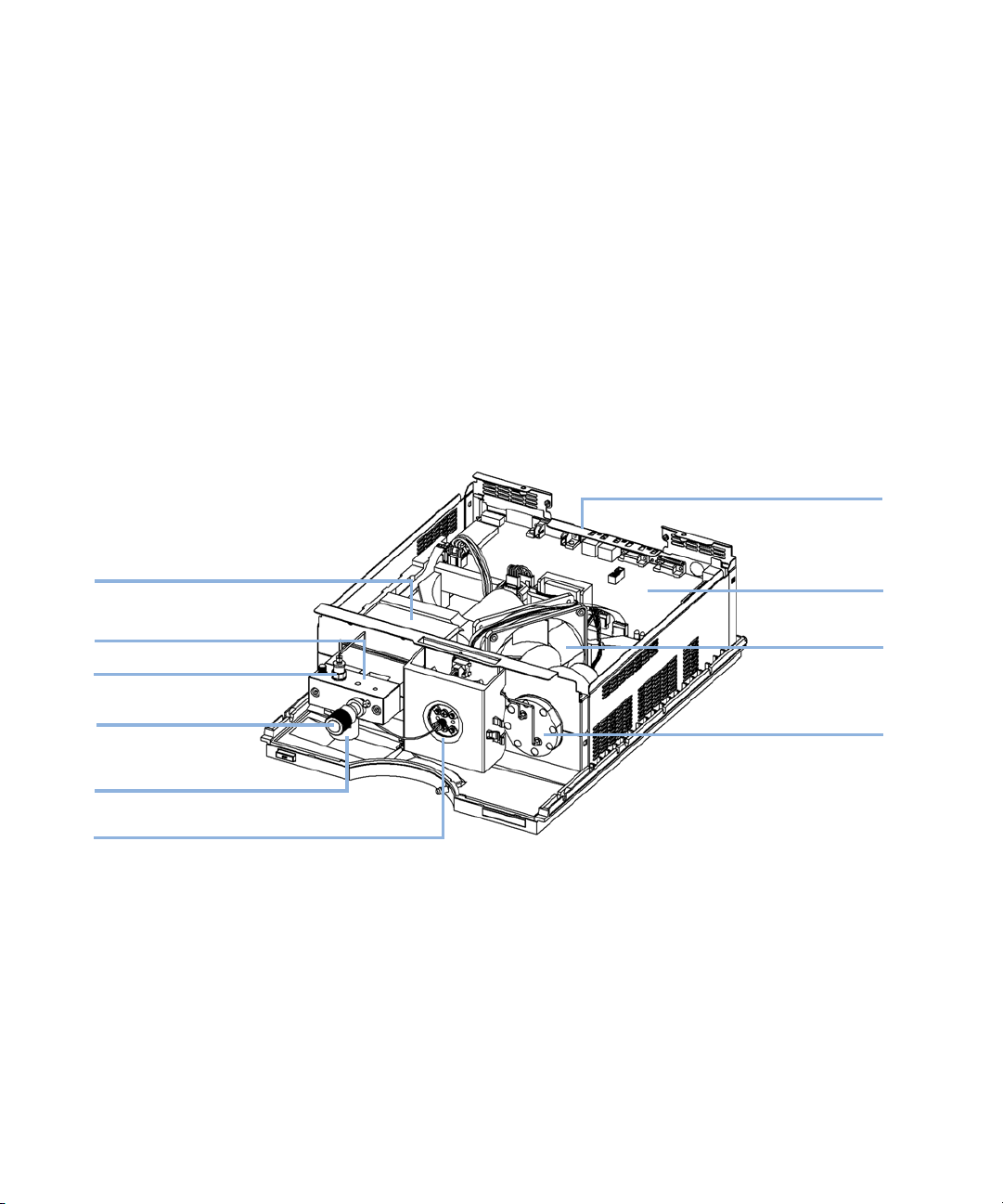

Figure 1 Overview of the Quaternary Pump

EjbeYg^kZ

Ejbe]ZVY

DjiaZiWVaakVakZ

Ejg\ZkVakZ

6Xi^kZ^caZikVakZ

B8<K

EdlZghjeean

AEBWdVgY

;Vc

9VbeZg

1200 Series Quarternary Pump User Manual 9

Introduction 1

Overview of the Hydraulic Path

The quaternary pump is based on a two-channel, dual plunger in-series design

which comprises all essential functions that a solvent delivery system has to

fulfill. Metering of solvent and delivery to the high-pressure side are

performed by one pump assembly which can generate pressure up to 400 bar.

Degassing of the solvents is done in a vacuum degasser and solvent

compositions are generated on the low-pressure side by a high-speed

proportioning valve.

The pump assembly includes a pump head with an active inlet valve which has

an replaceable cartridge, and an outlet valve. A damping unit is connected

between the two plunger chambers. A purge valve including a PTFE frit is

fitted at the pump outlet for convenient priming of the pump head.

An active seal wash (optional) is available when the quaternary pump is used

with concentrated buffer solutions.

10 1200 Series Quarternary Pump User Manual

1Introduction

Overview of the Hydraulic Path

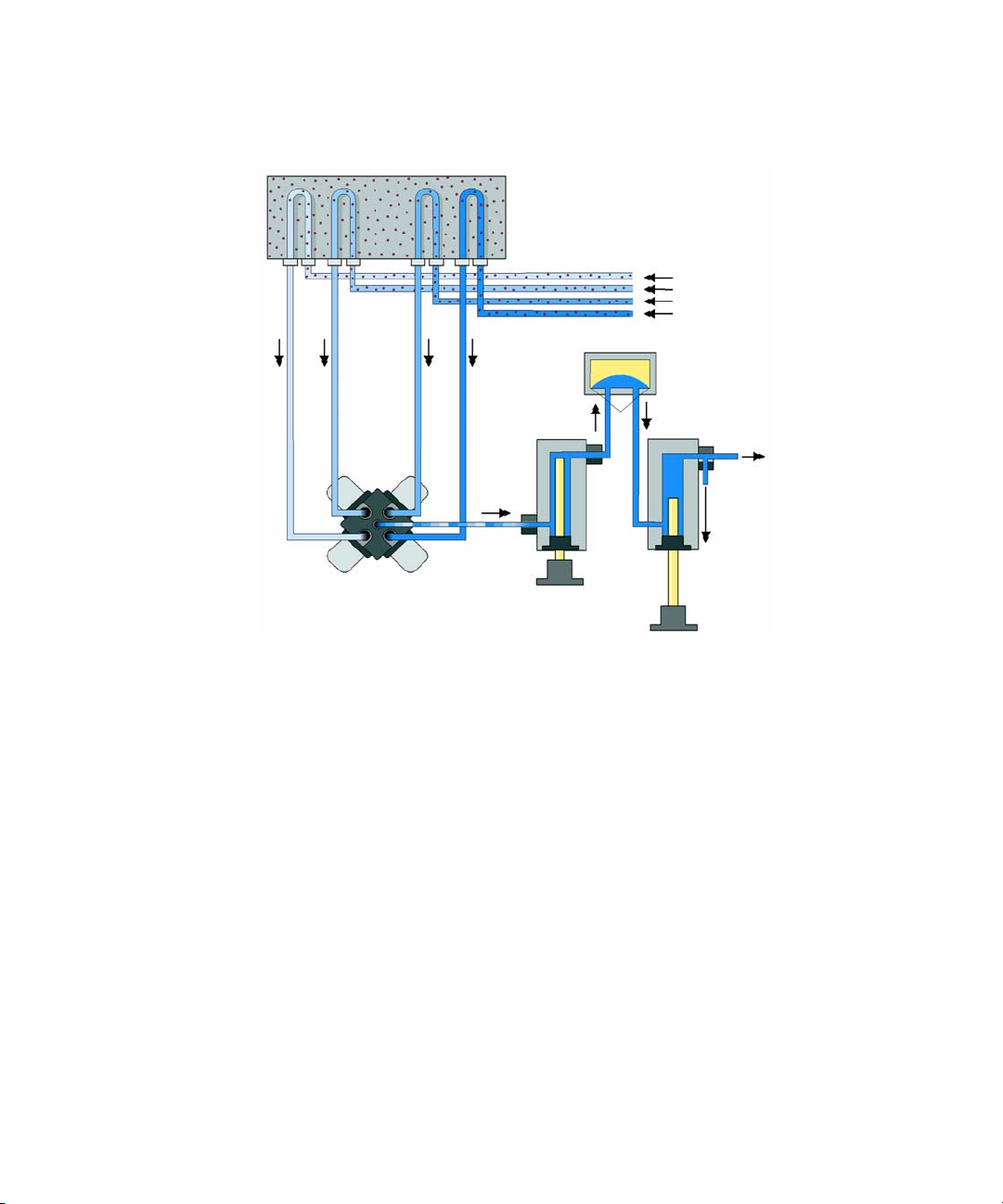

Figure 2 Hydraulic Path of the Quaternary Pump

>caZikVakZ

9VbeZg

IdlVhiZ

;gdbhdakZciWdiiaZh

KVXjjbX]VbWZg9Z\VhhZg

IdhVbea^c\jc^iVcYXdajbc

DjiaZi

kVakZ
