AG Neovo DR-17P Manuel utilisateur

www.agneovo.com

NeoV™ Optical Glass - e most

trusted hard glass protection available.

Only on AG Neovo displays

DR-17P

A durable, versatile, high performance

display with an array of built-in video

options designed expressly for medical

environments.

e DR-17P is a durable, high resolution 1280 x 1024, 17” display

featuring the specied DC 24 V medical power supply essential for

medical applications. A sturdy metal casing and VESA compliant

design allows for a variety of mounting possibilities. e protection

of NeoV™ Optical Glass and the exibility of analogue, DVI,

S-Video and CVBS inputs make the DR-17P perfect for patient

education in medical environments.

> SXGA 1280 x 1024 resolution

> NeoV™ Optical Glass

> AIP technology: PIP; Built-in Image Enhancer

> Durable metal casing

> Touch sensor control keys to prevent vandalism

> S-Video, CVBS, analogue, digital inputs

> Built-in speakers (1.5W x 2)

> Swi 3 ms response time

> Illuminator mode for easy X-ray lm viewing

> DC 24V medical grade power adaptor allows longer distance connection

> Optional handle allows for easy movement of display

> Equipotential Terminal safety standard

> EcoSmart Sensor for low watt power consumption

> Auto-adjustment for optimal settings

> Kensington® security socket

> VESA standard mount

REACH

All specications are subject to change without prior notice.

All other trademarks are the property of their respective owners.

P/C: DR7P00 Version 1.1, 20130101

Analogue, DVI, S-Video and CVBS inputs for any

video device or PC data feeds

Convenient handle allows for easy movement

Strong metal design for increased durability

NeoV™ Optical Glass protects against scratches, impacts

and other physical damage

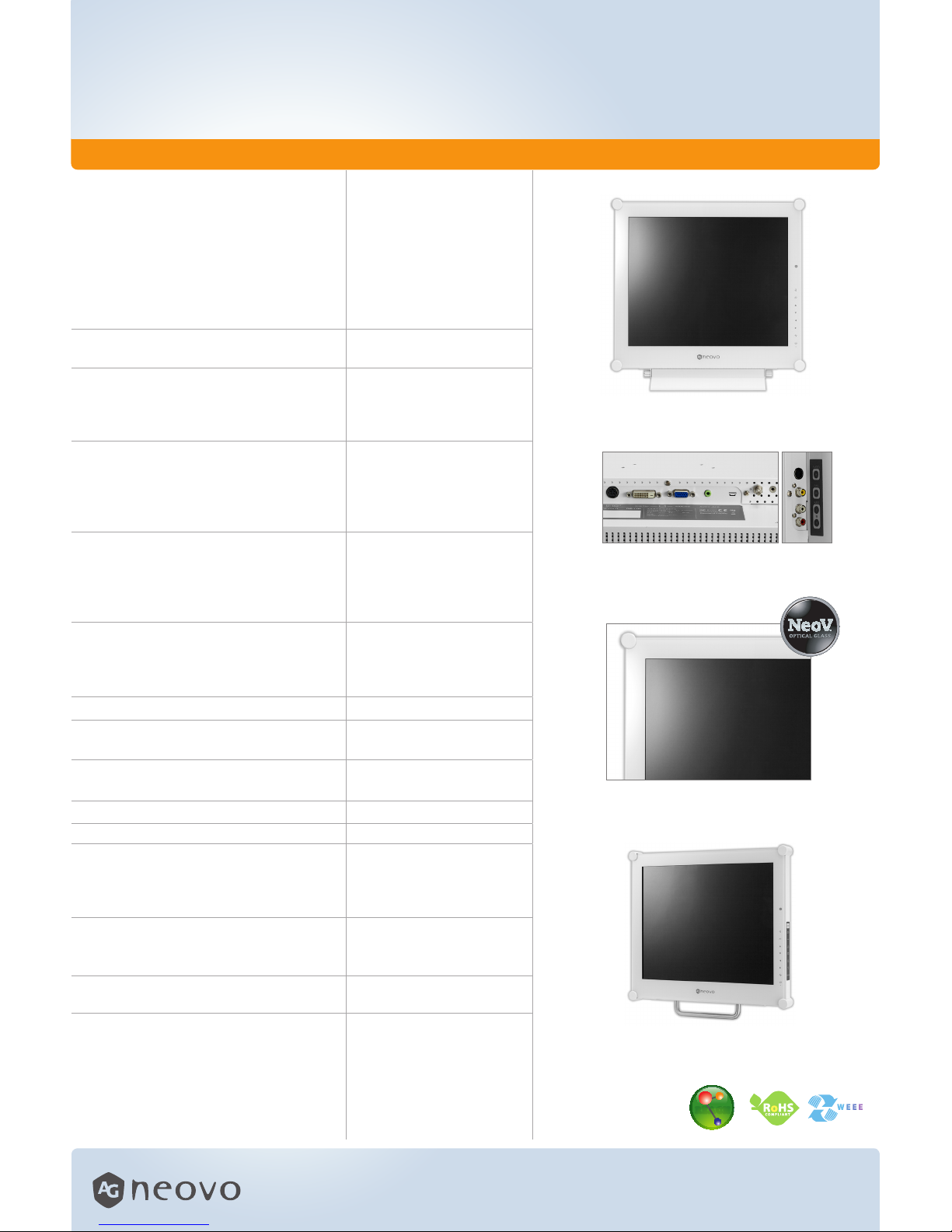

Specications DR-17P

Panel Panel Type

Panel Size

Max. Resolution

Pixel Pitch

Brightness

Contrast Ratio

Viewing Angle (H/V)

Display Colour

Response Time

TFT LCD

17.0” (432 mm)

SXGA 1280 x 1024

0.264 mm

250 cd/m2(Typical)

1000:1 (Typical)

170°/160° (Typical)

16.7M

3 ms (GTG)

Frequency (H/V) H: 24 kHz - 82 kHz

V: 50 Hz - 85 Hz

Input Analogue

Digital

S-Video

CVBS

15-Pin D-Sub

24-Pin DVI-D

4-Pin Mini DIN

RCA

Audio Audio In 1 x stereo audio in for PC (audio

jack, 3.5 Ø)

1 x stereo audio in for CVBS or

S-Video (RCA)

Audio Out Speaker 1.5W x 2

Power AC-DC Adaptor

Power

Consumption

External DC 24V

AC 100 - 240 V, 50 - 60 Hz

< 20 W (On)

< 0.5 W (Stand-by)

< 0.5 W (Off)

NeoV™

Optical Glass

Thickness

Reection Rate

Transmission Rate

Coating Hardness

3.0 mm (0.12”)

< 1%

> 96%

> 9H

Plug & Play VESA DCC 2B, DDC/CI

Operating

Conditions

Temperature

Humidity

0 °C ~ 40 °C

10% ~ 90%

Storage

Conditions

Temperature

Humidity

-20 °C ~ 60 °C

5% ~ 95%

Mounting VESA FPMPMI Yes (100 mm & 75mm)

Tilt Tilt 0° ~ +20°

Dimensions Product

(W x H x D)

Packaging

(W x H x D)

409 x 398 x 175 mm

(16.1” x 15.7” x 6.9”)

486 x 497 x 228 mm

(19.1” x 19.6” x 9.0”)

Weight Product Weight

Packaged Product Weight

w/ Base 6.6 kg (14.5 lbs)

w/o Base 5.8 kg (12.8 lbs)

7.9 kg (17.4 lbs)

Regulation

Approval

Certications &

Compliance

CB, FCC, CE, WEEE, RoHS,

REACH

Accessories Supplied Quick Guide, CD ROM (user

manual and drivers), 15-Pin

D-Sub cable, S-Video cable,

Power cord, Power adaptor 5 m,

Audio cable

Optional Display handle, X-ray lm

positioner

DR-17P
