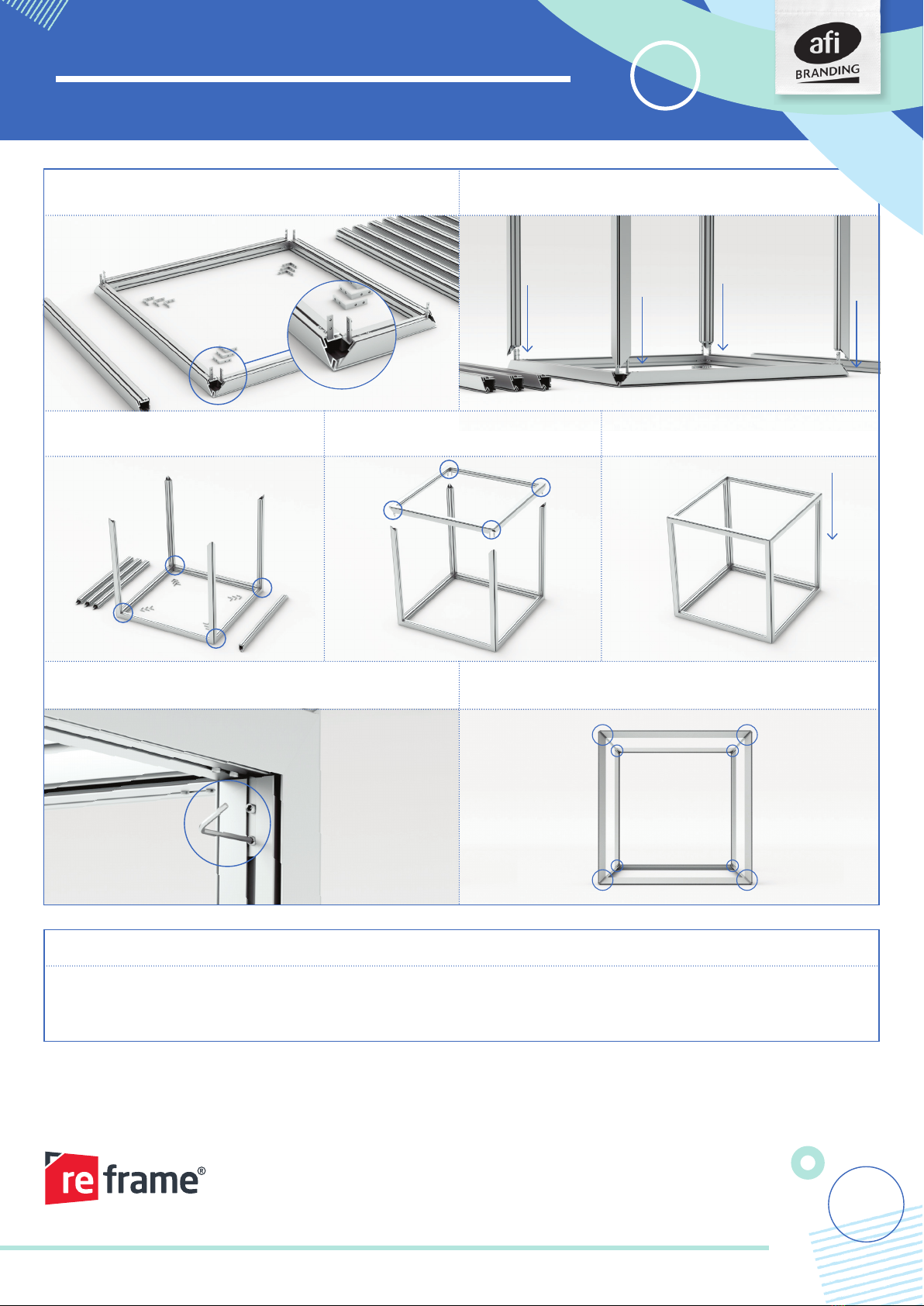

RC051 - double-sided cube ReFrame®
assembly instructions
Lay out the ReFrame®
components on a flat
surface and ensure you have
everything required before
you start the assembly.
Bridge the two parallel bottom frame lengths to make a
square base
3
2
Repeat step 2 on the remaining 3 corners of the bottom
frame lengths 4
Insert corner bracket into frame length (ensuring the bracket is set in as far as possible)
5Ensure each corner is fixed with 2 vertical facing
brackets
Lower vertical lengths onto vertical facing brackets
6
Ensure vertical frames are correctly
in place
Repeat step 2, 3 and 4 to make the
top frame
Connect top frame to vertical
lengths
7 8 9
Using the provided allen key, fix the corner brackets Repeat step 8 on all remaining brackets to complete
frame
10 11
RC051 - double-sided cube ReFrame®
assembly instructions
www.afibranding.com.au | 1300 652 514 |33 Lakewood Blvd, Carrum Downs, Vic, 3201
Applying your custom ReFrame® fabric skin
12
Developed by AFI Branding
Now that you’ve finished assembling your ReFrame®, it’s time to apply your custom ReFrame® fabric skin. Please refer to
either a printed ‘ReFrame® Fabric Installation Guide’ or go to www.reframe.com.au to watch one of our instructional
assembly videos to see how to correctly apply your ReFrame® fabric skin.
NOTE: The assembly instructions for the RC051 (and included components) illustrate the fundamental steps to assemble a
‘standard’ Double-Sided Cube type ReFrame®. If your Reframe® is oversize, has additional components such as joiners (not
shown on this fact sheet), accessories, or has bends/curves and you are unsure how to proceed with assembly, please contact
the team at AFI Branding on 1300 652 514 and we will guide you through the assembly process.
