The uScope –Getting started

Introduction (fw 4.19 October 1, 2011)

The uScope! A single channel, pocket-sized,

digital storage oscilloscope that ¡s small, quick,

and powerful. Automotive presets get you going

quickly. Ideal for the Flat Rater that wants the

ultimate run and gun lab scope for pin point

testing. Ideal for the student that is ready to

start scope'n.

The uScope is powered by an easy to use

interface enhanced with automotive presets and

reference waveforms.

Put the power of the uScope in your hand (and shirt

pocket).

Secondary ignition, injectors, mass air flow, crank,

cam, TPS, 02, CTS you name it it'll scope it. The

uScope is also perfect for your low amp probe,

secondary ignition pickup and pressure transducers.

When you just need to run a quick

test to verify the "signal" is working

as the engineer intended, why spend

time pulling out and setting up your

"big boy Scope" when you can do it

faster with the uScope?

AES uScope Manual

First Time Use:

Protective Film:

The uScope is shipped with a protective film over the screen and the backside of the unit. Please

feel free to remove the plastic film.

Charge the battery:

Charge your new uScope for at least 5 hours before first use.

CAUTIONS

Test Lead Connection

The test lead connects to the uScope via an audio plug. The signal rides on the tip of the audio plug.

If the tip of the test lead plug touches ground while the test lead is connected to a circuit, the circuit

will short.

oAlways connect your test lead to the uScope before connecting to a circuit.

oAlways disconnect from the circuit before disconnecting from the uScope.

Circuit Testing while Charging uScope

It is not recommended to connect the uScope input channel to a circuit while the uScope is charging.

Doing so may result in a ground loop that can destroy equipment and possibly endanger the user.

Intended for DC Circuits

The uScope is designed for use on DC circuits with a maximum voltage of 80 volts.

oDo not use the uScope for testing Line Voltage AC circuits.

oFor DC circuits above 80 volts use a 10x probe. Contact AESwave.com or more information.

Automotive Professionals

The uScope is intended for use by automotive professionals with adequate training.

oIf you are not sure, ask!

AES uScope Manual

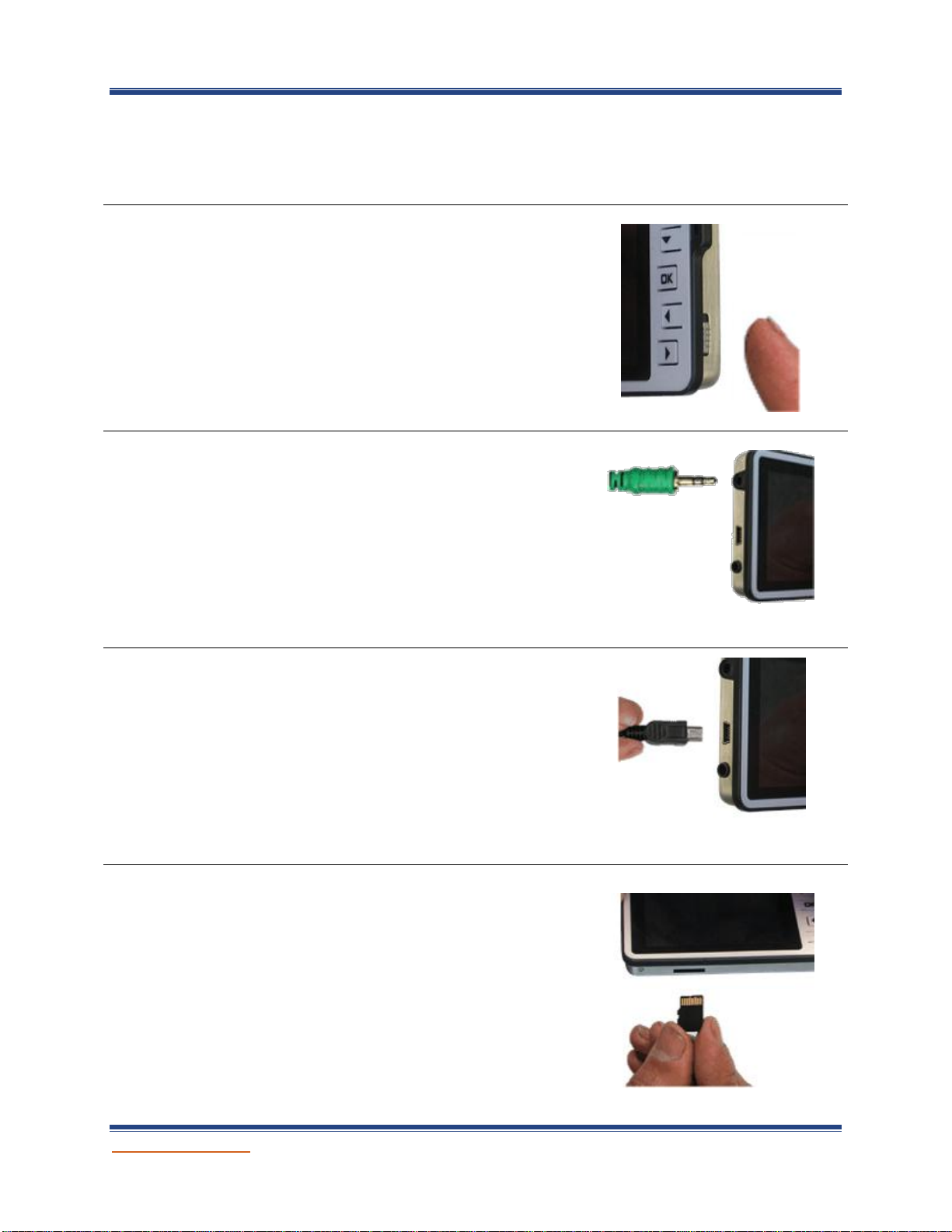

Ports, Connection and On/Off Button

On/Off

The on off switch is located at the bottom right of the

unit. It is a slide switch.

Test Lead Port

The test lead connection is a 3.5mm stereo audio jack

located at the top left side of the unit. When connecting,

ensure that the plug is inserted to the base.

Note: The 3.5 stereo audio jack port located at the

bottom left of the unit is a signal generator. DO NOT USE

THIS PORT WHEN TESTING AN AUTOMOTIVE CIRCUIT.

USB to PC Connection and Charging Port

The USB connector is a standard micro USB and is

located in the middle left side of unit. This port is used

for PC and uScope communication and for charging the

uScope.

Memory Card –microSD Card

The uScope incorporates a microSD memory card. The

card port is located in the center of the bottom side of

the unit. Note that the electrical connection tabs face

toward you for installation. Press the card in until fully

seated. When properly installed the card will be just

below flush.

**Do not remove the memory card. Doing so may

disable the ability to save and recall setups.

AES uScope Manual

Main Buttons

[On/Off] Turn uScope on or off

Slide switch located on bottom right side of uScope

[A] Two actions

1. Quick press

A quick Press of “A” will switch between “stop” or “run” of

the waveform.

2. Long Press

Hold for 1 full second (or until the screen changes) to

switch between the Main Menu or the Grid Value

displays.

For further instructions on saving an image or setup, refer

to the manul.

[B] Save Button (Located on the right)

Press and hold “B”, while in grid value mode

and in measurement menu “ME”, to save an image of the screen.

[Arrows] Navigation (located on right side of the front

face)

When the Main Menu is visible:

oUp and down arrows: move between main menu and

menu items

oLeft and right arrows: make adjustments/selections for

the currently highlighted menu item.

[OK] Select menu Items (“OK” = menu)

When the Main Menu is visible, “M” will open or close the currently selected menu item.

For example, when “Tr”is highlighted, press “OK”to open the “Tr”menu item. Press “OK”

to close it.

Long Press “OK”

When a menu item calls for a selection, a long press of “OK”will close the window and

select the action.

AES uScope Manual

Quick Start - How To:

Charge the battery:

Charge your new uScope for at least 5 hours before first use.

Waveform Capture using a PreSet:

All presets are stored and loaded onto the SD card.

Turn on the uScope by sliding the switch located on the bottom right of unit.

1. Use the UP | DOWN arrow keys and highlight the “PS”(PreSets) menu item.

2. Press “OK”and the menu will open.

3. Use the UP | DOWN arrow keys to highlight the desired preset “Group.”

a. Sensors, Actuators, Amp, Ignition, Charging, User Set Ups

4. Press the LEFT | RIGHT arrow keys to select the desired preset in the “Group“.

5. Press and Hold the “OK”button to activate the preset.

6. Connect your test leads and fine tune time voltage and trigger adjustments if desired.

7. Note: To select Auto Setup, highlight Auto Setup, and press & hold “OK” to activate it.

Waveform Capture not using a PreSet:

1. Turn on the uScope by sliding the switch located on the top right of unit to the right.

2. Use the UP | DOWN arrow keys and highlight the “Tr”(Trigger) menu item.

3. Press “OK”and the menu will open

4. Use the UP | DOWN arrow keys to highlight the “Tr”Mode (Trigger Display Mode) Menu item.

5. Use the LEFT | RIGHT arrow keys to select AUTO. Note the prompt located in the top left of the

screen.

a. AUTO trigger type will allow the uScope to update the screen regardless of other trigger

settings. This is a great first step to get the signal on the display. Reference chart on

page 11.

6. Press “OK”to exit the menu

7. Connct test leads to the signal.

8. If the signal is to short or too tall:

a. Use the UP | DOWN arrow keys and highlight the “.V”menu item.

b. Press “OK”and the menu will open

c. Use the UP | DOWN arrow keys and highlight “V/Div”

d. Use the RIGHT arrow key to make the waveform taller. Use the LEFT arrow key to make

it shorter.

e. Press “OK”to exit the menu

Continued….

AES uScope Manual

9. To see more of the signal or less of the signal:

a. Use the UP | DOWN arrow keys and highlight the “.T”(Time Settings) menu item.

b. Press “OK”and the menu will open

c. Use the UP | DOWN arrow keys and highlight “T/Div”

d. Use the RIGHT arrow key to go to a faster time setting showing less time of the signal but

in greater detail –like a magnifying glass. For example, see one injector pulse instead of

three.

e. Use the LEFT arrow key to go to a slower time setting showing more time of the signal

but in less detail. For example, display three injector pulses instead of one.

f. Press “OK”to exit the menu

10. To stablize the signal:

a. Some signals can not be stablized. For example, a square wave that has a unique ID

such as a crank sensor. Other signals are easy to stabalize. In either case follow these

procedures:

b. Use the UP | DOWN arrow keys and highlight the “Tr”(Trigger Settings) menu item.

c. Press “OK”and the menu will open.

d. Use the UP | DOWN arrow keys to highlight the “Tr” Level (Trigger voltage level) Menu

item.

e. Use the LEFT | RIGHT arrow keys to set the trigger level. The LEFT arrow key moves

the trigger level down and the RIGHT key moves the trigger level up. Note: the Yellow

dotted horizontall line in the display indicating the selected level.

f. Note: When “Tr”level menu item is selected, The numerical value of the Trigger will be

displayed on the top right of the screen.

g. A good technique for beginners is to move the Yellow Dotted line level indicator above

the signal. Then move it down and note the changes in the display of the waveform.

i. Rules of thumb:

1. For repetitive signals that do not have a unique spike that reaches above

or below the repetitive portion of the signal, such as a square wave, just

place the trigger level within the center 1/3 of the signal. Leave the

TRIGGER MODE on AUTO or NORM.

2. For signals that do have a unique charactoristic such as an injector or

ignition place the TRIGGER LEVEL along a unique portion of the signal

such as the rising edge of the spike or a falling edge use TRIGGER

MODE on NORM to stabalize. One more helpful adjustment is to set the

TRIGGER SLOPE to positive or negative. (In the “TR”menu highlight

“TR.”SLOPE and use the LEFT | RIGHT arrow key to set the SLOPE.

AES uScope Manual

Switching between MENU and Grid Values

To switch between GRID VALUES and the MAIN MENU press and hold the “A” button for approximaely

.5 seconds. (Please note: Tapping the “A” button for less than .5 seconds will hold the signal)

Display with Grid Values

Display with Menu

AES uScope Manual

Main Menu

“.V” Voltage and Vertical setting Menu

Highlight the “V.”menu item and press “OK”to open the menu.

V/Div (Voltage per division setting)

Highlight V/Div

Use LEFT/RIGHT to select desired Volts per division

Press “OK”when complete to close menu

Gnd (Ground position)

Highlight “Gnd”

Use the LEFT/RIGHT to move the vertical position of the waveform. Note: that

left arrow moves waveform down and right arrow moves it up.

Note: The horizontal grid line will always reference 0 volts.

Press “OK”when complete to close menu

Invert (Inverts waveform on display, ideal for secondary ignition.)

Highlight Invert

Press LEFT/RIGHT arrow key

Note: the bottom right of the screen will indicate if invert is on or off

oThe following will be displayed at the button right of the screen if invert is

on: INV

Press “OK”when complete to close menu

Ref Vert Pos (Reference Vertical Position)

Highlight Ref Vert Pos

Use the LEFT/RIGHT to pick the desired position of the reference waveform.

Press “OK” to exit the menu

“.T” Time and Horizontal Setting Menu

Highlight the “.T”and press “OK” to activate the menu.

T/Div (Time per division Settings)

Highlight “T/Div”

Use LEFT/RIGHT to select the time division setting

Press “OK”to exit menu

Horz Pos (Horizonal Postion)

Highlight “Horz Pos”

Use LEFT/RIGHT to select the desired Horizontal Position

Press “OK”to exit menu

“Tr” Trigger and Display Mode Menu

Highlight the “Tr” and press “OK” to activate the menu.

Tr. Disp Mode (Trigger Display Mode)

Highlight “Tr.”Mode

Use LEFT/RIGHT to select the desired trigger display mode

Trigger mode is indicated at the top Left of uScope screen

Press “OK”to exit menu

AES uScope Manual

Tr. Level (Trigger Volt Level)

Highlight “Tr.”Mode

Use LEFT/RIGHT to select desired position of the Trigger level

Left moves the trigger level down and right moves it up.

Note: horizontal yellow trigger level indicator trace.

Press “OK”to exit menu

Tr. Slope (Trigger Slope)

Highlight “Tr”Slope

Use LEFT/RIGHT to select Trigger Slope

Trigger Slope will be indicated by a yellow or red arrow just to the right of the

trigger mode at top left of the uScope screen

Note: When the trigger is red, this indicates the trigger is out of range.

Press “OK” to exit menu

Tr. Window (Trigger Window)

Highlight Tr. Window

Use LEFT/RIGHT to select trigger window. LEFT makes the window smaller and

RIGHT makes it larger (vertically).

Trigger window is indicated by the orange horizontal cursors

Press “OK” to exit menu

Tr HPos (Trigger Horizontal Position)

Highlight HPos

Use LEFT/RIGHT to select the trigger horizontal position.

Press “OK”to exit menu

“PS” Automotive Presets Menu (memory card must be inserted)

Select the “PS” menu item and press “OK” to activate the menu.

Use UP/DOWN to select preset type

Use LEFT/RIGHT to scroll through different preset setups.

Press and hold “OK”to load select preset.

Screen will blink after loading preset and the preset name will be fixed in the top

right of the screen.

Press “OK” to exit the menu

User Setups

Please reference the user’s manual for more information.

Show/Hide Ref

Use UP/DOWN to highlight the menu item

Use LEFT/RIGHT to toggle reference waveform on and off

Press “OK” to exit the menu

“SD” Save Waveforms, Setups, Configuration and Images on SD Card

Highlight the “SD” menu and press “OK” to activate the menu.

Note: SD card must be present in uScope.

Save as image (BMP)

Highlight the “save as image” menu item.

Use LEFT/RIGHT to select file number to save. Note: filename at top right of

screen.

AES uScope Manual

Press and hold “OK” button until prompt changes to the next numerical file

number - located in top right of screen.

Press “OK” to exit the menu

Save to USER file

Highlight “Save to user file”

Use LEFT/RIGHT to select file number to save. Note: filename at top right of

screen.

Press and hold “OK”button until prompt at the top right of screen changes the file

number.

Press “OK” to exit the menu

“CR”Cursor Values

Highlight the “CR” menu using the UP/DOWN arrow keys and press “OK”

Use UP/DOWN to Highlight the desired cursor (Cursor V1, V2, T1 T2)

Use LEFT/RIGHT to adjust cursor location. (Note: The cursor values are located

on the bottom left of the screen)

To turn cursors off.

oHighlight either V1-V2 (vertical cursors) or T1-T2 (time cursors).

oUse LEFT/RIGHT to toggle between ON/OFF.

Press “OK” to exit menu

“ME” Measurements

Highlight the “ME” menu and press “OK” to activate the measurements value.

To turn off measurement values. Use UP/DOWN and select “Enable On/OFF”

Use LEFT/RIGHT to toggle between ON/OFF

Press “OK” to exit menu

“OP” Options

Highlight the “OP” and press “OK” to activate the menu.

Probe Cal (Probe Calibration)

Highlight Probe Cal

At the top right of the screen, the uScope will specify what attenuation setting you

are currently on (Note: 10x does not change anything within the scope other than

the voltage settings will be 10x larger –1volt per division will read 10 volt per

division.

Use the LEFT/RIGHT to pick the desired attenuation.

Press “OK”to exit the menu

Sample Speed

Use LEFT/RIGHT to toggle between Normal screen update and PEAK to PEAK

mode. (Peak to Peak mode is started by default.)

Press “OK” to exit the menu

Grid Intensity

Use LEFT/RIGHT to adjust the brightness of the graticule lines.

Press “OK” to exit the menu

SigGen Freq (Connect leads to the frequency generator for this option)

This refers to the built in Frequency generator

Use Left/Right to select the Frequency

Press “OK” to exit the menu

SigGen Duty (Connect leads to the frequency generator for this option)

This refers to the built in Frequency generator duty

Use Left/Right to select the Frequency percentage

Autres manuels pour uScope

Table des matières

Autres manuels AES Instrument de mesure

AES

AES uScope Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
