Aerosoft Robin DR400-140 Manuel utilisateur

Aerosoft Robin DR400 140 1.00

Page 1

Aerosoft Robin DR400 140 1.00

Page 2

CONTENTS

INTRODUCTION .............................................................................................................................................................................................3

SYSTEM REQUIRE MENTS ............................................................................................................................................................................3

CREDITS ..........................................................................................................................................................................................................3

COPYRIGH T S ..................................................................................................................................................................................................4

CONTACT SUPPORT .....................................................................................................................................................................................4

THE MANUALS...................................................................................................................................................................................................4

FLYING THE ROBIN .......................................................................................................................................................................................4

THE ROBIN DR400 IN FSX ..........................................................................................................................................................................6

THE AIRCRAFT ...............................................................................................................................................................................................7

GENERA L ....................................................................................................................................................................................................7

FLAPS ..........................................................................................................................................................................................................7

ELEVATOR ..................................................................................................................................................................................................7

RUDDE R ......................................................................................................................................................................................................7

GEAR ...........................................................................................................................................................................................................7

BRAKES .......................................................................................................................................................................................................7

ENGINE / OI L ............................................................................................................................................................................................7

ELECTRICITY ..............................................................................................................................................................................................7

FUEL ............................................................................................................................................................................................................8

MAXIMUM S P EE DS ..................................................................................................................................................................................8

MAXIMUM W E I GHTS ..............................................................................................................................................................................8

ALLOWED MA NOE UVR ES .......................................................................................................................................................................8

MAXIMUM C R OSS WIND .......................................................................................................................................................................8

STALL SPEEDS ...........................................................................................................................................................................................8

EMERGE N C Y P ROCEDU RES ........................................................................................................................................................................9

ENGINE F I RE I N FLIGH T .........................................................................................................................................................................9

ENGINE FIRE ON GROUND ....................................................................................................................................................................9

GENERA T OR FAILURE .............................................................................................................................................................................9

ICING ..........................................................................................................................................................................................................9

EMERGE N C Y L A NDING ...........................................................................................................................................................................9

I N CASE OF INV O LUNT A R Y SPIN .........................................................................................................................................................9

NORM AL FLIGHT PROCEDURES ..............................................................................................................................................................10

FLIGHT PREPARA T I ON ..........................................................................................................................................................................10

BEFORE FLIGHT CHECKS ......................................................................................................................................................................12

BEFORE E N G INE START ........................................................................................................................................................................12

ENGINE START ........................................................................................................................................................................................12

T AX I ...........................................................................................................................................................................................................12

BEFORE ST AR T ........................................................................................................................................................................................12

START .......................................................................................................................................................................................................13

START IN CROSSWIN D ..........................................................................................................................................................................13

CLIMB .......................................................................................................................................................................................................13

CRUISE ......................................................................................................................................................................................................13

DESCENT ..................................................................................................................................................................................................13

LANDIN G ..................................................................................................................................................................................................14

ABORT E D LANDING ...............................................................................................................................................................................14

L AN D IN G I N C RO S SW IN D ....................................................................................................................................................................14

AFTER LANDI NG .....................................................................................................................................................................................14

PERFORMANCE CHARTS ...........................................................................................................................................................................14

PANELS LAYOUT ..........................................................................................................................................................................................19

AVIONI C S ......................................................................................................................................................................................................20

MOVMA P 754 GPS UNIT ......................................................................................................................................................................20

MAP MODE .........................................................................................................................................................................................20

DIRECT TO MODE .............................................................................................................................................................................21

CURSOR MODE ..................................................................................................................................................................................21

NEAREST STATIO N ............................................................................................................................................................................22

HSI PAGE .............................................................................................................................................................................................22

S3DD AIR MAP GPS ...............................................................................................................................................................................24

MAP MODE .........................................................................................................................................................................................24

DIRECT TO ..........................................................................................................................................................................................26

CURSOR MODE ..................................................................................................................................................................................27

NEAREST STATIO N ............................................................................................................................................................................27

HSI SAMPLES .....................................................................................................................................................................................28

BENDI X /K ING K X125 COM M UN I CA T IO N T RANSC E IV E R..............................................................................................................29

BECKER TRANS P ONDER .......................................................................................................................................................................29

Aerosoft Robin DR400 140 1.00

Page 3

INTRODUCTION

The Robin DR400 is an aircraft that will be familiar to many pilots as it is one of the most used trainers.

Conceived in the early 70’s by Pierre Robin and Jean Délémontez. It flew for the first time in 1972 and at least

1300 were build. In any sense of the word it is a successful aircraft.

The wooden structure and the characteristic ’cranked wing’ make it seem an older aircraft then is actually was

actually rather modern and highly efficient. It’s light and the fabric covered wings and fuselage have low drag

compared to a metal aircraft with hundreds of rivets. It’s also easy to fly at any speed so flight schools loved it.

It can pull gliders, carry 4 persons and has proven to be very reliable.

In FSX and Prepar3D it is an ideal aircraft for beginners as you can cruise around without much hassle. But

experts will like the very advanced flight characteristics that are truly highly accurate. In some of the models

they are so accurate that even they idiosyncrasy of an older aircraft are included. For example the D-EVEM

model that is flown by the main developer has a rather serious tendency to turn left. On most models this is

countered by a trim tab but it was not on this model till very recent. So this is one model that is not easy to fly

without rudder pedals. Some other models in this product are better balanced and easier to fly. But it shows

how detailed the actual aircrafts are modelled.

SYSTEM REQUIREMENTS

Windows XP, Vista, 7, 8 (fully updated)

Microsoft Flight Simulator FSX (with SP2 or Acceleration Pack) or Prepar3D

Dual Core CPU

2 GB RAM internal memory

512 MB graphic card

Adobe Acrobat® Reader 8 minimal to read and print the manual (1)

(1) Available for free, download at: http://www.adobe.com/prodindex/acrobat/readstep.html

CREDITS

Concept: Joachim Schweigler (specific - 3d - design)

Models/Textures: Joachim Schweigler (specific - 3d - design)

XML/ gauges: Finn Jacobsen (Aerosoft), Joachim Schweigler (specific - 3d - design)

Flight mechanics: John Cagle

Flight mechanics proving: Joachim Schweigler (specific - 3d - design)

Project Management: Joachim Schweigler (specific - 3d - design), Mathijs Kok (Aerosoft),

Manual, documentation: Mathijs Kok (Aerosoft)

Sounds: Joachim Schweigler (specific - 3d - design)

Installer: Andreas Mügge (Aerosoft)

Testing: Several good folks who will all be getting a free copy

Aerosoft Robin DR400 140 1.00

Page 4

COPYRIGHTS

The manual, documentation, video images, software, and all the related materials are copyrighted and cannot

be copied, photocopied, translated or reduced to any electronic medium or machine legible form, neither

completely nor in part, without the previous written consent of AEROSOFT. THE SOFTWARE IS FURNISHED «AS

IS» AND IT DOES NOT COME FURNISHED WITH ANY GUARANTEE IMPLICIT OR EXPRESS. THE AUTHOR DECLINES

EVERY RESPONSIBILITY FOR CONTINGENT MALFUNCTIONS, DECELERATION, AND ANY DRAWBACK THAT

SHOULD ARISE, USING THIS SOFTWARE.

registered trademarks of the respective owners.

Copyrights are serious stuff. If you find any pirated copies of this software please notify us at

[email protected]. We will make sure reports of copyrights violation are rewarded.

Aerosoft GmbH

Lindberghring 12

D-33142 Büren, Germany

www.aerosoft.com

www.aerosoft-shop.com

CONTACT SUPPORT

Support for this product is offered by Aerosoft. We prefer to have a support forum for the simple reason that it

is fast and efficient because customers help customers when we are sleeping.

http://forum.aerosoft.com/index.php/forum

If you prefer email support use this: https://aerosoft.zendesk.com/anonymous_requests/new, do not forget to

add screenshots if they are needed to explain the issue.

We feel strongly about support. Buying one of our products gives you the right to waste our time with

questions you feel might be silly. They are not.

THE MANUALS

This English manual you are now reading should be considered the main manual. But for German users we

have a complete actual manual of the D-EVEM as a separate file as well!

FLYING THE ROBIN

The Robin DR400 is an easy aircraft to fly. It’s one of those aircraft that people start to love after getting

acquainted with the few faults it has. It’s stable, reliable and predictable. Predictable even in its ‘problems’, for

example it has a tendency (some even a strong tendency) to want to go left. You sure learn to use the rudder

in this aircraft! The engine is more than powerful enough for the 1000 Kg even though some are 35 years old.

As the fuselage is made of wood it does not have rivets to cause drag and the whole aircraft is very smooth.

The shape of the wing with the characteristic bend halfway helps you to stay out of problems. . In FSX this is an

ideal aircraft for people who want to learn to fly better and to take some trips to scout the virtual landscape

But it is also an ideal trainer as it needs the pilot to fly it all the time, when you look around at the scenery (you

have wonderful visibility in the Robin) it tends to wonder off, no matter how much you trim, it will always find

one direction it wants to go for some reason. So while it may not be the ideal aircraft for long distance travel it

will get you to where you want to do without trying to kill you the way some aircraft seem to want to do. Keep

your energy up, stay ahead of the aircraft and you’ll be fine.

Aerosoft Robin DR400 140 1.00

Page 5

There is one thing you should not do however and that’s slip while pulling the nose up. The fuselage will block

airflow over the most effective part of the wing and things can get exciting rather fast.

As said flying the Robin is not hard, here is a highly condensed version of the normal procedures:

Take off from asphalt: flaps in, full throttle, rotate around 100, take of at 120, climb at 150

(or with an even easier method: flaps in, full throttle, rotate at 130, climb at 150)

Take off from grass or short take off: flaps 1, full throttle, pull to unload the nose wheel, lift off,

accelerate, climb with 130

Cruise flight: RPM as needed (max 75% power), lean mixture!

Landing: flaps full, aproach speed 130-140, after touch down ’plant’ the nose wheel down (to unlock

it).

Some peculiarities:

RPM indicator in the D-EVEM shows red line @ 2500. This was the actual situation when the sim

model was released. It is due to noise reduction in the Netherlands (where it was registrated as PH-

SRW) and has nothing to do with the engines limits

Fuel gauge reads 0 when fuel tank is 100% full. Something weird on some Robins. When fuel level

sinks, the gauge begins to work.

Aerosoft Robin DR400 140 1.00

Page 6

THE ROBIN DR400 IN FSX

There are three different Robin DR400 included in this package (different cockpit layouts) and seven different

liveries. You will find them all under Aircraft manufacturer Avions Pierre Robin.

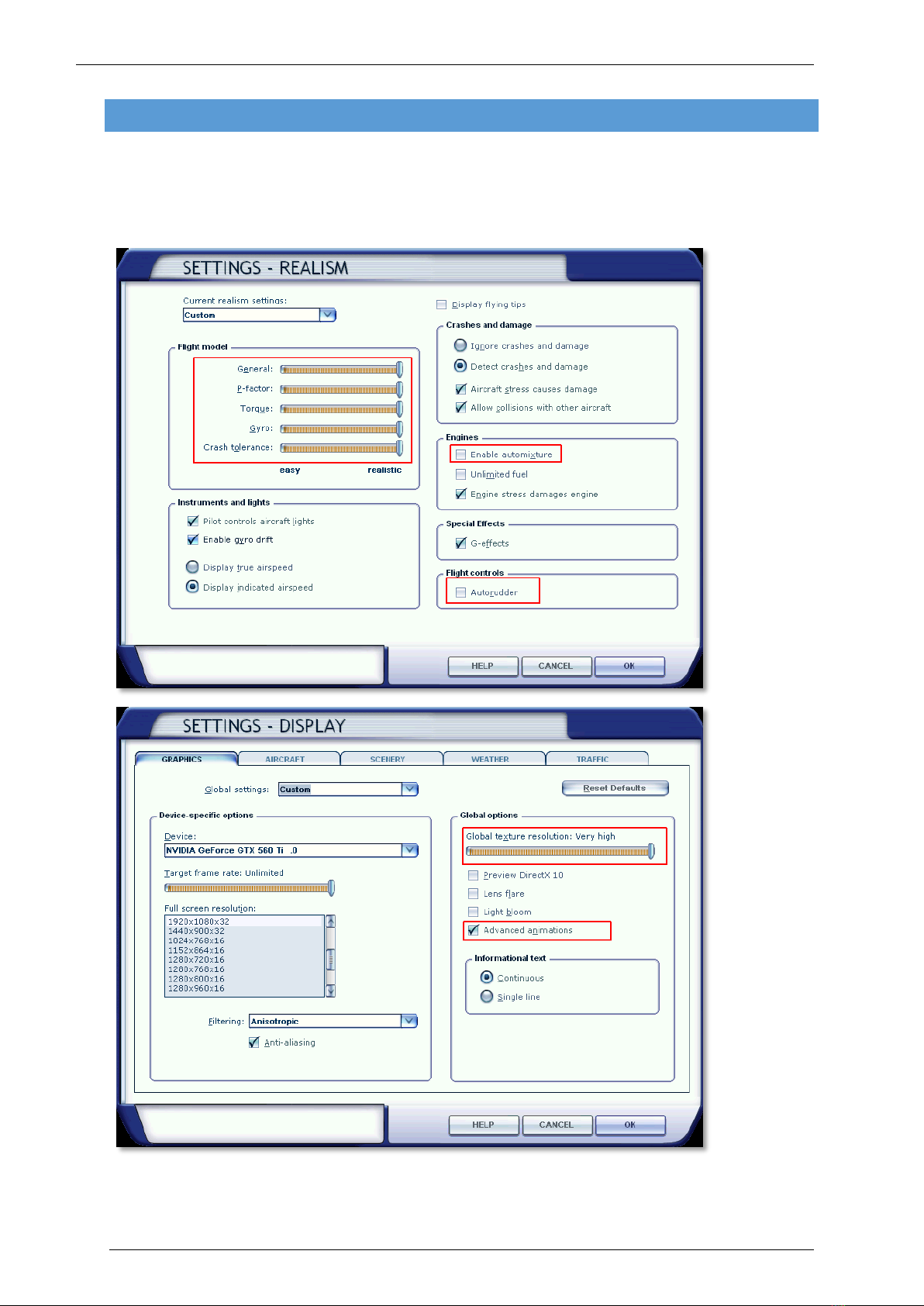

There are a few settings that are very important for this project, they are shown in red in the images below:

Aerosoft Robin DR400 140 1.00

Page 7

THE AIRCRAFT

GENERAL

Wingspan (m) 8,72

Length (m) 6.96

Height (m) 2.23

FLAPS

The flaps (0.669 m2) are controlled with a lever between the two front seats and can be set in three (locked)

stages;

0°

15° (intended for short take offs)

60° (intended for landing)

ELEVATOR

The balanced elevator (2.88 m2) is controlled by cables and includes Anti-Balance-Trim-Tabs that can be used

as trim surfaces by means of a control wheel between the two front seats.

RUDDER

The conventional rudder (0.63 m2) is controlled via pedals and cable

GEAR

The fixed three wheel gear consists of three identical wheels and uses an oleo pneumatic suspension with long

travel. The Robin can be flown with the wheel covers removed but this dramatically increases drag. The nose

wheel is steerable using the rudder pedals but locked in central position in flight.

BRAKES

The two main wheels use independent brake circuits for controlling via rudder pedals (last 10% of travel). The

hand/parking-brake brakes both main gear wheels.

ENGINE / OIL

Engine: Lycoming 4 cylinder air cooled boxer engine (type 0-320-D)

Max RPM: 2700

Compression: 8.5/1

Highest Cylinder Head Temp: 260°

Highest Cylinder Temp: 160°

Rotation: Clockwise

Ignition Order: 1-3-2-4

Oil Pressure Idle: 1,75 bar

Oil Pressure Normal: 4,2 <> 6,3 bar

Max Oil Temp: 118°

ELECTRICITY

An engine driven generator provides 12 volts for the aircraft systems and charges the 12 volt battery.

Aerosoft Robin DR400 140 1.00

Page 8

FUEL

Fuel Pressure Maximal: 0,560 bar

Fuel Pressure Optimal: 0,210 bar

Fuel Pressure Minimal: 0,035 bar

Tank: 110 L (last 10 L only usable in level flight)

Fuel is fed from the aft tank with an electrical fuel pump to an engine driven fuel pump to provide correct fuel

pressure during all flight conditions.

MAXIMUM SPEEDS

Vne (Maximum Speed): 308 km/h

Vno (Max Speed in rough air): 260 km/h

Vc (Maximum Manoeuvre Speed): 215 km/h

Vfe (Maximum Speed Flaps): 170 km/h

MAXIMUM WEIGHTS

Take off: 1000 kg

Landing: 1000 kg

Luggage Compartment: 40 kg

ALLOWED MANOEUVRES

These manoeuvres were allowed when the aircraft were younger but these days only stalls are possible. In FSX

you can take a little risk! As long as the aft seats are not used and the entry and exit speeds are within

maximum allowed limits you should be fine.

Steep turns

Lazy Eights

Chandelles

Stalls

Spins are not allowed!

MAXIMUM CROSS WIND

Maximum demonstrated cross wind 40 km/h (25 mph/22kts)

STALL SPEEDS

IAS in km/h

Bank Angle

0°

30°

60°

Flaps in

106

140

Flaps setting 1

131

Flaps setting 2

123

Aerosoft Robin DR400 140 1.00

Page 9

EMERGENCY PROCEDURES

ENGINE FIRE IN FLIGHT

Close fuel selector

Use remaining fuel (full throttle)

Ignition off

Before landing Master off and Generator off

Note that stall warning will not function

ENGINE FIRE ON GROUND

Do not open engine cover

Use fire extinguisher through exhaust and air inlet

GENERATOR FAILURE

When the Ampere indicator shows discharging (The engine will continue to work):

Check generator circuit breaker

Reduce use of anything that uses electricity

ICING

When RPM drops unexpectedly:

Carburettor heat to full

Full throttle

Seek for non-icing conditions (descend into warmer air)

Expect RPM to drop by 150 RPM and an increase of fuel use.

EMERGENCY LANDING

Check safety belts

Close fuel selector to reduce fire risk

IN CASE OF INVOLUNTARY SPIN

Elevator and Aileron to neutral

Rudder opposite spin direction

Flaps in

Aerosoft Robin DR400 140 1.00

Page 10

NORMAL FLIGHT PROCED URES

FLIGHT PREPARATION

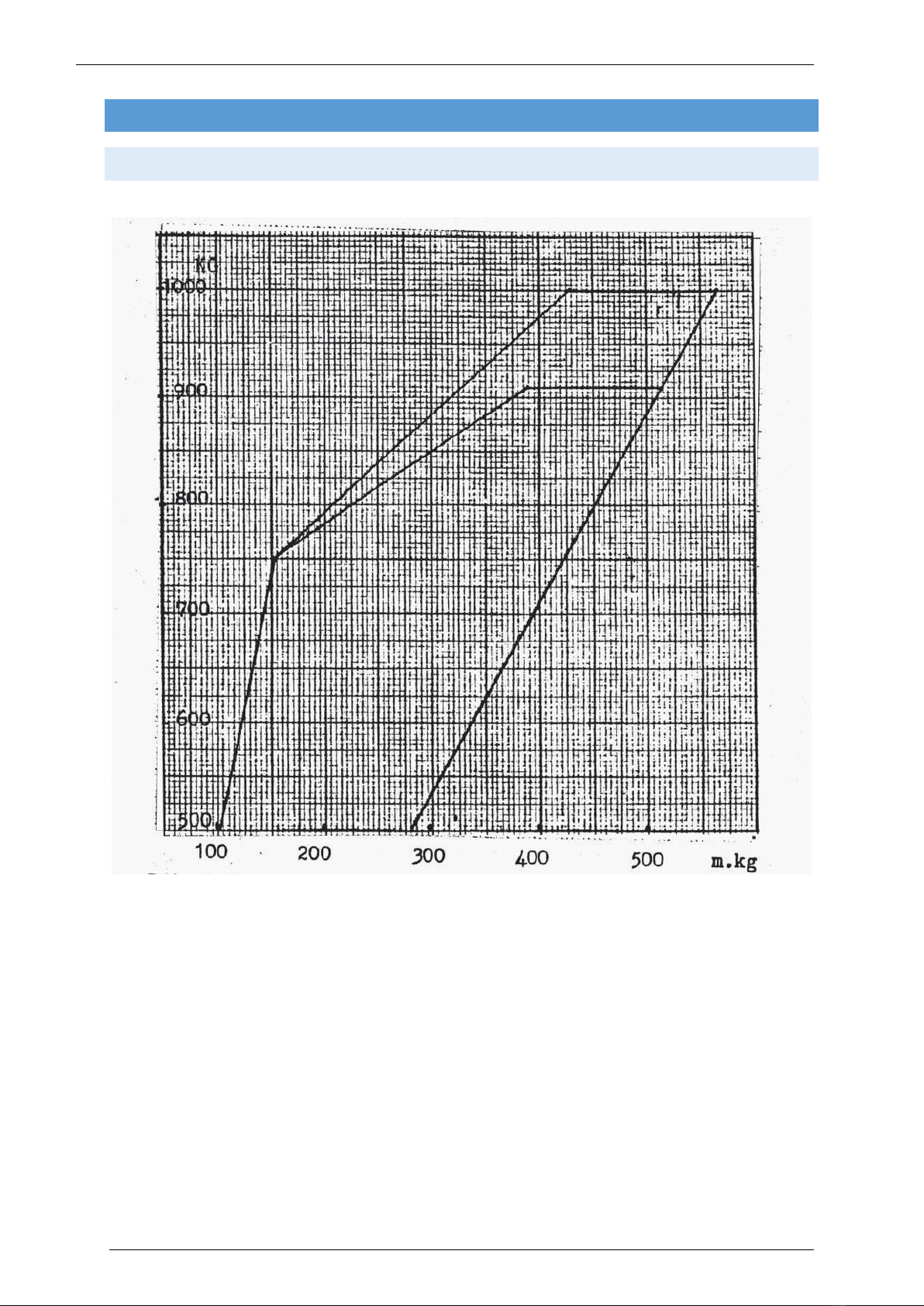

1. Before flight check that all weight and balance are within allowed limits.

Table des matières

Manuels Aéronef populaires d'autres marques

Cessna

Cessna U206G STATIONAIR Manuel du propriétaire

Cirrus

Cirrus SR22 Manuel utilisateur

Schleicher

Schleicher ASK 21 Instructions d'installation

Aircraft

Aircraft REIMS F152 Caractéristiques techniques

Skywalk

Skywalk Tequila 2 Manuel utilisateur

MAULE

MAULE M-7-235B Caractéristiques techniques

Ozone

Ozone Indy Manuel

Tecnam

Tecnam P92 Echo Super Manuel utilisateur

Wills Wing

Wills Wing HP II Mode d’emploi

Ozone

Ozone Roadster Manuel

Cirrus

Cirrus SR20 Manuel utilisateur

Niviuk

Niviuk KOYOT 3 Manuel utilisateur

Pipistrel

Pipistrel ALPHA Trainer Manuel utilisateur

REVELL

REVELL SnapTite BLUE ANGELS F-18 HORNET Manuel utilisateur

Cessna

Cessna 172 Series 1973 Manuel utilisateur

Sky

Sky EOLE Manuel utilisateur

Sabfoil

Sabfoil Surf Foil Manuel utilisateur

Cessna

Cessna 182S Skylane Guide de configuration rapide
