AEM Performance Electronics 30-2852 Manuel utilisateur
HIGH OUTPUT "Dumb" COIL
30-2852
AEM Performance Electronics
AEM Performance Electronics, 2205 126th Street Unit A, Hawthorne, CA90250
Phone: (310) 484-2322 Fax: (310) 484-0152
http://www.aemelectronics.com
Instruction Part Number: 10-2852
Document Build 2/8/2021
Instruction
Manual
WARNING!
Improper installation and/or adjustment of this product can result in major engine/vehicle damage. For
technical assistance visit our dealer locator to find a professional installer/tuner near you.
Note: AEM holds no responsibility for any engine damage or personal injury that results from the misuse
of this product, including but not limited to injury or death.
STOP!
THIS PRODUCT HAS LEGAL RESTRICTIONS.
READ THIS BEFORE INSTALLING/USING!
WARNING! THIS IS A RACE ONLY PRODUCT MANUFACTURED AND SOLD FOR INSTALLATION ON VEHICLES DESIGNED TO BE USED
SOLELY FOR COMPETITION PURPOSES. ONCE THIS PART IS INSTALLED, THE VEHICLE MAY NEVER BE USED, OR REGISTERED
OR LICENSED FOR USE, ON A PUBLIC ROAD OR HIGHWAY. IF YOU INSTALL THIS PART ON YOUR VEHICLE AND USE THE VEHICLE
ON A PUBLIC ROAD OR HIGHWAY, YOU WILL VIOLATE THE CLEAN AIR ACT AND MAY BE SUBJECT TO PERSONAL CIVIL OR
CRIMINAL LIABILITY, INCLUDING FINES OF UP TO $4,819 PER DAY.
IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER OF THIS PRODUCT TO ENSURE THAT IT IS USED IN COMPLIANCE
WITH ALL APPLICABLE LAWS AND REGULATIONS. IF THIS PRODUCT WAS PURCHASED IN ERROR, DO NOT INSTALL AND/OR USE
IT. THE PURCHASER MUST ARRANGE TO RETURN THE PRODUCT FOR A FULL REFUND.
THIS POLICY ONLY APPLIES TO INSTALLERS AND/OR USERS WHO ARE LOCATED IN THE UNITED STATES; HOWEVER
CUSTOMERS WHO RESIDE IN OTHER COUNTRIES SHOULD ACT IN ACCORDANCE WITH THEIR LOCAL LAWS AND REGULATIONS.
Introduction:
The model 30-2852 HO Coil is a specially designed, high energy coil for racing applications so you must take
special attention with the connections. Apply a liberal amount of dielectric grease to the terminals and the tip of
the spark plugs. Failure to do this may cause arcs to the cylinder head and cause a misfire.
Kit Contents:
The 30-2852 Kit Contains:

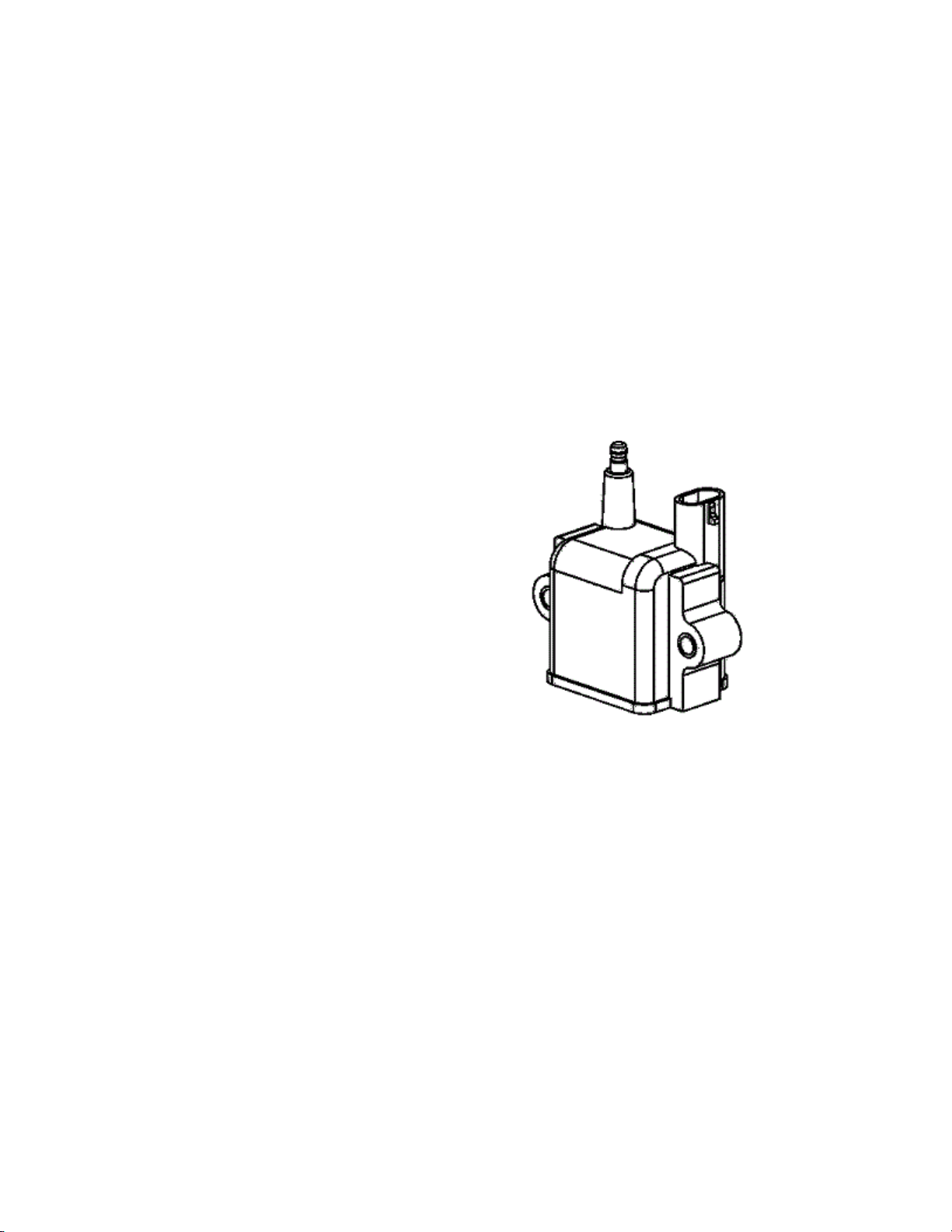

1 High Output Coil
1 Mating Connector & 4 Contacts
Specifications:
SPECIFICATIONS:
Primary Resistance: 0.5 Ω +/- 10%
Primary Inductance: 4.8 mH +/- 15%
Secondary Resistance: 8.5 kΩ +/- 20%
Secondary Inductance: 22.5 H +/- 20%
Output (50pF load): 41 kV +/- 10%
Output Energy: 118 mJ +/- 7%
Peak Secondary Current: 100 mA +/- 7%
Arc Duration: 3.2 mS +/- 10%
Turns Ratio 71:1
Maximum Battery Voltage: 17 Volts
Base Dwell: 3.0 mS
Max Continuous Dwell: 9 mS but don’t exceed 40% duty cycle
Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum
Mating Connector: Packard/Delphi 12162182 “Pull to Seat”
Mating Contacts: Packard/Delphi 12124075 “Pull to Seat”
High Tension Wire Terminal: HEI “spark plug top” Style
Pinout:
A: Battery Positive (Relay or switched ignition or high voltage input for CDI)
B: Coil Trigger (Charging when low)
C: Ground to Cylinder Head
Important!
The contacts are “Pull to Seat” meaning you must feed the wire through the connector housing BEFORE you
crimp on the contacts. The wire is then pulled back into the housing and the contact locks in place. The
contact cannot be inserted or removed from the rear (wire side entry) of the housing
Dwell:
When using in dwell controlled systems (i.e. non-CDI) the following guidelines should be used:
·
Target a base dwell time of 3mS and only increase it when needed due to high cylinder pressures.
·
The maximum individual coil dwell “ON” time must not exceed 9mS at any time, regardless of engine
RPM. Exceeding this time will cause the coil to overheat and fail.
·
For continuous duty the maximum “ON” time must remain below 40% duty (on 40% of the time, off 60%
of the time). Exceeding this will cause the coil to overheat and fail.
·
For short bursts, the coil dwell can go as high as 80% “ON” duty but these forays need to be short (under
5 seconds or so) and cannot be frequent.

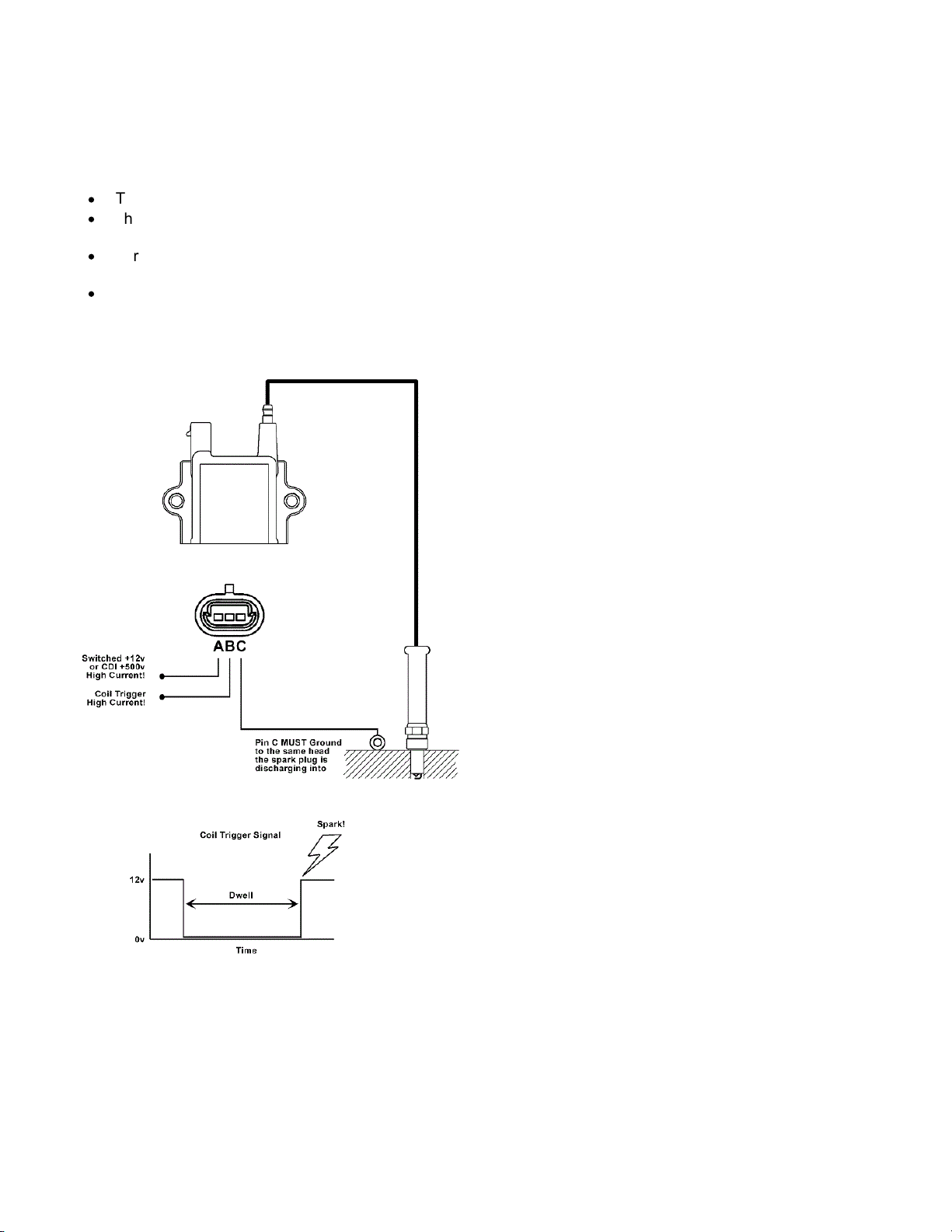

Wiring:

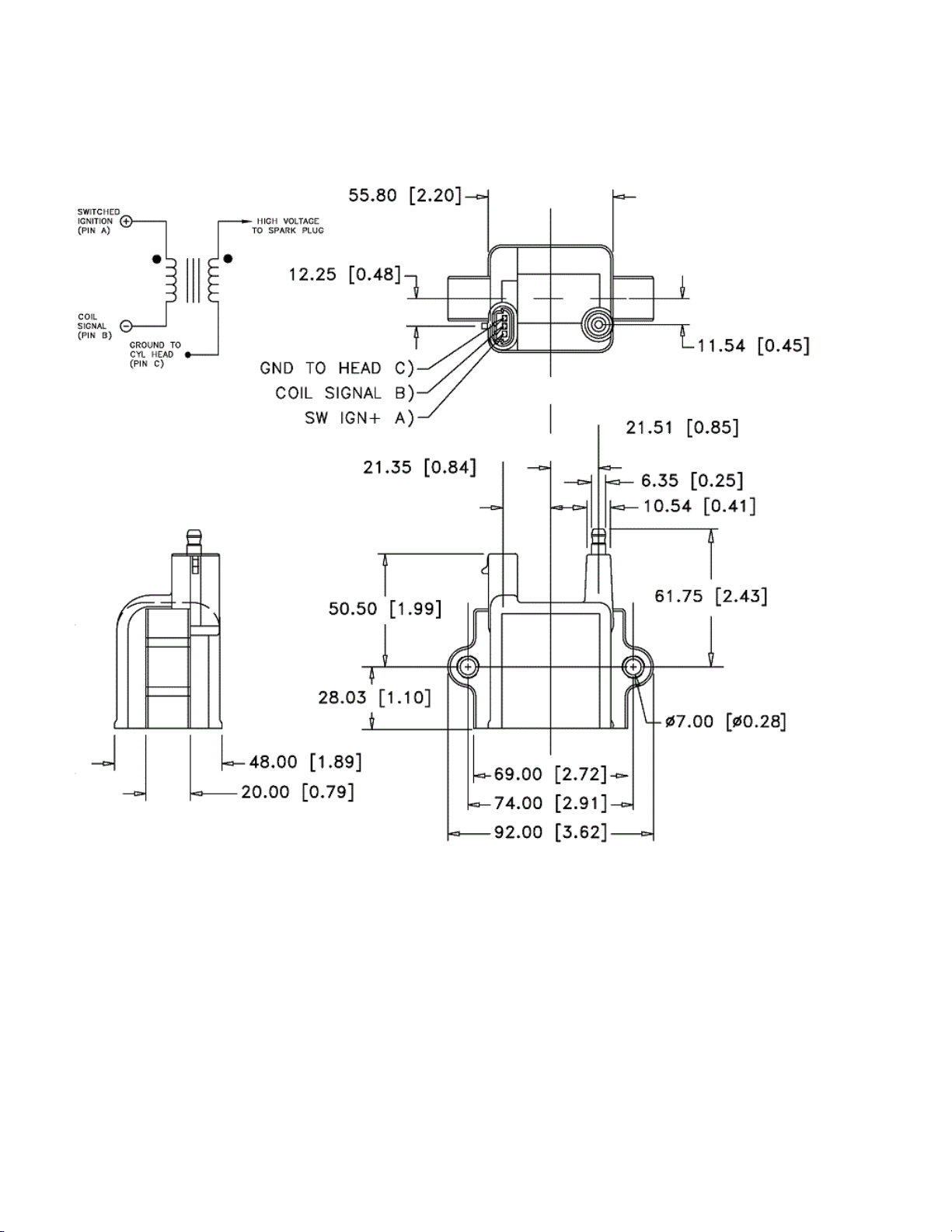

Dimensions:
Warranty
AEM Performance Electronics warrants to the consumer that all AEM ELECTRONICS products will be free from defects in material and
workmanship for a period of twelve months from date of the original purchase. Products that fail within this 12-month warranty period will be
repaired or replaced when determined by AEM that the product failed due to defects in material or workmanship. This warranty is limited to the
repair or replacement, at AEM’s discretion, of the AEM Electronics part. In no event shall this warranty exceed the original purchase price of
the AEM ELECTRONICS part nor shall AEM ELECTRONICS be responsible for special, incidental or consequential damages or cost incurred
due to the failure of this product.
Warranty claims to AEM ELECTRONICS must be transportation prepaid and accompanied by dated proof of purchase. This warranty applies
only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12-month warranty
period. Improper use or installation, accident, abuse, unauthorized repairs or alterations voids this warranty.
AEM ELECTRONICS disclaims any liability for consequential damages due to breach of any written or implied warranty on all products
manufactured by AEM ELECTRONICS.
Warranty returns will only be accepted by AEM ELECTRONICS when accompanied by a valid Return Merchandise Authorization (RMA)
number. Product must be received by AEM ELECTRONICS within 30 days of the date the RMA is issued. UEGO oxygen sensors are
considered wear items and are not covered under warranty.
Please note that before AEM ELECTRONICS can issue an RMA for any electronic product, it is first necessary for the installer or end user to
contact the tech line at 1-800-423-0046 to discuss the problem. Most issues can be resolved over the phone. Under no circumstances should a
system be returned, or an RMA requested before the above process transpires. AEM ELECTRONICS will not be responsible for products that
are installed incorrectly, installed in a non-approved application, misused, or tampered with.
Fuel Pumps installed with incorrect polarity (+&- wires crossed) will not be warranted. Proper fuel filtration before and after the fuel pump are
essential to fuel pump life. Any pump returned with contamination will not be warranted.
Any AEM ELECTRONICS product, excluding discontinued products, can be returned for repair if it is out of the warranty period. There is a
minimum charge for inspection and diagnosis of AEM ELECTRONICS parts which are out of warranty. Parts used in the repair of AEM
ELECTRONICS electronic components will be extra. AEM ELECTRONICS will provide an estimate of repairs and must receive written or
electronic authorization before repairs are made to the product.
Need additional help? Contact the AEM Performance Electronics tech department at 1-800-423-0046 or email us at
tech@aemelectronics.com.
