SWT-HDMI-1000
HDMI 4x1 Switch 4Kx2K
(with Picture-in-Picture (PiP ) Function)
All Rights Reserved Version: SWT-HDMI-1000_2022 V.1.1
User Manual
SWT-HDMI-1000
OVERVIEW
aegis’s SWT-HDMI-1000 HDMI switch makes the user gets live picture-in-picture (PiP ) video
preview of each connected device, which makes it simple and intuitive to switch among the
cable box, the disc player, the game console, any other HDMI connected sources. It supports
all HD formats including 720p，1080i，1080p，4Kx2K, thus it’s more suitable for home theater
systems.
FEATURE
Support HDMI1.4b
Support 3D
Support video resolution up to 4Kx2K @ 30Hz
Support 3.2Gb data rate for tmds clock up to 320Mhz
Support 24/30/36 bit deep color
Support single and high definition display for multiple sources, such as DVD Players and
Satellite Receivers, Digital Projectors, A/V Receivers, TV Boxes
Picture-in-picture (PiP ) function
Switched quickly , Switch one input source to the other input source quickly
Metal shell design
PACKAGE CONTENTS
HDMI 4x1 Switch x 1 Pcs
5V DC Power Adaptor x 1 Pcs
User Manual x 1 Pcs
Remote control x 1 Pcs
SWT-HDMI-1000
PANEL INTRODUATION

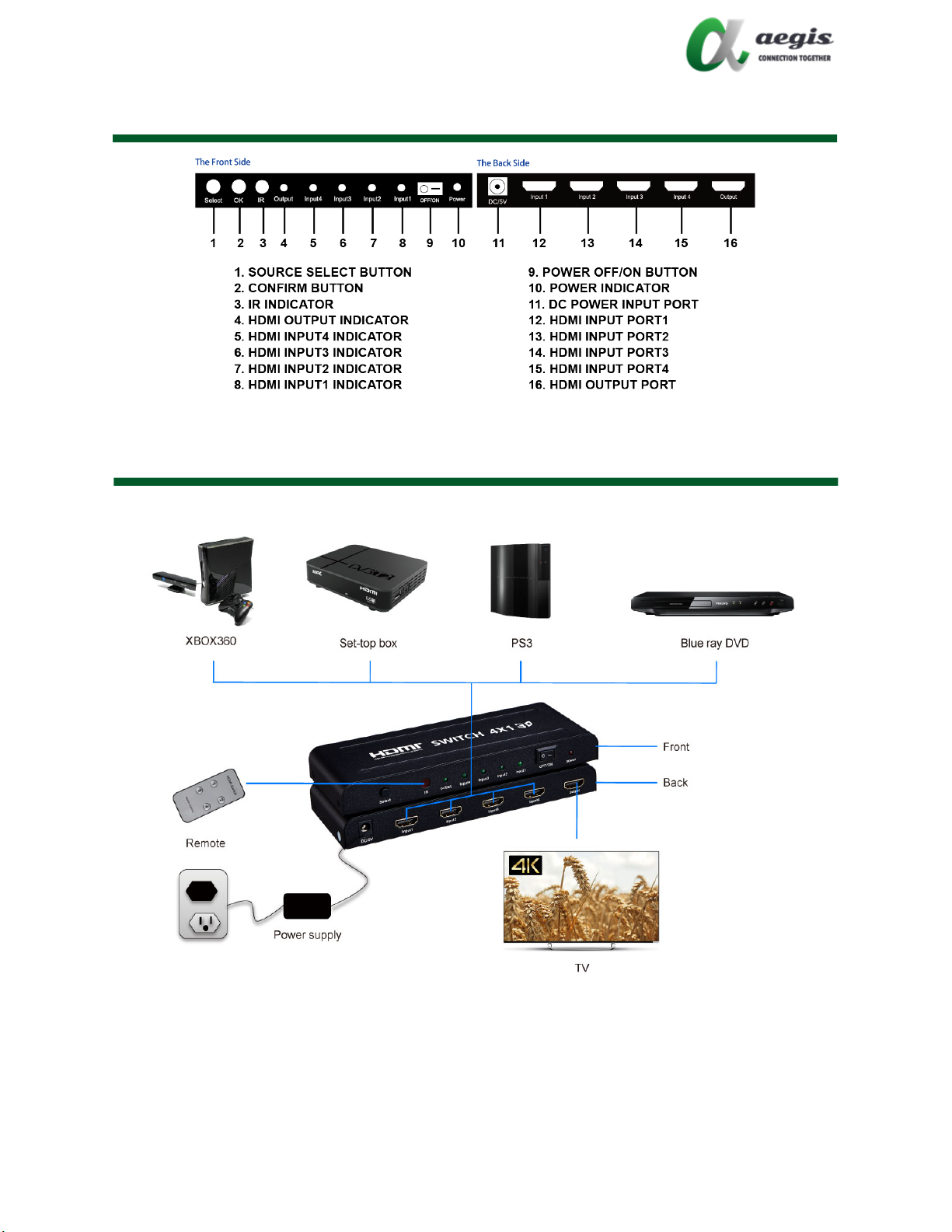

CONNECTION DIAGRAM
1. Connect the HDMI cable between signal source and input port of Switch.
2. Connect the HDMI cable between output port of Switch and HDTV.
3. Connect switch and power adapter.
4. Open the signal source and the power of HDTV, then it works.
Explanation: With different brands of the input or output device, the length of the
connecting cables will differ too.
SWT-HDMI-1000
Installation and Precautions
To avoid electric shock, product damage and to protect your safety, please notice the
following:
1. Please slowly plug or unplug signal cables and do not often plug, unplug or shake them.
2. The equipment should not be placed under the sun, rain and damp or unventilated
environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire, power or other amplifiers that
produce heat.
5. Do not insert the metal or other objects to the equipment in addition to connecting cables to
ports.
6. Do not demolish the equipment by yourself; it should be maintained by professional
maintenance staff.
TECHNICAL SPECIFICATION
HDMI Source Input Port 4
Display Device Output Port 1
Source Port Connector 19 PIN HDMI
Display Device Port Connector 19 PIN HDMI
HDCP Compliant YES
Single Link Range 3840x2160
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 Volts P-P(TTL)
Deep Color 36 Bit
HDMI Version HDMI1.4b
Bandwidth Up to 320Mhz
Signal Speed Up to 3.2Gbps
The length of input cable 4k2k≤15M HDMI Cable
The length of output cable 4k2k≤15M HDMI Cable
The cable standard 26AWG HDMI1.4
Vertical Frequency Range 60Hz
Power Consumption (max.) 5Watts
Operation Temperature 15℃ to +55℃
Working Voltage DC 5V
Power Adaptor 5V 1A
Net Weight 0.22Kg
Dimension: L*W*H(mm) 178mmx58mmx20mm
