AEG BSS18C12ZB6 Manuel utilisateur

BSS18C12ZB6

Original instructions

2

2

Important!

It is essential that you read the instructions in this manual before assembling, operating and

maintaining the product.

Subject to technical modifications.

33

11 12

1

78

3

2

4

5

6

14

13

910

1. LED light

2. Anvil

3. Direction of rotation selector

4. Variable speed switch trigger

5. Handle, insulated gripping surface

6. LED light button

7. T mode

8. Speed mode

9. Battery port

10. Belt clip bracket

11. Belt clip

12. Screw

13. Bit storage

14. Screw driver bit

4

4

13

8

9

START

STOP

Remove the battery pack beforestarting any work on the machine.

6

10

8

11

12

55

13

8

9

START

STOP

Remove the battery pack beforestarting any work on the machine.

6

10

8

11

12

6

6

1

2

2

1

click

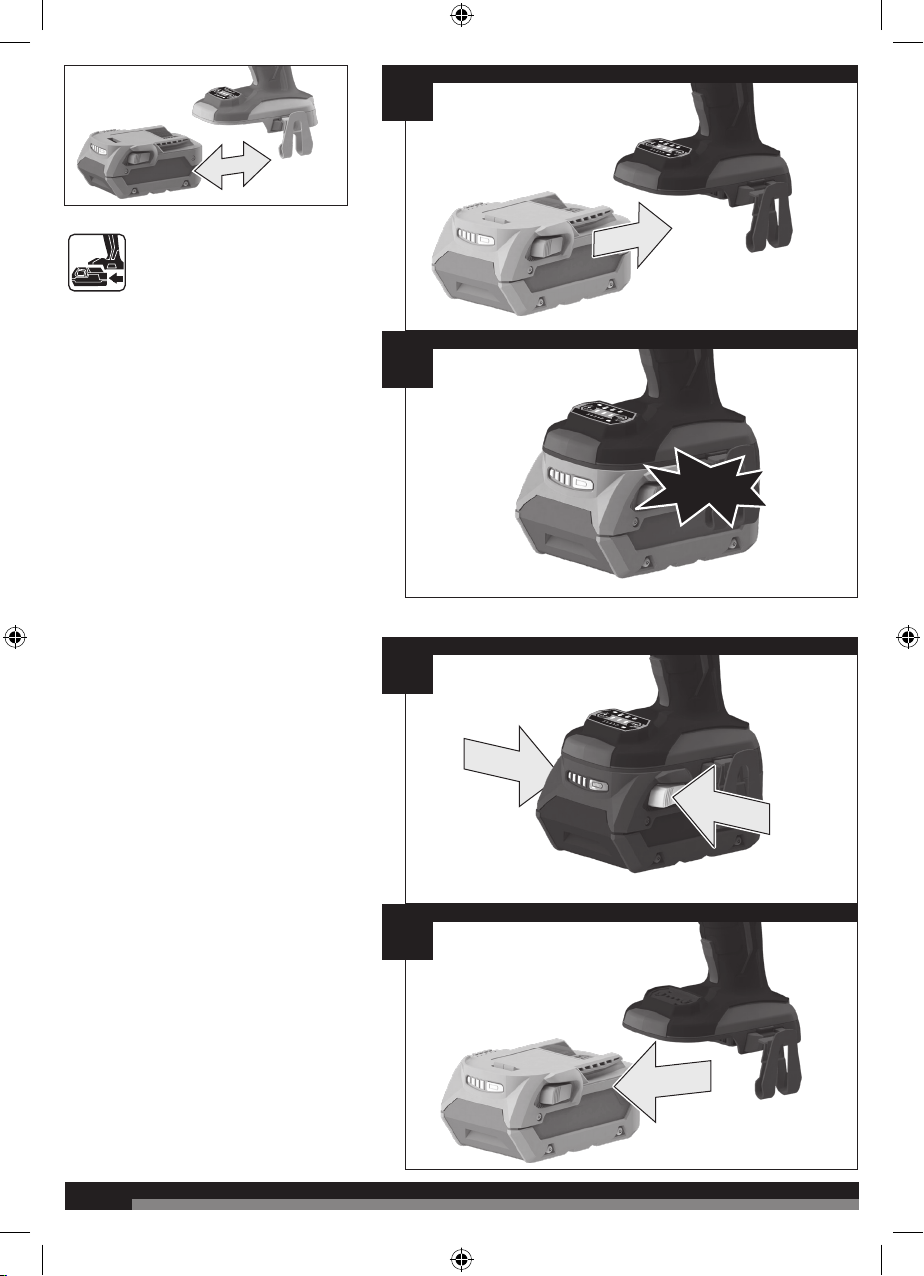

Remove the battery pack before starting any

work on the machine.

77

78-100 %

33-54 %

55-77 %

10-32 %

<10 %

1

2

2

1

click

Remove the battery pack before starting any

work on the machine.

8

8

1

2

1

2

Remove the battery pack

before starting any work

on the machine.

click

99

1

2

1

2

Remove the battery pack

before starting any work

on the machine.

click

T mode: low torque

T mode: medium torque

T mode: maximum torque

Speed mode

Speed mode

Speed mode

T mode: low torque

Torque 70 Nm

Use this mode to drive small fasteners when low torque

is required. In this mode, the product will automatically

stop after it has impacted on the fastener, thus preventing

damage to the workpiece or fastener.

T mode: medium torque

Torque 120 Nm

Use this mode to drive medium-sized fasteners when

medium torque is required. In this mode, the product will

automatically stop after it has impacted on the fastener,

thus preventing damage to the workpiece or fastener.

T mode: maximum torque

Torque 160 Nm

Use this mode to drive large fasteners when high torque

is required. In this mode, the product will automatically

stop after it has impacted on the fastener, thus preventing

damage to the workpiece or fastener.

Speed mode: 3

Torque 300 Nm

Use this mode to drive large fasteners when maxmium

force and speed are required.

Speed mode: 2

Torque 170 Nm

Use this mode to drive medium-sized fasteners when

medium force and speed are required.

Speed mode: P

Torque 58 Nm

Use this mode to drive small fasteners when lowest speed

and force are required.

10

10

START

STOP

LOCK
