INSTRUCTION- AND
INSTALLATION BOOK
6530 DG-m SGP 949600247
GB
2
Congratulations from AEG
Dear Customer,
Congratulations with your new Hob.
It is important that you become familiar with the functions and features of
the Hob. You should therefore read these operating instructions as they will
help you get the most out of your new Hob.
Pay extra attention to sections marked . These are warning texts to help
you avoid accidents.
Keep the operating instructions. They will come in handy if there is
something you are not sure about, and should accompany the Hob if it is
transferred to a new owner.
The structure of the operating instructions enables you to use them as a
reference manual. The first part of the operating instructions contains a
general description of your new product. Then follows a short introduction
of the things to do before you use the Hob for the first time. The section
“How to use” describes how the Hob is used in everyday life. Use this
section until you are familiar with your new Hob. The section “Cleaning
and Maintenance” provides information on both daily and more thorough
cleaning of the individual components of the Hob. Should problems arise
when you use the Hob, you can look in the section “Before calling service”,
where there are instructions on how to remedy some practical and technical
problems yourself.
Enjoy!
Regards,
3
Contents Page no
For the user
Your new aplliance ....................................................................................... 2
Safety information ........................................................................................ 4
Description of the product ......................................................................... 6
Operations .................................................................................................... 7
Burner ring/cover ................................................................................. 8
Ignition electrode (A) ........................................................................... 8
Thermo Sensor (B) ............................................................................... 8
Ignition .................................................................................................. 9
Maintenance and cleaning ........................................................................ 0
Panel .................................................................................................. 0
Stainless steel surfaces .......................................................................
The ceramic glass plate ......................................................................
The gas burner.................................................................................... 2
Service .................................................................................................. 9
Service and spare parts ...................................................................... 20
Guarantee conditions ................................................................................ 2
For the installer
Mounting .................................................................................................. 3
Technical data ............................................................................................. 8
Table of contents
1... 2...Step by step
Safety information
Hint and tips
Environmental information
How to read the operating instructions:
4
Safety information
These warnings are provided in the
interests of your safety. Ensure you
fully understand them before installing
or using the appliance.Your safety is of
paramount importance. If you are
unsure about the meaning of these
warnings contact the Customer Care
Department for assistance.
Installing
Do not install the hob if the ceramic
glass is damaged or cracked.
This gas hob must be installed
according to the instructions supplied.
Any installation work must be
undertaken by a qualified competent
person.
Do not alter the specifications or
attempt to modify the appliance in any
way.
During Use
The gas hob is intended for domestic
cooking only. It is not designed for
commercial/industrial purposes.
Ensure that all the control knobs are in
the OFF position when not in use.
Do not use the gas hob if it is damaged
in any way, contact your local AEG
Service Centre.
Never use plastic or aluminium dishes
on the gas hob.
Never leave the gas hob unattended
while deep fat frying, or heating fats
and oils.
Child Safety
Young children must not be allowed to
tamper with the gas hob or play with
the controls.
The gas hob gets hot when it is in use.
Children should be kept away until the
gas hob has cooled.
Maintenance and Cleaning
Only clean this gas hob in accordance
with the instructions given in this
book.
Service
Repairs carried out by inexperienced
persons may cause injury or serious
malfunction of the appliance. Repairs
must only be carried out by a
qualified/competent person. Contact
your local AEG Service Centre.
Disposal
Make the gas hob unusable by cutting
off the cable
Dispose of any packaging material and
old appliances at an authorised
disposal sites.
5
The primary air intake
aperture
Must never be accidentally blocked
by objects of any kind.
6

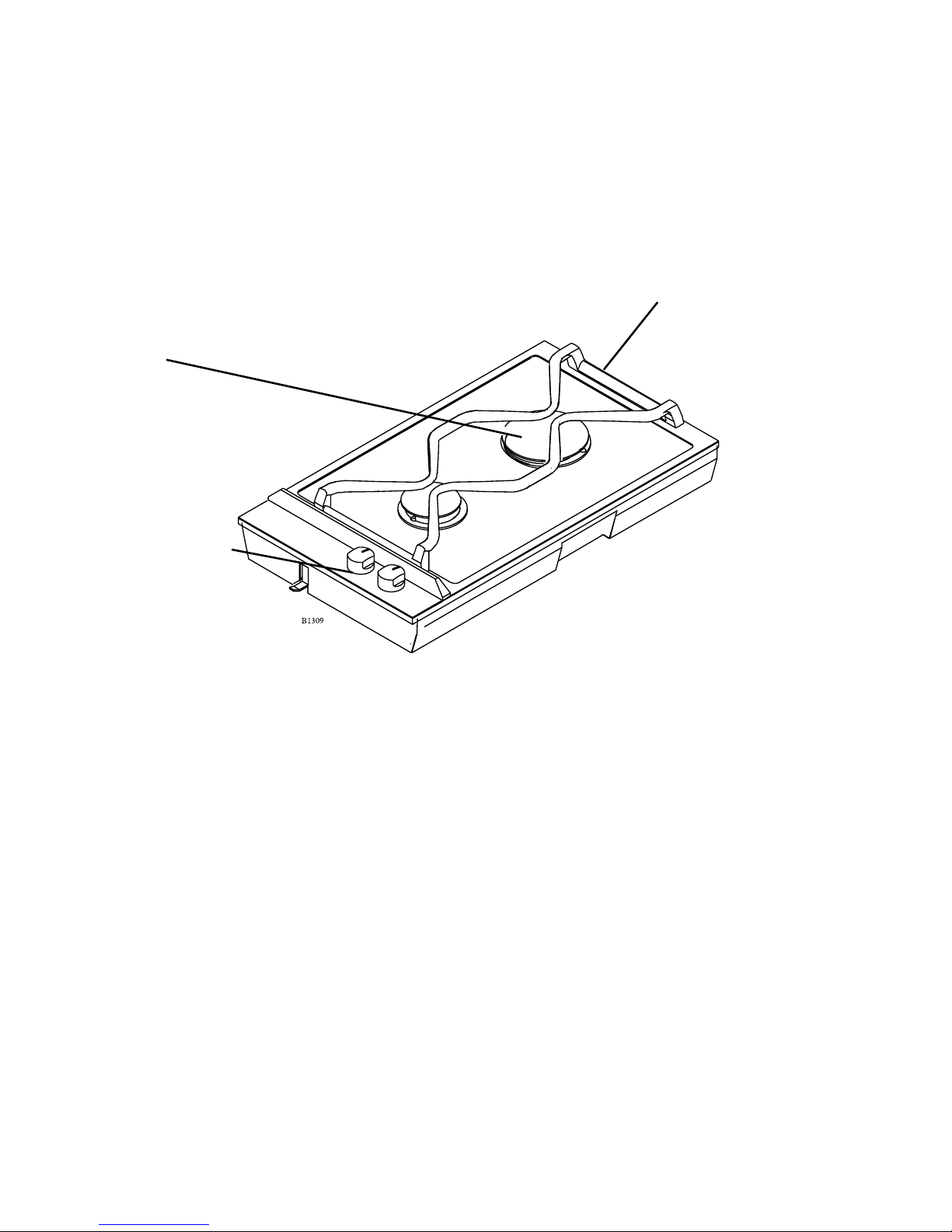

Description of the product
Burner
Control knob
Air intake
7
Burner markings
Symbols at each control knob indicates
which burner is adjusted with the
control knob.
Front Burner
Back burner

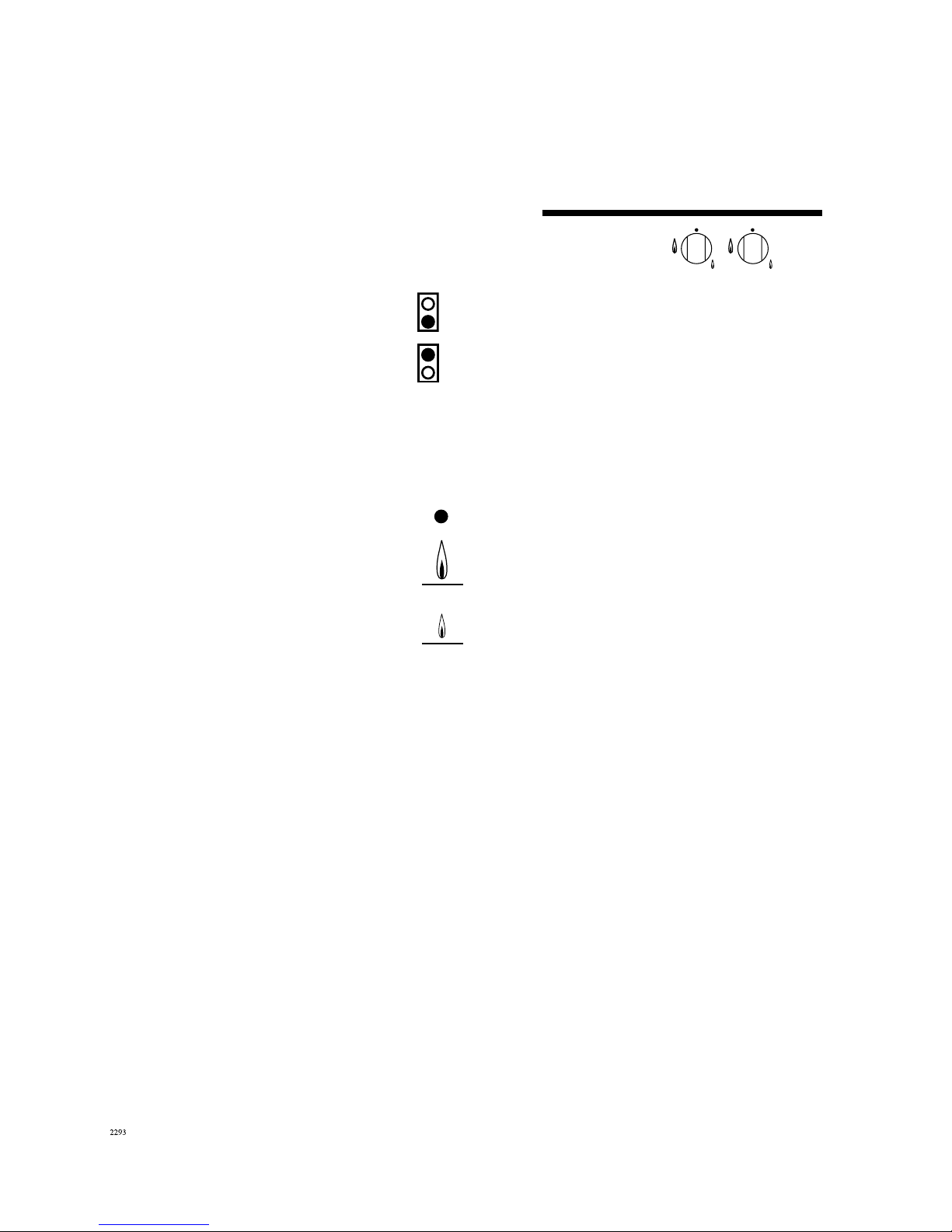

Panel markings
Each control knob has a ring showing
the scale of markings.
Off.
Maximum flame
Minimum flame
Operations
8

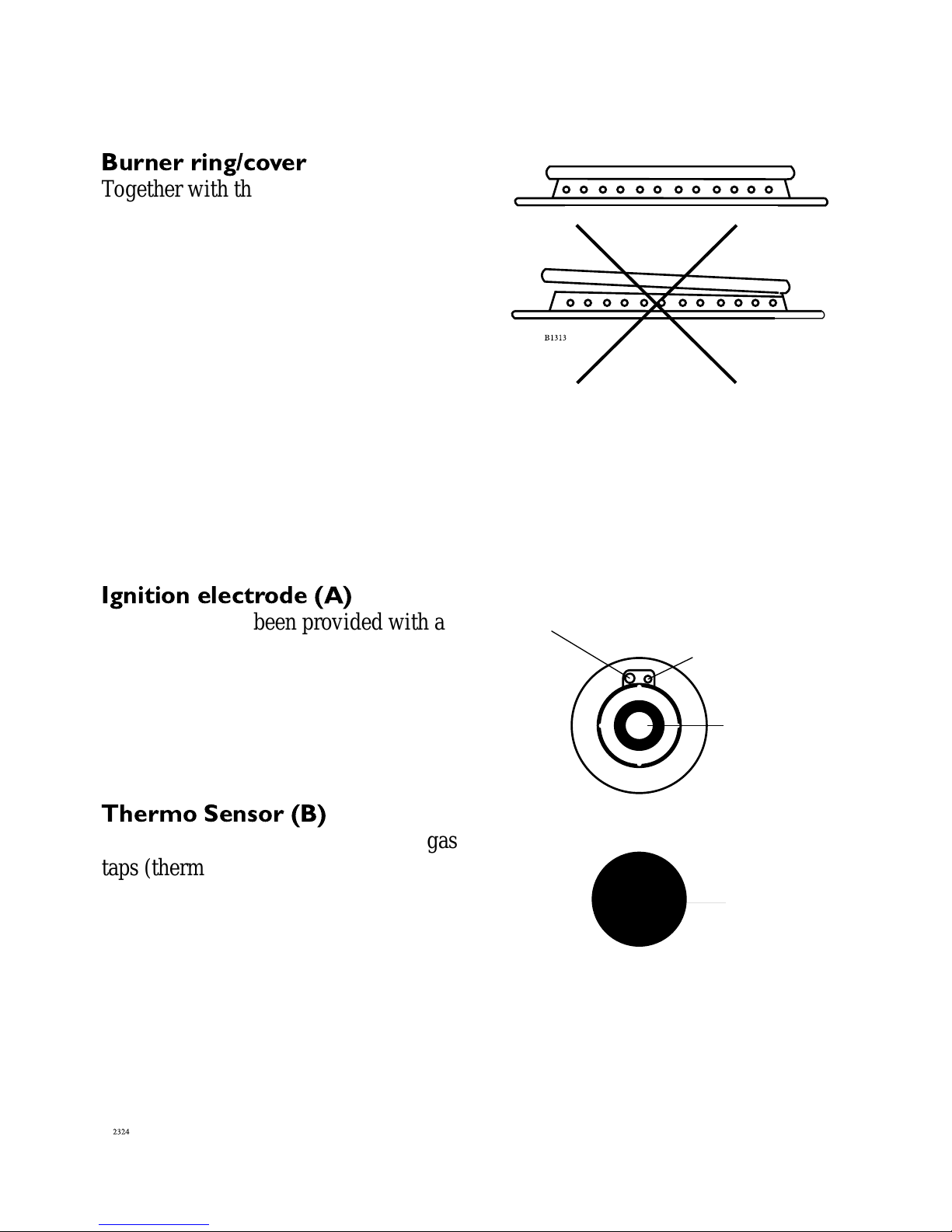

Burner ring/cover
Together with the burner ring the burner
ring/cover forms a space where the final
mixture of gas and air takes place in
order to make the gas burn correctly.
Please note: It is consequently very
important that the individual burner
cover/ring is placed correctly on the
burner.
If the burner ring/cover are wrongly
placed the burner will operate
incorrectly, and the burners may be
damaged within at short space of time.
Ignition electrode (A)
Each burner has been provided with an
ignition electrode. As long as the
operating knob is depressed, the
automatic ignition will ensure that a
spark is emitted between the ignition
electrode and the burner cover.
Thermo Sensor (B)
The hob unit features fully-secured gas
taps (thermo-fuse)
In case the flame goes out, the thermo
sensor automatically prevents gas
admission after a shorter time (max. 90
seconds).
Note: Gas admission is always allowed
while the operation button is pressed -
See start-up procedure
Burnerbody
Burnercover
Ignition electrode (A)
Thermo sensor (B)
9

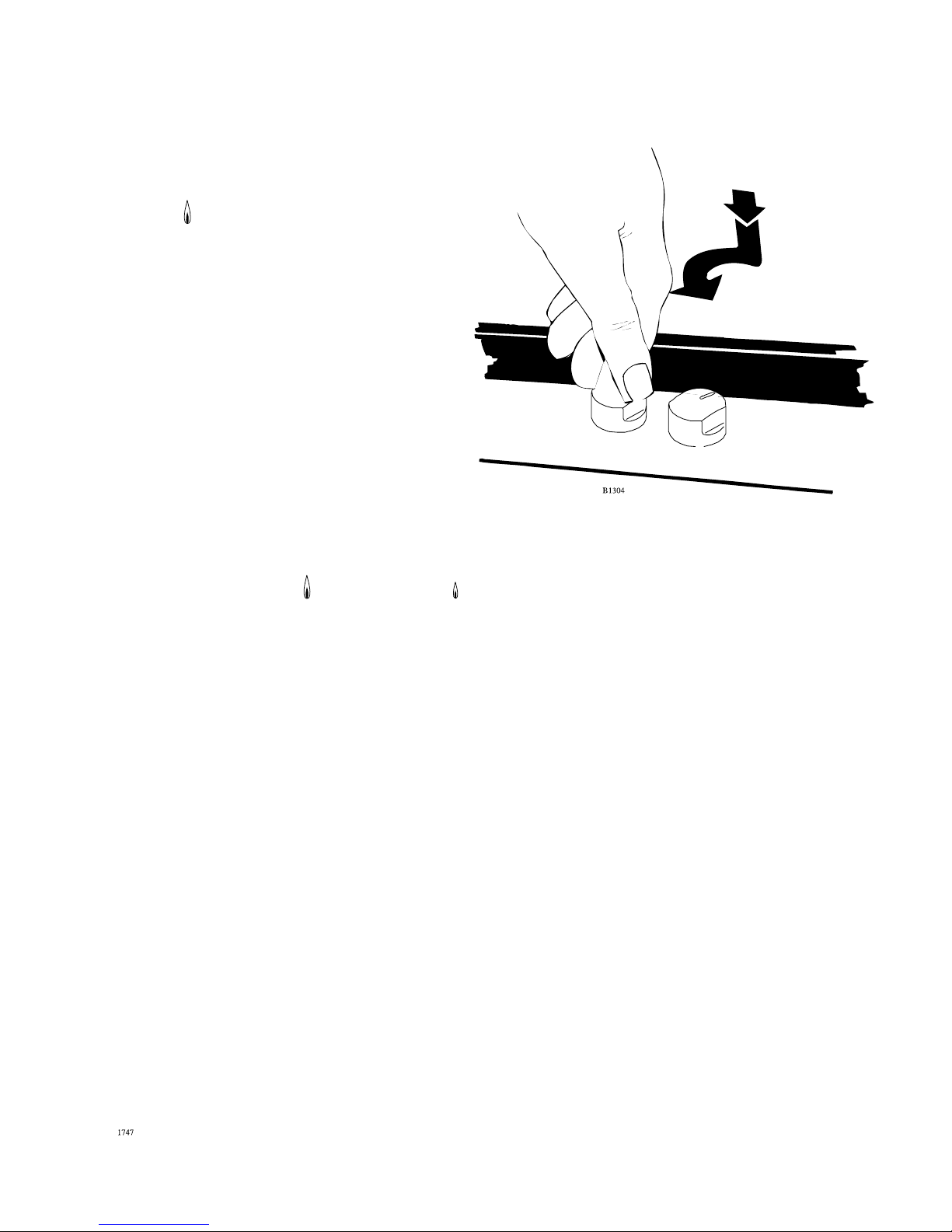

1. Depress and turn the control knob
for the burner to the left to max.
flame . (Ignition position)
2. The ignition electrode will emit
sparks, and when the mixture of gas
and air is correct, the burner will be
ignited. If it is not possible to
connect the unit to mains, a
match may be used to ignite the
burner.
3. After starting the burner, press the
control knob for approx. 10
seconds to activate the automatic
thermo-couple (thermo sensor
ready).
5. The burner can now be regulated
between maximum and minimum
Ignition
10
Maintenance and cleaning
For reasons of hygiene and
safety, the cooking zones
must be kept clean. Grease
stains and spilled food
generate smoke when heated,
and can even cause fire.
Splashguard
The splashguard can be removed to
make it easier to clean the surface.
What to do:

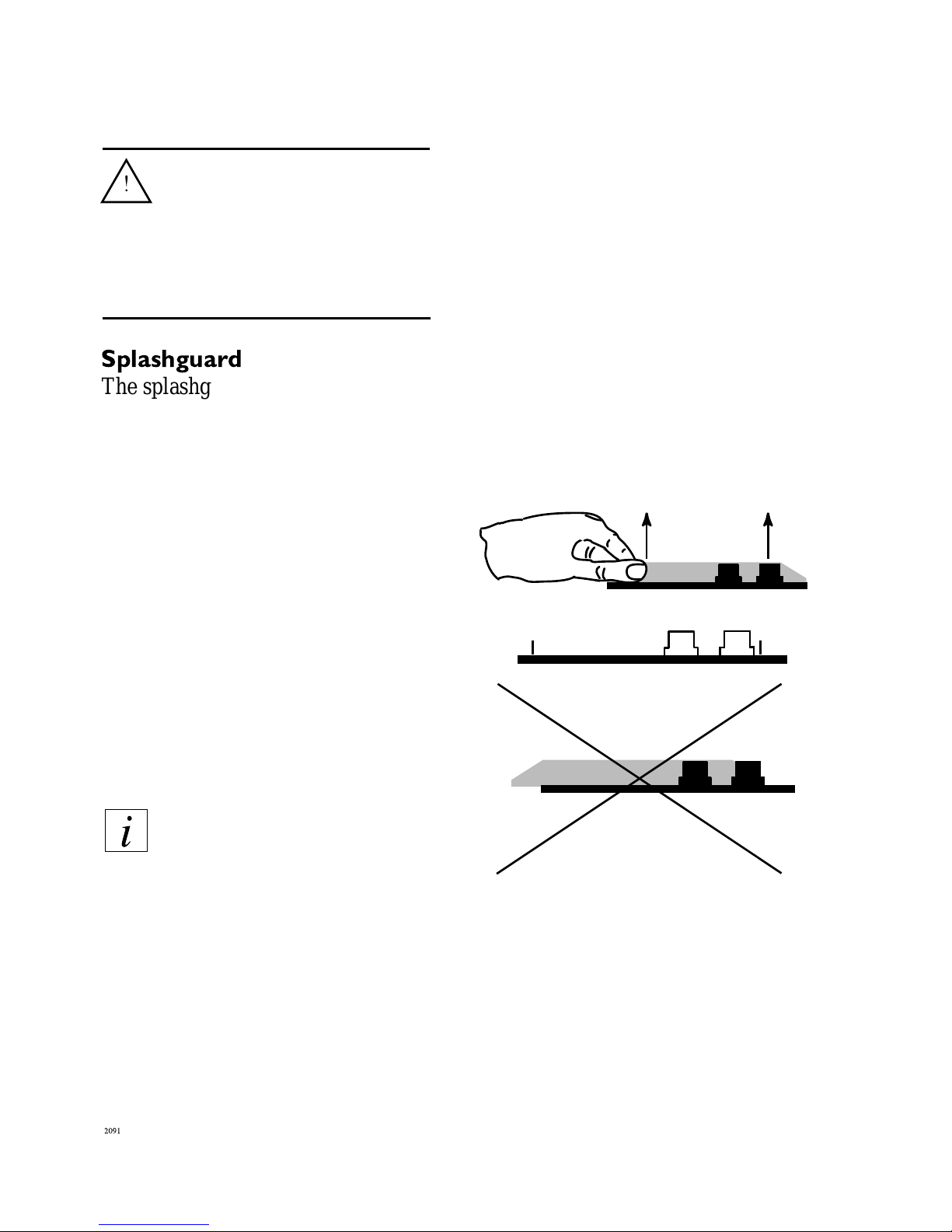

1. Hold the splashguard as shown
in the diagram.
2. Lift the splashguard straight up
3. Clean the top surface as
described in “cleaning the steel
surface”.
Be aware of the two retaining
pegs, which are sharp.
4. Replace the splashguard in
position ENSURE that it is
fitted the correct way round.
Never use hard or sharp
implements to lift off the
splashguard.
Do not wash the splashguard
in a dishwasher.
The hob must not be used
with the splashguard off.
