Advantech 8GE(PoE)+2GE+2G SFP Manuel utilisateur

User Guide

8GE(PoE)+2GE+2G SFP Colorful LCD Display PoE Switch

- 2 -

Package Contents

Check the following contents of your package:



PoE Switch x 1



User’s Manual x 1



Power Cord x 1



Accessories(hanging ears*2, Rubber Feet*4, screw*8)

If any part is lost and damaged, please contact your local agent immediately.

1. Introduction

Thank you for choosing this PoE Switch. The 8GE(PoE)+2GE+2G SFP LCD Display PoE Switch Provides

have 8-10/100/1000Mbps PoE RJ45 Port witch 2-10/100/1000Mbps RJ45 Port and 2-1000Mbps SFP Slot. Its

PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered

Devices (PD). The electrical power is transmitted along with data in one single cable allowing you to

expand your network where there are no power lines or outlets, where you wish to fix devices such as AP, IP

Cameras or IP Phones, etc.

The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer

and engineer timely discover and solve the network failure, improve work efficiency and quality.

Port Feature

Model

Gigabit RJ45 Port

Gigabit SFP

Port

LCD Display

PSE Port

8GE(PoE)+2GE+2G SFP

Port1~10

Port11~12

Support

Port1~8

- 3 -

2. Hardware Description

2.1 Front Panel

The Front Panel of the PoE Ethernet Switch Consists of Ethernet Ports. The LCD Display and LED indicators

are also located on the panel

LED indicator

LED

Color

Function

PWR

Green

Oﬀ: No Power supply.

Light: Indicates the switch has power.

LNK/ACT

Orange

Oﬀ: No device is connected to the corresponding port.

Light: Indicates the link through that port is successfully

established at 10/100Mbps.

Blink: Indicates that the Switch is actively sending or

receiving data over that port.

Green

Oﬀ: No device is connected to the corresponding port.

Light: Indicates the link through that port is successfully

established at 1000Mbps.

Blink: Indicates that the Switch is actively sending or

receiving data over that port.

PoE

Orange

Oﬀ: No PoE powered device (PD) connected.

Light: There is a PoE PD connected to be port, which

supply power successfully.

Blink: Indicates port abnormal power supply.

- 4 -

Rear Panel

The rear panel of the PoE Switch indicates an AC inlet power socket, which accepts input power from

100 to 240V AC, 50/60HZ.

LCD Features

The PoE Switch with the function of the LCD display and PoE. The LCD can display the working condition of

PoE port not only, still can accurately show the state of each port such as :Output power,Overload,Short

circuit,Light load ,Low voltage ,Over voltage High temperature, and so on

- 5 -

Not only such visible on the basis of three generations in the second generation increases the color logo,

according to the menu button, switch mode, bandwidth display and warning, PD type, PSE power fine-tuning and

priority, PoE port switch control, LCD switch. Enhance the LCD viewing angles, smart fan control, language selection and

the function of the factory Settings, in turn, as shown in the figure below: See the operation instructions of the screen

concretely.

Installation the Switch

This part describes how to install your Ethernet Switch and make connections to it .Please follow

the following instructions in avoid of incorrect installation causing device damage and security

threat.

Before cleaning the switch, unplug the power plug of the switch ﬁrst. Do not clean the switch with wet

cloth or liquid;

Do not place the switch near water or any damp area. Prevent water or moisture from entering the

switch chassis;

Do not place the switch on an unstable case or desk. The switch might be damaged severely in case of a

fall;

Ensure proper ventilation of the equipment room and keep the ventilation vents of the switch free of

Obstruction;

Make sure that the operating voltage is the same one labeled on the switch ;

Do not open the chassis while the switch is operating or when electrical hazards are present to avoid

electrical shocks;

- 6 -

Desktop Installation

Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at

each corner of the Switch in case of the external vibration. Allow adequate space for ventilation

between the device and the objects around it.

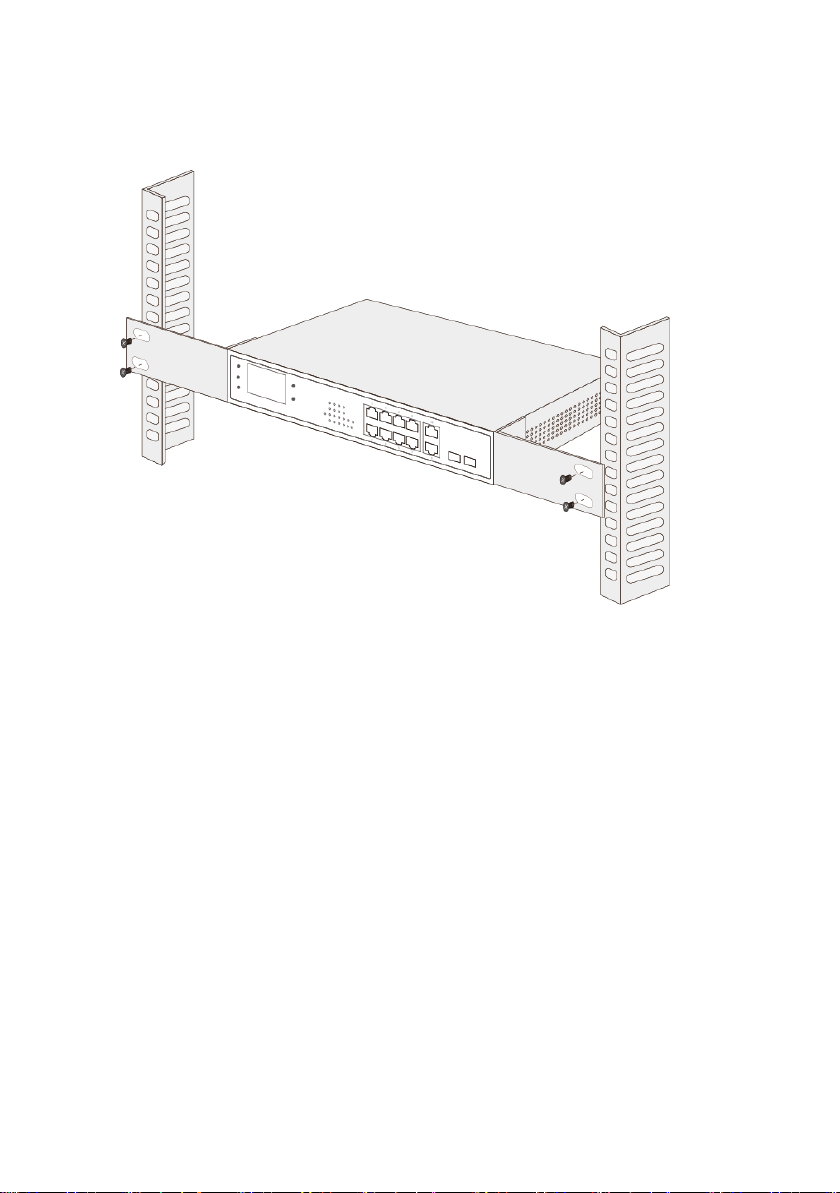

3.2.Rack mountable Installation

The switch is rack-mountable and can be installed on an EIA-19 inch equipment rack. To do this, ﬁrst,

please install the mounting brackets on the switch’s side panels (one on each side), secure them with

the included screws, and then use the screws provided with the equipment rack to mount the switch on

the 19 inch rack.

- 7 -

3.3 Turn on the switch

Please plug the power supply into the switch, the internal power system of the switch can Auto-regulate the

working power according to the actual input power. When the switch is power on, the power indicator will be

light on the front panel of the switch shines.

Note: Please confirm the voltage is correct before power on, otherwise the switch will be damaged.

(There is a power supply socket on the back panel of the PoE Ethernet switch. The power input is:

100V-240Vac, 50/60Hz.)

- 8 -

Specifications

Model

8GE(PoE)+2GE+2G SFP

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,IEEE802.3af, IEEE802.3at

Network -

Media(Cable)

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5 cable (≤100m)

1000BASE-T: UTP category 5e cable (≤100m)

1000BASE-X: MMF or SMF SFP module(Optional)

LCD Display

Support

MAC Address Table

8K, Auto-learning, Auto-aging

Transfer mode

Store-and-Forward

Frame Forward Rate

10Base-T: 14881pps/Port

100Base-TX: 148810pps/Port

1000Base-T/X: 1488095pps/Port

Switching Capacity

24Gbps

Dimensions (L*W*H)

280*180*44mm

Fan

Power Input

AC: 100~240V, 50/60Hz

PoE Port

Port1~8

PoE Power on RJ45

port: Mode A 1/2(+),3/6(-)

PoE Power Output

Voltage: 55V DC Power: 32W(Max)

PoE Power Budget

120W

PoE Power total

130W

Temperature

Operating Temperature: -5°C ~ 50 °C (23 °F ~122°F )

Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )

Humidity

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing
