Advantech IDS31-190 Manuel utilisateur

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 1of 21

Preliminary

USER MANUAL

TITLE

Industrial Monitor / Monitor

MODEL NAME

IDS31-190

Signature Date Prepared by Date

Please return 1 copy for our

confirmation with your signature

and comments

SERIAL NAME IDS31-190-P35DVA1E

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 2of 21

Preliminary

TABLE OF CONTENTS

ITEM

PAGE

Ⅰ

Overview

Ⅱ

General Description

Ⅲ

Electrical Specifications

Electrical Characteristics

Interface Connections

6-8

Ⅳ

OSD Function

Ⅴ

Environment Specifications

Ⅵ

Reliability

Ⅶ

Inspection Standard

11-13

Ⅷ

Accessory

14-19

Ⅸ

Packing

BSMI 甲類

警告使用者這是甲類資訊產品, 在居住的環境中使用時, 可能會造成射頻干擾,

在這種情況下, 使用者會被要求採取某些適當的對策.

警告 : 使用過度恐傷害視力

(1) 使用30分鐘請休息10分鐘。

(2) 2歲以下幼兒不看螢幕, 2歲以上每天看螢幕不要超過1小時。

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 3of 21

Preliminary

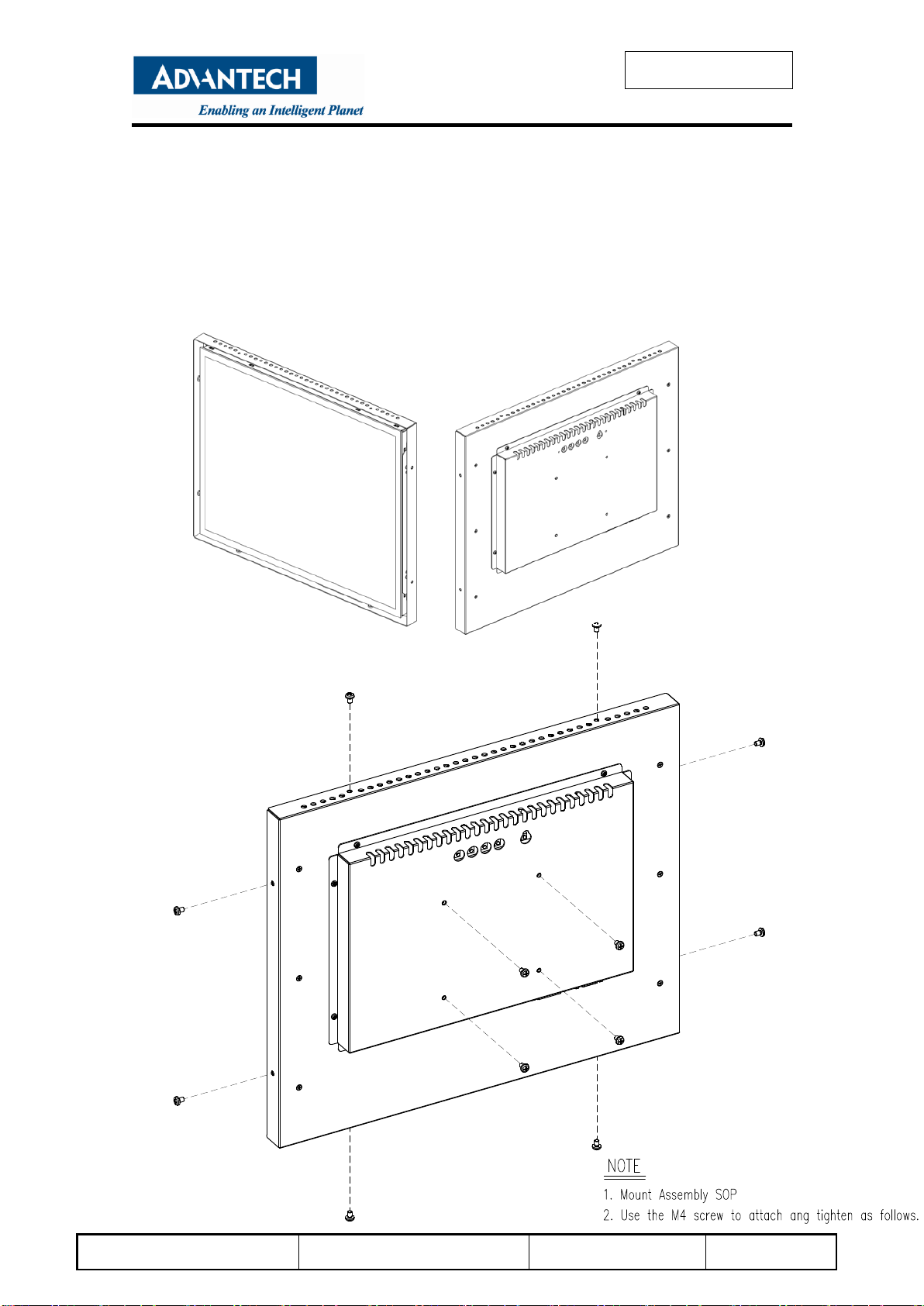

Ⅰ. OVERVIEW

The IDS31-190-P35DVA1E is designed 19 inch monitor

- Support the monitor with 1280 × 1024 resolution.

- Brightness - 350 cd/㎡(without Touch)

- Contrast Ratio : 1000:1

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 4of 21

Preliminary

Ⅱ. General Description

Display Type

TFT LCD Panel (19 inch)

Pixel Pitch

0.294 (per one triad) × 0.294

Pixel Format

1280 Hor. By 1024 Ver. Pixels RGB vertical stripe

Display Colors

16.7M colors

Brightness

350 cd/㎡(Typical)

Contrast Ratio

1000 : 1 (Typical)

Response Time

5 ms (TR+ TF)

Viewing

Angle

Horizontal

170˚

Vertical

160˚

Life Time

50,000 Hr (Typical)

Input Signal

Analog RGB, DVI-D

OSD Controls

Soft Power(On/Off), Menu, Select, Up, Down, Auto

Power Saving

(LED Display)

VESA DPMS,

On (Green), Stand-By (Green blinking),

Suspend (Green blinking), Off

Dimension

422(H) x 347(V) x 45(D)

Weight

4.6kg

Operating Temp.

0℃~+50℃

Storage Temp.

-20℃~ +60℃

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 5of 21

Preliminary

Ⅲ. Electrical Specifications

1-1. Electrical Characteristics

Power

DC Input Voltage

12VDC/3.5A ±10%

Standby power

1.0 W

Power consumption

23 W

Analog

Video

Signal

Type

Analog RGB

Gain Level

0.714 ±5%

Input impedance

75ohm ±5%(terminated)

Pixel frequency

Max. 165MHz

Resolution

Max. 1280×1024 / 60Hz

Input

Sync

Signal

Type

H/V, Separate only

Gain Level

TTL level

(High ≥2.0V, Low ≤0.8V)

Polarity

Positive or Negative

Maximum Duty

Max. 25%

Frequency Range

Horizontal

28.5 ~ 80KHz,

Vertical

48 ~ 75Hz

DVI

Differential output

150 ~ 1200 mVp-p

Input clock freq

20 ~ 135 MHz

1-2 Board Block Diagram

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 6of 21

Preliminary

2. I/O Port (Interface Connections)

2-1. Analog RGB Pin Assignment

Connector

P/No.

Symbol

Description

VGA Input

connector For 15P D-sub

Red

Red, analog input

Green

Green, analog input

Blue

Blue, analog input

N.C

Not connected

DGND

Digital ground

Red GND

Ground for Red return

Green GND

Ground for Green return

Blue GND

Ground for Blue return

N.C

Not connected

DGND

Detect connector

N.C

Not connected

DDC Data

H-sync

Horizontal sync, input

V-sync

Vertical sync, input

DDC Clk

2-2. DVI Jack Pin Assignment

Connector

P/No.

Symbol

Description

DVI

RX2N

TMDS Data 2-

RX2P

TMDS Data 2+

GND

TMDS Data 2/4 Shield

TMDS Data 4-

TMDS Data 4+

SCL-DVI-1

DDC Clock

SDA-DVI-1

DDC Data

VSYNC

Analog Vertical Sync

RX1N

TMDS Data 1-

RX1P

TMDS Data 1+

GND

TMDS Data 1/3 Shield

TMDS Data 3-

TMDS Data 3+

+5V Power

DVI+5V

GND

Ground

HPD

Hot Plug Detect

RX0N

TMDS Data 0-

RX0P

TMDS Data 0+

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 7of 21

Preliminary

GND

TMDS Data 0/5 Shield

TMDS Data 5-

TMDS Data 5+

GND

TMDS Clock Shield

RXCP

TMDS Clock +

RXCN

TMDS Clock -

Analog Red

Analog Green

Analog Blue

HSYNC

Analog Horizontal Sync

2-3. Input Signal format

Character

Mode

Pixel

Freq.

Horizontal

Timing

Vertical

Timing

Sync

Polar

Freq.

Total

Activ

Sync

Polar

Freq.

Total

Active

MHz

KHz

Pixel

Line

640x480

@60Hz

25.175

31.47

800

640

59.94

525

480

800x600

@60Hz

40.000

37.88

1056

800

60.32

628

600

1024x768

@60Hz

65.000

48.36

1344

1024

60.00

806

768

1280x1024 @60Hz

108.000

63.98

1688

1280

60.02

1066

1024

Sync : H/V Separated LVDS

2-4. Touch Glass / Touch Controller

Projected Capacitive Touch

Input Method

Finger

Light Transmittance

More than 82% (Typical)

Operating Temperature

‐25℃~ 70℃Humidity 90% RH at max 35℃

Storage Temperature

-30℃~ 80℃Humidity 90% RH at max 35℃

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 8of 21

Preliminary

Note

1. Total Thickness : 2.45 ± 10%

2. Cover Glass Thickness : 2.0T ( Tempered glass )

3. Transparency : 82% or More

4. Tail : FPC style ( Copper trace )

Controller Board

Circuit Board Dimension

120mm x 40mm

Input Voltage

D.C.+5V (100mA typical, 50mV peak to peakmaximum ripple and

noise

Operating Temperature

-25 to 80 ℃

Storage Temperature

-25 to 80 ℃

Relative Humidity

95% at 60 ℃, RH Non-condensing

Interface

USB: 1.1 Full Speed

Resolution

20482048 resolution

Power consumption

Active Mode: Max 55 mA

Idle Mode : 5mA

Sleep Mode :1mA

Response time

Max. 25 ms

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 9of 21

Preliminary

Ⅳ. OSD Function

1) Button

Button

Function

Notes

Power

Power on/off button

- Turn power on or off

Main menu on/move button

- Show OSD menu on the screen

- Exit the main menu or submenu

SLEECT

Menu off button

- Submenu Select

- Input Source Select(RGB/DP)

DOWN

Adjust button

- OSD Menu Down

- Moves the bar left to decrease the adjustment

Adjust button

- OSD Menu UP

- Moves the bar right to increase the adjustment

2) Menu


Sub Menu : Brightness, Contrast, Sharpness, Color

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase

the setting

Display

Sub Menu : Auto Adjust, Phase, Clock, Display Position,

Panel Select

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase

the setting

System

Sub Menu : Input Source, OSD Setting, Language, Dimming,

Reset

Use the ‘Adjust –‘ or ‘Adjust +’button to adjust the settings

automatically

Model : IDS31-190-P35DVA1E

Rev. No : Ver. 0.90

Date :21/APR/2015

Page 10 of 21

Preliminary

Ⅴ. Environment Specifications

Parameter

Values

Units

Notes

Min.

Max.

Operating Temperature

+50

℃

Storage Temperature

-20

+60

℃

Operating Humidity

%RH

Storage Humidity

%RH

Ⅵ. Reliability

No.

Test Item

Conditions

High temperature operating test

Ta : 50℃, 120Hr

Low temperature operating test

Ta : 0℃, 120Hr

High temperature storage test

Ta : 60℃, 120Hr

Low temperature storage test

Ta : -20℃, 120Hr

High humidity operating test

Ta : 50℃, 80%RH, 120Hr

High humidity storage test

Ta : 50℃, 90%RH, 120Hr

Thermal shock operation test

Ta : 0℃, 60min 0℃~50℃, 30min

50℃, 60min, 50Cycle

Thermal shock storage test

Ta : -20℃, 60min -20℃~60℃, 30min

60℃, 60min, 50Cycle

ESD

Contact

8KV,1sec/cycle

Air

15KV,1sec/cycle

Vibration

(Non-Operation)

Linear sweep 30minutes, 10~200Hz

1.5G, X, Y, Z direction

Shock

(Non-Operation)

50G, 20ms, Half-sine wave

±X, ±Y, ±Z
