Advantech IACP-4000 Series Manuel utilisateur
i
IACP-4000 Series
5.7" VGA TFT LCD Pentium 4/
Celeron D 4U Industrial
Workstation with 7xISA/PCI Slots
Users Manual
IACP-4000 User Manual ii
Copyright
This document is copyrighted, 2008, by Advantech Co., Ltd. All rights
are reserved. Advantech Co., Ltd. reserves the right to make improve-
ments to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmit-
ted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd. assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
All brand and product names mentioned herein are trademarks or regis-
tered trademarks of their respective holders.
Part No. 2003400000 1st Edition
Printed in Taiwan June 2008
iii
FCC Class A
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful inter-
ference in which case the user will be required to correct the interference
at his own expense.
Additional Information and Assistance
Step 1. Visit the Advantech web site at www.advantech.com where you
can find the latest information about the product.
Step 2. Contact your distributor, sales representative, or Advantech's
customer service center for technical support if you need addi-
tional assistance. Please have the following information ready
before you call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version, application
software, etc.)
• A complete description of the problem
• The exact wording of any error messages
IACP-4000 User Manual iv
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or let-
ting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according
to the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THE STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR
ABOVE 60° C (140° F). THIS COULD DAMAGE THE EQUIPMENT. THE
EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT
TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED
BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUC-
TIONS.
The sound pressure level at the operator's position according to IEC 704-1:1982 is
no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.
v
Contents
Chapter 1 General Information ....................................... 2
1.1 Introduction ....................................................................... 2
1.2 Specifications .................................................................... 2
1.2.1 General ........................................................................... 2
1.2.2 System Hardware ........................................................... 3
1.2.4 Environment ................................................................... 3
1.3 IACP-4000 Series List ...................................................... 4
1.4 Dimensions........................................................................ 4
1.5 Exploded Diagram............................................................. 5
Figure 1.1:Exploded Diagram ........................................ 5
1.6 Accessory Packing list ...................................................... 5
Chapter 2 System Setup.................................................... 8
2.1 System Installation ........................................................... 8
2.1.1 Attaching the Handles .................................................... 8
2.1.2 Removing the Top Cover ............................................... 8
2.1.3 Chassis Front and Rear Sections .................................... 9
2.1.4 Drive Bay Installation .................................................. 11
2.1.5 Motherboard Installation & Information ..................... 11
2.2 LED Indicators ................................................................ 12
2.2.1 System Status LED ...................................................... 12
2.2.2 Power Status LED ........................................................ 13
2.3 Power Supply .................................................................. 13
2.4 Cooling Fan & Filter ....................................................... 14
Chapter 3 Alarm Board .................................................. 16
3.1 Alarm Board Layout........................................................ 16
3.2 Alarm Board Specification.............................................. 17
3.3 Switch Setting ................................................................. 21
3.4 Thermal Sensor ............................................................... 22
IACP-4000 User Manual vi
1 Chapter1
CHAPTER
1
General Information
IACP-4000 User Manual 2
Chapter 1 General Information
1.1 Introduction
IACP-4000 is a 4U height 14-slot rackmount IPC chassis with ATX
industrial motherboard inside which equipped 5.7" TFT LCD (4000D
series)for varied application purpose, high-efficiency 300W ATX with
PFC (power factor correction) power supply and maintainable dual cool-
ing fan. A fault detection and alarm notification system monitors the sys-
tem status, including power supply, HDD, temperature and cooling fans
to minimize the system down time. A wide range of standard computing
peripherals can be integrated with the chassis to meet different applica-
tion development under mission-critical environment 24 hours a day, 7
days a week.
1.2 Specifications
1.2.1 General
• Certifications BSMI, CCC, CE, FCC
• Cooling System 2 x 85 CFM fan w/Air Filter
• Dimensions (W x H x D)482 x 177 x 480 mm (19" x 7" x 18.9")
• Disk Drive Bay 1 x 3.5", 3 x 5.25" (Front Accessible)
• Weight (Gross) 18 kg (39.6 lb)
• Power Input 90 ~ 264 VAC @ 47 ~ 63 Hz full range 6.0/3.0A
• Power Ouput +5 V @ 30 A, +12 V @ 15 A, +3.3 V @ 28 A,
-5 V @ 0.3 A, -12 V @ 0.8 A, +5 VSB @ 2 A
• Power Supply 300 W, MTBF: 100,000 hrs
• Weight (Gross) 18 kg (39.7 lb)
3 Chapter1
1.2.2 System Hardware
• Audio Ports 1 x Mic-in, 1 x Line-out, 1 x CD Audio in,
1 x Line out, 1 x S/PDIF
• Chipset Intel 82915GV GMCH
• CPU Intel µFC-LGA 775 socket
• Expansion Slots 1 PCI Express x 16,
5 PCI slots (PCI Rev. 2.2 compliant),
2 ISA slots
• Keyboard/Mouse 2 x PS/2 for mouse & keyboard interface
• LAN 2 x Realtek RTL8110SC Gigabit LAN
• Memory Four 240-pin DIMM sockets support up to 4 GB
Dual Channel DDR2 400/533/667 SDRAM
• Parallel Port 1 x Parallel port
• Serial Port 1 x RS-232/422/485 port
• USB Port 4 x USB 2.0 on rear I/O
1.2.3 LCD Display
• Backlight Life 50,000 hrs (LED Backlight)
• Contrast Ratio 300 : 1
• Display Size 5.7"
• Display Type QVGA TFT LCD
• Luminance 220 cd/m2
• Max. Colors 262 K (RGB 6-bit)
• Max. Resolution 640 x 480
• OSD Control ON/OFF, Brightness down, up
• Viewing Angle (H/V°)140/100
1.2.4 Environment
• Humidity 10 ~ 85% RH @ 40° C (non-condensing)
• Operating Temperature 0 ~ 50° C (32 ~ 122° F)
• Storage Temperature -20 ~ 60° C (-4 ~ 140° F)
• Vibration Protection 5 ~ 500 Hz, 1 GRMS random vibration
IACP-4000 User Manual 4
1.3 IACP-4000 Series List
• IACP-4000D-A0AE 5.7" VGA TFT LCD Pentium/Celeron D
4U Rack Industrial Workstation with
5 PCI/ 2 ISA/ 1 ADD2 Slots
• IACP-4000G-A0AE IACP-4000D-A0AE without display
• IACP-4000D-A2AE 5.7" VGA TFT LCD Core 2 Quad / Core
2 Duo / Core Duo 4U Rack Industrial
Workstation with 5 PCI/ 2 PCIe Slots
• IACP-4000G-A2AE IACP-4000D-A2AE without display

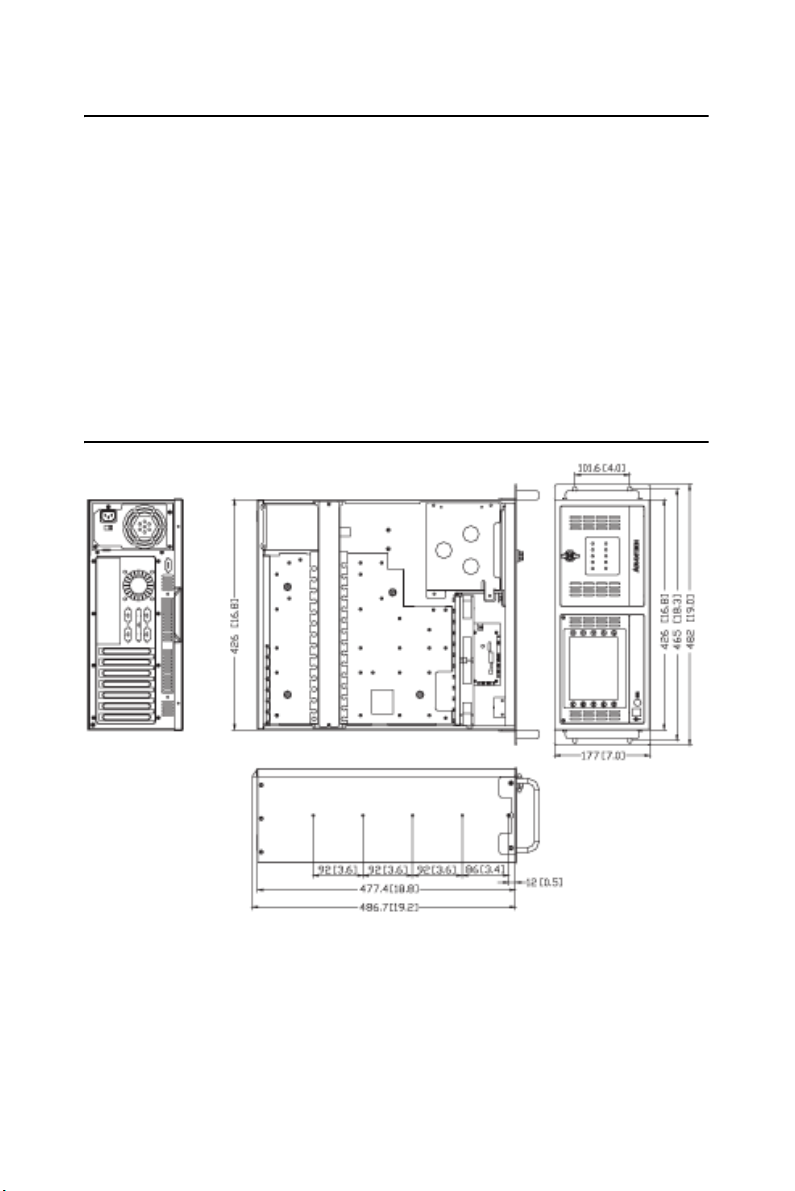

1.4 Dimensions
