Advaning GA Series Manuel utilisateur

DOOR AWNING : GA SERIES

For your safety and the safety of others, please read all of the instructions and

warnings in this manual carefully before peceeding with installation and usage

Owner’s Manual

Safety Instructions and Warnings ........................................1~2

Package Contents and Parts .............................................. 3

Assembly Diagram ...................................................... 4

Required Tools ......................................................... 5

Installation

Pre-Installation Guide .............................................. 6

Assembly and Installation ........................................7~11

Maintenance.......................................................... 12

Limited Warranty and Contacts ........................................13~14

TABLE OF CONTENTS

www.advaning.com

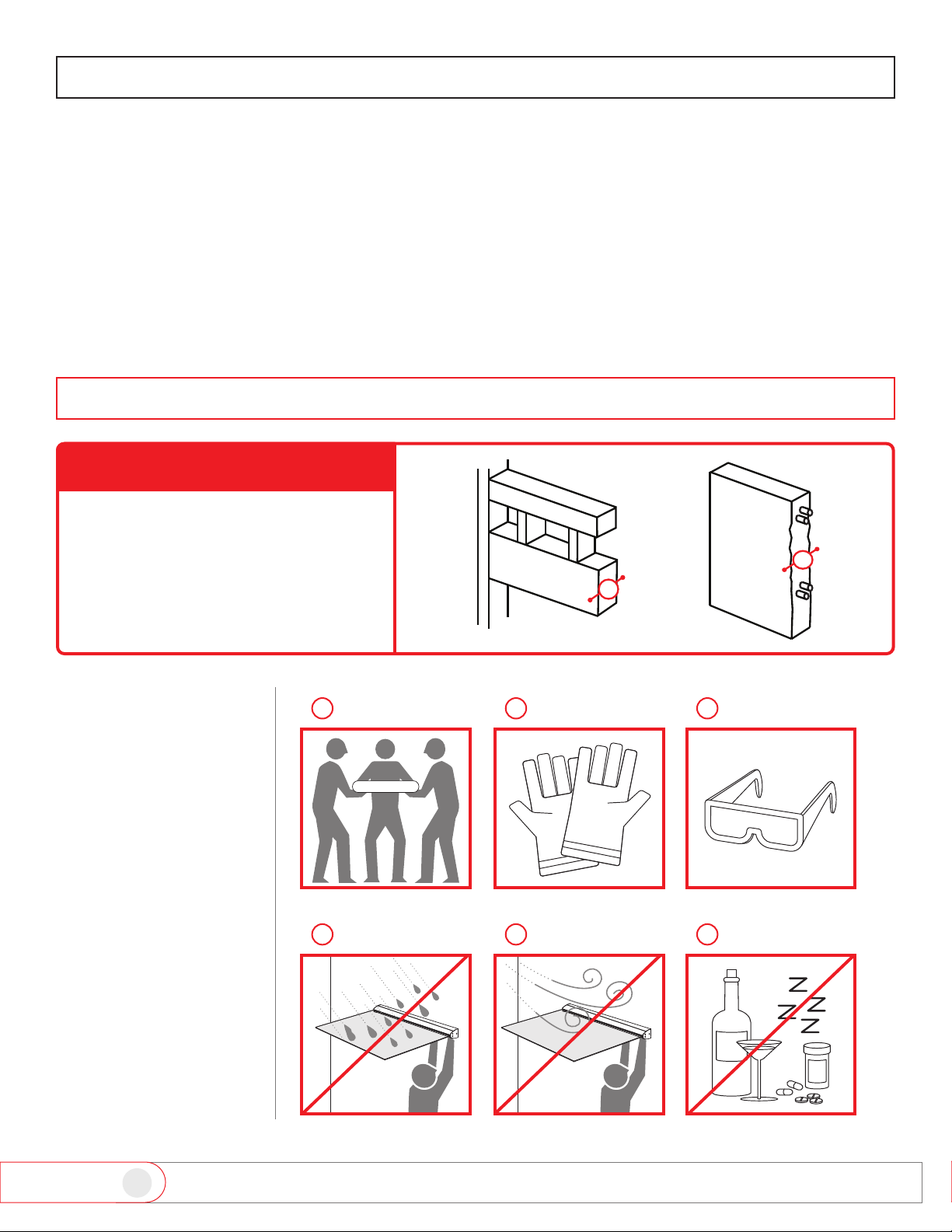

SAFETY INSTRUCTIONS AND WARNINGS

Fig.1

Fig.2

For your safety, ensure

to have the following

available:

A. Minimun 3 people to

install

B. Work gloves

C. Safety goggles

DO NOT ATTEMPT

Assembly or Maintenance

if:

D. Rain is in the forecast

E. Wind is in the forecast

F. You are tired or under

the inuence of drugs

or alcohol

4”

HEADER BOARD

4”

SOLID MASONRY

4”

HEADER BOARD

4”

SOLID MASONRY

CAUTION!

GA Series awning MUST be mounted

to main structural supports, header,

or solid masonry 4-inch in thickness

or more.

SAFETY INSTRUCTIONS AND WARNINGS

www.advaning.com

ENSURE THAT THE DOOR AWNING IS MOUNTED TO MAIN STRUCTURAL SUPPORTS OF THE BUILDING.

FAILURE TO DO SO MAY RESULT IN INJURY OR DAMAGE TO THE PRODUCT OR PROPERTY.

Owners are solely responsible for proper handling, storage, assembly, installation and use of this product.

Advaning is not responsible for any damages or injury to you, any other parties, or property resulting from

improper handling, storage, assembly, installation, or misuse of the product.

INSTALLATION

• Pay close attention throughout the installation process to ensure that the Advaning awning is installed prop-

erly and according to the safety guidelines outlined herein.

• Keep children away from the assembly area and components.

• Do not attempt installation while under the inuence of alcohol or drug substances.

• Do not proceed with an installation if you feel that you cannot properly and safely complete, please seek

professional help.

• Always wear protective gear and gloves when handling sharp metal parts.

• Only perform installation/maintenance/cleaning in dry and optimal weather conditions.

• 3 or more persons are recommended for installation. Installation will require to lift the glass panel onto the

bracket. Ensure help is available to help lift and secure in position.

• Advaning recommends consulting with your local authorities if any permits or regulations are required prior

to installation of this product.

• Ensure adequate installation substrate, GA Series awning MUST be mounted to main structural supports,

header board, or solid masonry 4-inch in thickness or greater.

USAGE

• Only use Advaning recommended accessories and original replacement parts.

• Only perform installation/maintenance/cleaning in dry and optimal weather conditions.

• Do not place any heat source or open ame under or near the awning.

• Do not place, hang, or stand objects or persons on the awning itself. Doing so can damage the awning or

cause severe personal injury and in extreme cases death.

• Do not carry out any maintenance other than what is shown in this manual. For any issues that are not cov-

ered in this manual, please seek support from Advaning Customer Service. Email: [email protected]

• The product should be used only as described in this Advaning Owner’s manual.

SAFETY FIRST, PLEASE READ THE FOLLOWING POINTS TO REDUCE THE RISK OF PERSONAL INJURY.

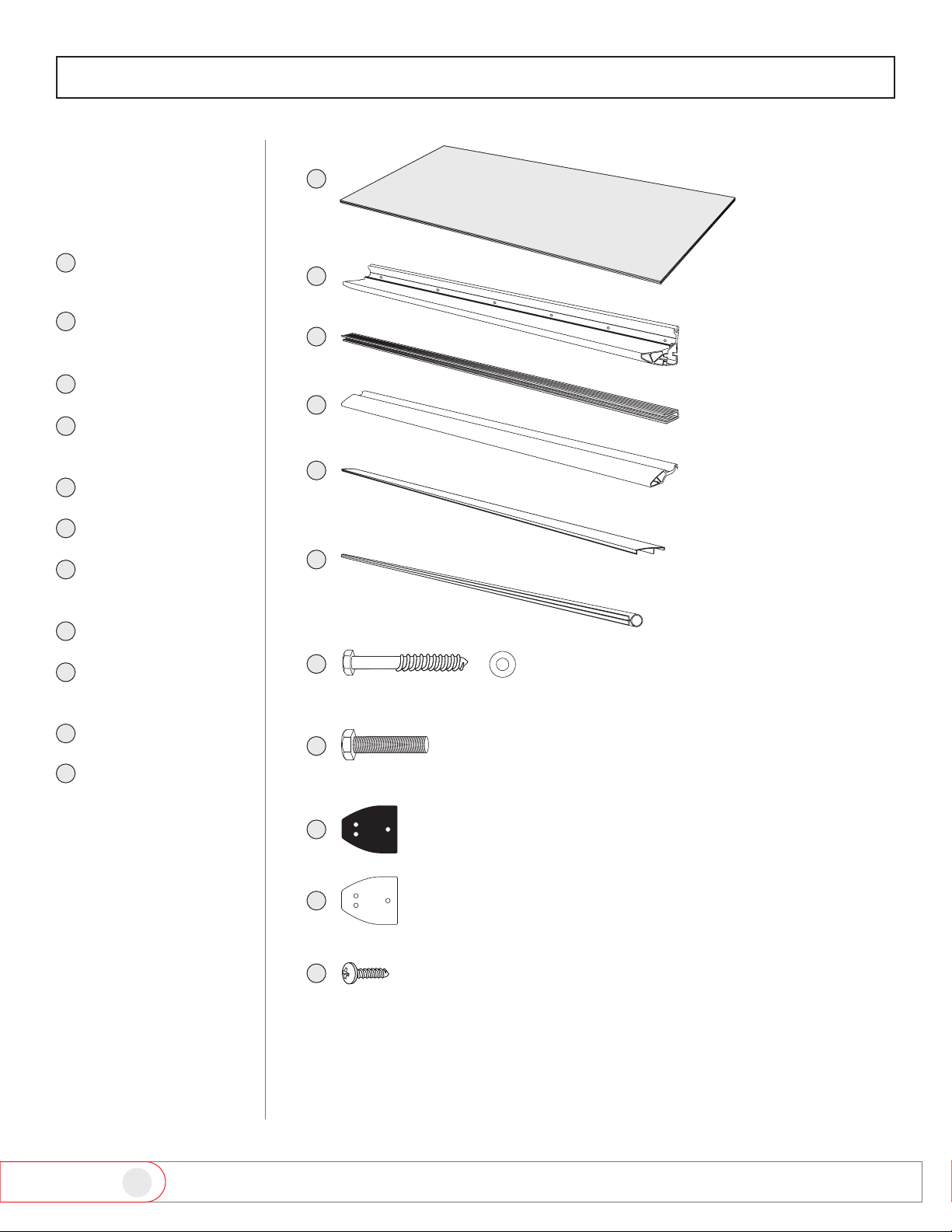

PACKAGE CONTENTS AND PARTS

Before installation, make

certain that the package

contains all parts as listed

on this page.

Masonry Expansion Bolt,

Part#: ZDA-WEB-R2

NOT INCLUDED / SOLD

SEPARATELY

Fig 3

[Qty: 1] Tempered

Glass Panel

[Qty: 1] Awning

Bracket (Base)

[Qty: 1] Clear PVC Clip

[Qty: 1] Awning

Bracket (Top)

[Qty: 1] Bracket Cover

[Qty: 2] Rubber Strip

[Qty: 6] Lag Screws &

Washers

[Qty: 8] Bracket Bolts

[Qty: 2] Side Cover

Foam

[Qty: 2] Side Cover

[Qty: 6] Side Cover

Screws

www.advaning.com

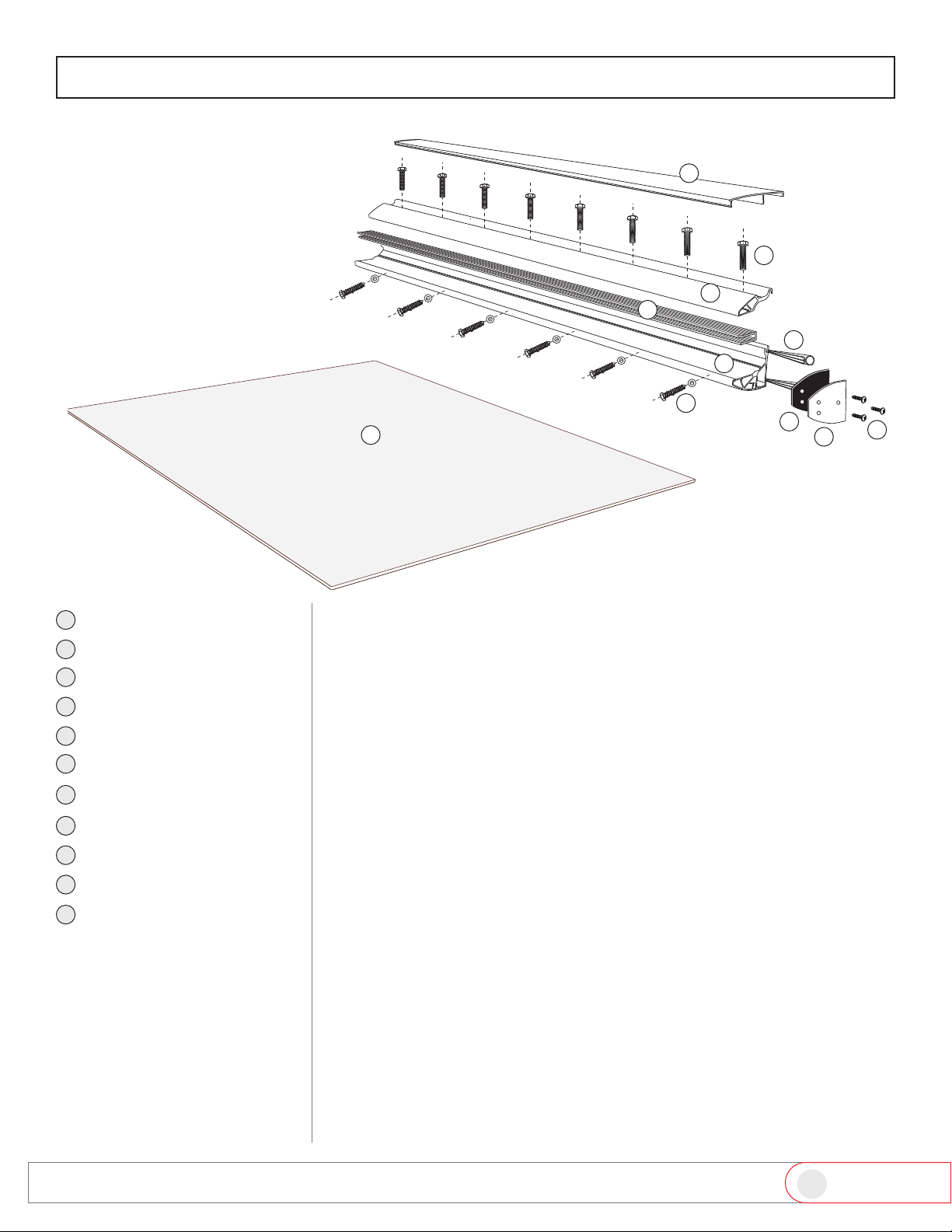

ASSEMBLY DIAGRAM

Fig.4

Tempered Glass Panel

Awning Bracket (Base)

Clear PVC Clip

Awning Bracket (Top)

Bracket Cover

Rubber Strip

Lag Screws & Washers

Bracket Bolts

Side Cover Foam

Side Cover

Side Cover Screws

www.advaning.com

REQUIRED TOOLS

Fig.5

REQUIRED TOOLS

Marker/Pencil

Scissors

Level

13mm Socket Wrench

Silicone*

9/64” Drill Bit for Lag

Screw (wood installs).

Electric Drill

Phillips Head Screw-

driver

Ladder/s

Work Gloves

Safety Glasses/Gog-

gles

*A slow curing high qual-

ity outdoor silicone is rec-

ommended – Specic for

your exterior surfaces.

Minimum 3 people to

install.

SILICONE

www.advaning.com

NOTE: For solid masonry

installation a 3/8” drill bit

will be required.

Masonry Expansion Bolt,

Part# ZDA-WEB-R2

SOLD SEPARATELY

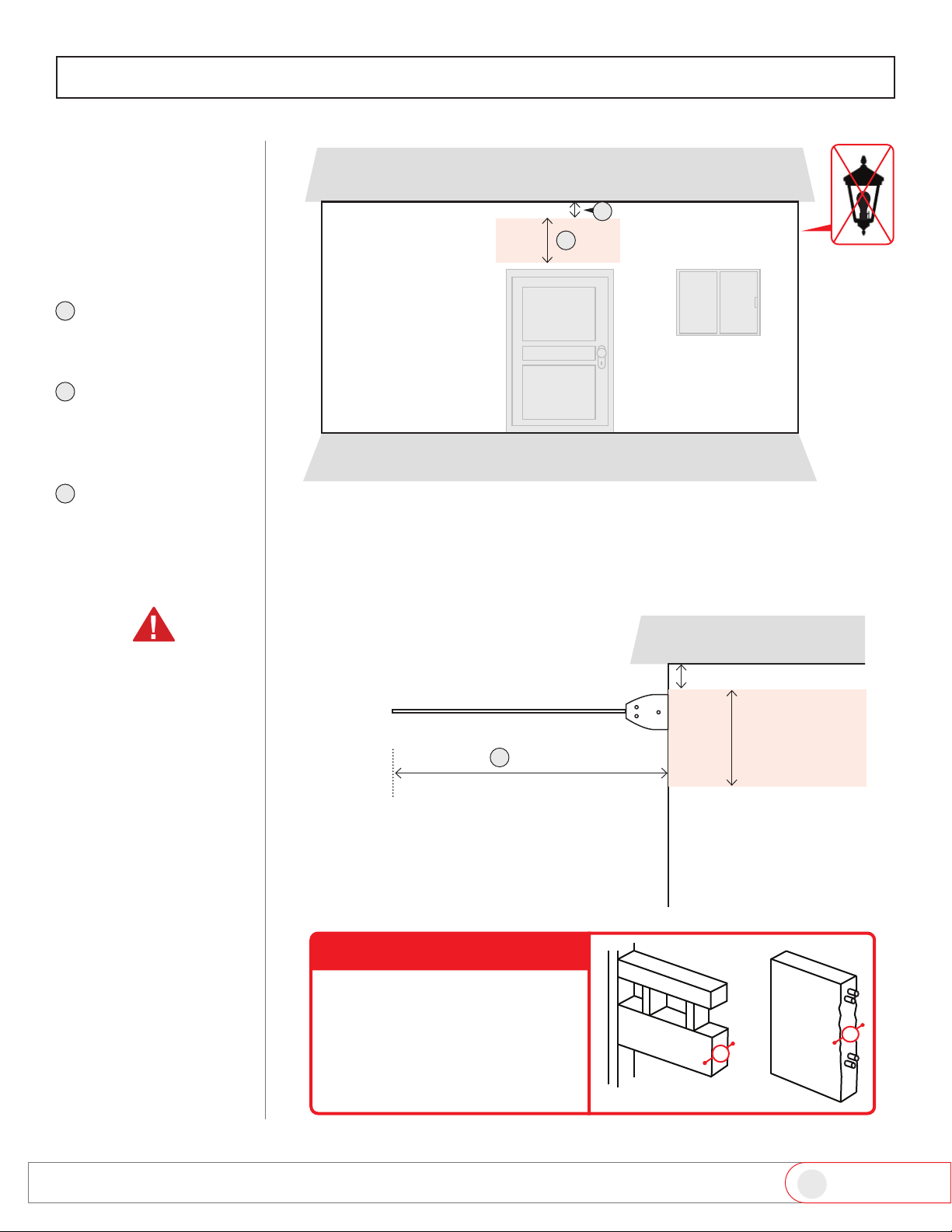

PRE-INSTALLATION GUIDE

Fig 6

Fig 7

Side view

Locate your door/window

structural header.

Minimum 2 inches of

clearance below roof/

eave/overhang.

7 inches of clear verti-

cal run length deped-

ing on awning size.

• 55 or 63 inches

Minimum Depth

Clearance depending

on awning size.

• 35 or 39 inches

Run length should be

free & clear of any ob-

structions along the en-

tirety of planned awning

length.

Advaning highly recom-

mends consulting with

a professional installer/

contractor who can best

assess your specic in-

stallation challenges to

avoid possible injury,

property damage and

ensure full product func-

tionality. CAUTION!

GA Series awning MUST be

mounted to main structural

supports, header, or solid

masonry 4-inch in thickness

or more.

Personal & specic structural physicalities may require

deviation from the recommended measurements.

PLANNING YOUR

AWNING

INSTALLATION

4”

HEADER BOARD

4”

SOLID MASONRY

www.advaning.com

Roof, eave or overhang

35 or 39 inches

Minimum 2 inches

Ground, oor or deck

7 inches clear

space

B7 inches clear space

AMinimum 2 inches

Wall

Fig 11

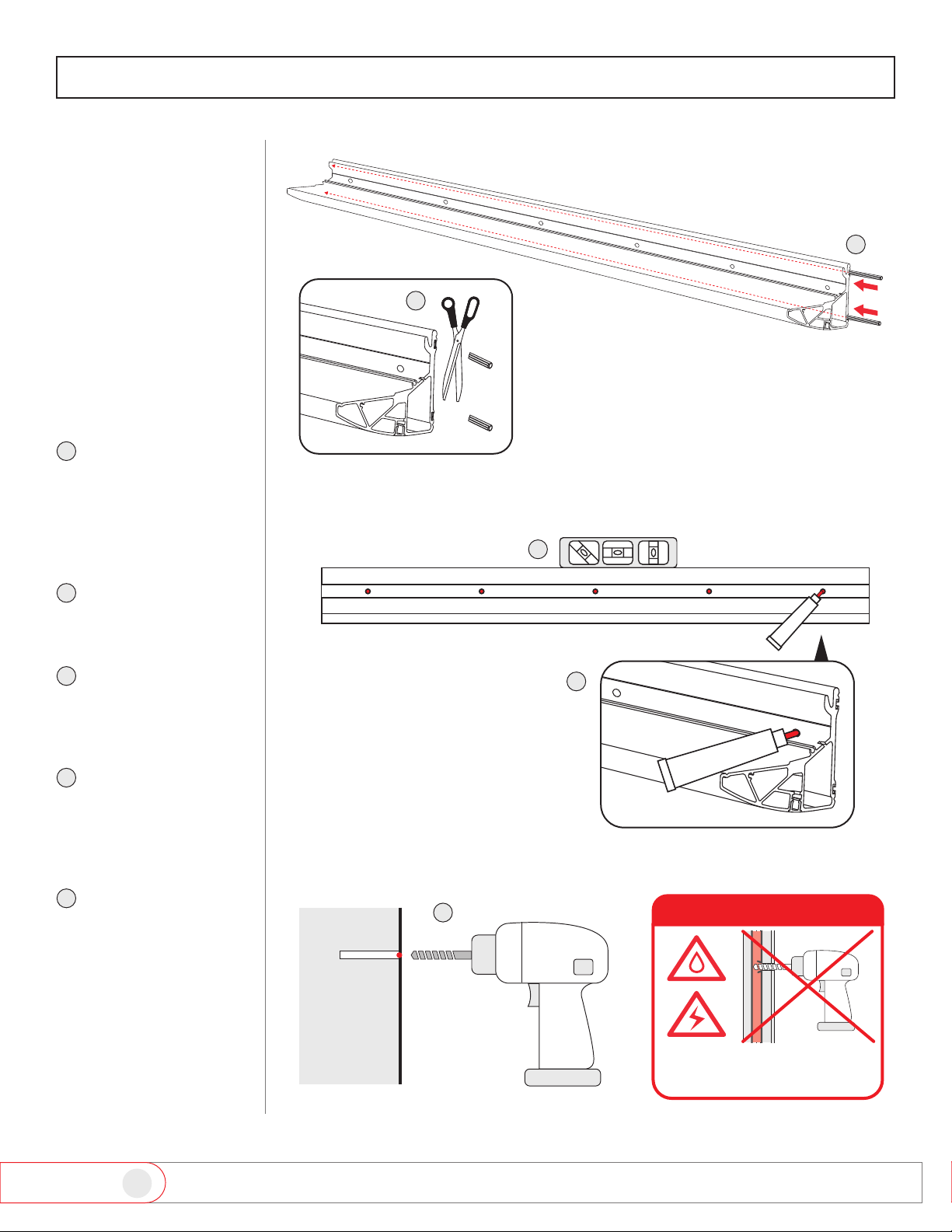

ASSEMBLY AND INSTALLATION

ASSEMBLING AND

INSTALLING THE

DOOR AWNING

Insert the Rubber

Strips into the back

grooves of the Awning

Bracket (Base) and

guide them through

to the other end.

Trim off excess

Rubber Strips with

scissors.

Using a level position

the Awning Bracket

(Base) in the desired

install location.

Mark the location of

the mounting holes

using a marker/pencil

through the bracket

holes.

Remove the Awning

Bracket (Base) and

drill the pilot holes 4”

deep.

TIP: Drill the outer-

most pilot holes rst,

then use the Awning

Bracket (Base) as

guide to drill the re-

maining holes.

Fig 10

Fig 8

Fig 9

Fig 12

NOTE: Installation in-

struction Step#5~8 is for

wood installs only.

For solid masonry instal-

lation guides, please visit

www.advaning.com or

request from Advaning’s

service team.

DO NOT drill where electrical wires,

gas, or water pipes may exist.

www.advaning.com

Marker / Pencil

CAUTION!

Wall

Bracket (Base)

Lag screw

Washer

SILICONE

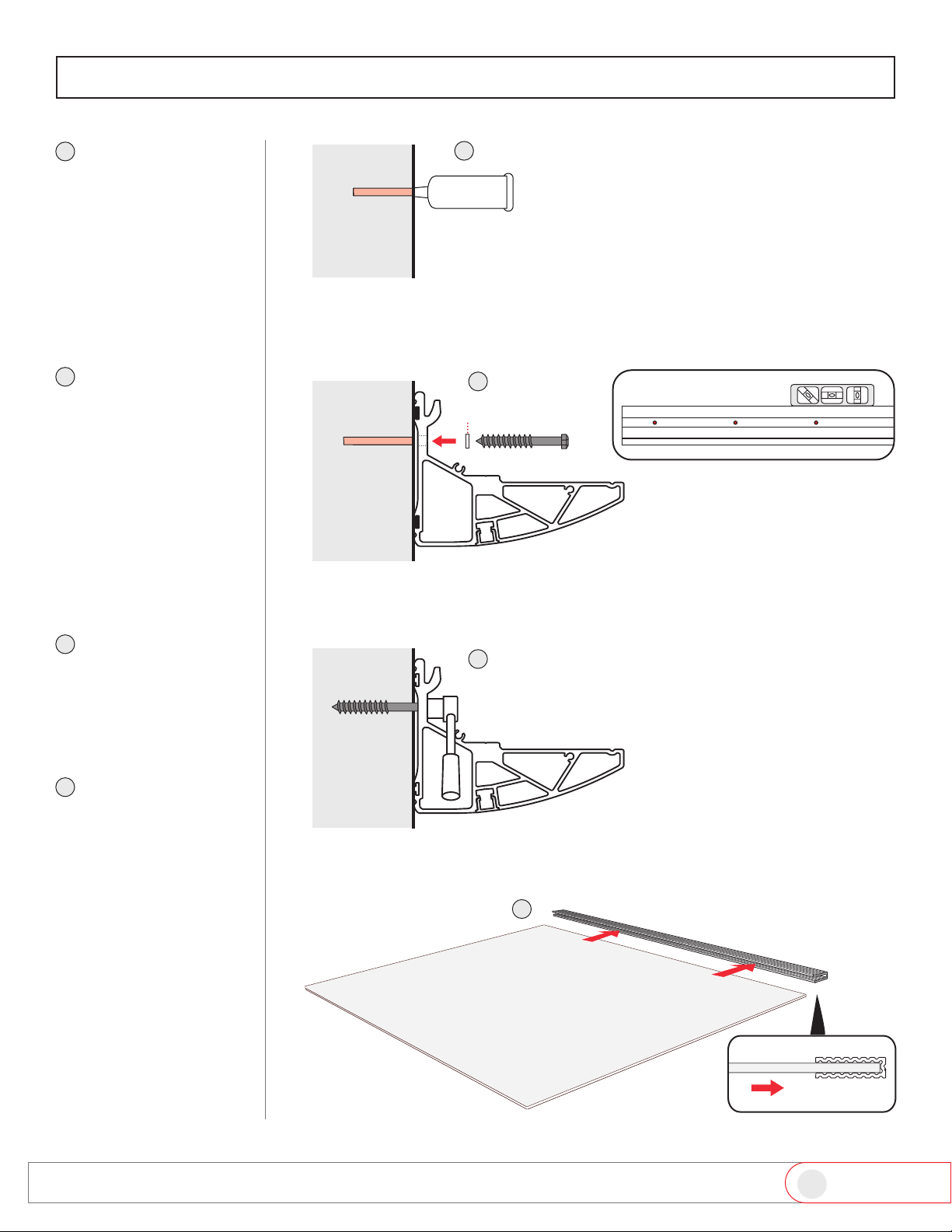

Fill the mounting

holes with silicone.

Align the Awning

Bracket (Base) to pi-

lot holes and insert

the Lag Screws &

Washers

TIP: Ensure the awning is

level before proceeding

with Step#8.

Securely tighten the

Lag Screws with a

13mm socket wrench.

PreparetheTempered

Glass Panel placing

the Clear PVC Clip

over long edge.

TIP: The Tempered Glass

Panel will arrive with a

stretch wrap plastic –

To avoid scratching the

glass surface during in-

stallation, carefully cut

the plastic wrap to allow

the Clear PVC Clip to be

attached and remove the

remaining plastic wrap

once entire awning is in-

stalled.

ASSEMBLY AND INSTALLATION

Fig 16

Fig 13

Fig 14

Fig 15

www.advaning.com

ASSEMBLY AND INSTALLATION

CAUTION: Avoid dam-

age and personal injury.

Ensure there are at mini-

mum two persons assist-

ing with the handling of

the Tempered Glass Pan-

el while a third person se-

cures the Awning Bracket

(Top) assembly.

Place the Tempered

Glass Panel with Clear

PVC Clip on top of

the Awning Bracket

(Base) butting up to

the internal bevel.

See g.19

Align the Awning

Bracket (Top) with

Awning Bracket

(Base) bolt holes.

Insert the Bracket

Bolts securing the

Awning Bracket (Top)

and the Tempered

Glass Panel to Awning

Bracket (Base).

CAUTION: Caution – DO

NOT release support of

the Tempered Glass Pan-

el until all bolts are se-

curely fastened, Step#13.

Securely tighten the

Bracket Bolts with

13mm socket wrench.

NOTE: Ensure the Tem-

pered Glass Panel with

Clear PVC Clip is butting

up to the internal bevel.

Fig 17

Fig 18

Fig 19

www.advaning.com

CAUTION: 3 PERSON INSTALL
