Installing and Configuring the Cisco 7912

IP Phone

Introduction

The Cisco 7912 is a basic IP phone that is designed to be easy to use with conveniently placed features.

The phone also features a pixel-based display and support for two simultaneous calls. The 7912 cannot be

autodetected or configured automatically. The purpose of this technical note is to provide instructions

about manually configuring the 7912 to work with the NetVanta Enterprise Communications Server.

Known Integration Issues

Call pickup is unable to pick up parked calls from other phones.

Upgrading the Firmware

Refer to NetVanta UC Server Interoperable SIP Device Features and Comparisons technical note,

available online at http://kb.adtran.com, to determine the most recently supported version of firmware for

the Cisco 7912.

To determine what version of firmware the Cisco phone is using:

1. Power on the phone.

2. Find the IP address of the phone by doing the following:

Press the Menu button.

Choose Settings > Network Configuration.

Scroll to IP Address.

3. Enter the IP address found in Step 2 in your Web browser.

4. The firmware version will appear under Software Version.

If the firmware version on the phone is earlier than the version noted in UC Server Interoperable SIP

Device Features and Comparisons technical note, available online at http://kb.adtran.com, then you must

upgrade the firmware. The firmware can be upgraded automatically as described in the next section.

Automatic TFTP Firmware Upgrade

1. Save the appropriate firmware in the Trivial File Transfer Protocol (TFTP) folder. This is

located in: X:\Program Files\ADTRAN\NetVanta UC Server\Data\TFTP, where Xis the drive

where the UC server program files are installed.

2. If Dynamic Host Configuration Protocol (DHCP) option 66 is set, the phone will automatically

connect to the specified address and start the firmware update. If you are not able to configure

this option or do not have a DHCP server with configurable options, please read the section

below titled Manual TFTP Firmware Updates.

3. Power on the phone. After a brief period, the phone will start the update process.

The phone might restart automatically a few times. When the phone reaches the idle screen, the

update is complete.

Manual TFTP Firmware Updates

1. Save the appropriate firmware in the TFTP folder. This is located in: X:\Program

Files\ADTRAN\NetVanta UC Server\Data\TFTP, where Xis the drive where the UC server

program files are installed.

2. Navigate to the phone configuration Web page.

3. In the left pane under Change Configuration, select Network Parameters.

4. Enter 1234 in the UIPassword box and select Apply.

5. To set the TFTP Server in the TFTPServer1 field, enter the IP address of the UC server and

select Apply.

6. Restart the phone by completing the following steps:

Press the Menu button.

Choose Settings > Network Configuration.

Press the following keys in order: **#**

Answer Yes to the prompt.

The phone might restart automatically a few times. When the phone reaches the idle screen, the update is

complete.

Telephone Configuration

Gathering Information

To configure a Cisco phone, you need the following information.

SIP User ID This is equivalent to the identity address that you want to associate with the

Cisco phone.

Authentication ID This is the SIP authentication identifier associated with the above identity.

This is required by any SIP endpoint to register with the SIP PBX.

Authentication Password This is the SIP authentication password associated with the above identity.

This is typically the same value as your voicemail access PIN.

Determining the Authentication ID and Password as the User (that owns the identity)

1. Launch the UC client.

2. Log in as the user you want to associate to the phone. In the left bottom pane, take note of the

identity name.

3. Select the icon on the right and select SIP Authentication.

4. Record the User/login name and password from the following dialog box because they will

be required later to configure the phone.

Determining the Authentication ID and Password as the Administrator

1. Launch the UC client.

2. Log in as the admin user.

3. Select the Identities tab in the left pane.

4. Go to View > Display Identities for all Profiles.

5. In the list, double-click the identity that you want to use.

6. Select SIP Authentication.

7. Record the User/login name and password from the following dialog box because they will be

required later to configure the phone.

Applying the Configuration

The Cisco 7912 phones are configured using the Web interface of the phone. Use the Web interface to

configure the phone to operate with the UC server.

To configure the phone:

1. Find the IP address of the phone:

Press the Menu button.

Choose Settings > Network Configuration.

Scroll to IP Address.

2. Enter the IP address in your Web browser.

3. In the left pane under Change Configuration, select SIP Parameters.

4. Enter 1234 as the UIPassword and select apply.

5. Enter the following:

Account name <Identity address>

Proxy <IP address of the UC server>

UID <SIP User ID>

PWD <Authentication Password>

Name <Identity Name>

SIPRegOn 1

6. Select apply.

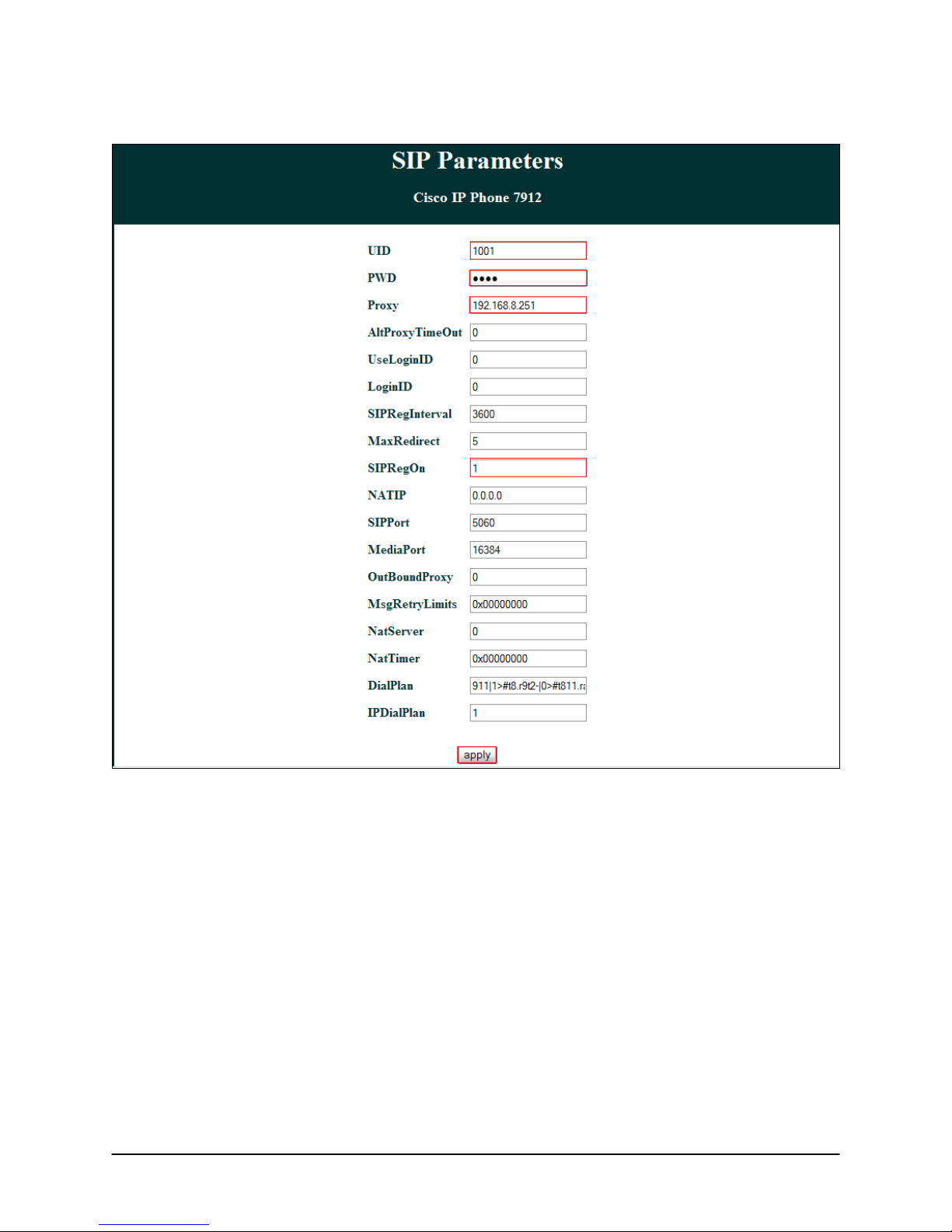

The figure below shows an example of how to complete the required fields.
