ADTI Surveyor 61S Manuel utilisateur
Surveyor 61S Full Frame
Quick Start Guide

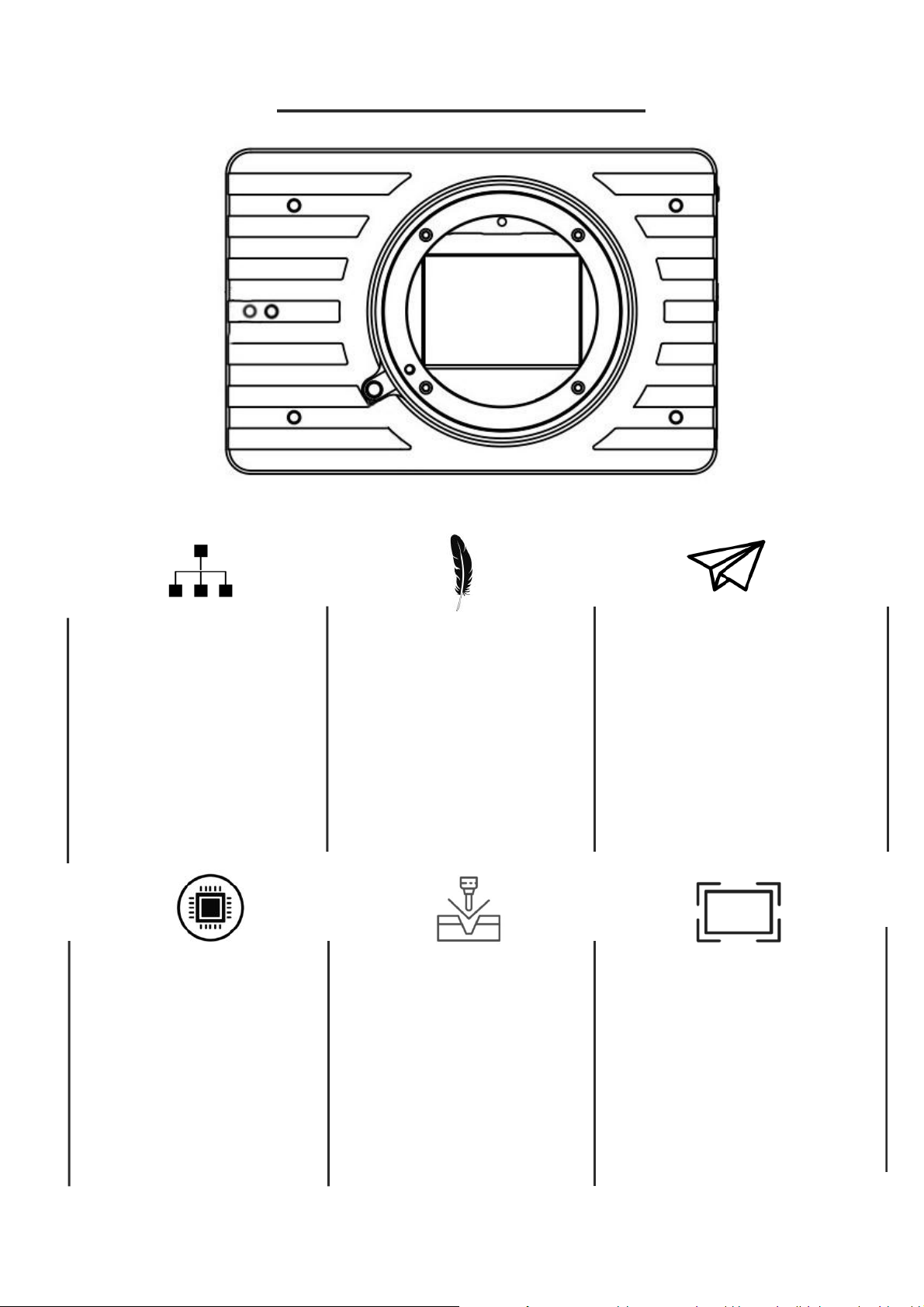

01. PCB integrated 02.Ultimate light weight 03. Autopilot compatibility
more reliable
wide voltage input
range
better PPK results
only 220 gram
smallest and
lightest full frame
New Features
pixhawk, DJI A2, A3,
and N3, .DJI M210 and
M600 as well as most
commercial Autopilot
04. STMicro chip
firmware
upgradeQGC
mavlink
camera protocol
05. CNC Aluminum
CNC aluminum case
06. 61MP Full Frame
0.34 cm/pix GSD,
high quality aerial
images

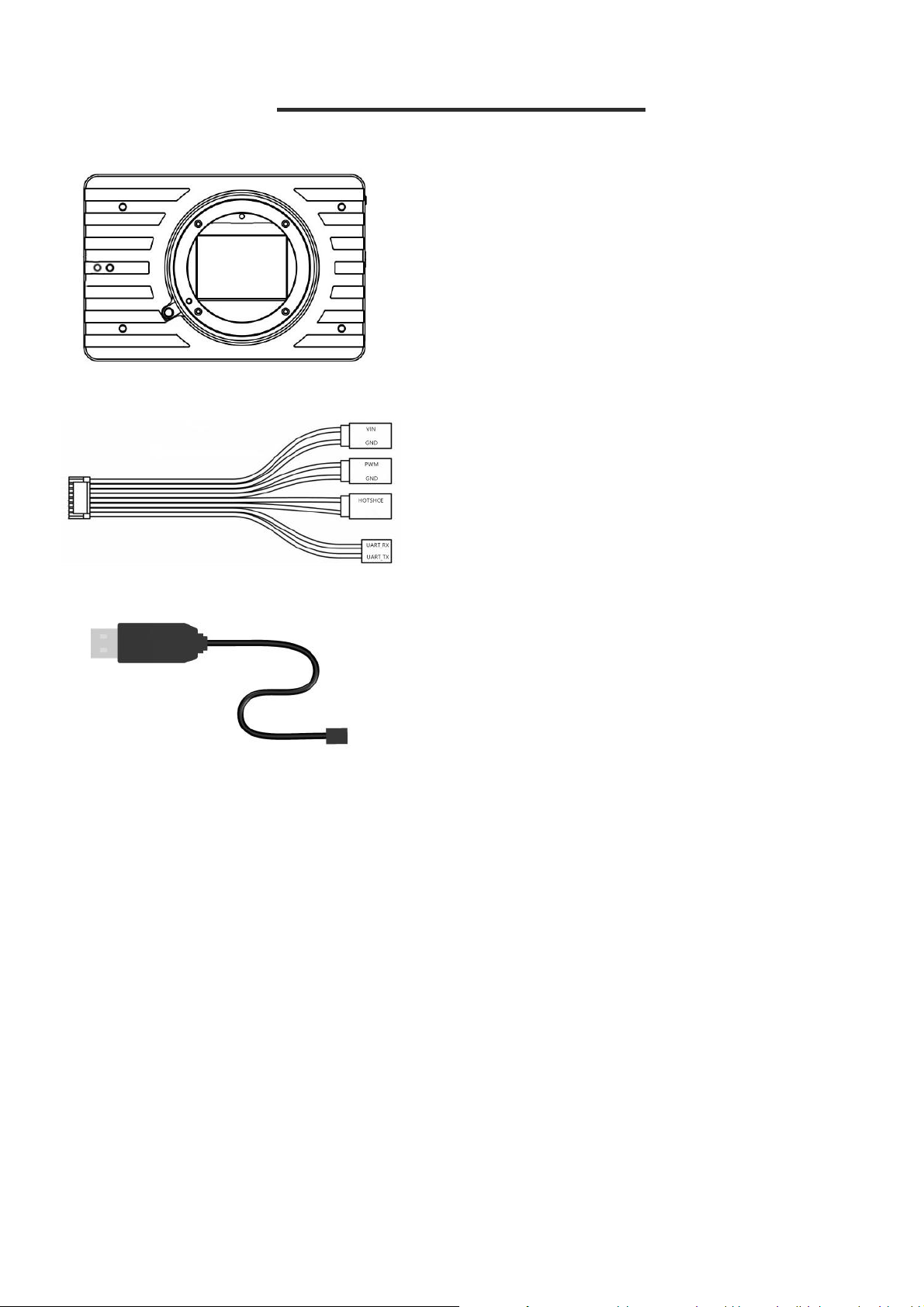

Including the Package
61MP Full Frame Camera *1
Multi-Terminal Cable*1
UART to USB Cable*1

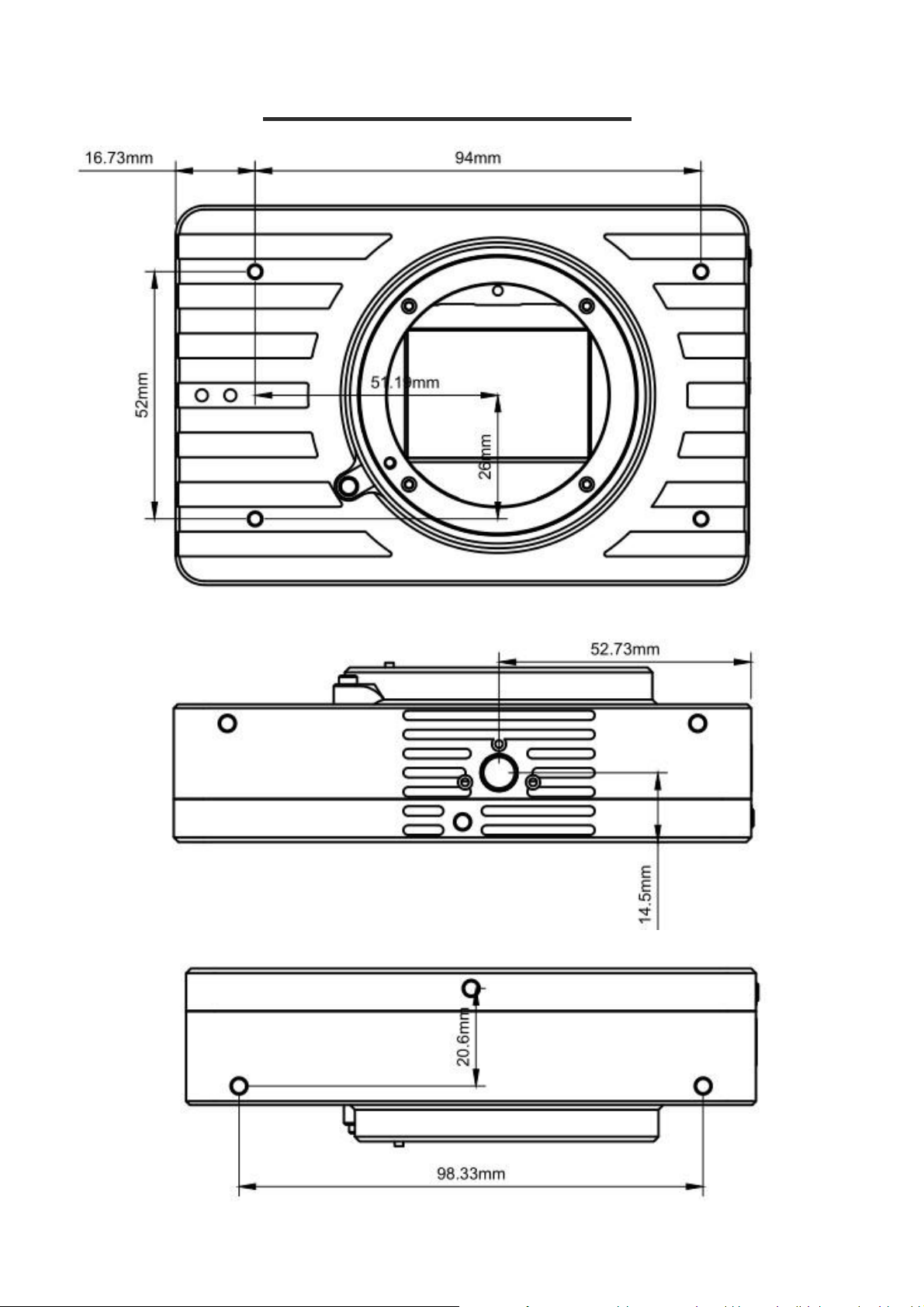

Viewing the Guide

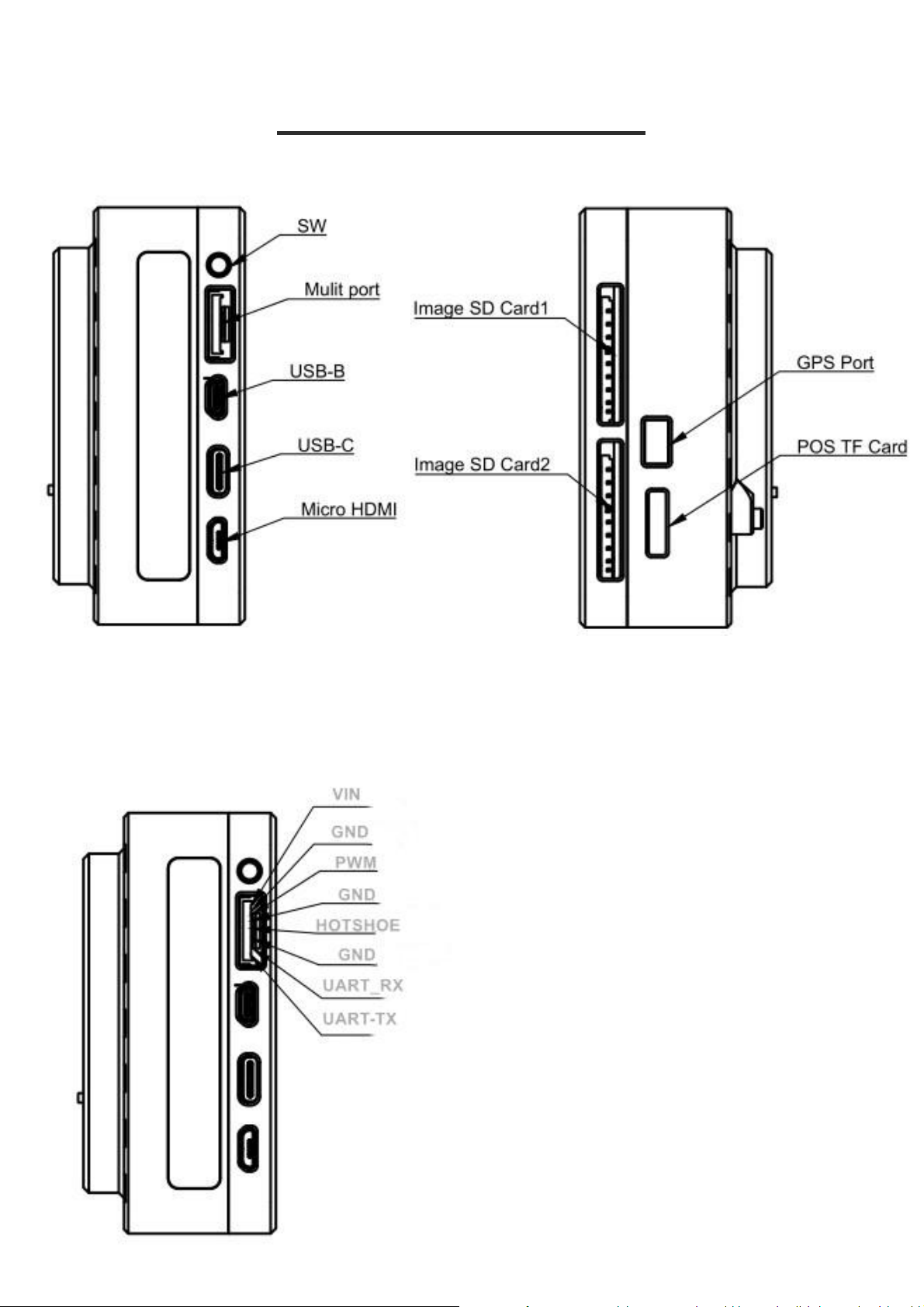

Viewing the Guide
Power the Camera
Connect the camera cable with camera as photo above.
Connect theVIN and GND cable with 12-28V lipo battery
VIN= 12-28V
GND= Ground
DO NOT!
Do not power the camera with any power
supply that provides more than 28 V, as it may
damage the camera.
Power your camera ONLY with Lipo or Liion Battery!
Do not power your camera with AC-DC power supplies
it may damage the motherboard of the camera.
Power the Camera
Do not using USB cable to power the camera
via the multi terminal port.
After connecting a battery to the camera:

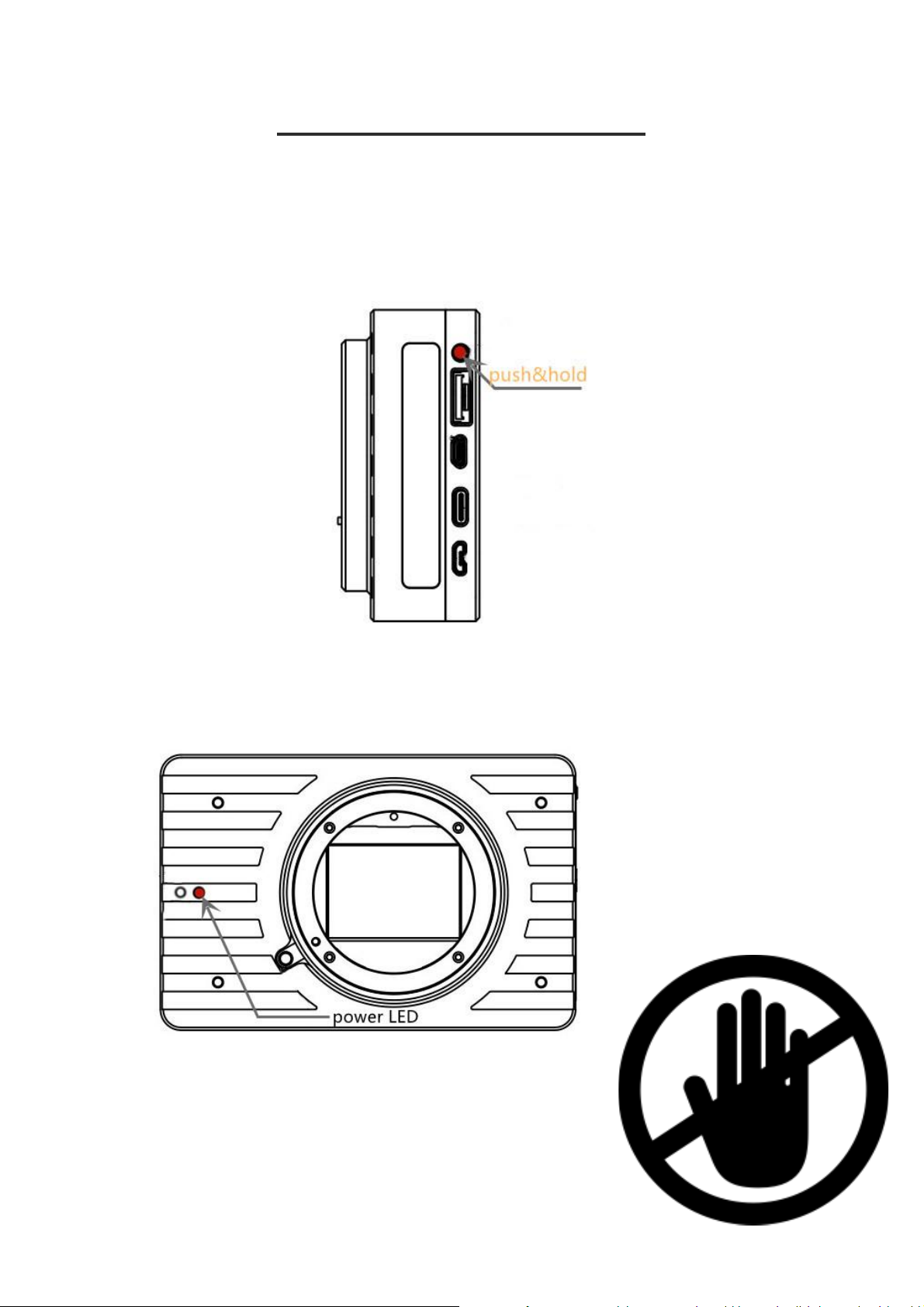

LED light will turn on when the ON/Off
button is pressed.
Quickly press to turn camera ON/OFF,
also you can use this method to save your
new camera settings.
Triggering Camera
1. connect flight controller as photo above
2. power the camera
3. try the PWM from flight controller to test the camera
shutter
PWM Triggering
PWM > 1500 us - - -triggering camera ( 0.5 s)
Triggering Camera
Now camera is ready to capture photos or change settings.
Triggering the camera by GCS before mapping mission starting is very
important. It makes sure that the camera can be triggered properly by
GCS before the mission.
trigger the camera so the camera can enter the capture model.
Tips:
**You also trigger camera by PWM signal from radio controller, you
can test the camera by radio transmitter and reciever.
(need to set up the channel right in ground control software)

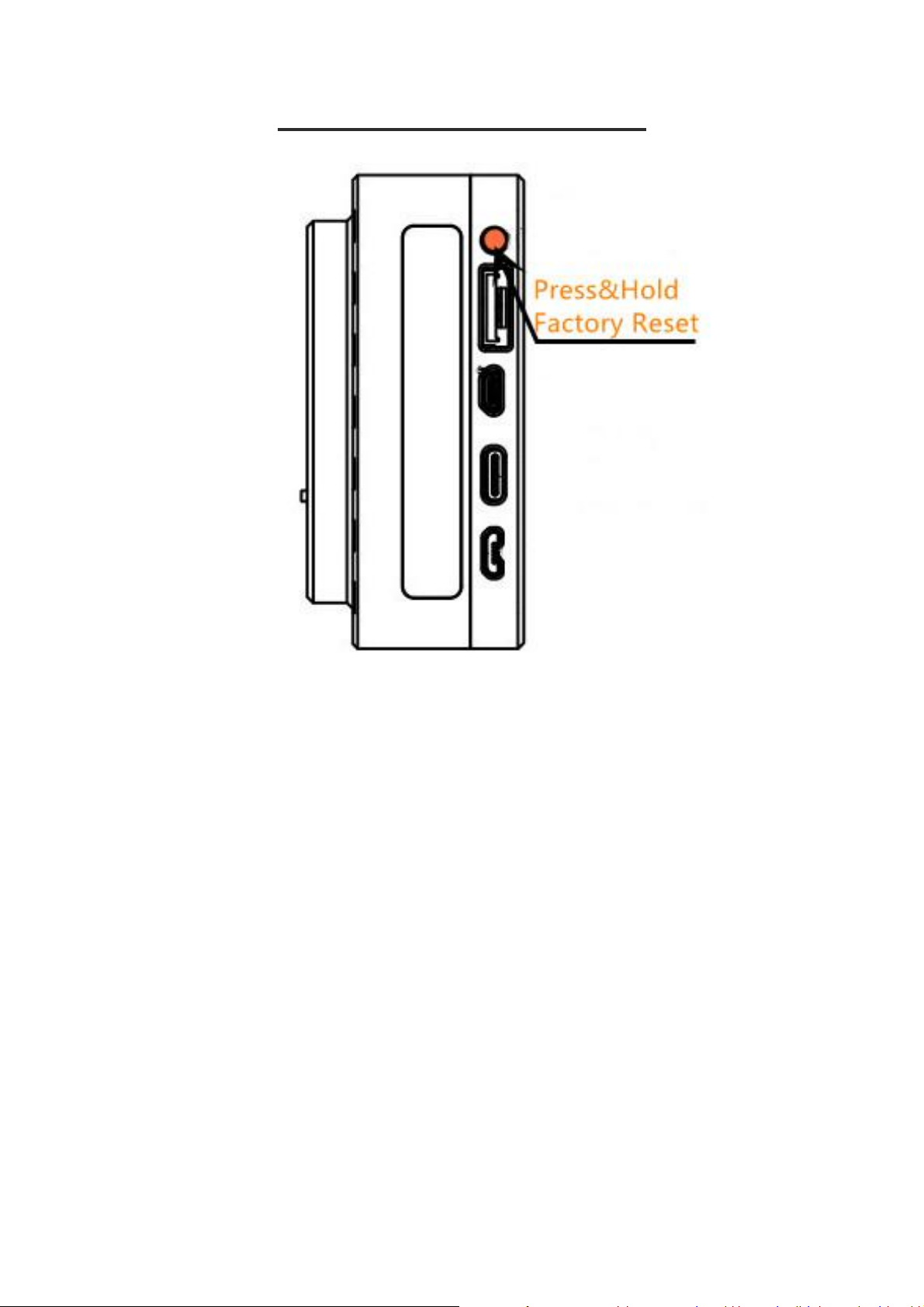

Factory Reset
Tips:
if the camera has any error, you can simply reset camera to factory
settings.
Press & hold the power button untill the camera LEDis flashing。
Camera will do the self-check as following:
1. turn off for 3 second and turn on
2. wait 1.5 second (system check)
3. shooting mode switch to M
4. trigger the shutter, also check the hot shoe signal
5. reset to factory settings
6. the camera is ready to use
(please do not push buttons or change parameters during the
camera self-check)
(if the camera still show error, please contact our engineers)
