ADJ SWEEPER BEAM QUAD LED Manuel utilisateur

User Manual

SWEEPER BEAM

QUAD LED

Rev. 01/2021

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 2

Unpacking: Thank you for purchasing the Sweeper Beam Quad LED by ADJ Products, LLC. Every

Sweeper Beam Quad LED has been thoroughly tested and has been shipped in perfect operating

condition. Carefully check the shipping carton for damage that may have occurred during shipping. If

the carton appears to be damaged, carefully inspect your xture for any damage and be sure all equip-

ment necessary to operate the unit has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for further instructions. Please do not

return this unit to your dealer without contacting customer support rst.

Introduction: The Sweeper Beam Quad LED is an intelligent, multi-LED scanner. The Sweeper Beam

Quad LED can operate as a stand alone xture or in a Primary/Secondary conguration. The Sweeper

Beam Quad LED has three operating modes: sound active mode, show mode, and DMX control. This

xture is suitable for theaters, studios, retail stores, and other similar locations. For best results use

fog or special eects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help and

to answer any questions that may arise during your set up or initial operation. You may also visit us on

the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday

8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: [email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Warning! This unit can cause severe eye damage! Never look directly into the light source!

Sweeper Beam Quad LED General Information

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 3

Sweeper Beam Quad LED General Instructions

To optimize the performance of this product, please read these operating instructions carefully to

familiarize yourself with the basic operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please keep this manual with the unit, for

future reference.

• DMX-512 Protocol

• 4 DMX Channel Modes (1 Channel Mode, 6 Channel Mode, 35 Channel Mode, & 39 Channel

Mode)

• 3 Operating Modes - Sound Active, Show Mode, and DMX Control

• Internal Microphone

• Digital Display for Address and Function Setting

• UC3 Controller

The Sweeper Beam Quad LED carries a 3 year (1095 day) limited warranty. Please fill out the

enclosed warranty card to validate your purchase and warranty. You may also register your product

online at www.adj.com. All returned service items, whether under warranty or not, must be freight pre-

paid and accompanied by a return authorization (R.A.) number. If the unit is under warranty, you must

provide a copy of your proof of purchase invoice. Please contact ADJ Products, LLC customer sup-

port for an R.A. number.

Sweeper Beam Quad LED Warranty Registration

Sweeper Beam Quad LED Features

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-

vance of this manual or any unauthorized modifications to this unit.

Sweeper Beam Quad LED Handling Precautions

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 4

Sweeper Beam Quad LED Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before

You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit with its cover removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit if it has been damaged in any way.

• This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched

by items placed upon or against them. Pay particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the device.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the

Cleaning section of this manual for detailed information.

• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into, the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a marked change in perfor-

mance.

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 5

Sweeper Beam Quad LED Handling Precautions

Fixture installation must always be secured with a secondary safety attachment, such as an appropri-

ately rated safety cable.

Regardless of the rigging option you choose for your Sweeper Beam Quad LED, always be sure to

secure your fixture with a safety cable (not included).

Caution: For added protection mount the fixtures in areas outside of walking paths, seating areas, or

areas were the fixture might be reached by unauthorized personnel.

Before mounting the fixture to any surface, make sure that the installation area can hold a minimum

point load of 10 times the device’s weight.

To avoid injury, never stand directly below the device when mounting, removing, or servicing the fix-

ture.

Always use and install a safety cable (not included) as a safety measure to prevent accidental damage

and/or injury in the event the clamp fails.

Be sure to complete all rigging and installation procedures before connecting the main power cord to

the appropriate wall outlet.

Sweeper Beam Quad LED Set Up

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 6

Power Supply: The ADJ Sweeper Beam Quad LED contains an automatic voltage switch, which will

auto sense the voltage when it is plugged into the power source. With this switch there is no need to

worry about the correct power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and

controller manufacturers as a form of communication between intelligent xtures and controllers. A

DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as

serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-

ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use

the shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed

anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The

Sweeper Beam Quad LED can be controlled via DMX-512 protocol. The Sweeper Beam Quad LED

has 4 DMX Channel Modes. The DMX address is set electronically using the controls on the rear

panel of the unit. Your unit and your DMX controller require an approved DMX-512 110 Ohm Data

cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are

making your own cables, be sure to use standard 110-120 Ohm shielded cable (this cable may be

purchased at almost all professional sound and lighting stores). Your cables should be made with a

male and female XLR connector on either end of the cable. Also remember that DMX cable must be

daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 7

Sweeper Beam Quad LED Set Up

Notice: Be sure to follow gures two and three when making your own cables. Do not use the

ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug

or allow the shield conductor to come in contact with the XLR cable’s outer casing. Grounding the

shield could cause a short circuit and erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-

nator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which

is connected between pins 2 and 3 of a male XLR connector (DATA+ and DATA-). This unit is inserted

in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable

terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

5-Pin XLR DMX Connectors. This unit use 5-pin DMX-512 data cables for DATA transmission. 5-pin

DMX xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in

to a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electron-

ics stores. The chart below details a proper cable conversion.

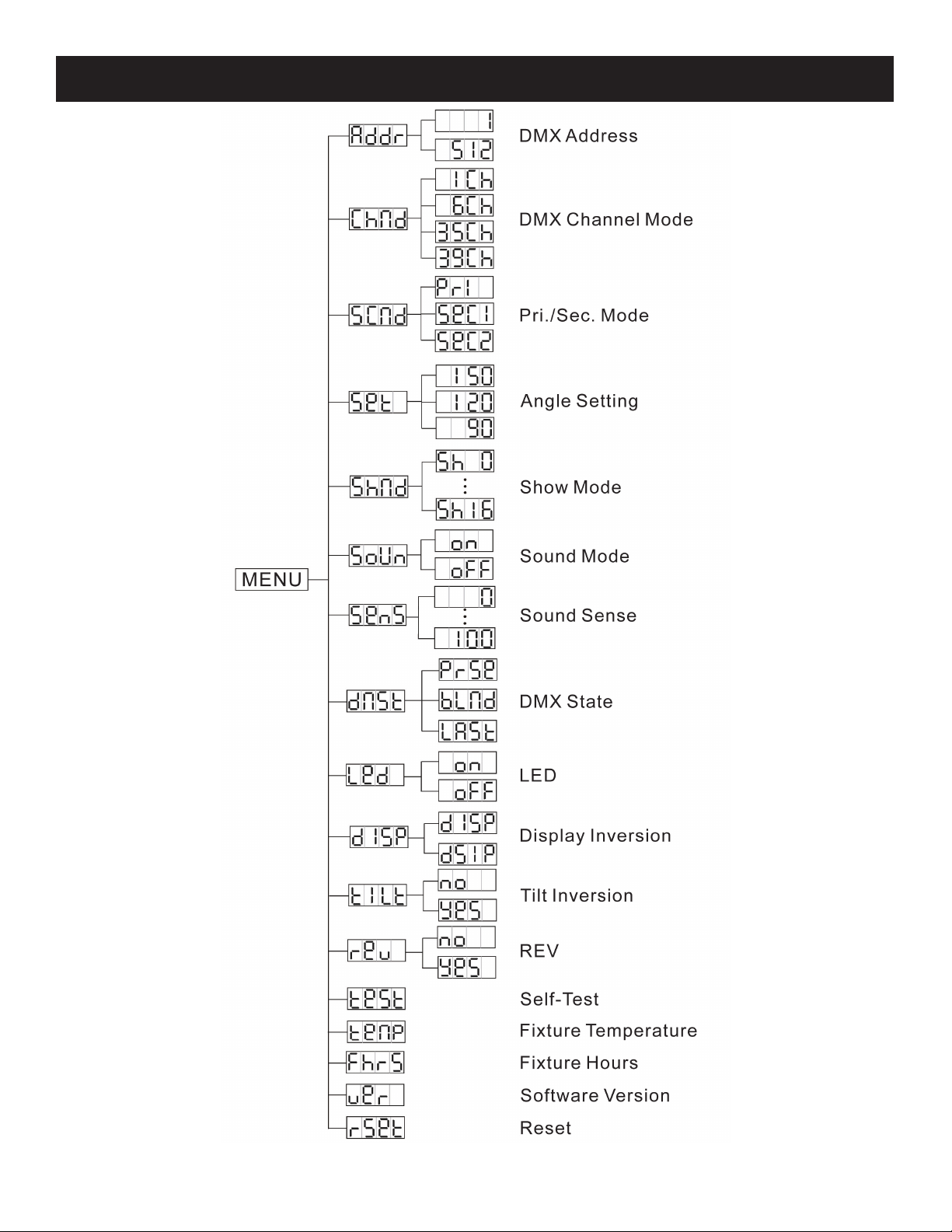

Sweeper Beam Quad LED System Menu

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 8

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 9

System Menu: When making adjustments press ENTER to conrm your setup and then press

and hold the MENU button for at least 3 seconds. To exit without making any adjustments

press the MENU button.

ADDR - DMX Address Setting.

1. Press the either the MENU, UP, or DOWN buttons until “ADDR” is displayed, and press ENTER.

2. The current address will now be displayed and ashing. Press the UP or DOWN buttons to nd

your desired address. Press ENTER and then press and hold the MENU button to set your de-

sired DMX address.

CHND - This will let select your desired DMX channel mode.

1. Press the either the MENU button until “CHND” is displayed, and press ENTER. Either “1CH”,

“6CH”, “35CH”, or “39CH” will be displayed.

2. Press the UP or DOWN buttons to choose your desired DMX mode and press ENTER to conm

and exit.

SCND - This will let you set unit as a primary or a secondary in a primary/secondary congu-

ration.

1. Press the MENU button until “SCND” is displayed, and press ENTER. Either “PRI,” “SEC1,” or

“SEC2” will be displayed.

2. Press the UP or DOWN buttons until your desired setting is displayed, press ENTER and then

press and hold the MENU button to conm.

NOTE: In a Primary/Secondary conguration, setting the Secondary units to “SEC2” will cause the

primary and secondary units to have contrasting movements.

SET - This will set the Sweeper to a preset angle.

1. Press the either the MENU button until “SET” is displayed, and press ENTER. Either “150”, “120”,

or “90” will be displayed. These are the preset angles.

2. Press the UP or DOWN buttons to choose your desired angle and press ENTER to conm and

exit.

SHND: SH 0 - SH16 - Show modes 0-16 (Factory programs). Show mode can run with or with-

out sound active mode.

1. Press the MENU button until “SHND” is displayed, and press ENTER.

2. “Sh X” will now be displayed, “X” representing a number between 0-16. Programs 1-16 are fac-

tory programs, while “Sh 0” is random mode. Press the UP or DOWN buttons to nd your desired

show.

3. When you have found your desired show press ENTER, then press and hold the MENU button for

at least 3 seconds to activate.

SOUN - Sound Active mode.

1. Press the MENU button until “SOUN” is displayed, and press ENTER.

2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to

activate sound active mode, or “OFF” to deactivate sound active mode.

3. Press ENTER, and then press and hold the MENU button for at least 3 seconds to activate.

Sweeper Beam Quad LED System Menu

ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 10

SENS - Sound sensitivity control.

1. Press the MENU button until “SENS” is displayed, and press ENTER.

2. The display will show a number between 0-100. Press the UP or DOWN buttons to adjust the

sound sensitivity. 0 is the least sensitive and 100 is the most sensitive.

3. Press the ENTER button to conrm.

DNST - This mode denes the behavior of the xture in the event that the DMX signal is lost

or interrupted. You can also set this as the operating mode you would like the unit to return to

when power is applied.

1. Press the MENU button until “DNST” is displayed, press ENTER.

2. Either “PRSE”, “BLND”, or “LAST” will be displayed. Choose an operating mode you would like

the unit to start up in when power is applied or the DMX signal is lost.

A. PRSE (Primary/Secondary) - If the DMX signal is lost or power is applied, the unit will auto-

matically go into Primary/Secondary mode.

B. BLND (Blackout) - If the DMX signal is lost or power is applied, the unit will automatically go

into stand by mode.

C. LAST (Last State) - If the DMX signal is lost the xture will stay in the last DMX set up. If

power is applied and this mode is set, the unit will automatically go into the last DMX set up.

3. Press ENTER to conrm your desired set up.

LED - With this function you can have the LED display turn o after 10 seconds.

1. Press the MENU button until “LED” is displayed, and press ENTER.

2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to

keep the LED display on at all times, or “OFF” to switch to have the LED display switch o after

10 seconds. To make the display reappear, press and hold the MENU button for at least 5 secs.

3. Press ENTER to conrm. To make the display reappear, press and hold the MENU button for at

least 5 secs.

DISP - This will “ip” the LED display 180º.

1. Press the MENU button until “DISP” is displayed, and press ENTER.

2. Either “DISP” or “DSIP” will now be displayed. Press the ENTER button to “ip” the display.

TILT - This function activates tilt inversion.

1. Press the MENU button until “TILT” is displayed, and press ENTER.

2. The display will show either “YES” or “NO”. Press the UP or DOWN buttons to select “YES” to

activate tilt inversion, or “NO” to deactivate tilt inversion.

3. Press ENTER, and then press and hold the MENU button for at least 3 seconds to activate.

Sweeper Beam Quad LED System Menu

Autres manuels pour SWEEPER BEAM QUAD LED

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ADJ Équipement d'éclairage

ADJ

ADJ Mega QPlus GO Manuel utilisateur

ADJ

ADJ FOCUS SPOT ONE Manuel utilisateur

ADJ

ADJ PINPOINT GO TW Manuel utilisateur

ADJ

ADJ 12P HEX PEARL Manuel utilisateur

ADJ

ADJ InnoSpotLED Manuel utilisateur

ADJ

ADJ SPS-2B Manuel utilisateur

ADJ

ADJ Spherion WH LED Manuel utilisateur

ADJ

ADJ HYDRO WASH X19 Manuel utilisateur

ADJ

ADJ COLOR STRAND LED Manuel utilisateur

ADJ

ADJ Flash Kling Panel 64 Manuel utilisateur

ADJ

ADJ Jelly Globe Manuel utilisateur

ADJ

ADJ IKON IR Manuel utilisateur

ADJ

ADJ JOLT PANEL FX Manuel utilisateur

ADJ

ADJ ECO UV BAR DMX Manuel utilisateur

ADJ

ADJ 1227000010 Manuel utilisateur

ADJ

ADJ FOCUS SPOT 6Z Manuel utilisateur

ADJ

ADJ PROFILE PANEL RGBA Manuel utilisateur

ADJ

ADJ WiFly Bar RGBA Manuel utilisateur

ADJ

ADJ H2O DMX Pro Manuel utilisateur

ADJ

ADJ MOD HEX100 Manuel utilisateur

ADJ

ADJ ILLUSION DOTZ 3.3 Manuel utilisateur

ADJ

ADJ Vortex 1200 Manuel utilisateur

ADJ

ADJ FLAT PAR TW12 Manuel utilisateur

ADJ

ADJ SPL-FSRG-017N-B6 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
