ADF Web HD67627-A1 Manuel utilisateur
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 1 of 30
User Manual
Revision 1.000
English
S7comm / EtherNet/IP Slave - Converter
(Order Code: HD67627-A1)
For Website information:
www.adfweb.com? roduct=HD67627
For rice information:
www.adfweb.com? rice=HD67627-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other S7comm products see also the following link:
S7comm from/to …
www.adfweb.com? roduct=HD67618 (Mod us TCP Slave)
www.adfweb.com? roduct=HD67619 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67620 (IEC61850 Server)
www.adfweb.com? roduct=HD67621 (Serial)
www.adfweb.com? roduct=HD67622 (Mod us Slave)
www.adfweb.com? roduct=HD67623 (CAN)
www.adfweb.com? roduct=HD67624 (CANopen)
www.adfweb.com? roduct=HD67625 (DeviceNet Slave)
www.adfweb.com? roduct=HD67626 (SNMP Agent)
www.adfweb.com? roduct=HD67628 (KNX)
www.adfweb.com? roduct=HD67629 (MQTT)
www.adfweb.com? roduct=HD67630 (BACnet Slave)
www.adfweb.com? roduct=HD67631 (Ethernet)
www.adfweb.com? roduct=HD67632 (OPC UA Server)
www.adfweb.com? roduct=HD67633 (PROFINET Slave)
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 2 of 30
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COM OSITOR SW67627 11
NEW CONFIGURATION / O EN CONFIGURATION 12
SOFTWARE O TIONS 13
SET COMMUNICATION 15
S7COMM ACCESS 17
U DATE DEVICE 21
LC CONFIGURATION 23
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SU ORT 30
RETURN OLICY 30
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Chapter
Description
1.000 18/09/2021
Ff All First Release
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 3 of 30
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 4 of 30

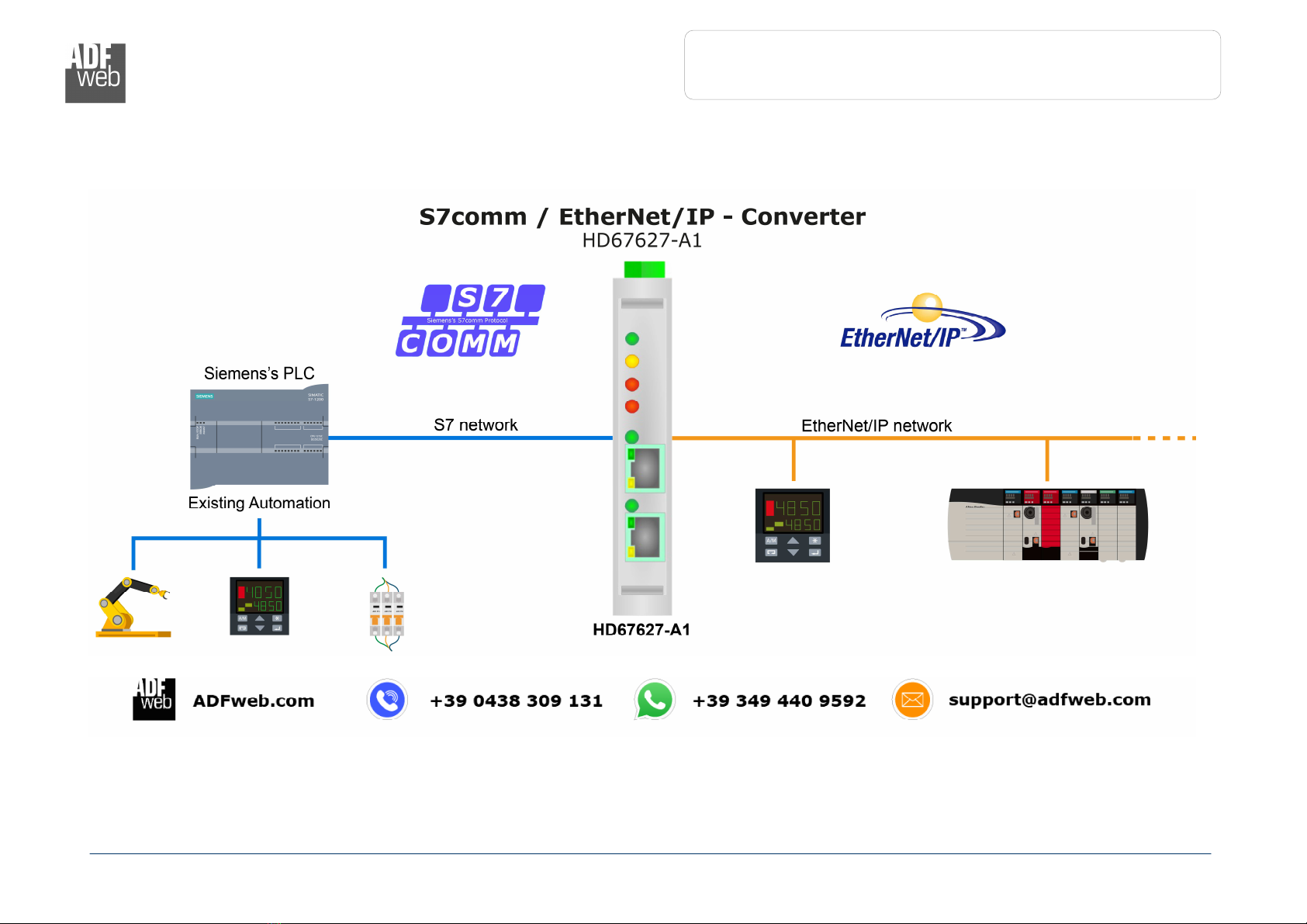

EXAMPLES OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 5 of 30

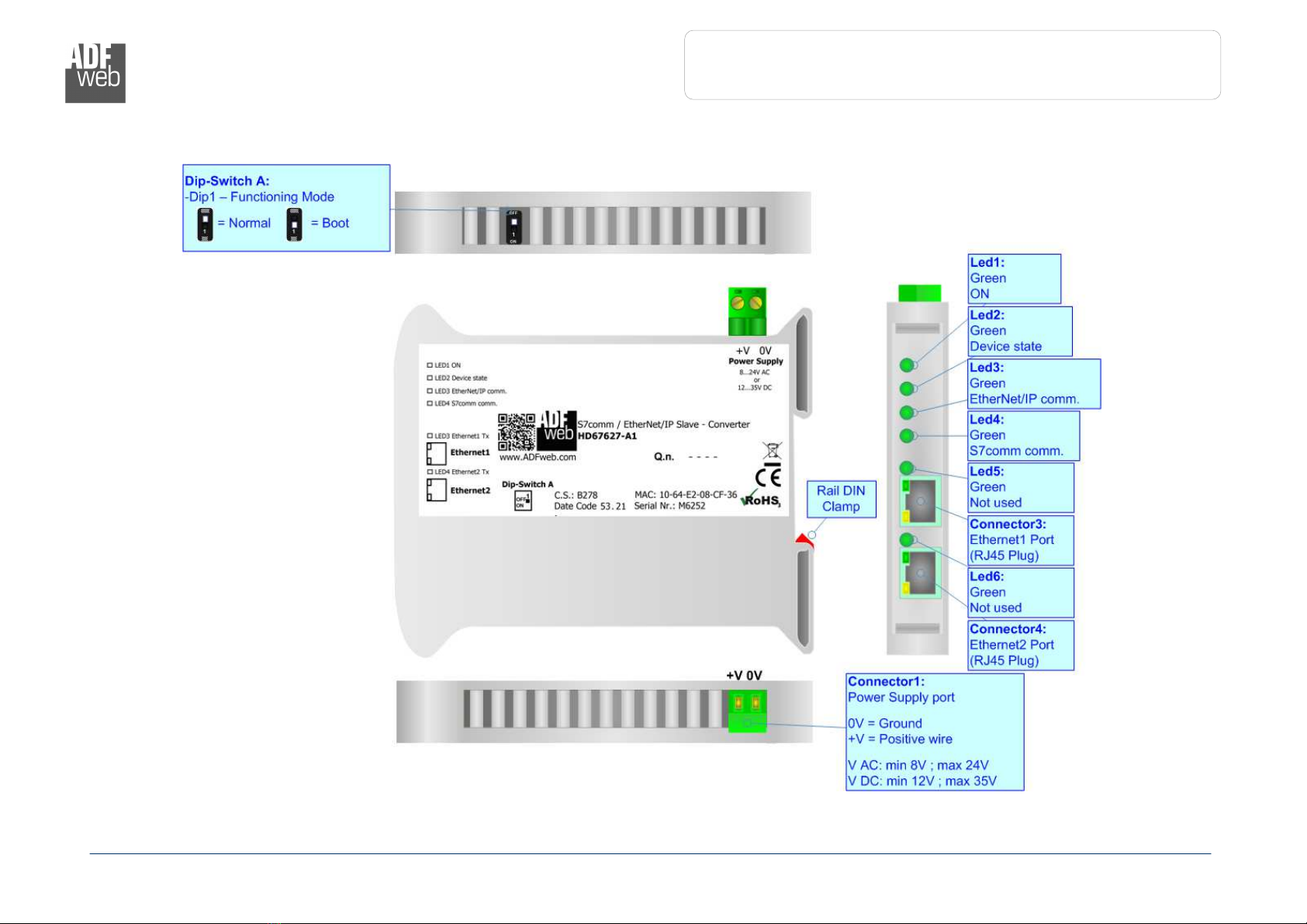

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67627-A1
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 6 of 30
CHARACTERISTICS:
The HD67627-A1 is S7comm / EtherNet/I Slave - Converter.
It allows for the following characteristics:
Isolation between Ethernet - ower Supply;
Two-directional information between EtherNet/I bus and S7comm bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67627 software on your C in order to perform the following:
Define the parameters of EtherNet/I line;
Define the parameters of S7comm line;
Define the S7comm requests to send to the S7comm servers;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 7 of 30

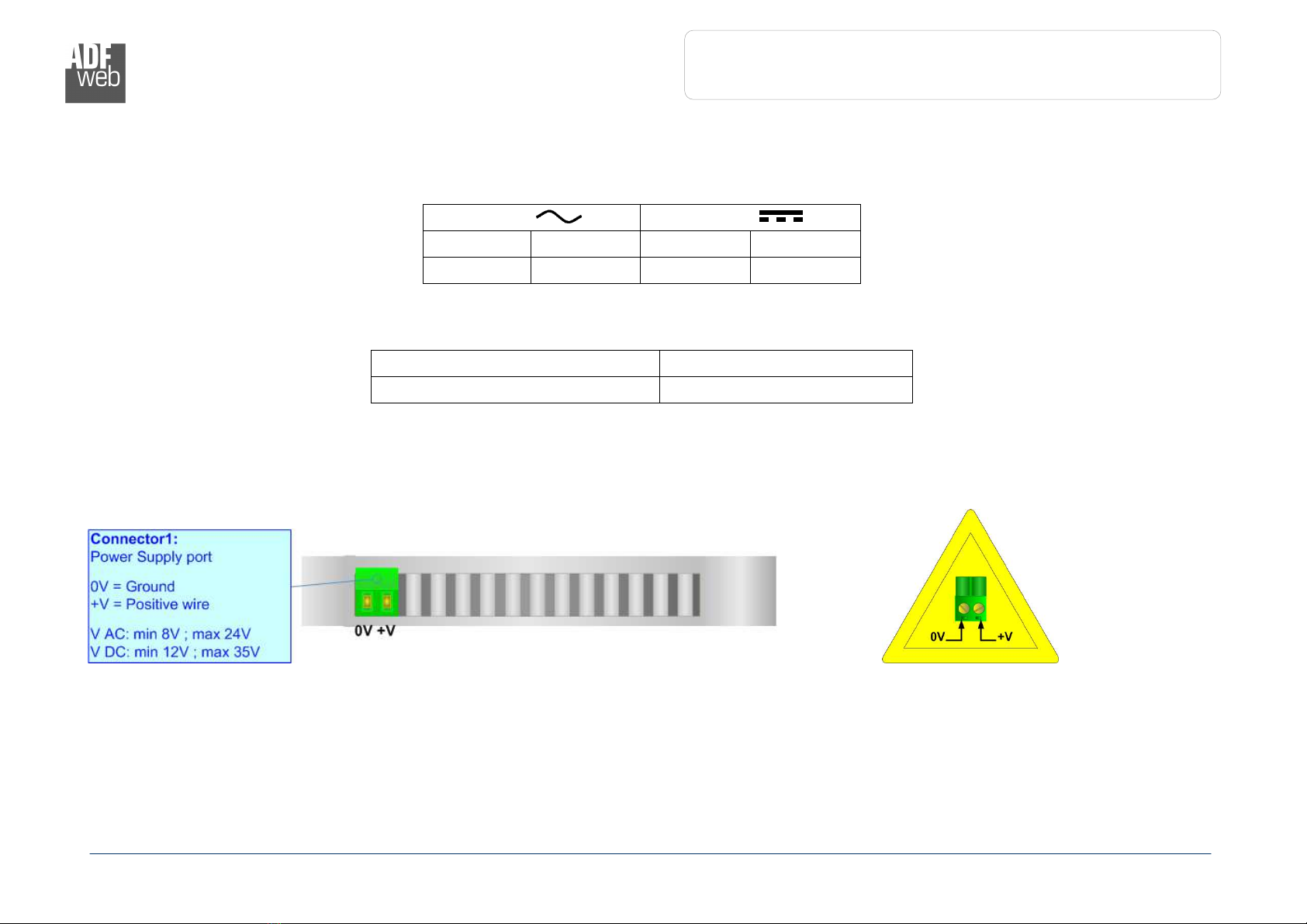

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67627-A1 3.5
HD67627-A1
Caution:
Do n
ot reverse the polarity power
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 8 of 30
FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 9 of 30
LEDS:
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: EtherNet/I comm.
(green) It blinks when EtherNet/I communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: S7comm comm. (green) It blinks when S7comm communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
S7comm / EtherNet/IP Slave
Document code: MN67627_ENG Revision 1.000 age 10 of 30

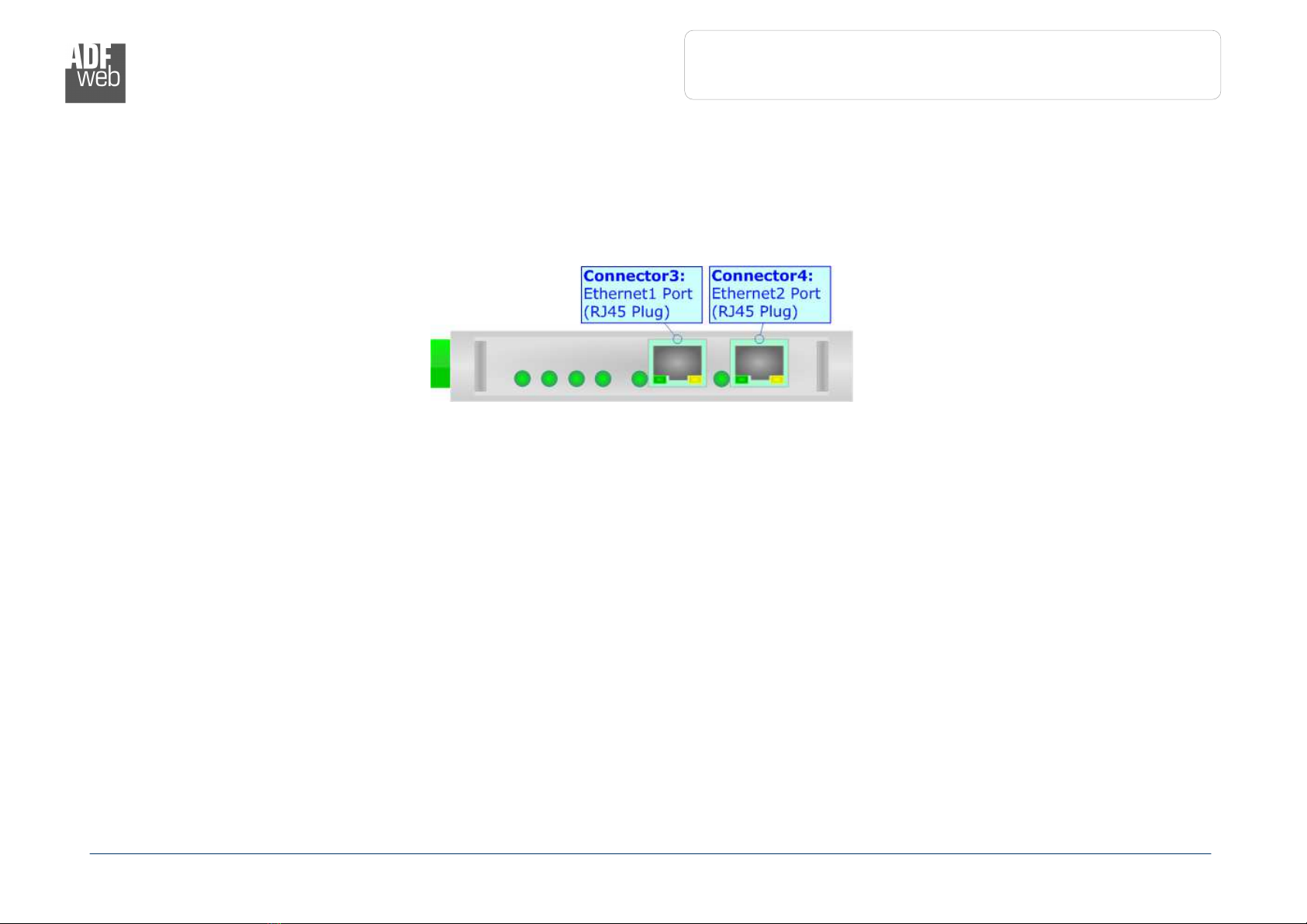

ETHERNET:
EtherNet/I connection, S7comm connection and the updating of the converters must be made using Connector3 and/or Connector4 of the
HD67620-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the
T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight
cable, to connect the device to a C/ LC/other is recommended the use of a cross cable.
