ADDONICS TECHNOLOGIES

Model: CDC5HXAES

IMPORTANT

There is no back door for the Cipher tower encrypted hard drives if

the Cipher keys are lost or stolen.

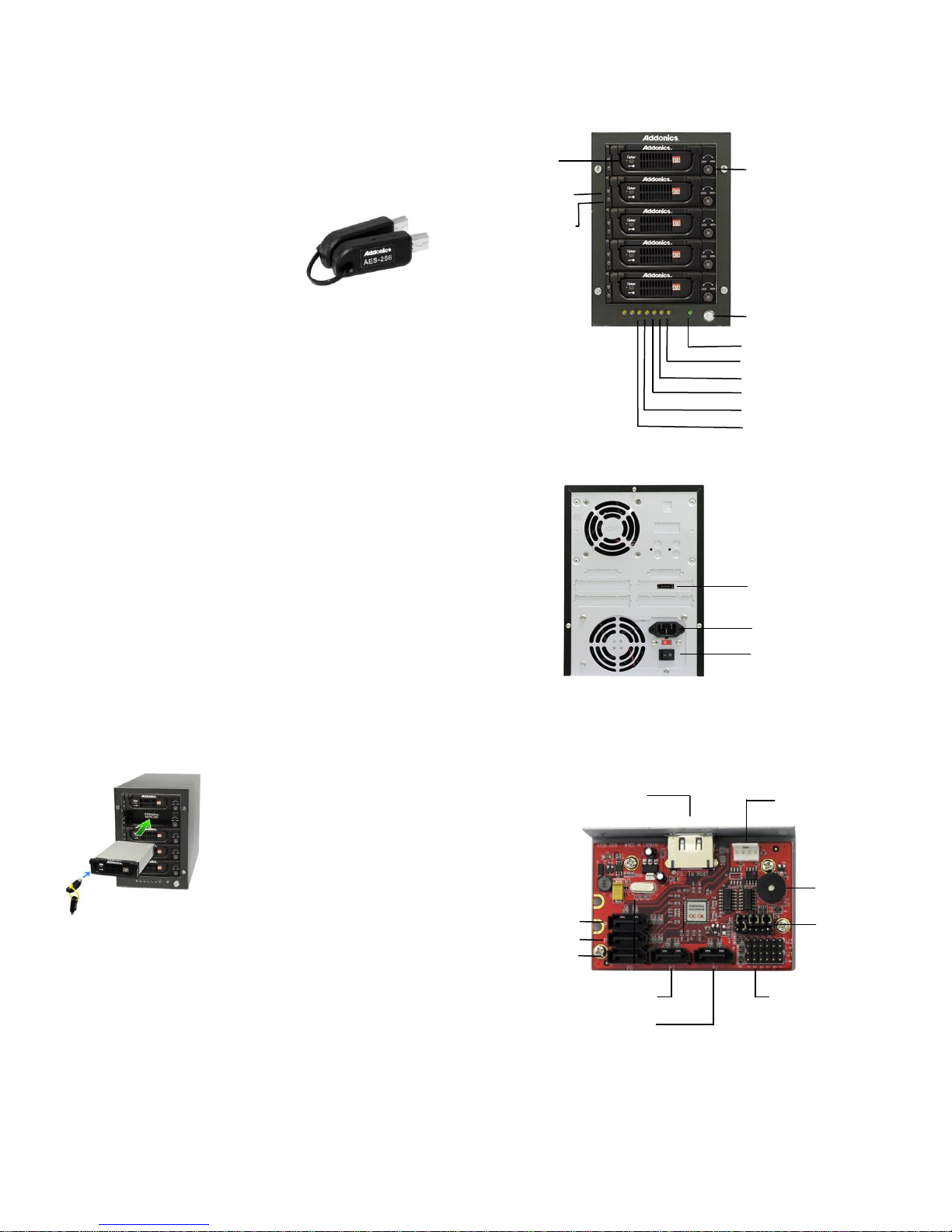

Cipher key

Check to make sure you have the

correct version of the Cipher key. A

sample key is shown

Black label AES-256 stands for Cipher

256-bit key.

To ensure there is a spare key, your Cipher tower comes with 5 pairs of

Cipher keys. These cipher keys have all identical encryption code unless

you requested then to be coded differently. One of these keys should be

kept in a safe and secure location and can be sent back to Addonics for

duplicating additional keys. If you are down to the last key, be sure to

make a back up of all the data stored inside your Cipher tower prior to

sending the last key to Addonics. Addonics is not responsible for key lost

in the mail or retrieval of the data inside the encrypted hard drive.

Keeping track of the hard drive

If you are using the Cipher tower to encrypt multiple hard drives, it is

important to label your hard drive if you are taking the drive out of the

Cipher tower. The hard drive from the Cipher tower that is encrypted will

look like a brand new drive when attach directly to the SATA controller of

a computer. There will be no partition or any hint to indicate that the drive

contains encrypted data. When the drive is partitioned, all the encrypted

data will be lost.

The same holds true if a hard drive already has data on it is installed into

the Cipher tower. The computer detects the hard drive as a brand new

drive or a drive that is unallocated. Once you proceed to partition the

drive, the data that was on the hard drive will be erased and cannot be

recovered.

I. Installing drives into the Cipher Tower

Refer to Diamond Cipher enclosure hard drive installation guide

Slide the enclosure into the drive bay.

Using the key provided, insert it to the lock

mechanism and turn it to the “LOCK”

position. This will secure the enclosure and

provide power to the drive.

Note: It is recommended to fill up the tower

with SATA drives from top to bottom. This

is to help in identifying which drives

connects to which ports for easier

troubleshooting.

II. Connecting the power cable and Cipher Tower to the computer

a. Connect the power cord provided from the wall outlet to the back of

the Cipher Tower.

b. A power switch is located on the front of the tower. Make sure the

power is off on the switch (power LED light should be off)

c. Connect the provided eSATA or USB2.0 cable from the back of the

Cipher tower to the eSATA or USB2.0 on the computer. We

recommend connecting the eSATA port for best performance if this

port is available on your computer.

III. 5-port HPM-XA mounted on the Cipher Tower

HDD Activity LED 3

HDD Activity LED 2

Cipher tower power LED

Power Switch

HDD Activity LED 1

Power Switch

eSATA port

Power Connector

eSATA host port

buzzer

Floppy power

connector

SATA port 5

SATA port 4

SATA port 1

SATA port 3

SATA port 2

Error and drive activity

LED jumper block (J1, J3)

RAID settting

jumper block (J4)

HDD Activity LED 5

HDD Activity LED 4

Locking

mechanism

Cipher

keyhole

HDD

Power LED

HDD

Activity LED

ADDONICS TECHNOLOGIES

Model: CDC5HXAES

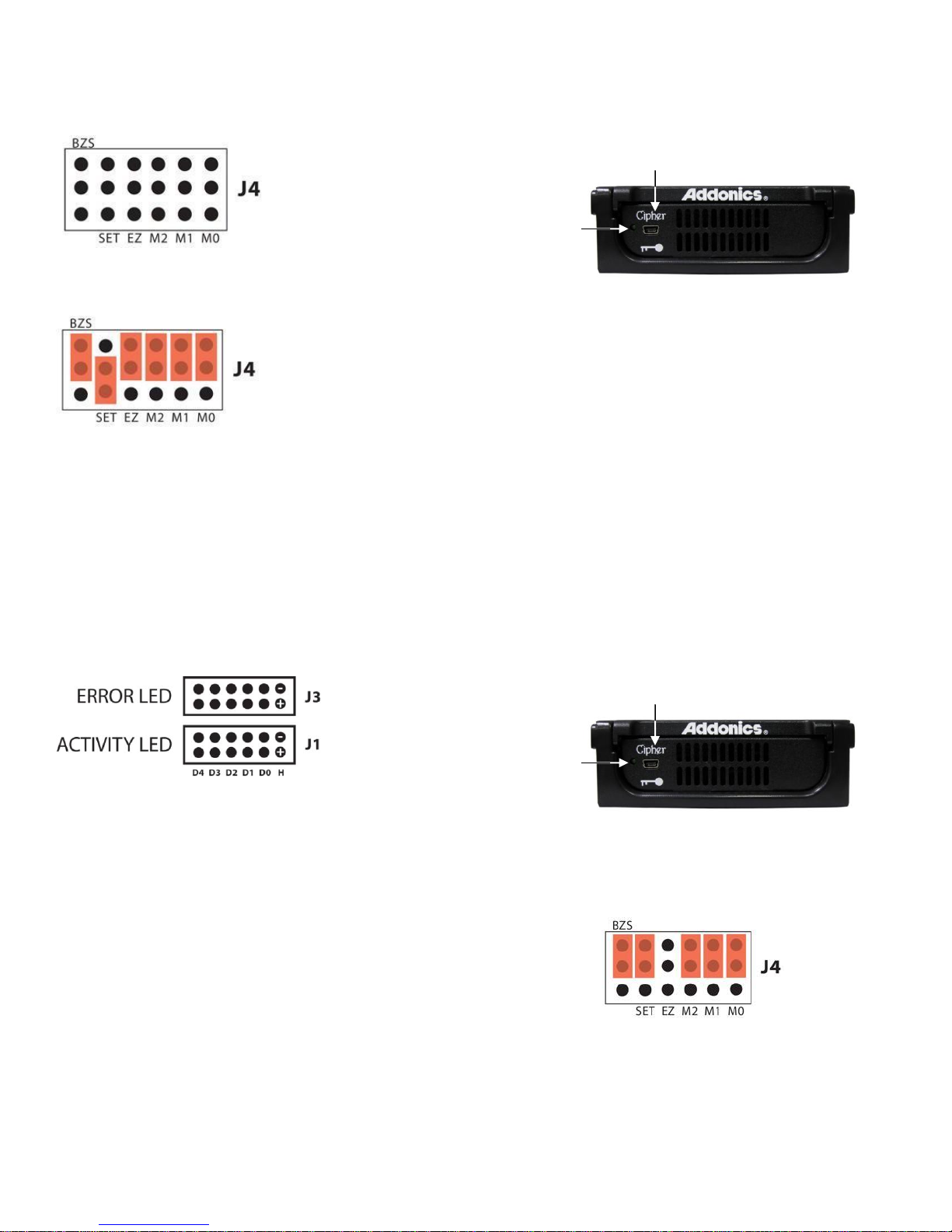

J4 –RAID Setting Jumper Block

BZS –Error buzzer function

SET –RAID mode setting

EZ –Automatic rebuilding to

spare drive

M2 –RAID mode 2

M1 –RAID mode 1

M0 –RAID mode 0

Default factory RAID jumper setting

1. Error buzzer function is DISABLED (BZS)

2. RAID mode setting modification is DISABLED (SET)

3. Auto-rebuilding to spare drive is ENABLED (EZ)

4. Individual drive mode is ENABLED (M0~M2)

Note: When the default factory RAID setting is used, independent drive

configuration and optical drive are supported only when connecting to

controllers with Silicon Image Sil3124, Sil3132 chip set or controllers that

are Port Multiplier (PM) compatible. Simultaneous DVD writing was tested

using the Nero Burning Rom.

LED Pin header

J1 –Drive Activity LED

H –Activity LED for eSATA host port lights up when it is connected to a

SATA controller card.

D0, D1, D2, D3 & D4 - Activity LEDs for port 1, 2, 3, & 4 light up when a

drive is connected and blinks when there’s drive activity.

J3 –Error LED

H –error LED for eSATA host port

D0, D1, D2, D3 & D4 - error LED for port 1, 2, 3 & 4

Two options for setting or modifying the RAID mode on the Cipher

Tower

A. Using the JMicron HW RAID Manager utility program

For Windows users, install the JMicron HW RAID Manager located

on the SATA Controller CD. In the CD, go to RAID utilities >

JMB393. This manager can be use to create and monitor the

status of the RAID volume.

It is recommended to use the default factory RAID jumper setting

when using the JMicron HW RAID Manager.

a. Insert the 5 AES 256-bit cipher keys into each cipher keyhole

on the Diamond Cipher enclosures located at the front of the

Cipher tower.

b. When the Cipher Tower power switch is turned on, observed

that the green Cipher power LEDs at the front of the Cipher

tower are on. If they did not, reinsert the cipher keys and re-

power the Cipher tower.

c. Run the JMicron HW RAID Manager in Windows.

d. Configure the desired RAID configuration

e. Go to the operating system’s management utility to verify raid

volume detection.

f. Partition, format and mount the encrypted drives.

B. Using the onboard RAID setting jumper block on the 5-port

HPM-XA

Recommended to be used on operating system without JMicron

HW RAID Manager support like Linux, Mac & Solaris. Windows

users can also use the procedure below.

Note: Steps 1 ~ 4 needs to performed each time the raid mode is

modified.

1. Insert the 5 AES 256-bit cipher keys into each cipher keyhole on the

Diamond Cipher enclosures located at the front of the Cipher tower.

2. When the Cipher Tower power switch is turned on, observed that

the green Cipher power LEDs at the front of the Cipher tower are on.

If they did not, reinsert the cipher keys and re-power the Cipher

tower.

3. Set the J4 RAID setting jumper block as shown below.

(ignore EZ pins, EZ is DISABLED)

Note: If the JMicron HW RAID Manager is used to create a raid

volume using the RAID mode diagram above the raid metadata will

not be saved. When a reboot of HPM-XA is made, it resets and

deletes all raid metadata.

4. Turn on the Cipher Tower for at least 5 seconds for hardware port

multiplier initialization. This step acts as a reset.

5. Power off the Cipher Tower.

6. On the J4 RAID setting jumper block, change (M0~M2) jumper

setting to the desired RAID mode using the diagram on the next

page as reference.

Cipher keyhole

Cipher

power LED

Cipher keyhole

Cipher

power LED

ADDONICS TECHNOLOGIES

Model: CDC5HXAES

All settings on the diagram shows

RAID mode setting modification is ENAABLED (SET)

Error buzzer function is DISABLED (BZS)

7. Power on the Cipher Tower.

8. Verify if the RAID array is detected by the system

a. If the 5-port HPM-XA is connected to the motherboard onboard

SATA, on the CMOS setup utility, the raid array will display as

“Addonics H/W RAID5” if setup as a RAID5 array.

b. If the 5-port HPM-XA is connected to an eSATA host controller

card, on the RAID BIOS, the raid array will display as

“Addonics H/W RAID0” if setup as a RAID0 array.

c. If booted into Windows, in Disk Drives under Device Manager,

the raid array will display as “Addonics H/W LARGE” if setup as

a RAID0 array.

9. Once raid array is verified, you can set back the RAID jumper setting

back to default

or the diagram below where buzzer is ENABLED.

Note: On this setting, there is no jumper on SET.

RAID Setting Notes:

When 2 drives are connected to the

HPM-XA, and J4 is set to this setting,

the 2 drives will be configured as a

2-drive RAID1 array.

When 4 drives are connected to the

HPM-XA, the 4 drives will be

configured as a 4-drive RAID10 array.

Clone’s action is similar to RAID1.

However, all of the hard drives will be

mirrored. Clone mode is useful

especially when users like to copy

data from a source hard drive to the

drives connected to the HPM-XA.

Notes on Spare Drives

Using the Easy RAID Setting (EZ)

In reference to the diagram, the auto-rebuilding to spare drive is

ENABLED (EZ)

When EZ mode is ENABLED, the degraded RAID group will start

rebuilding automatically by using the existing spare drive.

* Spare drive can be either plugged before RAID building or a new drive

can be plug as the spare drive when RAID rebuild is required.

A. Which port acts as a spare drive?

The last drive will automatically become the spare drive.

For a 3-drive RAID5 with spare:

Drives connected to SATA ports 1~3 belong to the active RAID5 array

and drive connected to port 4 is the spare.

For a 4-drive RAID10 with spare:

Drives connected to SATA ports 1~4 belong to the active RAID10 array

and drive connected to port 5 is the spare.

For a 2-drive RAID1 with spare:

Drives connected to SATA ports 1& 4 belong to the active RAID1 array

and drive connected to port 5 is the spare.

B. When will rebuild action start?

When the raid fails and EZ is enabled, the HPM-XA will

automatically rebuild the RAID group using the spare.

When the raid fails and EZ is disabled, the HPM-XA will NOT rebuild the

raid group unless you install a good drive to replace the failed drive.

ADDONICS TECHNOLOGIES

Model: CDC5HXAES

III. How to operate the Cipher tower after initial setup

1. Insert the 5 AES 256-bit cipher keys into each cipher keyhole on the

Diamond Cipher enclosures located at the front of the Cipher tower.

2. Push the power switch of the Cipher tower to turn it on. Observed

that the green Cipher power LEDs at the front of the Cipher tower

are on. If they did not, reinsert the cipher keys and re-power the

Cipher tower.

3. Use the system’s File Explorer to access the files on the encrypted

drive.

4. For security purposes, remove the cipher keys from the Cipher

tower after the drives are detected by the system. All the files being

transferred into the drives are still encrypted even if the cipher key is

removed.

5. When the Cipher tower is restarted, the 4 cipher keys must be

inserted again in order to gain access to the drives.

Best Practice:

Create a label to identify the SATA hard drive and the associated Cipher

key used.

TECHNICAL SUPPORT

Phone: 408-453-6212

Hours: 8:30 am - 6:00 pm PST

Email: http://www.addonics.com/support/query/

Autres manuels Addonics Technologies Stockage

Addonics Technologies

Addonics Technologies Saturn Cipher ExDrive SCEDSAU64 Manuel utilisateur

Addonics Technologies

Addonics Technologies RCED256ES Manuel utilisateur

Addonics Technologies

Addonics Technologies RTMPM6G Manuel utilisateur

Addonics Technologies

Addonics Technologies ST4IDEU2 Manuel utilisateur

Addonics Technologies

Addonics Technologies RT93SNDHMS Manuel utilisateur

Addonics Technologies

Addonics Technologies RT134SDEU3 Manuel utilisateur

Addonics Technologies

Addonics Technologies CRT535PES Manuel utilisateur

Addonics Technologies

Addonics Technologies AD25CFASTD Manuel utilisateur

Addonics Technologies

Addonics Technologies Combo Hard Drive25 IDE Manuel utilisateur

Addonics Technologies

Addonics Technologies RAID TOWER IX RT93DAHX Manuel utilisateur

Addonics Technologies

Addonics Technologies AD25MSD Manuel utilisateur

Addonics Technologies

Addonics Technologies External CipherChain Manuel utilisateur

Addonics Technologies

Addonics Technologies RT5835HMEU Instructions de montage

Addonics Technologies

Addonics Technologies NA3MS4HU2B Manuel utilisateur

Addonics Technologies

Addonics Technologies JCCHDIF128 Manuel utilisateur

Addonics Technologies

Addonics Technologies ST13 Manuel utilisateur

Addonics Technologies

Addonics Technologies AEMEDUSIB25F Manuel utilisateur

Addonics Technologies

Addonics Technologies NAS25HDU2 Manuel utilisateur

Addonics Technologies

Addonics Technologies RCHD256ES Manuel utilisateur

Addonics Technologies

Addonics Technologies REDESP? REDESPU3 Manuel utilisateur

Addonics Technologies

Addonics Technologies AE25SNSP Manuel utilisateur

Addonics Technologies

Addonics Technologies DGC3 Manuel utilisateur

Addonics Technologies

Addonics Technologies RT54S2HMEU Manuel utilisateur

Addonics Technologies

Addonics Technologies Sapphire Mobile Rack II Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
