Gen4x4 Laptop SSD
Installation Guide
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
Introduction
The addlink S93 Gen4x4 M.2 2280 SSD is a high-performance storage
solution designed for Intel and AMD laptops. With its ultra-slim
2.25mm profile, it offers power efficiency and is an excellent choice for
those seeking faster boot times and responsive applications. Available
in 1TB, 2TB, and 4TB capacities, it comes with addlink’s five-year
warranty.
Important Notice
1. Warranty: Before proceeding, ensure your laptop's warranty won't
be voided by opening it or making modifications. Consult the
manufacturer's guidelines if unsure.
2. Professional Assistance: If you're uncertain about the installation,
consider seeking expert help.
3. Static Electricity:Discharge any static by touching a grounded metal
object before handling the SSD.
4. Environment: Please do not use this product in a wet environment.
Make sure that you are working in static-safe environment.
5. Handling: Always hold the SSD by its edges. Avoid touching
connectors or components.
6. Data Safety: Backup all crucial data before starting.
7. Compatibility: Ensure your laptop supports M.2 NVMe 2280 SSDs.
8. Operating System: If the SSD is your primary drive, prepare a
bootable USB with your desired OS.
9. Label: Do not remove or tamper with the SSD's label or sticker.
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
Preparation
1. Backup: Secure your data by creating backups.
2. Tools Needed:
•A Phillips screwdriver
•Your addlink M.2 NVMe SSD
•Laptop's user manual
•An external adapter or dock (for single-slot laptops)
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
SSD Installation
1. Ensure the laptop is off and unplugged.
2. Detach the battery if possible.
3. Use an anti-static wristband or touch a metal object periodically.
4. Open the laptop's back panel.
5. Organize screws by size/type to avoid confusion during
reassembly.
6. Identify the M.2 slot. Align the SSD with the slot's notch.
7. Insert the SSD at a 30-degree angle, then press down gently.
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
8. Secure the SSD with the motherboard’s screw.
9. Reattach the back panel and battery.
10. Power on the laptop and check if the SSD is detected.
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop

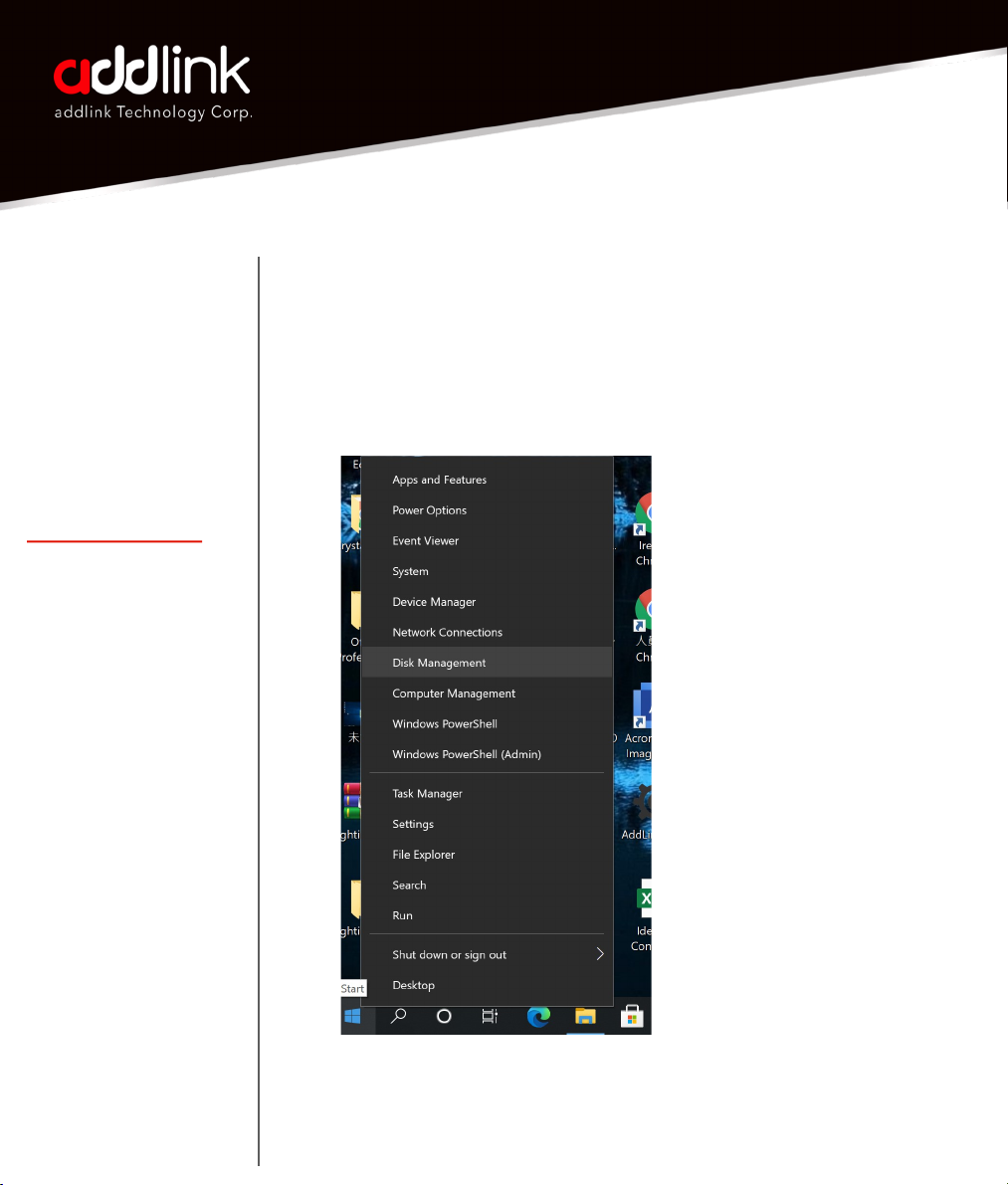

Initializing the SSD (Secondary Storage)
1. If the SSD doesn't appear in "My Computer" or "This PC", access
"Disk Management".
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
2. The SSD should be listed as "Unallocated". Right-click and select
"Initialize Disk".
3. Choose MBR or GPT based on your preference and SSD size.
4. Create a new volume and format the SSD.
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
For Single Storage Slot Laptops
1. Backup & Preparation:
•Backup data to an external source.
•Prepare a bootable USB with your OS.
2. Replace Primary Drive: Refer to the "SSD Installation" section.
3. Boot from USB: Access the BIOS/UEFI and set the USB as the
primary boot device.
4. OS Installation: Follow on-screen prompts and select the SSD as
the installation destination.
5. SSD Initialization: Post OS installation, the SSD might need
initialization.
addlink S93
Laptop Installation
Guide
Introduction
Important Notice
Preparation
SSD Installation
Initializing the SSD
Single Storage Laptop
HEADQUARTER
6F., No. 300, Ruiguang Rd., Neihu Dist.,
Taipei City 114, Taiwan (R.O.C.)
CONTACT INFORMATION
TEL :+886-2-8797 3116
FAX :+886-2-8797 3522
www.addlink.com.tw
