ADDER AdderLink X-DVIPRO Manuel utilisateur

AdderLink X-DVIPRO

Digital video and USB extenders





F

   

Contents

Welcome

Introduction.................................................................................2

What’s in the box ........................................................................3

What you may additionally need ...............................................4

Installation

Connections .................................................................................5

Mounting the modules – desk or rack...................................5

Connections at the local module ...........................................6

Power connection ..............................................................7

Connections at the remote module.......................................8

Power connection ..............................................................9

Operation

Operation...................................................................................10

General use ...........................................................................10

Video display (EDID) information ........................................10

HDMI 1.3a operation ............................................................10

Power and activity indicators...............................................10

Further information

Troubleshooting ........................................................................11

Getting assistance......................................................................11

Warranty ....................................................................................12

Safety information ....................................................................12

Radio Frequency Energy............................................................13



F

   

X-DVIPRO

Remote

X-DVIPRO

Local

CAT7a - 60m max

CAT6 - 55m max

CAT5e - 45m max

Additional video channel

and dual stereo audio

channels on MS2 variants

Additional CATx link

on MS2 variants

X-DVIPRO

Local

Patch lead

<2m max

Patch panel Patch panel

Additional video channel

and dual stereo audio

channels on MS2 variants

Additional CATx link

on MS2 variants

X-DVIPRO

Remote

Patch lead

<2m max

CAT7a - 50m max

CAT6 - 45m max

CAT5e - 35m max

Welcome

Thank you for choosing the AdderLink X-DVIPRO or X-DVIPRO-MS2 extenders.

These compact modules present the quickest way to extend high quality DVI

digital video plus USB keyboard and mouse (plus on MS2 variants, a second

digital video channels and two stereo audio channels) with an additional two

USB peripherals up to 60 metres away from your computer.

Thanks to our long involvement and investment in extender technology

we have succeeded in overcoming the numerous problems associated with

extending digital video signals. Using our proprietary transmission techniques

the X-DVIPRO and X-DVIPRO-MS2 modules can reliably transfer video rates up

to 165 Mpixels per second. This is in addition to two USB channels for keyboard

and mouse - all via the same single length of Category 5e, 6 or 7a twisted pair

cabling.

The AdderLink X-DVIPRO and X-DVIPRO-MS2 extender modules have been

designed to be quick to install and totally transparent in operation.

X-DVIPRO link with

direct cable connection X-DVIPRO link with cable and

patch panel connections

Recommended 50m

link cable for best

results:

Adder part number:

VSCAT7-50

Cable distance rules

• Extensiondistancesupto60maresupported.

• Extensionsof60mmaybeachievedwithsingleuninterruptedrunsofrecommendedcable

(Adder CAT7a patch cable) at full resolution.

• Extensionsof55mmaybeachievedwithsingleuninterruptedrunsofCAT6bulk/trunk(not

patch) cable at full resolution.

• AdderdoesnotrecommendCAT5ecablesforusewiththisproduct.However,45mmaybe

typicallyachievedwithsingleuninterruptedrunsofCAT5ebulk/trunk(notpatch)cablesatfull

resolution.

• Overallcablerunsmustbereducedby5mforeachadditionalcablecoupling.

• Runspecicationsmaybeincreasedby10mwhenusingresolutionsof1280x1024orlower.

• Allpatchcablesshouldbeasshortaspossibleandshouldbenolongerthan2m.

• ItisrecommendedthatAdderCAT7apatchcablesareusedformaximumperformance.



F

   

What’s in the box

CD-ROM

Local

module

USB cable 2m (type A to B) Video cable DVI/D to DVI/D

Eight self-adhesive

rubber feet

AdderLink X-DVIPRO standard modules

Remote

module

Local

module

AdderLink X-DVIPRO-MS2 dual video/audio modules

Remote

module

Additional

12.5W power

adapter and

country- speciﬁc

power lead

Additional USB cable 2m

(type A to B)

Additional video cable

DVI/D to DVI/D

3.5mm jack to jack

stereo audio cable

The MS2 variant package includes all of the above ancillary items plus:



F

   

What you may additionally need

Power adapter and country-

speciﬁc power lead for

X-DVIPRO local module, if

powering via the USB port is

not possible. In such cases, two

power adapters are required

for X-DVIPRO-MS2 local

modules.

Partnumber:PSU-IEC-5VDC-2.5A

Rack mount chassis

Partnumber:X-RMK-CHASSIS

Rack mount kit for X-DVIPRO

Part number: X-RMK-FASCIA

Rack mount kit for X-DVIPRO-MS2

Part number: X-RMK-FASCIA-DUAL

Extra 3.5mm jack to jack

stereo audio cable

Part number: VSC22 HDMI to DVI-D video cable

Part number: VSCD11

50 metre CAT7 link cable

Part number: VSCAT7-50



F

  



Installation

Connections

Installation of the X-DVIPRO and X-DVIPRO-MS2 modules is straightforward and

requiresminimalcongurationinmostcases.

• Connections at the local module

• Connections at the remote module

Note: After all connections are made, power up the monitor and the REMOTE

module ﬁrst (followed by the LOCAL module, if using the X-DVIPRO-MS2

variant) and then switch on the computer.

Mounting the modules – desk or rack

The X-DVIPRO and X-DVIPRO-MS2 modules can be situated on a desk or

alternatively, for larger installations, mounted within an optional rack mount

chassis.

Desk mount

Apply the supplied self-adhesive rubber

feet to the underside of the module.

Rack mount

1 Place the rack securing plate (available as a separate kit) onto the front of the

module and secure it with the two countersunk screws.

2 Orient the X-DVIPRO (or X-DVIPRO-MS2) module on its side so that its

labelled face is the correct way up.

3 Slide the module into the required rack position. The rectangular cut-out in

the front upper lip of the rack allows the two screws on the module’s upper

edge to slide through.

4 Therackmountchassishasaseriesofholesinitsoorthatarespacedto

accommodatethetwoscrewsonthemodule’sloweredge.Ensurethat

the screws correctly locate into the two holes of the chosen slot. The rack

securingplateonthemoduleshouldnowbeushwiththefrontofthe

rack mount chassis.

5 Use the third (pan-head) screw, in the top hole of the rack

securing plate to fasten the module to the rack.



F

  



Connections at the local module

1 Where possible, ensure that power is disconnected from the computer

system to be connected.

2 UsethesuppliedDVI/DlinkcabletoconnecttheDVIinputsocketofthe

local module to the digital video output socket of the computer.

[MS2 variant only] Optionally

attach a second video input

from the computer system

usingthesuppliedDVI/Dlink

cable.

3 Use the supplied USB cable to link the USB socket of the local module to a

vacant USB socket on the computer.

To video output port

To secondary video output port

To primary video output port

To USB port

[MS2 variant only] Optionally

attach a second USB connection

from the computer system using

the supplied USB cable.

To second USB port

To ﬁrst USB port

Note: Do not use USB

cables longer than 3

metres to connect the

local module to the

computer.

[MS2 variant only] Optionally

link one or two stereo audio

inputs to the module using

3.5mm audio cable(s). One

3.5mm audio cable is supplied

with MS2 variant packages.

To secondary audio port

To primary audio port

Feeds the LOWER two USB

sockets on the remote unit

Feeds the UPPER two USB

sockets on the remote unit



F

  



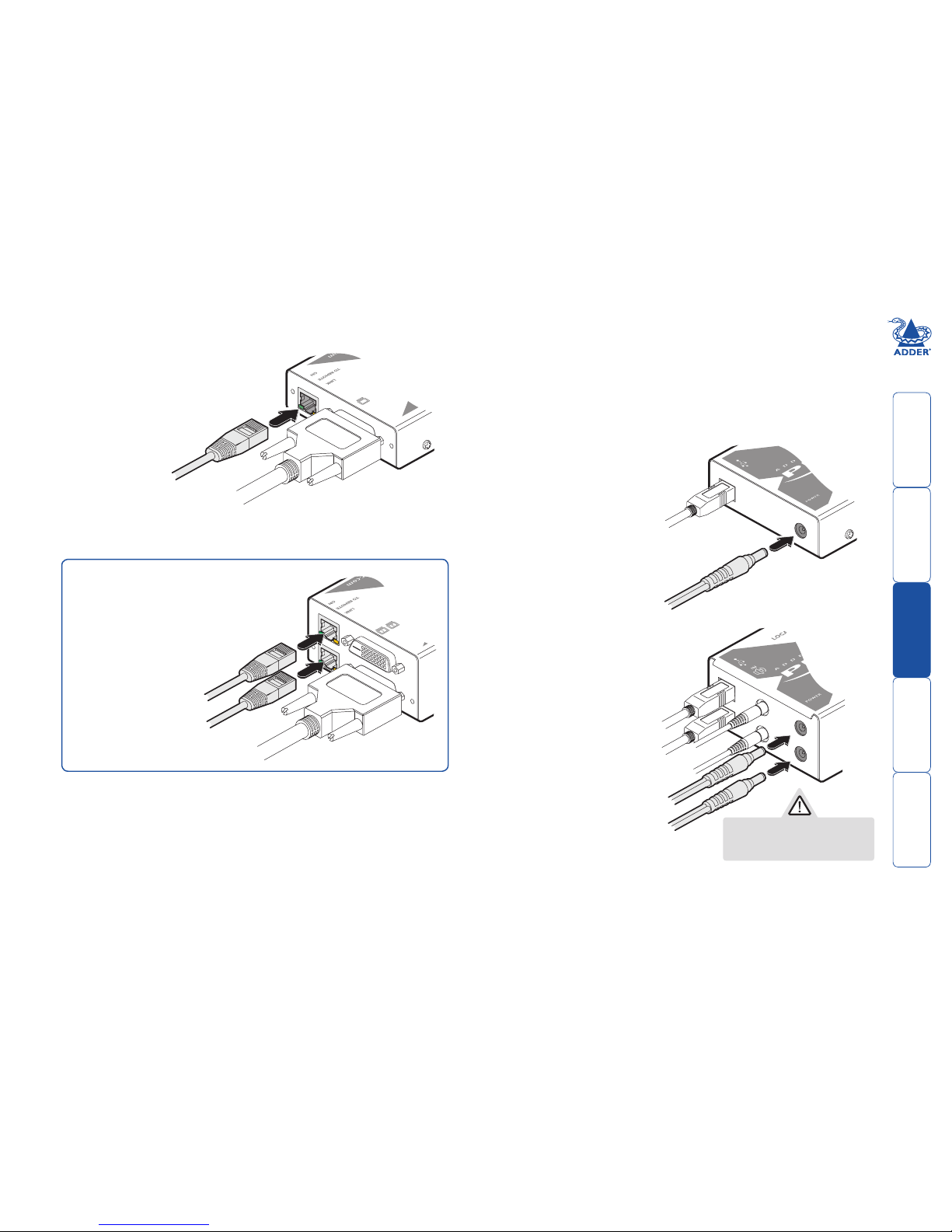

4 Connectthelinkcable(seepage2forcableadvice)tothelocalmodule

socket labelled TO REMOTE.

X-DVIPRO: Use an optional

power adapter only if

powering from the host

(via USB) is not possible.

Note: After all connections

are made, power up the

monitor and the REMOTE

module ﬁrst (followed by

the LOCAL module, if using

the X-DVIPRO-MS2 variant

with power adapters)

and then switch on the

computer.

Power connection

The X-DVIPRO local module is designed to derive its power from the host

computer via the USB connection (two USB connections in the case of the MS

version). If this is not possible, then you will need to use one or two optional

Adder power adapter(s).

Optionally for X-DVIPRO and X-DVIPRO-MS2 units:

[MS2 variant only] Attach a

second category 5e, 6 or 7a

link cable (up to 60 metres in

length) to the upper socket on

the MS2 local module.

Secondary CATx link cable

Primary CATx link cable

2 InserttheIECconnectoroftheseparatepowerlead(s)intothe

corresponding socket(s) of the power adapter(s). Connect the other end of

thepowerlead(s)toone/twonearbymainssocket(s).

X-DVIPRO-MS2: Use two

optional power adapters

if powering from the host

(via dual USB connections)

is not possible.

1 Connect the output lead of the

optional power adapter(s) to the

socket(s) labelled ‘POWER‘ on the local

module.

CATx link cable

Do not use squid cables or

power splitters. Two separate

power adapters must be used.



F

  



[MS2 variant only] Optionally

attach a second DVI video

monitor.

Connections at the remote module

1 Place the remote module adjacent to the user location.

2 ConnecttheDVI/DleadfromthevideomonitortotheDVIoutputsocketof

the remote module.

To video monitor

To secondary video monitor

To primary video monitor

3 Connect the leads from the

keyboard and mouse to

the two USB sockets on the

remote module. Note: On the

single head variant, it is not

important which of the four

sockets are used.

To keyboard, mouse

and other USB

peripherals

[MS2 variant] Connect the leads

from the keyboard and mouse

to the two USB sockets on the

remote module.

[MS2 variant only] Optionally

connect one or two sets of

stereo speakers to the module.

One 3.5mm audio cable is

supplied with MS2 variant

packages.

To secondary speakers

To primary speakers

To keyboard, mouse

and other USB

peripherals

IMPORTANT: The total current that may be drawn from the USB ports is

1.2A,whichshouldbesufcientforakeyboard,mouse(nomorethan

100mA each) and any two other devices (500mA maximum each). If more

power for USB devices is required, please use a powered USB hub.

Fed from the LOWER USB

socket on the local unit

Fed from the UPPER USB

socket on the local unit



F

  



Power connection

1 Connect the output lead of the supplied power adapter to the socket

labelled ‘POWER‘ on the remote module.

X-DVIPRO: Output lead

from the power adapter

2 InserttheIECconnectoroftheseparatepowerleadintothecorresponding

socket of the power adapter. Connect the other end of the power lead to a

nearby mains socket.

3After all connections are made, power up the monitor and remote module

(thenthelocalmodule,ifusingtheX-DVIPRO-MS2variant)andnally

switch on the computer.

[MS2 variant only] Attach a

second category 5e, 6 or 7a

link cable (up to 60 metres in

length) to the upper socket on

the MS2 remote module.

Secondary CATx link cable

Primary CATx link cable

4 Connectthelinkcable(seepage2forcableadvice)totheremotemodule

socket labelled TO LOCAL.

CATx link cable

X-DVIPRO-MS2: Output lead

from the power adapter

Autres manuels pour AdderLink X-DVIPRO

Table des matières

Autres manuels ADDER Extenseur

ADDER

ADDER AdderLink X2 Dual Access Manuel utilisateur

ADDER

ADDER AdderLink XD150FX Manuel utilisateur

ADDER

ADDER AdderLink Infinity Manager Manuel utilisateur

ADDER

ADDER AdderLink LPV154T Manuel utilisateur

ADDER

ADDER AdderLink IP Manuel utilisateur

ADDER

ADDER AdderLink Digital iPEPS Manuel utilisateur

ADDER

ADDER ADDERLink XD641 Manuel utilisateur

ADDER

ADDER ADDERLINK AV200 Series Manuel utilisateur

ADDER

ADDER ADDERLink INFINITY 4000 Manuel utilisateur

ADDER

ADDER ADDERLink INFINITY 2100 Manuel utilisateur

ADDER

ADDER AdderLink AV100 series Manuel utilisateur

ADDER

ADDER ADDERLINK X-DVI PRO Manuel utilisateur

ADDER

ADDER ALIF 2112T Manuel utilisateur

ADDER

ADDER AdderLink Infinity Manager Manuel utilisateur

ADDER

ADDER AdderLink Digital iPEPS Manuel utilisateur

ADDER

ADDER AdderLink Infinity 100T Manuel utilisateur

ADDER

ADDER X-KVM Guide de démarrage rapide

ADDER

ADDER ADDERLink INFINITY 3000 Manuel utilisateur

ADDER

ADDER Link X200 Manuel utilisateur

ADDER

ADDER AdderLink Infinity Manager Manuel utilisateur

ADDER

ADDER AdderLink X100 Manuel utilisateur

ADDER

ADDER AdderLink Infinity 1002 Manuel utilisateur

ADDER

ADDER Adder X00 Extender Manuel utilisateur

ADDER

ADDER CUSBEXT100 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
