Spec Sheet

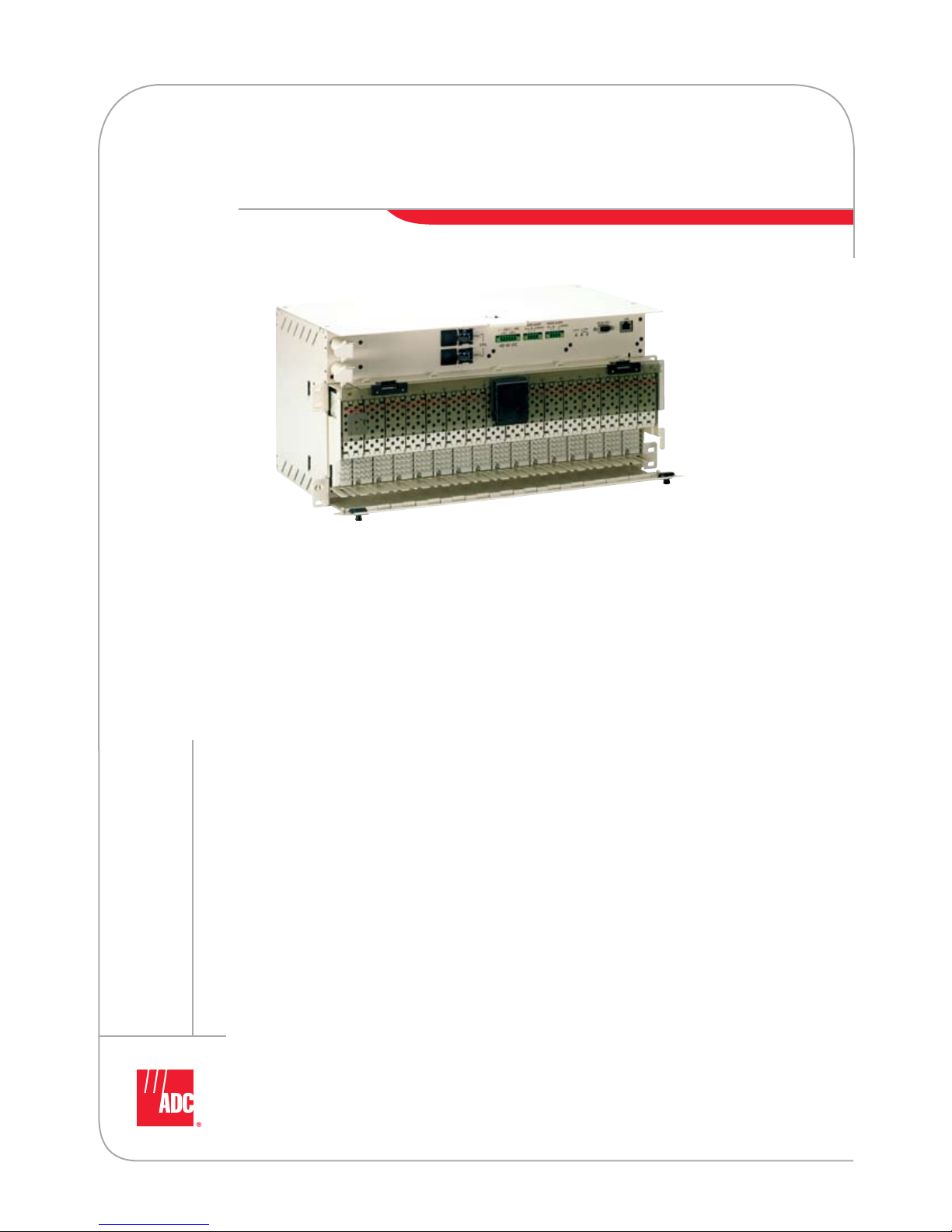

ASX Active Digital Signal Cross-Connect

Part of ADC KRONE’s innovative family of active digital signal cross-connect products, the ASX

fully integrates an SDH multiplexer with a FlexDSX®cross-connect chassis. The product allows

easy migration of 2 Mbit equipment to next generation equipment, as well as enabling additional

capacity and transition to fibre optic backhaul to support increasing data rates.

The ASX is compatible with existing DSX installations and supports standard DSX functionalities

and advantages:

Modular construction, featuring either wire-wrap or LSA-PLUS• ®punchdown cable

termination methods

Easy circuit identification through the integrated LEDs•

Four-port jack cards with dual monitoring ports enable individual circuit monitoring in•

both directions

Cross-connection and patching of circuits•

Superior, intuitive cable management•

The extremely compact STM-1 level SDH multiplexer supports 1+1 MSP on the link side and

management features are accessed via GIU interface. By fully integrating an SDH multiplexer into

the digital distribution frame, the ASX provides space savings, as well as reducing cabling and

maintenance costs.

11/07•105350AE ASX Active Digital Signal Cross-Connect

ASX Active Digital Signal Cross-Connect

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Features

• Allfrontaccess

• 64E1terminations

• Fourbreopticconnectors(FC,SC,LCorE2000

connectors are available) for access to two

STM-11310or1550nmshort-hauloptics

• RS232consoleport

• RJ45connectoraccesstolocalandremote

management

• Powerterminalsforredundant48VDCfeed

• SupportedbyandcompliantwithITU-TG.841/

Clause7.1andETS300417-3-1

• Visualindicators,aswellasdrycontactalarmsfor

major and minor alarms

Beneﬁts

• Saverackandoorspace

– Requires less space than separate DSX and

MUX equipment, making it ideal for installation

in remote sites where space is limited

• Reduceinstallationtimeandcosts

– Fibre optic cable replaces large bundle of

copper cabling between the DDF and

networkelements(MUX,ADM,switch,

channel bank, DSLAM)

 – Pre-conguredsystem,witheasyservice

turn-up, limits requirement for special,

highly-trained staff

• Lowerequipmentcosts

– Carrier can dedicate MUX functionality to

specicapplications

• Increaseoperationalresponsetime

– Pre-provision alternative cross-connects, which

can be automatically switched without craft

dispatch for manual re-routing

• Increasequalityofservice(QoS)

– Local or remote testing/monitoring for all

relevant test parameters

Description Catalogue Number

ASX with wire-wrap cross-connects, singlemode LC duplex fibre optic connectors, 155 Mbps

1310wavelength;distance:20km ASX-100001-LC

1310wavelength;distance:50km ASX-110001-LC

1550wavelength;distance:80km ASX-120001-LC

1550wavelength;distance:120km ASX-130001-LC

1550wavelength;distance:160km ASX-140001-LC

ASX with wire-wrap cross-connects, singlemode SC fibre optic connectors, 155 Mbps, bidirectional

Tx:1310,Rx:1550;distance:20km ASX-100001-SC

Tx:1550,Rx:1310;distance:20km ASX-110001-SC

Tx:1310,Rx:1550;distance:40km ASX-120001-SC

Tx:1550,Rx:1310;distance:40km ASX-130001-SC

Tx:1310,Rx:1550;distance:80km ASX-140001-SC

Tx:1550,Rx:1310;distance:80km ASX-150001-SC

Ordering Information

11/07•105350AE ASX Active Digital Signal Cross-Connect

ASX Active Digital Signal Cross-Connect

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Description Catalog Number

ASX with LSA-PLUS®cross-connects, singlemode LC duplex ﬁbre optic connectors, 155 Mbps

1310wavelength;distance:20km ASX-100008-LC

1310wavelength;distance:50km ASX-110008-LC

1550wavelength;distance:80km ASX-120008-LC

1550wavelength;distance:120km ASX-130008-LC

1550wavelength;distance:160km ASX-140008-LC

ASX with LSA-PLUS®cross-connects, singlemode SC ﬁbre optic connectors, 155 Mbps, bidirectional

Tx:1310,Rx:1550;distance:20km ASX-100008-SC

Tx:1550,Rx:1310;distance:20km ASX-110008-SC

Tx:1310,Rx:1550;distance:40km ASX-120008-SC

Tx:1550,Rx:1310;distance:40km ASX-130008-SC

Tx:1310,Rx:1550;distance:80km ASX-140008-SC

Tx:1550,Rx:1310;distance:80km ASX-150008-SC

ASX with STM-1 connector type: 1.6/5.6, 45° angled

Wire-wrap ASX-220001

LSA-PLUS®ASX-220008

Accessories

Three-conductor bantam patch cords for E1 jack interface

Single plug

0,3m PJ712

0,92 m PJ716

1,83m PJ722

3,05m PJ1210

3,66m PJ1212

4,58m PJ1415

6,1m PJ1420

7,63m PJ1425

9,15m PJ1430

15,25m PJ1450

Dual plug

0,3m PJ762

0,92 m PJ766

1,83m PJ772

3,05m PJ1310

3,66m PJ1312

6,1m PJ1520

7,63m PJ1525

9,15m PJ1530

15,25m PJ1550

Category 5 RJ45 to RJ45 patch cords

1 m 70632527-04

3m 70632527-10

Ordering Information

Website: www.adc.com

FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080

Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.

ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

Spec Sheet

Specifications

Dimensions (W x H x D): 209x482.6x254mm

Weight:   15kg

Power:  <11Watts,-48VDC;0.38WattsforeachLED

ENVIRONMENTAL

 Operations:  ETS300-019-2-3class3.2

 Storage:  ETS300-019-2-1class1.2

 Transport:  ETS300-019-2-2class2.3

Interfaces:  64xE1,multiplemappingschemesaresupportedincluding2Mbpsframed, 

     2Mbpsunframed,(2)STM-1,optical(IR/SR/LR)andelectricalviaSFPmodules 

Protection: 1+1 MSP

Reliability:  MTBF>30years.

Management:  Web-basedintegratedcraftinterface(ICI)includingthesupportofsmartdefault

settings IP based management

Local management access via 10/100BaseT interface

SNMP with trap messages supported

Non-volatile software and database stores including back-up and restoration

Timing:  E1andlinetiming(TimingMarker)support    

     IntegratedSDHequipmentslaveclock(SEC)accordingtoITUG.813  

Re-timing option on the E1 interfaces

Standards: In compliance with the ITU, ETSI, IEC, IEEE, IETF standards for E1 and SDH equipment

Description Catalogue Number

Fibre optic patch cords

LCduplexconnector(UPC)toLCduplexconnector(UPC),2m 70661788-52

LCduplexconnector(UPC)toSCduplexconnector(UPC),2m 70661718-52

LCduplexconnector(UPC)to2FCduplexconnectors(UPC),2m 70661528-52

Universal ﬁbre optic adapter (duplex) 70612203-00

Fibre optic attenuator, LC 15 dB FOA-INLC015

Cross-connect wire

152mroll DSX-CCW/500

305mroll DSX-CCW/1000

601mroll DSX-CCW/2000

Wire-wrap tool kits

Manual AUX-0X0165

Electronic AUX-0X0800

LSA-PLUS®insertion tool 64172055-01

Ordering Information
