Replacing the Billboard Router
(PN 1109503001SP)
The billboard router creates a firewall protected VPN (Virtual Private Network) inside the
deluxe remote control cabinet. The router splits the incoming Internet signal from the Internet
Service Provider’s (ISP) hardware device into eight 10/100 Mbps local ports.
The control cabinet’s PC controllers, UPS’s SNMP / Web card, and the optional diagnostic
camera’s PoE (Power over Ethernet) device all connect to the router.
Figure 1. Front view of billboard router.
Before you begin
Kit contents
†Not all components are required to be replaced or used, assess the condition of these components and replace
if necessary.
Tools / Safety equipment needed
Full body safety harness with lanyard
Part Number Qty Description
30801002 18 port 10/100 router with firewall.
N/A 1Power adapter.
63100008 48 inch tie wrap.
65060004 †2 4.5 inch sticky back hook Velcro strip.
65060005 †2 4.5 inch sticky back loop Velcro strip.
1109610109 1Instructions
REPLACING THE BILLBOARD ROUTER
2PN 1109610109 REV. B
Replacing the router
➩To replace the router
Billboard operation will continue during this procedure but the content on the
billboard cannot be changed or updated until this procedure is completed.
Do not disconnect power from the billboard or the control cabinet.
1. Open the control cabinet’s front door. When facing the front of the cabinet the load
center will be on the right.
• If applicable, remove the control cabinet’s padlock.
• Turn cabinet handle and pull open the cabinet door.
2. Turn off the router. The router is located on the top shelf inside the cabinet.
3. Unplug the Ethernet cables from the router.
Note: Single billboard configurations will have less cables plugged into the router’s
local ports and only one DVI / Fiber converter attached to the top.

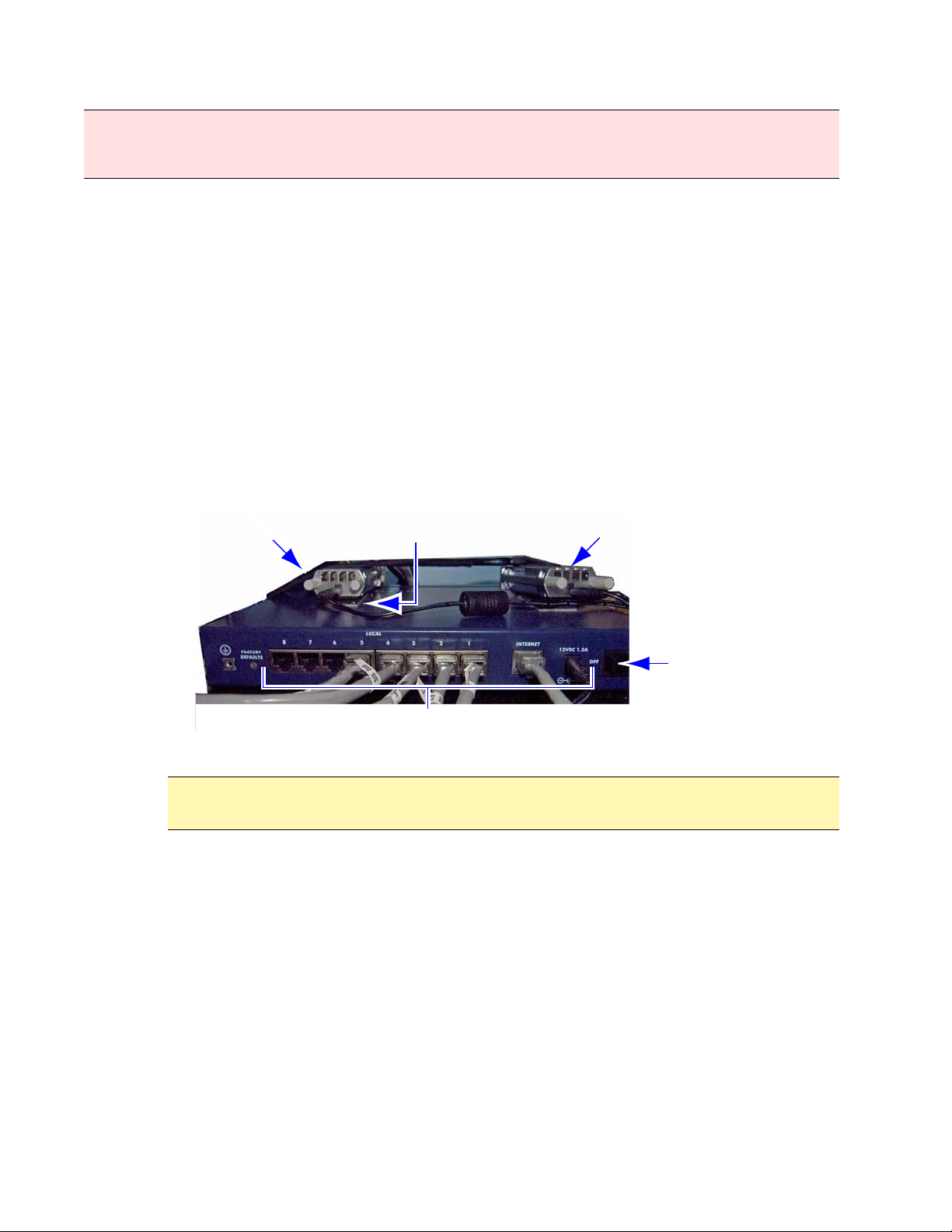

Figure 2. Rear view of a dual billboard router configuration.
4. Remove the router and power adapter from the control cabinet.
• Loosen the velcro strap around the router.
• Detach the DVI / Fiber converter(s) from the top of the router.
• Remove all tie wraps from the power adapter cord’s pathway to the UPS.
• Remove the defective router and power adapter.
5. Position and secure the replacement router.
• Attach the appropriate sticky back velcro piece to the top of the router.
• Place the router in the same position on the shelf as the previous router. The back
of the router faces the front of the cabinet.
• Attach the DVI / Fiber converters to the velcro on top of the router.
• Using the velcro strap, secure the router assembly to the shelf.
WARNING! Possible fall hazard. When servicing billboard components, service personnel must use
a full body safety harness with lanyard. Connect the lanyard to the billboard head’s safety cables;
otherwise serious injury or death may occur.
Velcro strap DVI / Fiber converter
Disconnect cables
On / Off switch
Sticky back velcro
Notice: Do not crimp, kink, or disconnect the fiber optic cabling connected to the
DVI / Fiber converter. Otherwise billboard will not function properly.
REPLACING THE BILLBOARD ROUTER
MAY 6, 2008 3
6. Connect the Ethernet cables and power cord to the router, see Figure 3.
• Route the power adapter cord along the same pathway as the previous cord.
Connect the power adapter to the UPS and the router.
• Using the tie wraps, secure the power adapter cord near the same locations as
the previous cord.
• Connect the ISP Internet cable to the router’s Internet port.
• Connect the Ethernet cables to the router’s local ports.

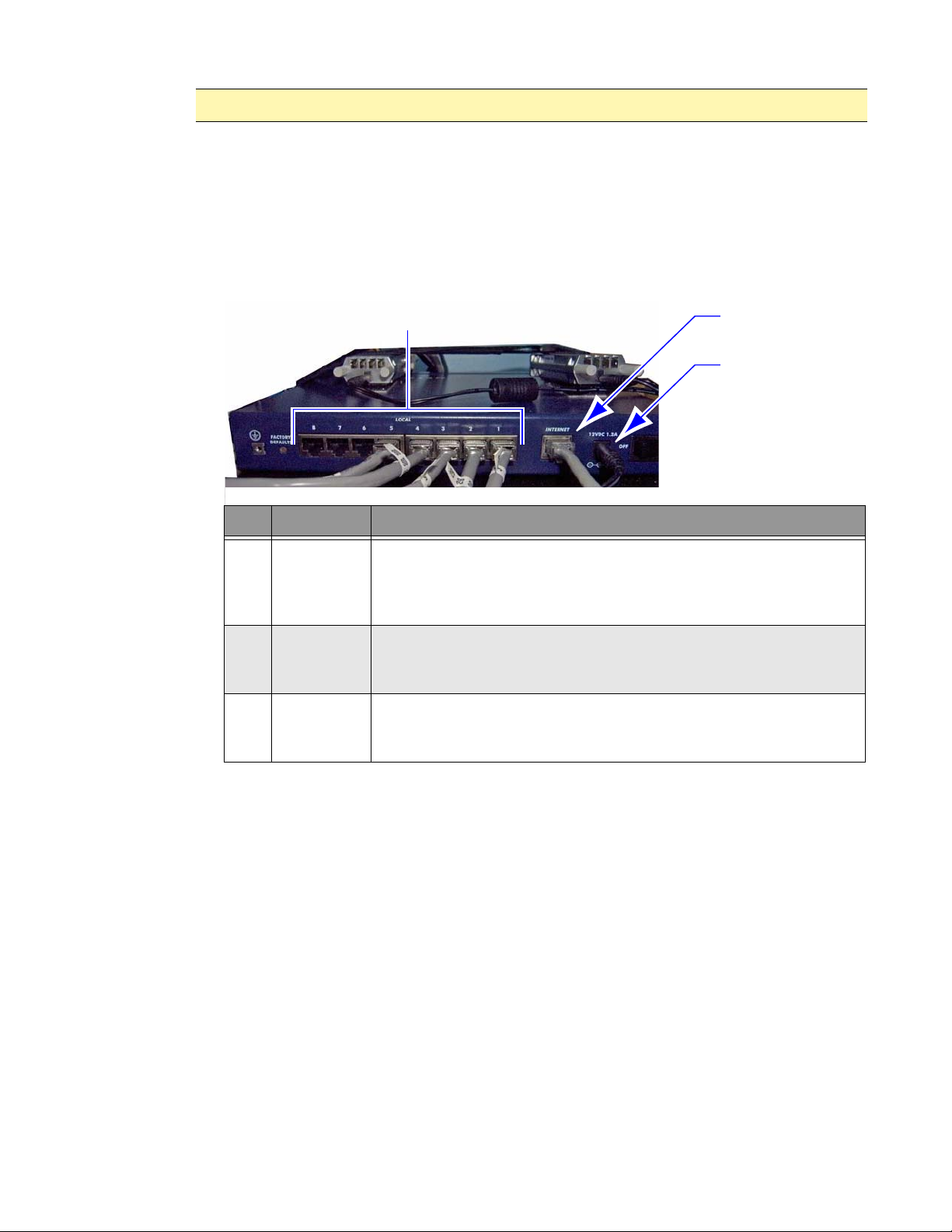

Figure 3. Router cable connections.
7. Turn on the router.
8. If applicable, change the IP address on the router. This step is required only if the IP
address was not supplied to Adaptive at the time of the order. See “Changing the
router’s settings” on page 4 for procedure details.
Verifying router operation
The router is operating properly if the following can be performed from a remote Internet
connection:
Change or update the message content on the Billboard.
Access the UPS’s web console.
If applicable, access the camera and view the face of the Billboard.
Notice: Do not over tighten the tie wraps. Otherwise damage to cord may occur.
AB
C
Item Name Description
ALOCAL
PORTS 1-8
The control cabinet’s PC controllers, UPS’s SNMP / Web card, and the
optional diagnostic camera’s PoE (Power over Ethernet) device all
connect to the router’s eight 10/100 Mbps ports. These component
cables may plug into any of the local ports.
BINTERNET
PORT
Only plug the ISP’s cable into the router’s Internet port. This
connection supplies Internet access to all the cabinet components
connected to the local ports.
CPOWER
ADAPTER
PORT
The power adapter plugs into receptacle #6 (bottom–left receptacle in
load #3) on the UPS. 12VDC 1.2A power is supplied to the router via
the power adapter cord.
REPLACING THE BILLBOARD ROUTER
4PN 1109610109 REV. B
Changing the router’s settings
If the current IP address was given to Adaptive prior to the shipment of the replacement
billboard router this procedure can be skipped.
➩To Change the router’s settings
1. If applicable, unlock the Keyboard Video Monitor (KVM) drawer.
2. Pull the front handle and slide the KVM drawer out until it stops.
3. Lift handle up to open the KVM drawer.
4. Press the power on button (A).
5. Press the #7 selection button (B) to access PC Controller #1’s desktop.
Figure 4. Key components of KVM drawer.
6. Type http://192.168.0.100 in a web browser’s address bar and press Enter.
7. At the login prompt, type admin for the login and password.
Figure 5. Router login prompt.
#7 Selection button
(PC Controller #1)
ON/OFF button
Drawer lock
Drawer handle
Flip
monitor
open
B
A
REPLACING THE BILLBOARD ROUTER
MAY 6, 2008 5
8. Under Setup, click Basic Settings.
Figure 6. Router setup wizard.
9. Fill in the router’s Basic Settings as shown in the following diagram:
Figure 7. Router basic settings.
Click Basic Settings
Select No.
Select Use Static IP Address.
Enter IP Address *
* Provided by your Internet Service Provider.
Enter IP Subnet Mask *
Enter Gateway IP Address *
Select Use These DNS Servers.
Enter * Primary DNS address
Click Apply to save your settings
REPLACING THE BILLBOARD ROUTER
6PN 1109610109 REV. B

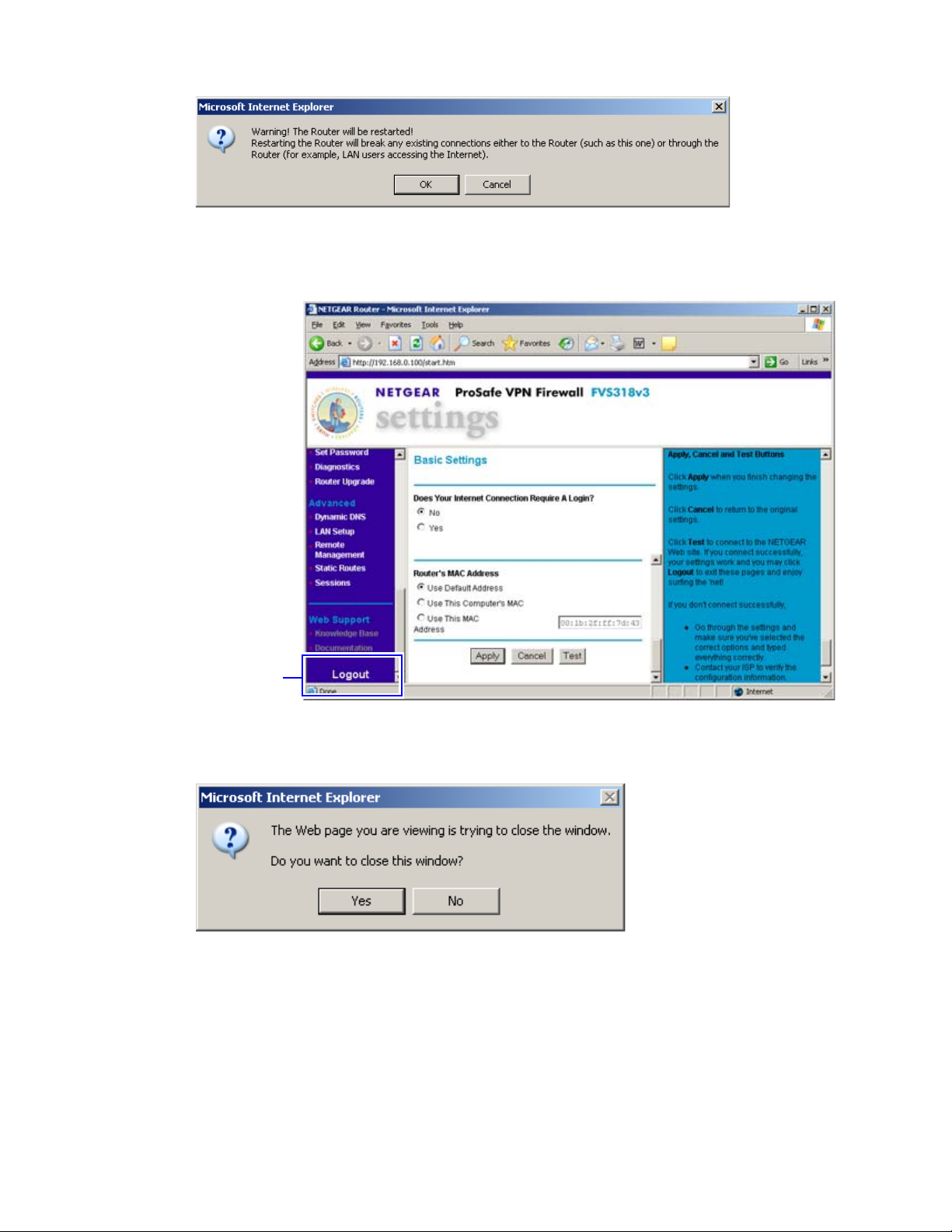

10. Click OK to restart the router.
Figure 8. Router restart prompt.
11. After the router restarts, click Logout.
Figure 9. Router logout.
12. Click Yes to exit.
Figure 10. Router exit prompt.
13. Verify router operation, see page 3 for details.
Click Logout
