Adaptive Recognition Carmen ANPR BOX Manuel utilisateur

CarmenBox USER MANUAL

Page 2/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

CarmenBox

USER AND INSTALLATION MANUAL

with Installation Checklist and other practical tips

Document version: 2022-01-26

Firmware version: 1.0.0.1587

Table of Contents

1. Overview.................................................................................................................................... 4

1.1. Default IP Address.............................................................................................................. 5

1.2. Link-Local IP Address......................................................................................................... 5

1.3. Finding Devices.................................................................................................................. 5

2. AR Device Tool .......................................................................................................................... 6

2.1. Finding Devices.................................................................................................................. 6

3. Overview of the Web Interface................................................................................................... 7

4. Live ............................................................................................................................................ 8

4.1. Full-Screen Mode ............................................................................................................... 8

4.2. Saving image...................................................................................................................... 9

4.3. Switching Stream............................................................................................................... 9

4.4. Help.................................................................................................................................... 9

4.5. Overlay ............................................................................................................................... 9

4.6. Event Preview................................................................................................................... 10

5. Playback.................................................................................................................................. 11

5.1. Navigate among the Recordings...................................................................................... 12

5.2. Filtering the Detectors...................................................................................................... 13

5.3. Exporting the Recordings................................................................................................. 14

6. Events...................................................................................................................................... 15

7. Settings ................................................................................................................................... 18

7.1. System / Status................................................................................................................ 18

CarmenBox USER MANUAL

Page 3/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

7.2. System / Device ............................................................................................................... 19

7.3. SyStem / Network............................................................................................................ 21

7.4. System / Security............................................................................................................. 22

7.5. System / Storage.............................................................................................................. 24

7.6. System / Service .............................................................................................................. 28

7.7. Media / Video................................................................................................................... 29

7.8. Analytics / Settings .......................................................................................................... 30

7.9. Analytics / Detectors........................................................................................................ 30

8. How to use the CarmenBox..................................................................................................... 37

8.1. Device Installation ............................................................................................................ 37

8.2. How to set up your camera for ANPR –Short summary................................................. 40

8.3. Dimensions ...................................................................................................................... 40

8.4. I/O Outlets........................................................................................................................ 41

8.5. Reset to factory default.................................................................................................... 42

8.6. Install storage media........................................................................................................ 42

CONTACT INFORMATION.................................................................................................................. 48

CarmenBox USER MANUAL

Page 4/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

1. OVERVIEW

The CarmenBoxdevice has its own web interface throughwhich you canaccess the settings, the LIVE,

the PLAYBACK, the EVENTS and the SETTINGS interfaces.

Accessing the web interface:

1. Start a browser and enter the device IP address into the address bar of the browser.

2. Type the username and the password on the displayed login interface and click on [Login].

The default user account is the following:

Username: admin

Password: admin

It is recommended to use an up-to-date web browser to access the web interface.

CarmenBox USER MANUAL

Page 5/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

1.1. DEFAULT IP ADDRESS

CarmenBox –by default –obtains its IP address from the local DHCP server. A second link-local IP

address is always present on the primary network interface.

1.2. LINK-LOCAL IP ADDRESS

The link-local IP address of the device can be calculated using the device’s MAC address or serial

number. The last four characters are two hexadecimal numbers that can be converted into the last

two parts of a link-local address (169.254.XX.YY).

Example: the device with the MAC address 48-B0-2D-3E-42-1A ends with 42 and 1A, representing the

decimal values 66 and 26. The link-local address of this device is 169.254.66.26.

1.3. FINDING DEVICES

You can find CarmenBoxon the network using the AR DeviceTool. Double-clickon the selecteddevice,

and the CarmenBox web interface will open in the default browser.

While running, the program continuously looks for detectible devices on the network and displays

them in a list with their current IP addresses. If the device does not appear, ensure that the firewall

does not block the multicast protocol on the network and that the device and the PC are in the same

network range.

CarmenBox USER MANUAL

Page 6/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

2. AR DEVICE TOOL

With the AR DeviceTool, you can discover Einar cameras or CarmenBox devices on the local network.

You can upload Firmware, License and Engine files only to Einar cameras. Download the program

here: AR DeviceTool. It runs on Windows operating system.

2.1. FINDING DEVICES

Once started, the program lists the devices/cameras detected on the local network. The device/ca-

mera name, product family name, type, firmware version, IP address, MAC address and brief informa-

tion about the current upload process will be displayed.

The currently available devices/camerasare marked with greencolor in the first column. The red color

indicates a previously discovered device/camera that has not been available since then.

Double-click on the selected device/camera to open its web interface in the default browser.

CarmenBox USER MANUAL

Page 7/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

3. OVERVIEW OF THE WEB INTERFACE

The following menu items are available on the web interface:

1. LIVE

Shows a live view of the connected camera streams.

2. PLAYBACK

Browse recordings on the configured storage device.

3. EVENTS

Browse the recorded events on the configured storage device.

4. SETTINGS

Under this menu, you can access the following options:

SYSTEM

−Status

−Device

−Network

−Security

−Storage

−Service

MEDIA

−Video

ANALYTICS

−Settings

−Detectors

CarmenBox USER MANUAL

Page 8/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

4. LIVE

After login, the interface navigates to the LIVE tab that shows a live feed of the connected camera

stream.

4.1. FULL-SCREEN MODE

The camera’s live stream can be displayed on full screen by clicking on the icon located in the image’s

bottom-right corner.

To exit from the full-screen mode, press the ESC keyboard key or click on the icon mentioned above.

CarmenBox USER MANUAL

Page 9/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

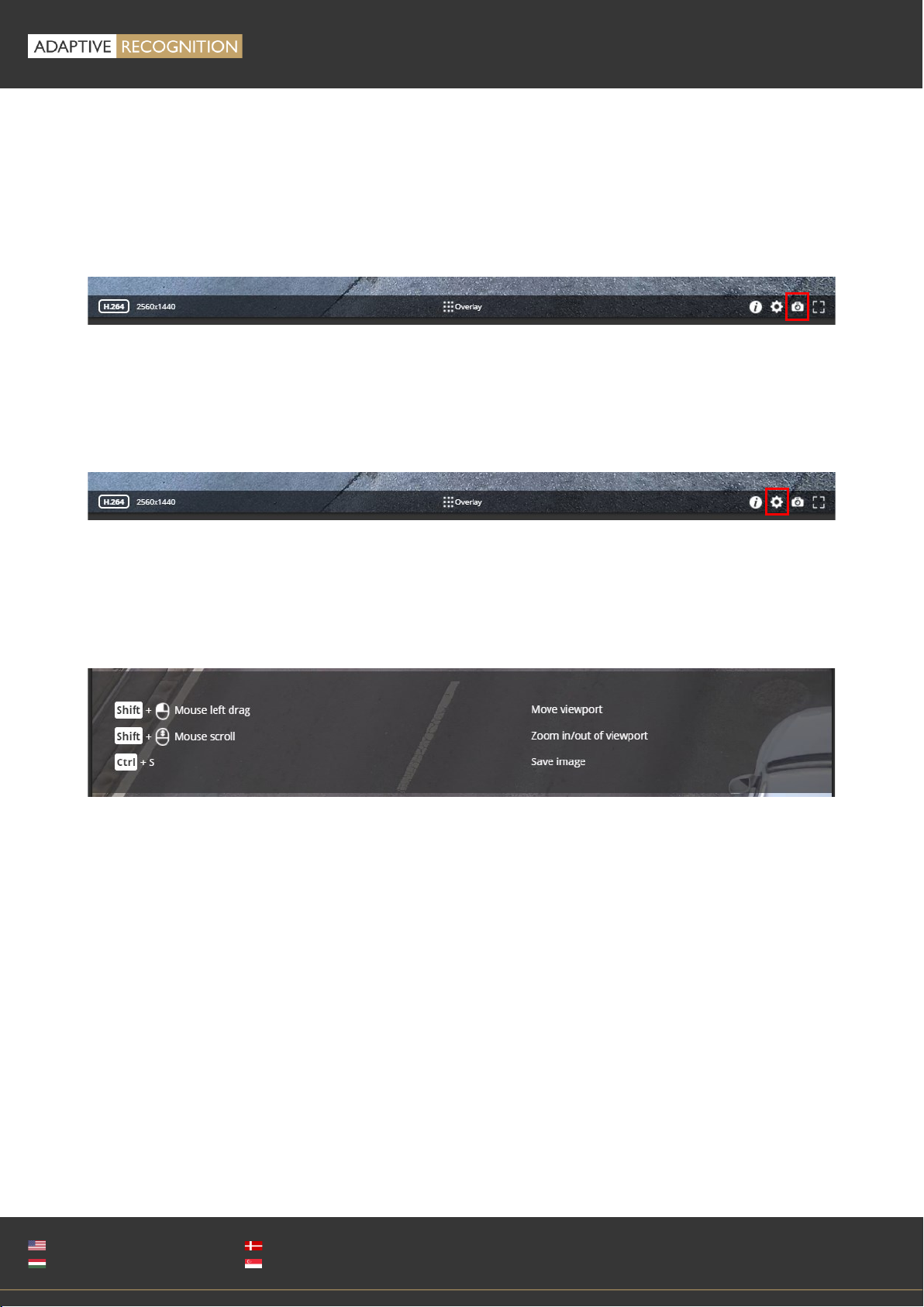

4.2. SAVING IMAGE

Next to the full-screen icon is the Save image icon. By clicking on it, you can save an image of the

current live stream with previously selected OSD information. The CTRL + S keyboard shortcut can be

used as well.

4.3. SWITCHING STREAM

The Streams button is located next to the Save image icon. By clicking on it, you can select which

stream will be displayed as LIVE.

4.4. HELP

Next to the Streams icon is the Help button. It brings up keyboard shortcuts on how to use and navi-

gate the video feed. To exit from the Help OSD, press the Help button or click on “Help OSD”.

4.5. OVERLAY

In the middle, at the bottom of the window, is the Overlay button. With it, you can turn on/off the OSD,

and you can view the masks of the applied detectors, image information, motion data, etc.

The overlay can be displayed in LIVE and PLAYBACK mode, as well as in any submenu of the SET-

TINGS menu where the video stream is visible, e.g. {Media / Video}. The OSD layers come in handy for

observing the internal workflow of the device, setting up the device or troubleshooting.

CarmenBox USER MANUAL

Page 10/48

Adaptive Recognition America

Adaptive Recognition Hungary

Adaptive Recognition Nordic

Adaptive Recognition Singapore

SENDINFO@ADAPTIVERECOGNITION.COM

WWW.ADAPTIVERECOGNITION.COM

The most important parameters relatedtonumber plate recognition can be found on the ANPR Status

OSD, these are the following:

Found/Read: Number of images on which the device has started to detect („Read”) license plate, and

(„Found”) it. Values will be reseted after reboot.

Prefilter: „Processed”means the device try to detect license plate in that image. „Skipped” means the

device does not try to detect any license plate in that image.

Carmen-Engine: „Processed”is displayed when the Carmen ANPR recognition module has processed

an image.

Plate: Recognised license plate result of Carmen engine.

Avg. char height: Character height of recognised license plate.

Confidence: Confidence value of recognised license plate.

Confidence threshold: Minimum confidence value previously set in {ANPR engine}.

Recognition memory: Recognised license plates which will not be recognised again. The time range

while the recognised license plates remain in the memory can be set in {ANPR engine}/”Ignore same

plate for (s)”.

4.6. EVENT PREVIEW

You can find the event preview section under the live stream image, displaying the notifications about

the latest received events.

Basic events (like ANPR) are shown with a purple color and the "EVENT" text. A dark red colored "SIG-

NAL"text indicates a start of a longer event thatlasts for multiple frames. Along event’s endis marked

with the green "RESTORE" text.
