INTRODUCTION

With the Adaptec SCSI Card 29160N PCI-Ultra 160 SCSI controller,

you can connect up to 15 SCSI devices, such as hard disk drives, scan-

ners, CD-ROM drives,and tape drives, to any IBM-compatible comput-

er with PCI expansion slots. The following figure shows the SCSIcon-

nectors on the Adaptec SCSI Card 29160N.

The Adaptec SCSI Card 29160N is designed for computer

system original equipment manufacturers (OEMs). Use this

product with the original computer system designed by the OEM;

each OEM tailors their product specifications for their specific

design needs. Adaptec assumes no responsibility for incompatibility

or consequential damages if you use the Adaptec SCSI Card 29160N

in another computer system. All product support and services are

provided by the OEM.

NOTE

This installation guide provides instructions for

• Installing the Adaptec SCSI Card 29160N

• Setting up SCSI devices

• Connecting SCSI devices

• Installing driver software

Adaptec SCSI Card 29160N

68-pin Internal Ultra160-LVD Connector

50-pin External

High-density Fast/Ultra-SE

Connector

50-pin Internal

Fast/Ultra-SE

Connector

512512final.qxd 12/17/99 2:05 PM Page 1

Bus Segments on the

Adaptec SCSI Card 29160N

The Adaptec SCSI Card 29160N featuresAdaptec SpeedFlex™technol-

ogy. SpeedFlex technology ensures that you get the most performance

from your Ultra160 SCSI devices by electronically isolating the

Ultra160 SCSI segment from the Ultra SCSI segment on the SCSI bus.

With the SpeedFlex advantage,the Adaptec SCSI Card 29160N can

support Ultra160 SCSI devices at speeds up to 160 MBytes/sec while

simultaneously supporting Ultra (legacy) devices at speeds up to 40

MBytes/sec.

If you attach anyWide Ultra or Ultra SCSI devices to the

Ultra160-LVD connector, the data transfer rate for all devices can

run at various speeds. However, if you attach only Ultra160 and

LVD SCSI devices to the Ultra160-LVD connector, all devices will

operate at their maximum possible data transfer rate. That is,

Ultra2 devices will operate at a maximum of 80 MBytes/sec and

Ultra160 devices at a maximum of 160 MBytes/sec.

Ultra SCSI

Segment

50-pin High-density

External Connector

68-pin Internal

Wide Ultra Connector 68-pin Internal

Ultra2 Connector

50-pin Internal

Ultra Connector

Ultra2 SCSI

Segment

AIC-3860

AIC-7890

NOTE

Ultra160-LVD

SCSI Segment

68-pin Internal

Ultra160-LVD

Connector

AIC-7892

50-pin Internal

Fast/Ultra-SE

Connector

50-pin External

High-density

Fast/Ultra-SE

Connector Ultra SCSI

Segment

512512final.qxd 12/17/99 2:05 PM Page 2

Discharge any static electricity build-up before handling your SCSI

card by touching a grounded metal object (like the exposed metal

parts on the back of your computer).

After you turn off your computer and unplug the power cord, remove

the cover from the computer.

Locate an unused PCI expansion slot and remove the expansion slot

cover. (The expansion slot must be compliant with PCI Rev. 2.1 or

higher and must support Bus Mastering.) Save the slot cover screw for

use in Step 4.

Computers may have vertical or horizontal expansion slots. Refer to

your computer manual to locate the PCI slots. If your computer is a

tower model, lay it on its side to allow for easier installation of the

Adaptec SCSI Card 29160N.

INSTALLING THE ADAPTEC SCSI CARD 29160N

Turn OFF power to the computer and disconnect the

power cord.

WARNING

STEP 1

STEP 2

STEP 3

PCI Expansion Slots

(Typically White or Ivory)

Slot Cover Screw

Expansion

Slot Cover

512512final.qxd 12/17/99 2:05 PM Page 3

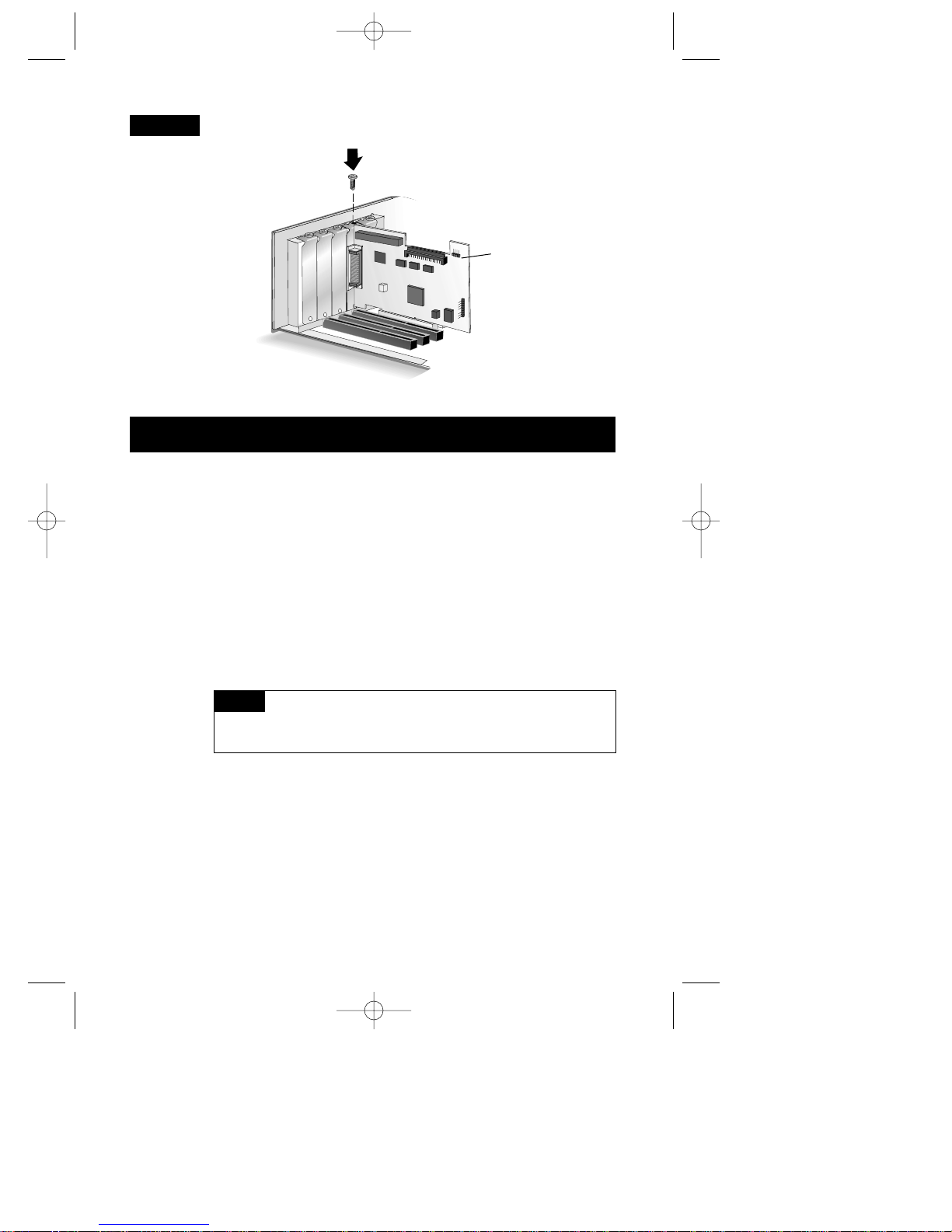

Insert the Adaptec SCSI Card 29160N into the PCI expansion slot;

press down firmly until it clicks into place, then replace the slot cover

screw.

If you refer to the device’s documentation for installation

instructions, be sure to return to this document to continue with

installation of the software driver.

NOTE

There are several things you need to do to your SCSI devices before

you connect them to the Adaptec SCSI Card 29160N:

• Set the SCSI IDs

• Set the termination

• Connect the power cables.

Since setup can vary from device to device, always refer to the device’s

documentation for specific instructions.

Below are some guidelines for setting SCSI IDs and termination on

your devices. Refer to the Adaptec SCSI Card 29160N User’s Reference

for additional information on SCSI IDs and termination.

SETTING UPSCSI DEVICES

STEP 4

Adaptec SCSI Card

29160N Installed in

a PCI Expansion Slot

512512final.qxd 12/17/99 2:05 PM Page 4

Check the SCSI IDs

The Adaptec SCSI Card 29160N and each device you connect to it

must have a unique SCSI ID number ranging from 0 to 15.

No two devices can have the same number.

The Adaptec SCSI Card 29160N is preset to ID 7 and should not be

changed. If you boot from a SCSI hard disk, make sure the hard disk

SCSI ID is set to 0 or 1.Most SCSI hard disks come from the factory

preset to ID 0.The IDs for internal devices are usually set with jumpers;

external devices are usually set with a switch on the back of the device.

Terminate the Ends

To ensure reliable communication on the SCSI bus, the device at the

end of each cable, or the end of the cable itself, must have a terminator

installed (or enabled). Terminators must be removed, or termination

must be disabled, on devices between the ends of each cable.

512512final.qxd 12/17/99 2:05 PM Page 5

You can connect a total of 15 SCSI devices to the Adaptec SCSI Card

29160N. Before connecting devices, be sure to also review Setting Up

SCSI Devices on page 4.

We recommend that you keep your Ultra160-LVD devices

separate from your Ultra devices. Connecting an Ultra

device to the Ultra 160-LVD SCSI connector forces the Ultra160-

LVD SCSI segment and any attached devices to drop down to Ultra

SCSI performance levels. (See Bus Segments on the Adaptec SCSI

Card 29160N on page 2.)

NOTE

Locate the 68-pin internal LVD SCSI cable, as shown below:

CONNECTING SCSI DEVICES

STEP 1

Internal Ultra 160-LVD SCSI Connector

(68-pin)

Connect internal LVD and Ultra 160-LVD devices using the internal

Ultra160-LVD connector. To do this, use a 68-pin internal LVD cable,

similar to the one shown in Step 1 below. Follow these steps to connect

your internal LVD and Ultra160 devices:

Terminator Connect to Ultra160-LVD and

Ultra2 Devices Connect to the Adaptec

SCSI Card 29160N

512512final.qxd 12/17/99 2:05 PM Page 6

Plug the remaining cable connectors to your internal LVD SCSI or

Ultra160-LVD devices.

STEP 2

STEP 3

Terminator on Cable

LVD/Ultra160-LVD SCSI Devices

68-pin Internal Ultra160-LVD SCSI Connector

68-pin Internal LVD SCSI Cable

Plug the non-terminated end of the cable to the Ultra160-LVD

connector on theAdaptec SCSI Card 29160N.

Internal LVD SCSI or Ultra160 SCSI devices come from

the factory with termination disabled and cannot be changed.

Proper termination is provided by the terminator at the end of the

LVD SCSI cable.

NOTE

(Continued on the other side)

512512final.qxd 12/17/99 2:05 PM Page 7

Connect to Adaptec SCSI Card 29160N

Connect to Fast/Ultra Narrow

Device (Not terminated)

Connect to Fast/Ultra Narrow

Device (Terminated)

SCSI or Ultra Narrow SCSI devices have standard 50-pin connectors.

To connect these internal devices, you will need a 50-pin internal Ultra

SCSI cable,similar to the one shown in Step 1 below.Follow these

steps to connect your standard internal Fast SCSI or Ultra Narrow

devices:

Locate the 50-pin internal Ultra SCSI cable.

STEP 1

Plug the long end of the cable to the 50-pin internal Fast/Ultra-SE

SCSI connector.

Plug the other end of the cable to a terminated Fast SCSI or Ultra

Narrow SCSI device.

STEP 2

STEP 3

50-pin Internal Fast/Ultra-SE SCSI Connector

50-pin Internal Ultra SCSI Cable

Internal Fast/Ultra-SE SCSI Connector

(50-pin)

512512final.qxd 12/17/99 2:05 PM Page 8

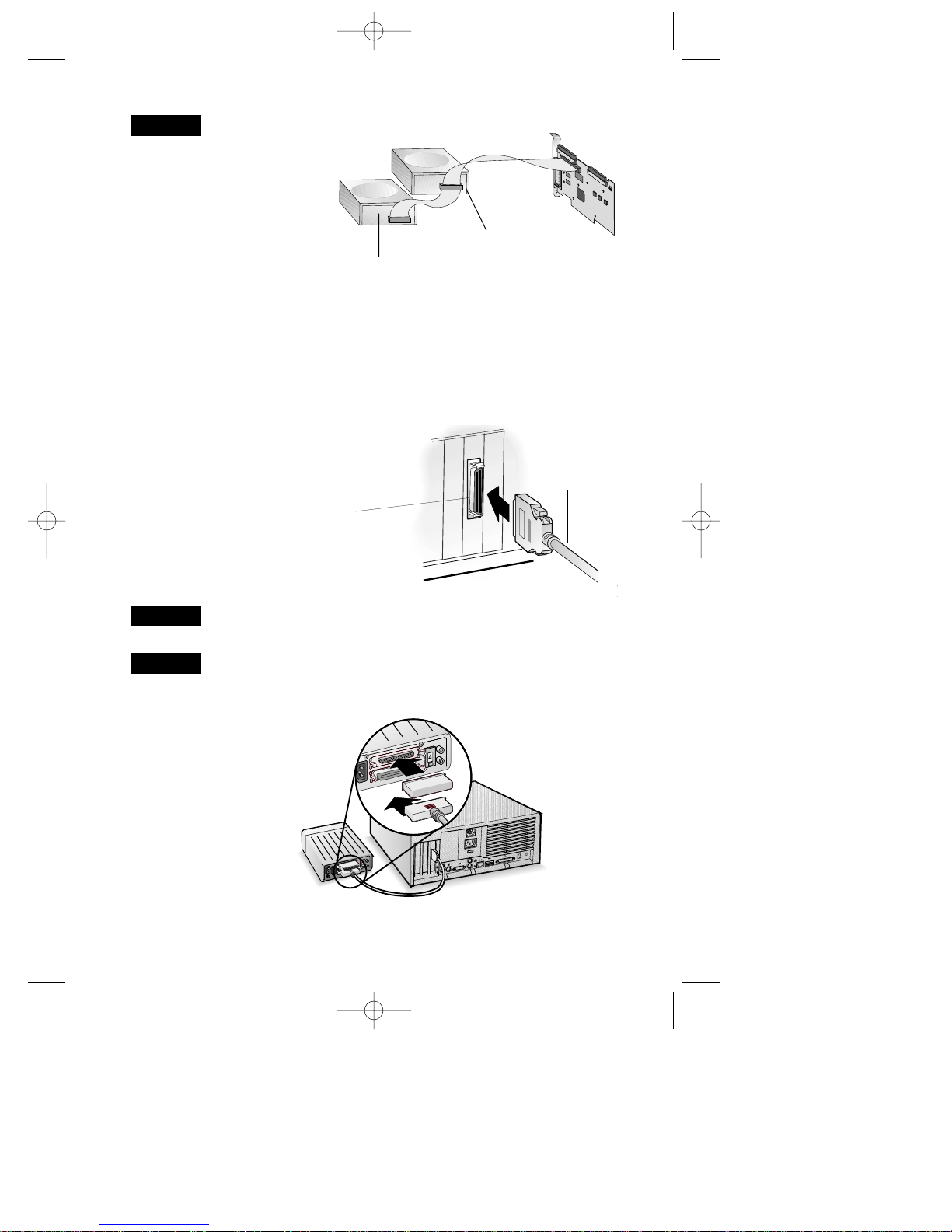

STEP 2

Connect one end of the external SCSI cable to the 50-pin high-

density external connector on the Adaptec SCSI Card 29160N.

Connect the other end of the external SCSI cable to a SCSI connector

on the back of the external SCSI device. If you are installing only one

external device, terminate the device and skip to Step 4.

STEP 1

nal device, you will need to obtain a 50-pin external SCSI cable. Follow

these steps to connect your standard external devices:

50-pin External High

Density SCSI Cable

50-pin High-density Fast/

Ultra-SE External Connector

External Fast/Ultra-SE SCSI Connector

(50-pin)

Use the external Fast/Ultra-SE SCSI connector to connect your stan-

dard external SCSI devices that have 50-pin connectors. For each exter-

To connect a second Fast SCSI or Ultra Narrow

SCSI device, plug the middle

connector of the cable to

the device. The

device must not be

terminated.

Terminated SCSI Device

STEP 4

Unterminated SCSI Device

512512final.qxd 12/17/99 2:05 PM Page 9

STEP 3

STEP 4

Connect other external devices by connecting each device to the previ-

ous one until all devices are connected.The device at the end of the

chain must be the only external

device that is terminated.

Connect power cables to all internal and external devices and to the

computer.

Terminated SCSI

Device

INSTALLING DRIVER SOFTWARE

To use the Adaptec SCSI Card 29160N,driver software

must be installed for your operating system. Installation of

the driver software varies depending on how and where you pur-

chased the Adaptec SCSI Card 29160N.

Pre-loaded Adaptec Drivers

If the Adaptec SCSI Card 29160N was included as part of a computer

system you purchased, the system already has the appropriate Adaptec

driver pre-installed by the computer manufacturer. No further action

is necessary to install the driver.

NOTE

512512final.qxd 12/17/99 2:05 PM Page 10

Table des matières

Autres manuels Adaptec Contrôleurs

Adaptec

Adaptec 2256100-R Manuel utilisateur

Adaptec

Adaptec 39160 Manuel utilisateur

Adaptec

Adaptec 2025ZCR - SCSI RAID Storage Controller Manuel utilisateur

Adaptec

Adaptec 1420SA - Serial ATA II RAID Controller Manuel utilisateur

Adaptec

Adaptec ICP 5045BL Manuel utilisateur

Adaptec

Adaptec ACB-2070A Manuel utilisateur

Adaptec

Adaptec 1420SA - Serial ATA II RAID Controller Manuel utilisateur

Adaptec

Adaptec 2074700-R - ICP Vortex GDT8514RZ RAID... Manuel utilisateur

Adaptec

Adaptec RAID 2810SA Comment utiliser

Adaptec

Adaptec OnTarget Manuel utilisateur

Adaptec

Adaptec AAR-2420SA Feuille d'instructions

Adaptec

Adaptec GDT8546RZ - ICP Vortex RAID Controller Manuel utilisateur

Adaptec

Adaptec 29320-R - SCSI Card RAID Controller Manuel utilisateur

Adaptec

Adaptec 29160LP - SCSI Card Storage Controller U160 160... Manuel utilisateur

Adaptec

Adaptec 2120S - SCSI RAID Controller Manuel utilisateur

Adaptec

Adaptec RAID 21610SA Manuel utilisateur

Adaptec

Adaptec AAR-2420SA Feuille d'instructions

Adaptec

Adaptec ICP 5045BL Mode d’emploi

Adaptec

Adaptec AEC-4412B Manuel utilisateur

Adaptec

Adaptec 2930U2 - Storage Controller Ultra2 SCSI 80... Manuel de service

Adaptec

Adaptec ACB-2071 Manuel utilisateur

Adaptec

Adaptec ACB-2072A Manuel utilisateur

Adaptec

Adaptec ACB-2322B Manuel utilisateur

Adaptec

Adaptec PowerDomain 29160 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
