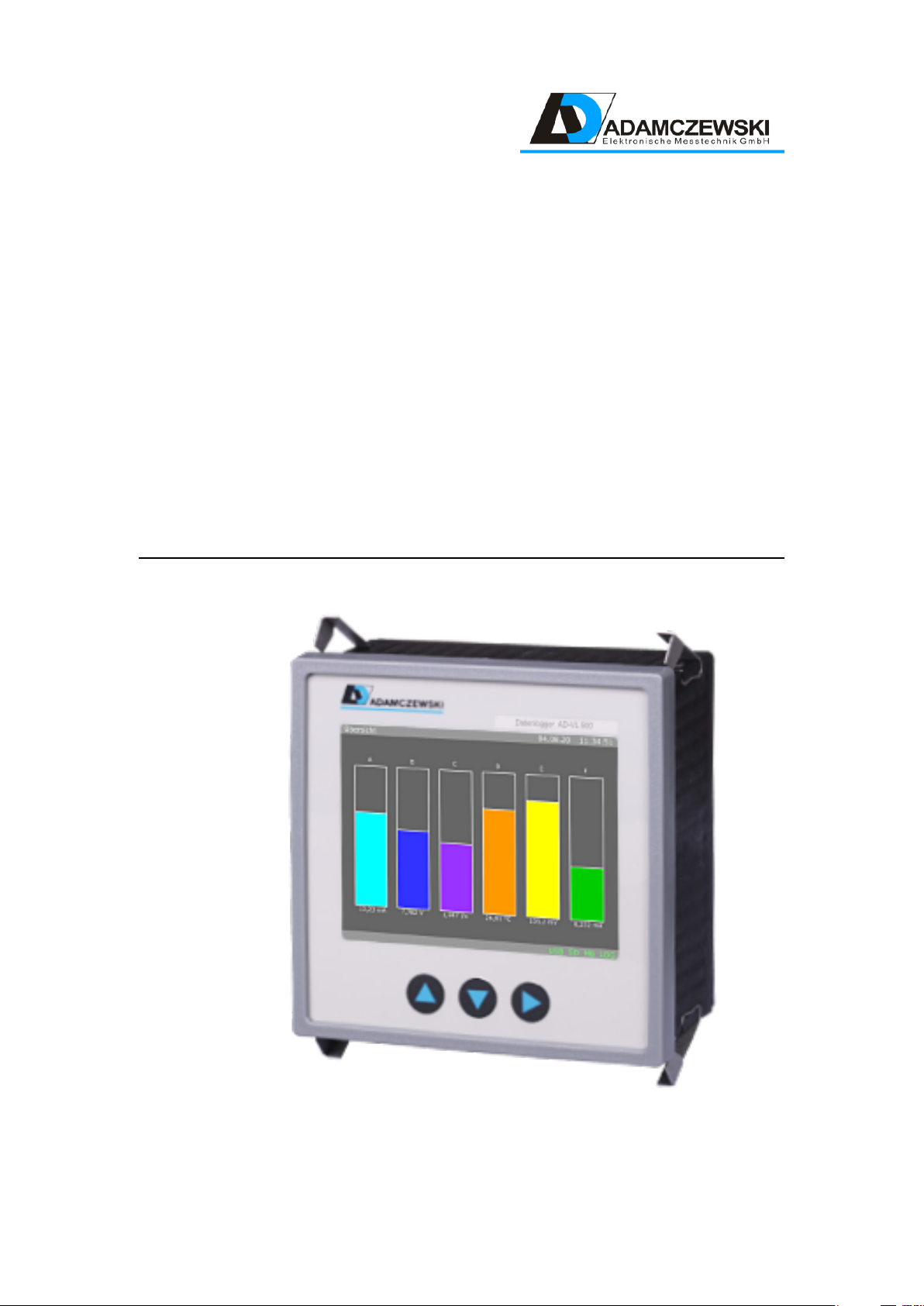

Adamczewski AD-VL 500 Manuel utilisateur

Display device, control unit and data logger

AD-VL 500

Manual

Version 1.0 / 2023-04-05

Contents

1 About this manual 4

1.1 Structure of the warnings ........................ 4

2 Safety 5

3 Product description 7

3.1 Block diagram .............................. 8

3.2 Display and operating elements ..................... 9

3.2.1 Status bars ............................ 9

4 Technical data 10

4.1 Supply .................................. 10

4.2 Housing ................................. 10

4.3 Environmental conditions ........................ 10

4.4 EMC ................................... 10

4.5 Electrical safety ............................. 10

4.6 Analogue inputs ............................. 11

4.6.1 Current inputs .......................... 11

4.6.2 Voltage inputs .......................... 11

4.6.3 Counter ............................. 11

4.7 Interfaces ................................. 11

4.7.1 RS485 interface ......................... 11

4.8 Conﬁguration interface .......................... 11

4.8.1 Network interface ........................ 12

4.8.2 USB-Interface .......................... 12

4.9 Display .................................. 12

4.10 Operation ................................ 12

5 Assembly and commissioning 13

6 Operation and menu navigation 14

6.1 Key functions .............................. 14

6.2 Normal operation ............................ 14

6.3 Window navigation ............................ 15

7 Conﬁguration 16

7.1 Analogue channel setup ......................... 16

7.2 Conﬁguration menu ........................... 16

7.2.1 Device information ........................ 16

7.2.2 Analogue inputs ......................... 17

7.2.3 Windows ............................. 18

7.2.4 Display elements ......................... 18

7.2.5 Log channels ........................... 24

7.2.6 Log settings ........................... 25

7.2.7 Options .............................. 28

7.2.8 Network ............................. 28

7.2.9 RS485 .............................. 28

7.2.10 Delete ﬁles ............................ 29

7.2.11 Conﬁguration .......................... 29

7.2.12 Backup to USB ......................... 29

8 Modbus 30

8.1 Basics .................................. 30

8.2 AD-VL 500 Data register ........................ 33

8.2.1 Local Modbus register ...................... 33

8.2.2 Modbus virtual registers ..................... 34

9 Wiring diagram 35

10 Network connection 37

10.1 Connection ................................ 37

10.2 Protocols ................................. 37

10.3 Data security ............................... 38

10.4 Navigation ................................ 38

10.5 Homepage ................................ 39

10.6 Conﬁguration ............................... 40

10.7 Conﬁguration pages ........................... 41

10.7.1 Device information ........................ 42

10.7.2 Analogue inputs ......................... 43

10.7.3 Conﬁguration windows ...................... 45

10.7.4 Display elements ......................... 46

10.7.5 Log channels ........................... 47

10.7.6 Log settings ........................... 48

10.7.7 Options .............................. 49

10.7.8 Conﬁguration ﬁles ........................ 50

10.7.9 Network ............................. 50

10.7.10 RS485 .............................. 51

10.8 Find devices in the network ....................... 52

10.8.1 Automated device call-up .................... 52

10.8.2 Manual unit call ......................... 52

11 Storage management and data formats of the ﬁles 53

11.1 Storage space management ....................... 53

11.2 Data structure .............................. 53

11.2.1 Memory requirements on the SD card .............. 54

11.3 Logﬁle .................................. 54

12 Maintenance and servicing 55

12.1 Firmwareupdate ............................. 55

12.1.1 Firmwareupdate with Conﬁguration software AD-Studio . . . . 55

13 Help with faults 56

14 Appendix 57

14.1 Address of the manufacturer ....................... 57

14.2 Data evaluation ............................. 57

14.3 Device operating instructions ...................... 57

14.4 Device data sheet ............................ 57

1 About this manual

This manual is part of the product.

•Read the manual carefully before using the device.

•Keep the manual for the entire service life of the product and have it available

for reference.

•Pass the manual on to any subsequent owner or user of the product.

1.1 Structure of the warnings

Please consider the documentation. This symbol is intended to

warn you of possible hazards that could arise during assembly,

commissioning and use.

•Here, actions to avoid the danger are available.

•...

Structure of the hazard warnings

Danger to life or serious injury. Disconnect the system and the

unit from the power supply before starting work..

•Here, actions to avoid the danger are available.

•...

2 Safety

Intended use

The operating, maintenance and servicing conditions prescribed

in this manual must be strictly observed. Maintenance conditions

must be strictly adhered to.

The AD-VL 500 is intended for connection to an RS-485 interface to which other de-

vices are connected in bus mode.

The AD-VL 500 can be connected to a PC or laptop via the conﬁguration interface.

The AD-VL 500 is intended for installation in front panels of control cabinets.

The AD-VL 500 has a connection for the supply voltage and can be supplied with AC

voltage up to 250V AC or 24V DC.

Any other use is not in accordance with the intended use!Unauthorised conversions

and modiﬁcations to the product lead to considerable safety risks and are prohibited

for safety reasons! Adamczewski elektronische Messtechnik GmbH is not liable for any

damage resulting from this or for damage or for damage resulting from improper use.

Malfunctions that may impair safety must be eliminated immediately! The installer

must make the manual available to the operator. The installer and the operator must

have read and understood the manual before starting their work.

Foreseeable misuse

In particular, this product must not be used in the following cases:

•In potentially explosive atmospheres. When operating in potentially explosive

atmospheres, sparking may cause deﬂagration, ﬁre or explosion.

•Use on humans and animals.

Safe handling

This product complies with the state of the art and the recognised safety regulations.

Each unit is tested for function and safety before delivery.

Only operate this product when it is in perfect condition, taking into account the man-

ual, the usual regulations and guidelines as well as the applicable safety regulations

and accident prevention regulations.

Extreme environmental conditions aﬀect the function of the product.

•Protect product from shocks

•Use product indoors only

•Protect product from moisture

Qualiﬁcation of the staff

Installation, commissioning, operation, maintenance, decommissioning and disposal

may only be carried out by technically qualiﬁed personnel. Work on electrical parts

may only be carried out by trained in accordance with the applicable regulations and

directives.

Changes to the product

Unauthorised modiﬁcations to the product can lead to malfunctions and are prohibited

for safety reasons.

Use of spare parts and accessories

The use of unsuitable spare parts and accessories can damage the product. Please use

only original spare parts and accessories from the manufacturer.

Disclaimer

The manufacturer accepts no liability or warranty for damage or consequential dam-

age resulting from failure to comply with the technical regulations, instructions and

recommendations. The manufacturer is not liable for any costs or damage incurred

by the user or third parties as a result of the use of this appliance, especially in the

event of improper use, misuse or malfunctions of the connection, malfunctions of the

appliance or connected devices.

3 Product description

The AD-VL 500 is a display, control unit and data logger for front panel installation.

Measured values are displayed on a graphics-capable 3.5” TFT display.

Numerical data can be displayed in tabular form on an HTTP page.

The AD-VL 500 is primarily used for the acquisition and logging of up to eight ana-

logue measurement signals. It can still be connected via its RS-485 interface to one

or more units of the Adamczewski elektronische Messtechnik GmbH or also to units

of other manufacturers. Any data from these units can be displayed and/or logged to

an internal SD memory card. The stored data can be transferred to a USB stick for

further analysis at any time. The download of individual log ﬁles is also possible via

the web interface.

The AD-VL 500 communicates with the connected devices (slaves) via the Modbus

protocol and is always the Modbus master.

Features

•Display unit and data logger for front panel installation

•Buﬀered real time clock

•Display via graphics-capable TFT display

•RS-485 interface with Modbus RTU protocol

•USB connection for external data carriers

•PC interface or LAN interface for conﬁguration or ﬁrmware update

•Creating your own displays with the Conﬁguration software AD-Studio or web

interface

•8 analogue inputs for standard signals, current/voltage

•8 counters (software, conﬁgurable, derived from the analogue inputs)

•Integrated linearisation formulas or table for tank contents

•Up to 10 conﬁgurable windows

•Up to 40 conﬁgurable display elements in total

•Up to 12 conﬁgurable display elements per window

•Up to 32 conﬁgurable logical signal channels.

•Display element types: Numeric, Bar, LED, Time Chart, Drag Pointer

•Conﬁgurable display element properties: position, size, labelling, colors

•Display element functions: Color change deﬁnable by hysteresis or window func-

tion

•Three operating languages: German, English, French

Scope of supply

•AD-VL 500

•All required pluggable terminals

•This instruction manual

The optional USB programming adapter VarioPass is required for conﬁguration with

the Conﬁguration software AD-Studio .

Order code

AD-VL 500 RS-485 interface, conﬁguration interface, USB port, Ethernet.

VarioPass (option) USB adapter for conﬁguration and ﬁrmware update.

3.1 Block diagram

Figure 3.1: Block diagram of the AD-VL 500

The connections 1...8 mark the analogue input terminals that are physically present.

3.2 Display and operating elements

The AD-VL 500 has a color graphics-capable TFT display for showing the data and

three buttons for manual operation and conﬁguration.

Figure 3.2: Display and operating elements of the AD-VL 500

Key ’Up’ Scroll up; increment digit

Key ’Down’ Scroll down; decrement digit

Key ’Set’ Conﬁrm input

3.2.1 Status bars

In each display state, a header and footer bar with a grey background are shown in the

display with status information.

The header bar contains the following status information, from left to right:

•Window number: [1]...[10]

•Window description: freely deﬁnable description text

•Date stamp: current date

•Time stamp: current time

The footer contains the following status information, from right to left:

•LOG, for data logger function

•MB, for Modbus communication

•SD, for internal memory card

•USB, for external storage medium (USB stick)

•LAN, for network status

•DHCP, for IP address reference

•ADC, is only displayed in the event of a hardware error, colored red

•Function text Autoscroll, Read/Write UART/RS485

The display within the footer follows a color scheme:

inactive = black, active = green, error = red, info text/data traﬃc = yellow

4 Technical data

4.1 Supply

Designation Value

Supply voltage AC 50 ... 253 V

Supply voltage DC 20 ... 253 V

Max. Power consumption 3,0W / 5,0VA

4.2 Housing

Designation Value

Dimensions (WxHxD) 96x96x63 mm

Panel cut-out 92x92 mm

Protection class front cover IP 54

Protection class terminals IP 20

Connection technology removable screw terminals

Construction panel housing

Weight 350 g

4.3 Environmental conditions

Designation Value

Ambient temperature -10 ... 50 ◦C

Storage and transport -10 ... 70 ◦C (avoid condensation)

Degree of contamination 2

4.4 EMC

Designation Value

Product family standard EN 61326

Emitted interference EN 55011, CISPR11 Class B

4.5 Electrical safety

Designation Value

Product family standard EN 61010-1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Adamczewski Enregistreur de données

Adamczewski

Adamczewski AD-MM 500 FE Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
