2.0 INTRODUCTION
2.1 INTRODUCTION
The SHS Series is a range of heavy-duty lower capacity crane scales
The main features include:
•Easy Operation & Rugged construction
•15mm bright red LED display enabling a good viewing angle.
•360 degree rotary safety hook and support ring design
•Overload safety up to 150% of model capacity
•Selectable weighing units include kg, Lbs and Newtons
•Hold feature
•Internal lithium battery fitted as standard
•Alternative power from AA or NiMH batteries
•Auto power off after 30 minutes of non use
•8.4Vdc 800ma battery charger
•Strong ABS plastic housing
•Infrared remote control
3
© Adam Equipment Company 2012
2.2 TECHNICAL
SPECIFICATIONS
Model No. Capacity Division
SHS-50
50kg 0.01kg
SHS-150
150kg 0.02kg
SHS- 00
300kg 0.05kg
4
© Adam Equipment Company 2012
2.3 SAFETY
NOTICE
The limit stated below is the Ultimate Overload Limits of the scales.
Adam Equipment Co. Ltd. Its directors, owners and affiliated companies and
organisations cannot be held liable for any resulting damage or injury sustained as a
result of the machines being used in excess of their stated capacities or ultimate
overload limits.
Model No. SHS 50 SHS 150 SHS 00
Max
capacity
50kg 150kg 300kg
Overload
capacity
100kg 300kg 450kg
NOTICE:
Do not use the scales if any parts are bent or loose or show signs of damage or wear.
Refer to the user manual.
5
© Adam Equipment Company 2012
2.4 KEY
AND
PANEL
DESCRIPTION
[ON/OFF]
The power switch is located on the rear housing. Use this key to
turn the scale ON and OFF.
[ZERO]
Press the [ZERO] key to return the reading to zero.
[UNIT]
Press the [UNIT] key to change the weighing unit being
displayed. Kg, Lbs and Newtons are available.
[HOLD]
Use this key to hold the display. When pressed an LED will light at
the top left side of the display and the reading on the display will
lock and flash. Press the [HOLD] key again to cancel the [HOLD]
function.
2.5 DISPLAY
INDICATIONS
WITH
LED
Kg lb N
Weighing unit Indicator
Low battery Indicator
Hold
Hold Indicator
Stab
Stable Indicator
6
© Adam Equipment Company 2012
.0 OPERATION
3.1 SAFETY
INSTRUCTIONS
Read this manual carefully before you operate the SHS Crane Scale.
•Unpack the Crane Scale carefully from the packaging.
•Attach it to your hoist or equivalent existing equipment securely at the
ground level to the support ring in the upright position. Make sure that
the equipment to which the scale is attached is in proper condition. The
operator should be trained for its safe operation.
•Carry out regular visual inspection for any damage or wear and tear on
parts. The split pins in particular at the hook and eyebolts, as well as the
inner wall of the hook and all joints should be checked regularly. If any
damage or wear has taken place, stop using the scale and replace the
parts.
•Do all inspection and maintenance work when the scale is not in use.
•Do not expose the scale to extreme temperatures. The operating
temperature range is 0° C to 40° C.
•Secure the sample to be weighed in the hook of the scale. Ensure that
the sprung Safety Lever returns to its resting position which prevents
the sample from slipping out of the hook.
•Do not exceed the maximum capacity of the Scale .
•Clean and protect your scale after use.
7
© Adam Equipment Company 2012
3.2 BATTERY
OPERATION
•The lithium battery will operate continuously for 20 hours before
requiring recharging. The scale will alert you that the battery is low on
charge when the Indicator LED above the battery symbol lights up.
•To charge the battery, unclip the battery cover on the rear of the scale
and insert the connector into the socket as marked. Plug the charger
into the mains power supply and wait until the LED on the charger
shows green. The battery is now fully charged.
•Charging time for a completely discharged battery is approximately 16
hours. A full battery pack is recommended to keep the scale
continuously operational.
•Only use the charger as supplied with the unit.
•The switch inside the battery cover must be in position A to make use
of the lithium battery.
•If using AA or NiMH batteries the switch must be in position B
•The scale will automatically power down after 30 minutes of non use to
further protect the battery.
•To replace the lithium battery pack please contact your dealer
8
© Adam Equipment Company 2012
3.3 BASIC
OPERATIONS
Power on and off
Press the [ON/OFF] button to turn the scale on or off. The display on the scale
will show the model capacity then countdown from 9 to 0 before displaying
ZERO weight.
Zero the scale
Press the [Zero] key so that the display shows zero.
Hold
When the reading may not be perfectly stable or you cannot view a reading
easily you can press the [HOLD] key to lock it. The reading will be locked and also
flash at the point you press the [HOLD] button enabling you to view it when you
can. Once you have noted the reading, press [HOLD] again to return to normal
weighing mode.
Overload Warning
Please do not add any item that exceeds the maximum capacity of the scale.
When the display shows”- - - - - ” remove the item to avoid damage to the load
cell and scale.
9
© Adam Equipment Company 2012

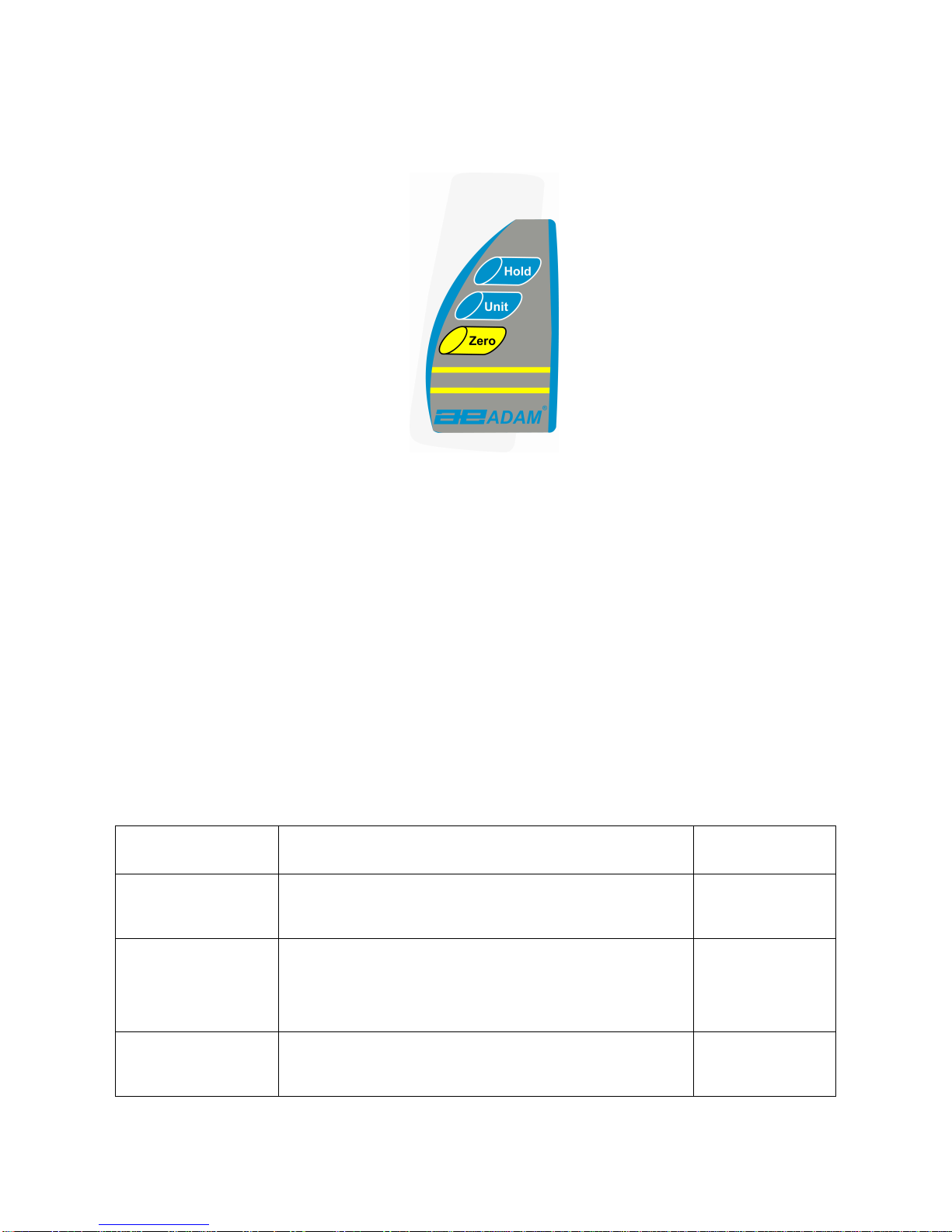

3.4 REMOTE
CONTROL
UNIT
The remote control works via infra red and can be used to operate the SHS from
long distances. It operates using 2 x AAA batteries and these can be exchanged by
unclipping a cover on the rear of the remote control unit.
3.5 USER
PARAMETERS
Three USER settable parameters are available on the SHS, to access these power
up the scale and whilst the display is counting down press and then release the
[UNIT] button. The display should show Bee 0 which is the first of the parameters.
Press the [HOLD] button to change the setting, and the [ZERO] button to move to
the next setting.
Parameter setting table.
FUNCTION DESCRIPTION DEFAULT
B
EE Sets buzzer
0: Disable
1: Enable
0
CH
T
Sets weighing unit on power up
0: kg
1: Lb’s
2: Newtons
0
YES Sets save:
0: not saved
1: save new settings
0
