Encoder Firmware V4.06.09 User’s Manual

Outdoor PTZ Camera

Hardware Manual

KCM-8211

2013/10/24

www.acti.com

Hardware Manual

Table of Contents

Precautions.............................................................4

Safety Instructions .................................................................................... 6

Introduction.............................................................7

List of Models............................................................................................. 7

Package Contents...................................................................................... 8

Physical Description ................................................................................. 9

Installation............................................................. 11

Step 1: Unpack the Camera .....................................................................11

Step 2: Mount the Camera ...................................................................... 13

Mounting Options.................................................................................. 13

Other Mounting Accessories ................................................................. 14

How to Mount the Outdoor PTZ............................................................ 15

Step 3: Waterproof the Cable Connections........................................... 17

How to Waterproof the Cable Using the Cable Gland........................... 18

How to Waterproof the Cable Using the Conduit Gland........................ 22

How to Use the Junction Box................................................................ 26

Step 4: Connect the Equipment.............................................................. 28

How to View the Camera on Your PC ................................................... 28

Accessing the Camera .........................................29

Configure the IP Addresses.................................................................... 29

Access the Camera.................................................................................. 33

www.acti.com

Hardware Manual

Appendix ...............................................................35

How to Connect Digital Input / Digital Output Devices......................... 35

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instructions given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather.

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions:

1) When the power-supply cord or plug is damaged.

2) If liquid has been spilled or objects have fallen into the video product.

3) If the inner parts of the video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following model:

KCM-8211

2MP Outdoor PTZ Camera with D/N, Advanced WDR, SLLS, 18x

Zoom lens

www.acti.com

Hardware Manual

Package Contents

Check if the following items come with the camera package. If any of them is missing, please

contact your local sales agents or the Customer Help Desk (CHD).

Camera

Power Cord

Power Adaptor

Cable Gland

Conduit Gland

Gland Rubber Rings (x2)

Allen Wrench

Screws

Thread Seal Tape

Quick Installation Guide

Warranty Card

www.acti.com

Hardware Manual

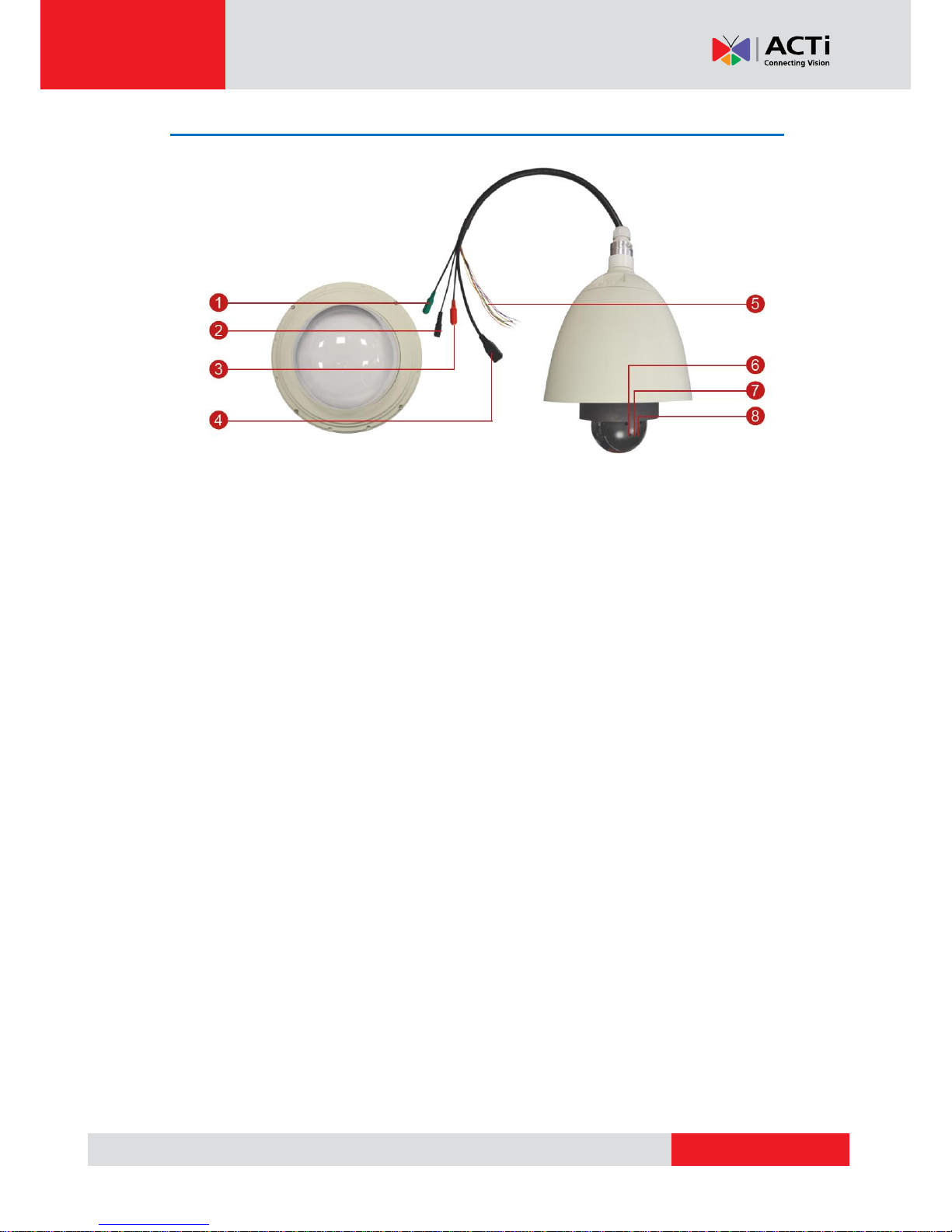

Physical Description

1) Audio Output

This jack connects to an audio output device, such as a speaker.

2) DC 12V Power Input

This jack connects to the power adaptor and power cord to supply power to the camera.

3) Audio Input

This jack connects to an audio input device, such as a microphone with built-in amplifier.

Note: Make sure that the connected audio input device has a built-in amplifier. Connecting an

ordinary microphone will dwarf sounds and will result in inaudible recording.

4) Ethernet Port

The Ethernet port connects to a network using a standard Ethernet cable.

5) Digital Input / Output

The colored cables connect to digital input or output devices, such as an alarm trigger, panic

button, etc. Digital Input (DI) and Digital Output (DO) devices are used for applications like motion

detection, event triggering, alarm notifications, etc. Please refer to How to Connect Digital Input /

Digital Output Devices on page 35 for information on how to connect DI/DO devices to your

camera.

www.acti.com

Hardware Manual

6) Power Button

The power button is used to restart the camera. In case there is a need to restart the camera,

press the power button (using a pointed object, such as a pen or pin).

7) Power LED

The Power LED lights red when the camera is powered up.

8) Reset Button

The reset button is used to restore the factory default settings of the camera, including the

administrator’s password.

The reset button can be used for following purposes:

1. The administrator’s password has been forgotten and therefore the camera cannot be

accessed.

2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to

modify these settings.

3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Step 1: Disconnect the power supply (e.g. disconnect the power adaptor or the high PoE

injector).

Step 2: Press and continue to hold the reset button (using a pin).

Step 3: Connect the power supply while keeping the reset button pressed.

Step 4: Wait for 45 seconds and release the reset button.
