ACTi CAM-5300H Manuel utilisateur
Full D1 480TVL IP Camera
CAM-5300H/CAM-5301H
Full D1 480TVL Day&Night IP Camera
CAM-5320H/CAM-5321H
Ver. 061031
Quick Installation Guide
Table of Contents
1Getting Started _________________________________________________ 1-1
1.1 PACKAGE CONTENTS _________________________________________ 1-1
1.2 PHYSICAL DESCRIPTION ______________________________________ 1-2
1.3 CONNECT NECESSARY CABLES _______________________________ 1-6
2Quick Tour ____________________________________________________ 2-1
2.1 Configure the IP Camera _______________________________________ 2-1
2.1.1 Make sure network environment _________________________________________ 2-1
2.1.2 Open Internet Explorer with IP address____________________________________ 2-2
2.1.3 Login with default administrator’s account & password_______________________ 2-2
2.1.4 Preview the Video ____________________________________________________ 2-3
2.1.5 Set the new IP address_________________________________________________ 2-4
2.1.6 Check Default Video Setting____________________________________________ 2-5
2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system
reboot. ___________________________________________________________________ 2-5
1-1
1Getting Started
1.1 PACKAGE CONTENTS
CAM-5300H/5301H Warranty Card
CAM-5320H/5321H
SoftwareCD TerminalBlocksforPower&DI/O
Power Adaptor (Option) Accessory
1
1-2
1.2 PHYSICAL DESCRIPTION
1. Auto Iris
Video / DC (switchable)
2. Video DC Level Adjustment
3. CCD Functions
zAuto Electronic Shutter Speed Mode
AES On: 1/50 (60) sec. ~ 1/100,000 sec;
AES Off: 1/50 (60) sec.
zBack Light Compensation
ON/OFF (Switchable)
zFlickless
ON/OFF (Switchable)
zAutomatic Gain Control
ON/OFF (Switchable)
zAuto White Balance
AWB / Push Lock WB Mode
1-3
4. WAN port
The IP Camera connects to the WAN (wide area network) via a
standard RJ45 connector. Supporting NWAY, this IP camera can
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet). The WAN port is for FTTH
and can connect to a xDSL or cable modem.
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will get the power from the first power input plugged into
it.
5. Power Input
DC 12V input.
PIN NAME DESCRIPTION
1 12V Power Input (DC +12V)
2 GND Ground Pin of Power Input
3 X No Connection
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will get the power from the first power input plugged into
it.
6. Analog Video Output
The IP camera supports one channel analog video output.
7. LAN port
The IP Camera connects to the LAN (local area network) via a
standard RJ45 connector. Supporting NWAY, this IP camera can
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
1-4
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet).
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will get the power from the first power input plugged into
it.
8. Reset Button
Step 1: Switch off IP camera by disconnecting the power cable
Step 2: Using a suitable pointed object, press and continue to hold
the Reset Button depressed. While continuing to hold the reset
button depressed, reconnect the power cable.
Step 3: Keep holding the reset button depressed around 6 seconds,
release the reset button. The unit will start up with factory default
settings.
9. Action LED Indicator
The LED will light up after IP camera has successfully completed
the boot process.
10. DI/O
The IP Camera supports one alarm input and one alarm output.
DI: Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V
DO: Logic Level 0: 0.1~0.6V; Logic Level1: 2.4~5V
PIN NAME DESCRIPTION
1 GND Ground Pin
2 DI Digital Input
3 GND Ground Pin
4 DO Digital Output
NOTE: You may find a support package for help you getting
familiar with PoE. Please visit our web site, and get the support
document TS-00040.
1-6
1.3 CONNECT NECESSARY CABLES
The Ethernet cable and power cable are necessary for previewing function.
Make sure all cables are correctly and firmly connected.
1. Connect an analog monitor to IP Camera video out (BNC connector).
2. Connect the power adaptor to IP Camera
3. Connect IP Camera’s LAN port to an Ethernet (RJ45 connectors). If your
IP camera has PoE built-in, you can regard it as a PD and connect it
directly to a PSE device like PoE switch.
4. Connect a PC to the Ethernet hub (RJ45 connectors)
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
2-1
2Quick Tour
This section guides you with a quick tour on IP camera.
2.1 Configure the IP Camera
2.1.1 Make sure network environment
Default IP of IP camera is 192.168.0.100. Please make sure IP camera and
your PC are on the same network segment before running the installation.
2
Please set the settings as
below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a
number from 1 to 254, but 100
is excepted.)
2-2
2.1.2 Open Internet Explorer with IP address
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: The IP camera default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account &
password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.
2-3

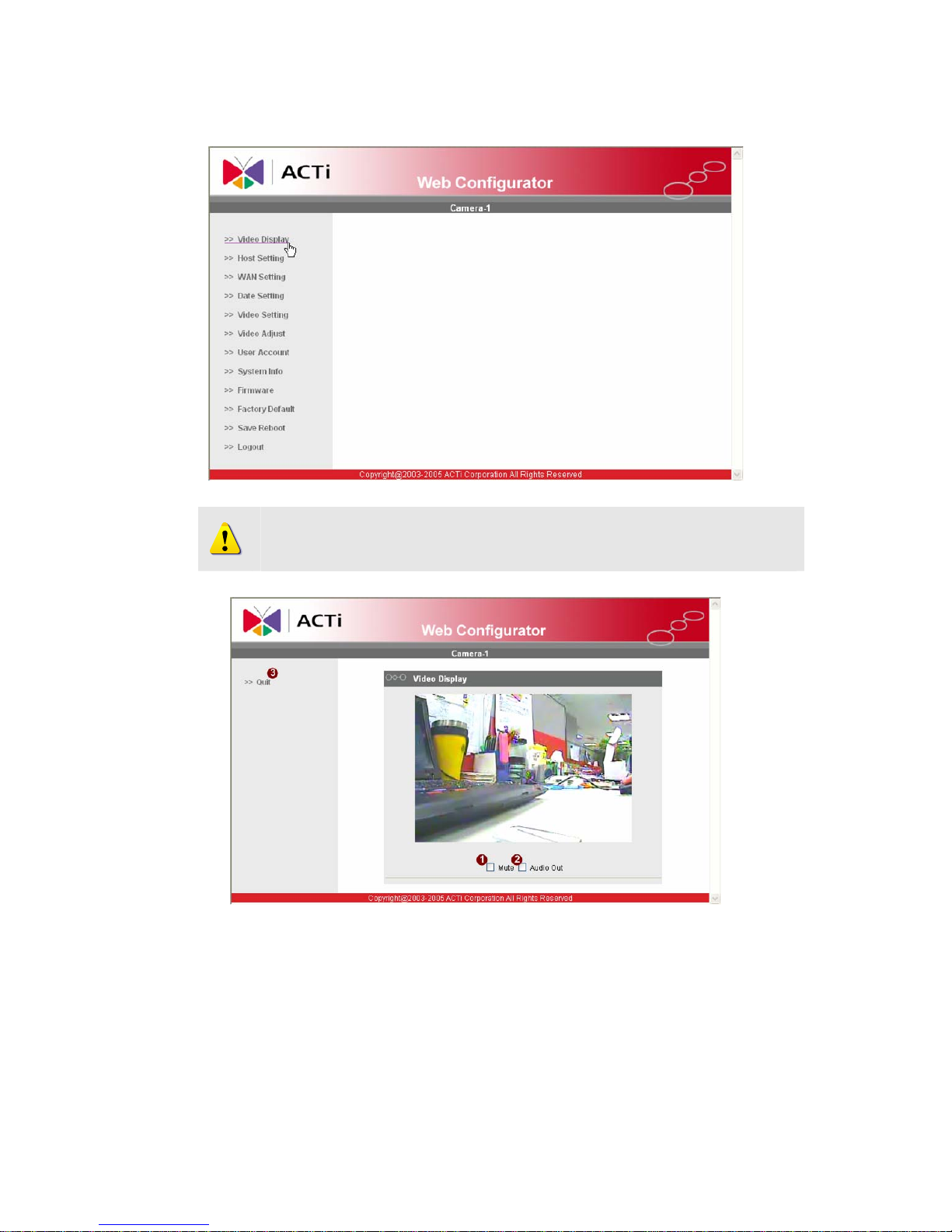

2.1.4 Preview the Video
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotiation, since IP camera follows MII
standard. Otherwise, you might not see the live image.
