Quick Installation Guide

Megapixel IP Vandal Proof PoE Indoor Mini Dome

ACM-3701E

Ver. 120803

Quick Installation Guide

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

0-1

0Getting Started

1.1 PACKAGE CONTENTS

ACM-3701E Product CD

Warranty Card Drill Template

Mount Screws Allen/Hex Key

RJ45 Field Installable Feed

Through Adaptor

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

0-2

1.2 PHYSICAL DESCRIPTION

1. Ethernet Indicator LED

The LED will indicate ethernet speed and active states after IP

camera has connected completely.

2. Power LED

The LED will light up after IP camera has successfully completed

the boot process

3. Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect

the power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed around 16

seconds, release the reset button. The unit will start up with

factory default settings.

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

0-3

Model

ACM-3701E


Type

Rugged RJ-45 Connector

4. Ethernet Port

The IP device connects to the Ethernet via a female RJ-45

industrial connector.

The Ethernet port supporting Power over Ethernet.

Supporting NWAY, this IP device can auto detect the speed of

local network segment (10Base-T/100Base-TX Ethernet).

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

0-1

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the IP device to the respective

apparatuses.

1. Connect this IP device’s ethernet port to an Ethernet (RJ45 connector). IP

device has only PoE built-in, you must regard it as a PD and connect it

directly to a PSE device like PoE switch.

2. Connect a PC to the Ethernet hub

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

1-2

1Quick Tour

This section guides you with a quick tour on this IP device.

2.1 Configure this IP Device

2.1.1 Make sure network environment

Default IP of this IP device is 192.168.0.100. Please make sure this IP device and

your PC are on the same network segment before running the installation.

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

1-3

2.1.2 Open Internal Explorer with IP address

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: This IP device default IP address is set to 192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

1-4

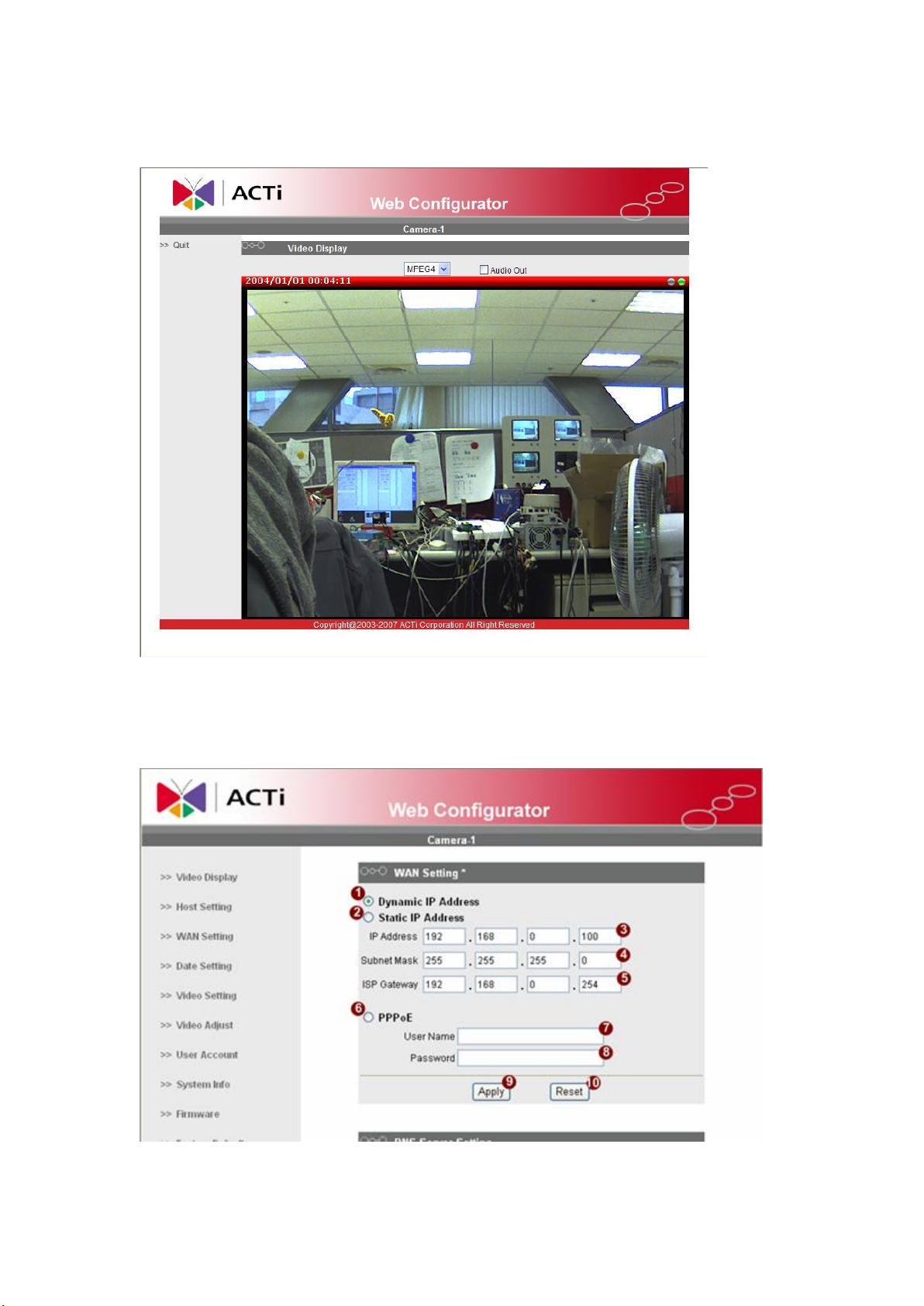

2.1.4 Preview the video

2.1.5 Set the new IP address

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
