Quick Installation Guide
ENR-620P
9-Channel 2-Bay Lockbox Standalone NVR
with 8-port PoE connectors
V190124
ENR-621P
32-Channel 2-Bay Lockbox Standalone NVR
with 16-port PoE connectors
Thank you for purchasing ACTi ENR Standalone Network Video Recorder. This
guide contains all the information you need to quickly set up the device via
local display interface.
For detailed instructions on installation and operation, please search for the
product manuals on http://www.acti.com/downloadcenter.
The items below are required for installation:
• Network cameras
• Monitor (with HDMI input and the cable)
• Network cables
• Network switch
• AtleastoneACTI-certied3.5inchSATAharddisk
Checkthelistofcertiedmodelsinhttp://www.acti.com/hddselector
If you have any problems during installation, please contact us via
https://www.acti.com/CHD or US/Canada toll-free number: 1-866-410-2284
(ACTI)
This package includes the following items:
• ENR Unit
• Power adapter
• Power cord
• Socket converter
• Hard disk screw pack
• Keys x 2
• USB mouse
• Terminal blocks x 2
UNPACK
1
BEFORE YOU START
Quick Installation Guide 3
INSIDE THE LOCKBOX
AT A GLANCE
2
10 11
4
3
2
7
8
9
1
12
5
6
Reset Button
Power Button
Digital Input / Output
Audio Input / Output
DC 48V Power Input
USB3.0Port
LED Indicators
Power (Blue), System (Red), HDD Activity (Green)
USB 2.0 Ports (2)
HDMI Port
Ethernet Ports (LAN / WAN)
PoE Ports
(ENR-620P x 8)
Hard Disk Bay (2)
(HDDs are not included in the package)
1
2
3
4
5
6
7
8
9
10
11
12
ENR-620P
4 Quick Installation Guide
INSIDE THE LOCKBOX
8 9
6
4
11
3
10
AC Power Input
Power Button
Audio Input / Output
Digital Input / Output
Reset Button
USB3.0Port
Ethernet Ports (LAN / WAN)
PoE Ports (16)
HDMI Port
Hard Disk Bay (2)
(HDDs are not included in the package)
USB 2.0 Ports (2)
1
2
3
4
5
6
7
8
9
10
11
ENR-621P
2
5
1
7
Quick Installation Guide 5
INSTALL HARD DISK DRIVE
3
Step 1
Press the red button to open the front
cover.
Step 2
Remove one pair of HDD brackets.
HDD 1
HDD 2
Step 3
Attach one bracket on each side of the
HDD.
NOTE: Depending on
the hard disk drive,
attach at least two
(2) screws on each
side of the hdd to
properly secure the
bracket.
Step 4
Take note of the SATA cable label, this
will determine which one is HDD1 or
HDD2 on the ENR
user interface.
Step 5
Connect the data cable and the power
cable to the hard disk.
Power
Cable
Data
Cable
NOTE: Take note
of the connectors
direction.
Step 7
Tie the data and power cables using
the black velcro strip to organize the
cables.
NOTE:
Take note of the
cable direction when
installing the hard disk
drives.
Step 6
Attach the four (4) screws to secure the
hdd brackets to the lockbox.
Repeat steps
2 ~ 6 to install the
other hard disk
drive.
NOTE: The photos below are for reference only, actual unit and parts may vary. However, the same
procedures apply for the ENR models covered in this QIG.
6 Quick Installation Guide
MOUNT THE ENR
4
Before you start, plan the installation. Determine how many cables will be
connected to the mainboard and where the cables will be routed.
Therearethree(3)allotedcableholesonthebottomoftheENR,andoneonthe
top.
After installing the hard disk drive, prepare to mount the ENR to the wall.
NOTE: Make sure the wall is strong enough to withstand the weight of the ENR and other connected
cables.
Step 1
Push to remove the temporary covers
of the cable holes, as needed.
Step 2
Align the ENR to the wall and mark
the position of the four (4) screw
holes.
Step 3
Install the ENR to the wall using four
(4) screws.
NOTE: The wall screws are not included in the
package. Use appropriate screws according
to the wall material where the ENR will be
installed.
Step 4
Route the cables through the cable
holes of the ENR.
Step 5
Connect the cables to the connectors
on the mainboard accordingly
(see “CONNECTIONS” on the next
page for more details).
Power
Network
PoE Device
Quick Installation Guide 7
5
CONNECTIONS
The example below displays a network with ENR and basic required peripherals
to start using the device.
ENR-620P
USB Devices
HDMI Monitor
Default IP Address
192.168.0.10
DHCP assigned
(Optional) Connect to another network
via WAN for remote client connection.
Power Source
Network
WAN
LAN
ENR automatically assigns
IP addresses to cameras
192.168.0.104192.168.0.101 192.168.0.102 192.168.0.103
Network Cameras
1357
2 4 6 8
ENR-621P
USB Devices
HDMI Monitor
Default IP Address
192.168.0.10
DHCP assigned
(Optional) Connect to another network
via WAN for remote client connection.
Power Source
Network
WAN
LAN
ENR automatically assigns
IP addresses to cameras
192.168.0.104192.168.0.101 192.168.0.102 192.168.0.103
Network Cameras
13579111315
2 4 6 8 10 12 14 16
8 Quick Installation Guide
6

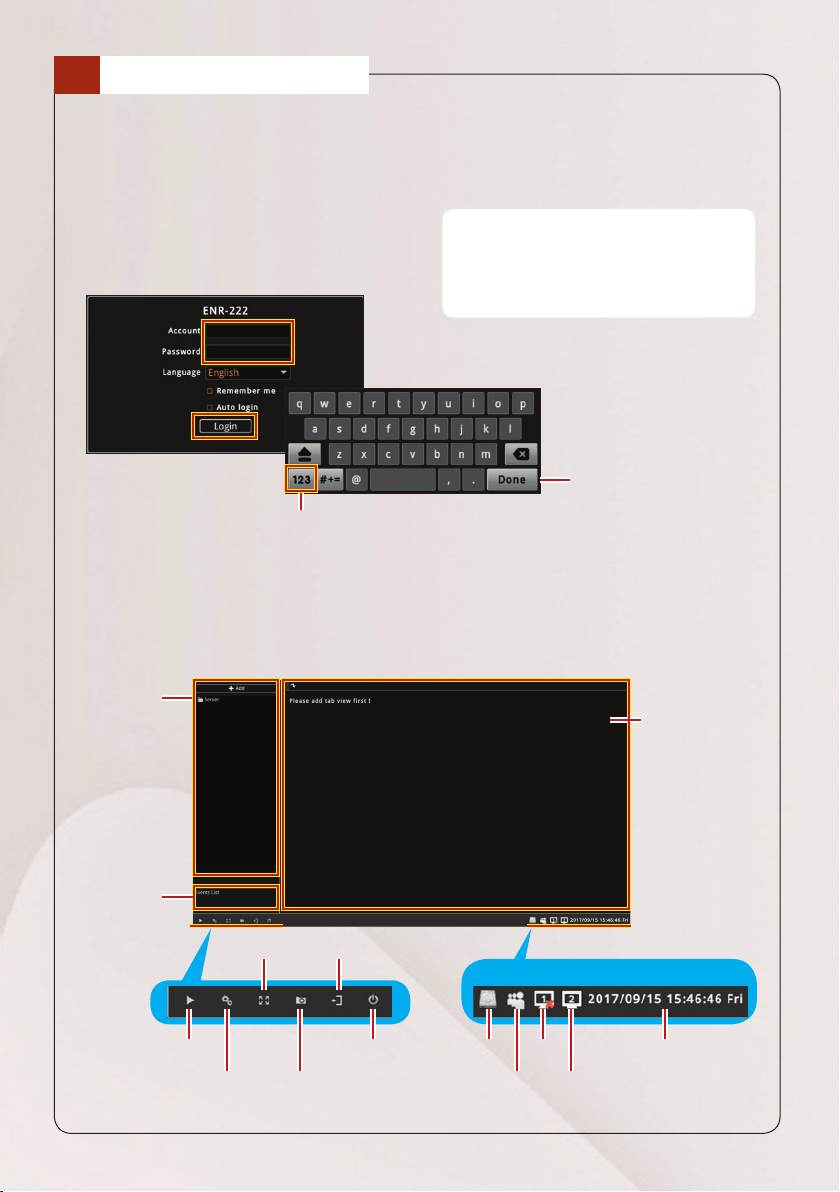

LOGIN
Account: admin
Password: 123456
“123456”isthedefaultpasswordofthe
administrator’s user account. For security
reasons, please remember to change it.
1. Inside the lockbox, press the POWER BUTTON to turn on the ENR.
2. On the Login screen, using the on-screen keyboard, type the Account and
Password.
The User Interface
System Setup
Full Screen
Capture Screenshot
Logout
Power Off
Device
List
Events
List
Live View
User
System
Date & Time
Playback HDD
LAN
WAN
Status Indicators
Enter
Numeric Keypad
Quick Installation Guide 9
1. Click the System Setup icon on the Live View screen.
2. Click the Storage > Management page.
3.Select the hard disk to format, then click Format.
4. Repeat the above steps to format the other disk, and then click OK.
7
FORMAT THE HDD
1. On the Live View screen, click Add.
2. Click Add Camera from the pop-up menu.
Or, click other network devices to add them in the ENR. You may also group
devices by creating a group. However, for this quick installation guide, we will
only cover adding cameras in general.
3.Click a model to select the camera. The text of the selected camera will turn
orange.
4. Repeat the above
step to add more
cameras.
5.Click Add to
complete.
Make sure to
input the correct
account and
password here.
ADD DEVICES
8
10 Quick Installation Guide
CHECK LIVE VIEW
9
After adding the cameras, the models are listed on the left panel of the Live
View screen.
1. Create a tab view on the right panel, click .
2. Drag a model to the Live View screen.
Add Camera Manually
If you are adding cameras located in another network, click Add Camera
Manually. Fill in the IP address, HTTP Port, Account and Password. Then click
Add. Or, use the RTSP page for RTP protocol.
Double-click the page
tab to rename it.
Right-click on a channel
to access the pop-up
menu.
NOTE: Menu options
vary depending on
camera model.
