Quick Installation Guide
ENR-320P
16-Channel 4-Bay Tower Standalone NVR with 16-port PoE connectors
ENR-321P
32-Channel 4-Bay Tower Standalone NVR with 16-port PoE connectors
Thank you for purchasing ACTi ENR Standalone Network Video Recorder. This
guide contains all the information you need to quickly set up the device via
local display interface.
For detailed instructions on installation and operation, please search for the
product manuals on http://www.acti.com/downloadcenter.
The items below are required for installation:
• Network cameras
• Monitor (with HDMI input and the cable)
• Network cables
• Network switch
• AtleastoneACTI-certied3.5inchSATAharddisk
Checkthelistofcertiedmodelsinhttp://www.acti.com/hddselector
If you have any problems during installation, please contact us via
https://www.acti.com/CHD or US/Canada toll-free number: 1-866-410-2284
(ACTI)
This package includes the following items:
• ENR Unit
• Power adapter
• Power cord
• Socket converter
• Hard disk screw pack
• Hard disk bay keys (2)
• USB mouse
• Terminal blocks (2)
UNPACK
1
BEFORE YOU START
2 Quick Installation Guide
Quick Installation Guide 3
FRONT PANEL
AT A GLANCE
2
3 51 2 4 6 7
12
13
8
1110
9
14
Hard Disk Bay
LED Indicators
Power Button
USB 2.0 Ports (2)
Reset Button
Main Switch
Power Input Connector
1
2
3
4
5
6
Digital Input / Output
LAN Port
USB3.0Port
WAN Port
PoE Ports (16)
HDMI Port
Audio Input / Output
8
9
10
11
12
13
7
14
BACK PANEL
4 Quick Installation Guide
INSTALL HARD DISK DRIVE
3
Step 5
Remove the empty tray from the HDD
bay.
Step 1
Using the bundled keys, unlock the front
cover panel.
Step 2
Still using the bundled keys,
unlock a hard disk (HDD) bay.
Step 3
Push the lock towards the right to eject
the HDD bay.
Step 4
Pull out the HDD bay.
Step 6
Secure the hard disk on the HDD
bracket using the bundled screws.
Step 7
Push the HDD bay completely into the slot
until the bay locks into place.
Step 8
Lock the HDD bay.
* Repeat Step 2 to Step 8, to install more hard disk drive.
Quick Installation Guide 5
4
CONNECTIONS
The example below displays a network with ENR and basic required peripherals
to start using the device.
192.168.0.104192.168.0.101 192.168.0.102 192.168.0.103
Network Cameras
ENR automatically assigns IP
addresses to cameras via LAN.
USB Device
HDMI Monitor
Power Source
Default IP Address
LAN : 192.168.0.10
WAN: DHCP assigned
(Optional) Connect to another network
via WAN for remote client connection.
192.168.0.116
...
5
POWER ON
1. Turn on the Main Power Switch.
2. On the front panel, press the POWER
BUTTON to turn on the ENR.
6 Quick Installation Guide
5

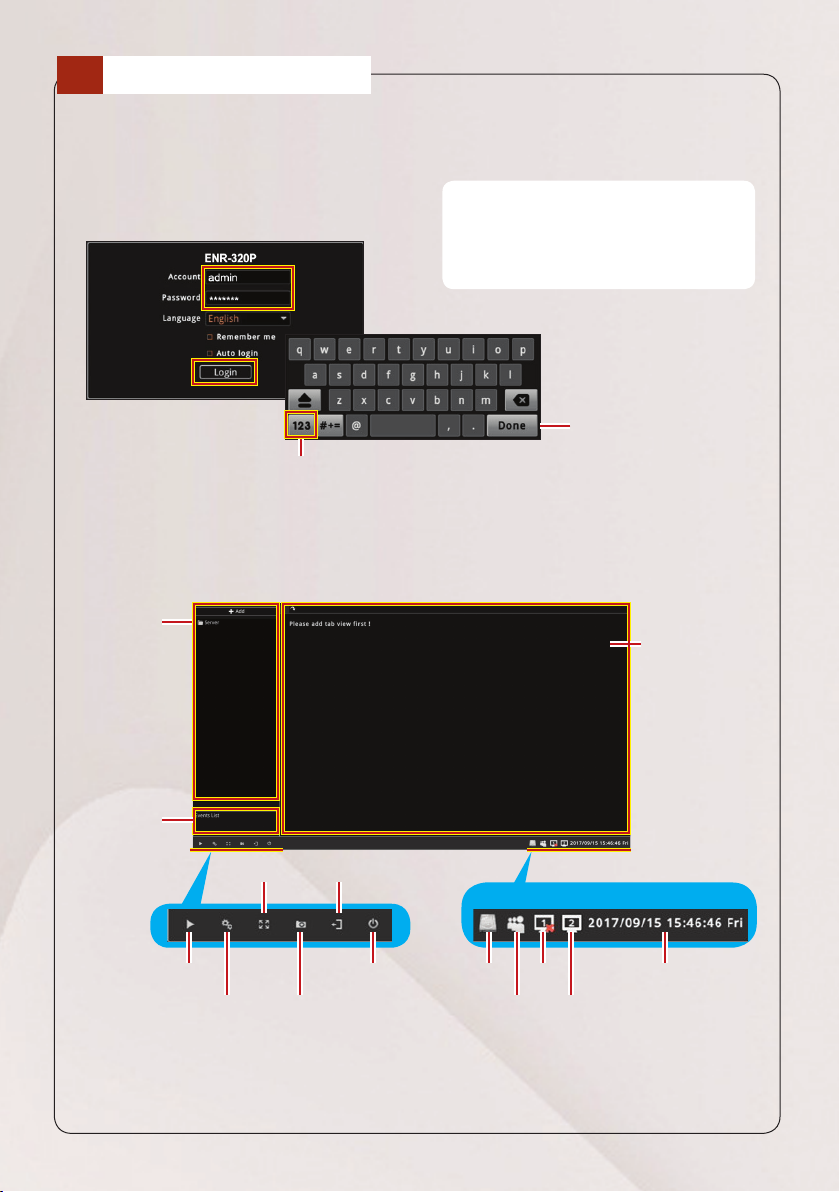

LOGIN
Account: admin
Password: 123456
“123456”isthedefaultpasswordofthe
administrator’s user account. For security
reasons, please remember to change it.
On the Login screen, using the on-screen keyboard, type the Account and
Password.
The User Interface
System Setup
Full Screen
Capture Screenshot
Logout
Power Off
Device
List
Events
List
Live View
User
System
Date & Time
Playback HDD
LAN
WAN
Status Indicators
Enter
Numeric Keypad
Quick Installation Guide 7
1. Click the System Setup icon on the Live View screen.
2. Click the Storage > Management page.
3.Select the hard disk to format, then click Format.
4. Repeat the above steps to format the other disk, and then click OK.
7
FORMAT THE HDD
1. On the Live View screen, click Add.
2. Click Add Camera from the pop-up menu.
Or, click other network devices to add them in the ENR. You may also group
devices by creating a group. However, for this quick installation guide, we will
only cover adding cameras in general.
3.Click a model to select the camera. The text of the selected camera will turn
orange.
4. Repeat the above
step to add more
cameras.
5.Click Add to
complete.
Make sure to
input the correct
account and
password here.
ADD DEVICES
8
8 Quick Installation Guide
CHECK LIVE VIEW
9
After adding the cameras, the models are listed on the left panel of the Live
View screen.
1. Create a tab view on the right panel, click .
2. Drag a model to the Live View screen.
Add Camera Manually
If you are adding cameras located in another network, click Add Camera
Manually. Fill in the IP address, HTTP Port, Account and Password. Then click
Add. Or, use the RTSP page for RTP protocol.
Double-click the page
tab to rename it.
Right-click on a channel
to access the pop-up
menu.
NOTE: Menu options
vary depending on
camera model.
Managing the devices can be done from the Live View screen. Right-click on the
device model from the left panel, then click to:
• Rename the device name on the list
• Delete the device from the list
• Setup the camera settings (see below)
Camera Settings
From the Camera Settingsscreen,clickthecorrespondingpagetabtocongure
video settings, set up motion detection, event and schedule recordings.
To modify the camera settings, click
Get Camera Settings. Modify as
needed, then click Apply.
• Toconguremotionsetup,click
Setup.
• To resize the detection area, drag
the box on the lower right corner
of the area.
To set the event trigger, double- click
the Edit icon .
Toconguretherecordingschedule,
select a recording or event handling
schedule, then mark the calendar and
then click Apply.
Quick Installation Guide 9
10
MANAGE DEVICES
10 Quick Installation Guide
CHECK RECORDINGS
11
On the Live View screen, click the Playback icon on the bottom right corner
to enter the Playback screen.
On the time bar, drag the current-time indicator to your desired position, and
then click the Playback icon.
