ACOEM Fixturlaser Laser Kit Instructions de montage
Fixturlaser Laser Kit
Quick tips
Fixturlaser Laser Kit
STEP 2
1. Rough Alignment
• Vertical: Place scale or straightedge on highest hub and
raise or lower the movable shaft to within 0,5 mm of the
stationary hub.
• Horizontal: Place scale or straightedge on hub nearest
to you and adjust the movable shaft to within 0,5 mm of
the stationary hub.
2. Correct Obvious Soft Foot
Loosen all the bolts and nd any obviously loose shim
packs. Add shims as needed to make a snug t.
3. Follow Tightening Sequence
Follow the same sequence throughout the alignment pro-
cess, and tighten in 3 passes: snug rst, 50% on second
pass, completely tight on the third pass (view sequence
on next page).
Fixturlaser Laser Kit
Bolt Tightening Sequence
4. Make a Final Soft Foot Correction
Loosen one bolt at a time and check for soft foot with a
0,05 mm shim or feeler gauge. Correct any foot with
0,05 mm or more of soft foot, then tighten the bolt
before proceeding to the next foot.
Fixturlaser Laser Kit
Set Up

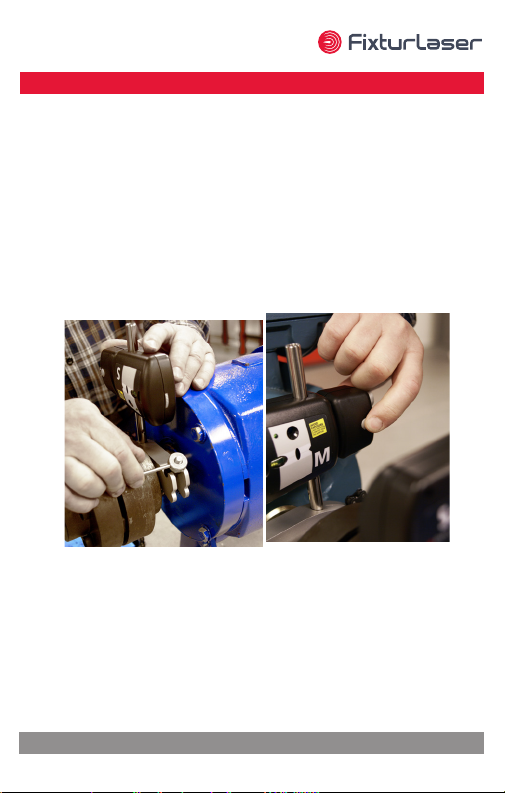

1. Mount the ‘S’ sensor on the stationary shaft or
coupling hub and hand tighten the nut, use the tigtning
tool and tighten further. Turn the sensor on by pressing
the power button.
2. Mount the ‘M’ sensor on the movable shaft or
coupling hub and hand tighten the nut use the titning
tool and tighten further. Turn the sensor on by pressing
the power button.
Tighten the nut Press the power button
Start the Laser Kit App
1. Click on the Fixturlaser Laser kit app on your device
that starts the application.
2. The app will search for the sensor and connect to
them via Bluetooth. This will take between 5 to 15
seconds.
3. The lasers will turn on.
Fixturlaser Laser Kit
Aim the Lasers
1. Loosen the adjustment knob of the sensor and slide
the sensors up or down until the line laser beams hit the
middle of the opposite sensor, ne tune the line laser
beam with the adjustment wheel on the opposite side of
the sensor. Be precise so that the beam hits the window
as accurate as possible. Note that the sensors will be at
different elevations.
adjustment wheel
adjustment knob
Fixturlaser Laser Kit
Enter Dimensions
1. Press the yellow tape measure icon to open the
keypad.
2. Measure the indicated dimension to the nearest
1 mm for coupling dimensions or 2 mm for foot
dimensions and enter using the keypad. Continue
and enter all dimensions.
Tape measure icon
Measure Misalignment
1. Press the measurement mode icon. Rotate the
sensors to the 9:00 position and press the mea-
surement icon.
9:00 position Measurement icon
1 . 9:00
2 . 12:00
3. 3:00
Position the
sensors
within ± 3°
Fixturlaser Laser Kit
2. Rotate the sensors to the 12:00 position.Press the
measurement icon again to take the second
measurement.
12:00 position
3. Rotate the sensors to 3:00, measure. The results will
be displayed on screen.
Position the
sensors
within ± 3°
Fixturlaser Laser Kit
Evaluating the Results
1. Vertical results are displayed at the top of the screen,
horizontal results at the bottom.
2. Green coupling icons indicate values which are within
tolerance. Angular tolerance 0,08 mm/ 100 mm offset tol.
0,1 mm
3. Orange values are within 2x tolerance.
4. Red values are more the 2x than out of the tolerance
level.
Using the VertiZontal™Process
First Correct the Vertical Misalignment
1. Press the shim icon in the bottom right corner of the
screen.
2. Loosen all the bolts on the movable machine.
3. Follow screen instructions for removing or inserting
shims.
Shim icon
Fixturlaser Laser Kit
Next Correct the Horizontal Misalignment
1. First press the ‘live reading’ icon in the bottom right
corner of the screen.
2. To ensure the live readings are for the horizontal
direction make sure the sensors are at 3:00.
“Live reading” icon
3. Make the largest adjustment rst. The arrows indicate
the direction of adjustment.
4. Continue to adjust the movable machine, watching
the live readings, until both the angle and offset are
within tolerance.
5. Tighten the bolts using the tightening sequence
established in Pre-Alignment.
6. Some machines move laterally when tightening the
bolts. Make sure that the displayed values remain in
tolerance as you tighten the bolts.
