Acnodes APS901 Series Manuel utilisateur

Industrial Panel Mount Monitor

APS901X

15” / 17” / 19” Panel Mount LCD

S t a i n l e s s S t e e l C h a s s i s

I P 6 5 R a t ed F r o n t B e z e l

Industrial

Monitors

User Manual

For lastest product information, please visit Acnodes’ website at www.acnodes.com

14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939

Warning!

Disclaimer

This information in this document is subject to change without notice. In no event shall Acnodes Corp. be

liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse

of information in this document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual. It may cause interference to radio communications.

It has been tested and found to comply with the limits for a Class Acomputing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Table of Contents

Warning!…………………………………………………………………………….……..….2

Disclaimer………………………………………………………………….…………………2

Chapter 1 Getting Started

1.1 Features………………………………………………………….…..…..…4

1.2 Specifications…………………………………………....……………...…..4

1.3 Dimensions…………………………………...………………………….…6

1.4 Brief Description...................................................................................9

1.5 Display Mode………………………………………………………………10

Chapter 2 OSD

2.1 Front Panel Controls………….………………………………….…..…….11

2.2 OSD Controls………………………………………………………………..11

2.3 Main Menu…..……………………………………………………………..12

2.4 AD Board OSD Functions…………..…………………………………14

Figures

Figure 1.1: Dimensions of APS9015…,……..…………..…...…………..6

Figure 1.2: Dimensions of APS9017..………..………..…..……………..7

Figure 1.3: Dimensions of APS9019.….……..……..……..……………..8

Figure 1.4: Front View…..….………………………………………………….9

Figure 1.5: Rear View…………………..……………………………………...9

Figure 1.6: VESA mounting of the APS901X…………………………...15

Chapter1

1.1 Features

●Stainless Steel Display

●Five edges panel NEMA 4/IP 65 rated

●Resistive touch screen (optional)

●VESA mount

●VGA Input, with optional DVI, Video or S-Video input

●Supports wide-ranging resolutions from 640x480 to up to 1600x1200 with auto phase and auto

position

1.2 Specifications

Display

Model No.

APS9015

APS9017

APS9019

Display

15”

17”

19”

Luminance

400 cd/m²

380 cd/m²

450 cd/m²

Viewing Angle

140(H)x125(V)

170(H)x160(V)

Resolution

1024x768,

16.2Mcolors

1280x1024,

16.7M colors

1280x1024,

16.7M colors

Backlight

Lifetime

CCFLtube x 4

50,000hrs

CCFLtube x 4

50,000hrs

CCFLtube x 4

50,000hrs

Touch Screen

Resistive antiglare

OSD

Controls/Indicators

Automatic screen, setup (OSD), brightness, contrast, horizontal/verticalposition, image

lock, color balance, video information, power on and sync detected

OS Compatibility

Win 95/98, XP, 2000, NT 4.0, QNX, Linux

Power Input

DC 12V, Optional 11~32V/DC

Environment

Operating Temperature: 0~50˚C (32˚~122˚F)

Storage Temperature: -20~60˚C (-4˚~140˚F)

Relative Humidity: 10~90% @40˚C non-condensing, without touch screen

Vibration: 1g peak, 5~500Hz (at random)

Shock: 15G peak acceleration (11msec. duration)/operation

Ratings: Five edges panel NEMA 4/IP 65 rated

Certifications: Meet CE/FCC Class A

Model No.

APS9015

APS9017

APS9019

Construction

Stainless Steel chassis

Dimensions

398x53x316mm

(Wx Dx H / mm)

432x57.4x358

(Wx Dx H / mm)

470x60x388.6

(Wx Dx H / mm)

Mounting

VESA Mount

75x75

VESAMount

100x100

1.3 Dimensions

Figure 1.1: Dimensions of the APS9015

Figure 1.2 Dimensions of the APS9017

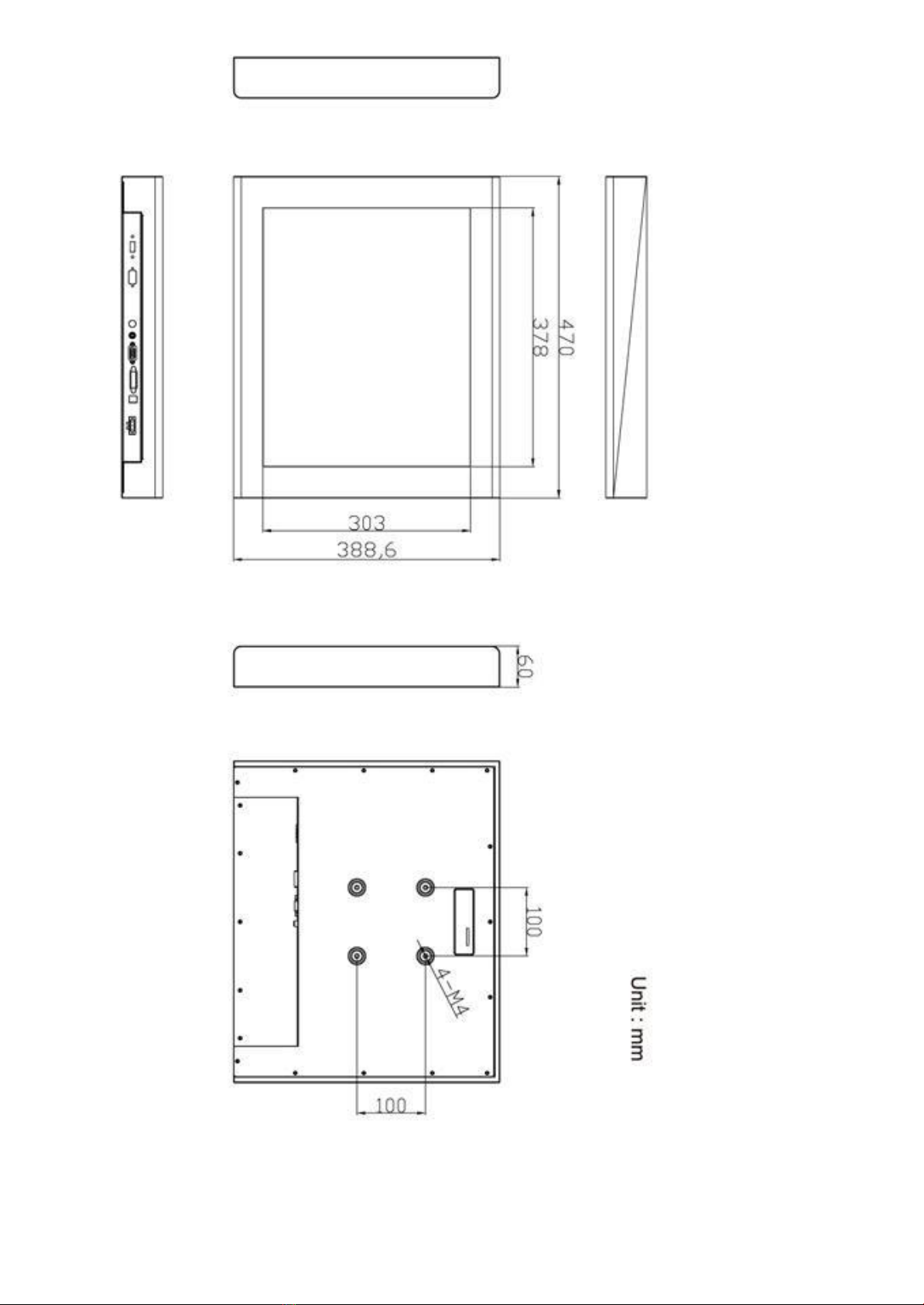

Figure 1.3: Dimensions of the APS9019

1.4 Brief Description

The APS901X features an excellent viewing ability for monitoring and control applications. It is

available with resistive touch screen that is easy to use and maintain.

The front panel of the display monitor is sealed with gasket for NEMA 4/IP 65 rating when it is

panel-mounted in a NEMA rated cabinet or enclosure.

Figure 1.4: Front View of the APS901X

Figure 1.5: Rear View of the APS901X

1.5 Display Mode

Display Mode

Hori. Sync (KHz)

Vert. Sync. (Hz)

VGA 640 x 480

SVGA 800 x 600

XGA 1024 x 768

SXGA

1152 x 864

1280 x 1024
