The OSD Control

Control Key Definition

1. Power LED Indicator: Green Light is with the signal; Red Light is out of signal or extraordinary.

2. Sleeping Mode Indicator: Red light indicator when the monitor going to sleep

3. 「On/Off」: Press the button to turn on/off the display.

4. 「Menu/Select」: 1. Call the Menu 2. Confirm the selection

5. 「Auto/Exit」: 1. Adjust the display to the best position. 2. Exit the options

6.「+」:Press the button to adjust the increasing value of selected OSD control option.

7.「-」: Press the button to adjust the decreasing value of selected OSD control option.

Quick Selecting Menu

1.「+ 」：Press this key can quickly go to signal input selection menu, (if the monitor has more

than one input source), there are “Auto/VGA/DVI” three modes. Default is in “Auto” state.

Then press “OK (Menu)” key to confirm the selection.

2.「Auto/Exit」: Press this key can adjust the display to the best position and resolution.

OSD Menu Operation

Press「MENU」and the screen will appear the following OSD icons:

1.Power LED

2.Sleeping Mode

LED

OSD Menu Adjustments:

Press「+」,「-」to increase or decrease the light bar for moving to the right icon you

want to adjust.

Press 「MENU/ENTER」again to confirm in the selected item.

Then, the selected bar will become yellow at bottom under the item.

Press 「+」or「-」to select the item and press「MENU/ENTER」again, the value will

turn red, press「+」or「-」to increase or decrease the value.

When it is finished, press「MENU/ENTER」to exit; the red value will turn back to yellow.

Then you can continue to next adjustment.

Color Luminance Adjustment

Contrast: Adjust the contrast level of brightness and darkness of the screen.

Brightness: Adjust the brightness of the screen.

Backlight

：

e backlight has default set in the most bright.

Normally the function has no effect.

BRIGHTNESS

：

Adjust the brightness of the screen.

CONTRAST

：

Adjust the contrast level of brightness and darkness of the

screen.

SHARPNESS:

Adjust

the sharpness of display

Display

Image H./V. Position

Contrast: Adjust the contrast level of brightness and darkness of the screen.

Brightness: Adjust the brightness of the screen.

AUTO

ADJUSTMENT

Auto

adjusting the display position and its best phase and clock

settings.

. POSITION：

Adjust the size of horizontal image (left and right sides).

. POSITION：

Adjust the size of vertical image (

up and down sides).

PIXEL

CLOCK：

This is normally

set by different clocks, factory default has been setup

PHASE

：

Adjust the image distortion appearing as horizontal “noise” on the

screen.

OSD

OSD POSITION

：

Display the location of OSD Menu.

OSD TIME OUT

：

Reset

：

LANGUAGE

：

Display time duration of OSD Menu.

Recall Setting Value Yes/No.

Select Languages

Remark2

Remark 2: Language Selection

English

Français：French

Deutsch：German

Español：Spanish

日本語：Japanese

繁體中文：Traditional Chinese

簡體中文：Simplified Chinese

COLOR Temp

9300

K：

Asian

Area.

7500

K：

Asian

Area.

6500

K：

Europe

and North American Area.

SRGB

：

Europe

and North American Area.

USER

COLOR：

RED

：

GREEN

：

BLUE

：

User’s

setting.

Red adjustment. User’s setting

Remark 1

Green

adjustment. User’s setting Remark1

Blue

adjustment. User’s setting Remark1

Remark 1.: When moving the light bar to the selected item, press ENTER (MENU/ENTER), the bar and value will

become yellow (or red), then press「+」or「-」to adjust the value.

Others

Reset: Recall settings to the factory default setting

Menu Time: OSD Menu showing period during no any instructions given.

OSD H. Position：Present the position of the OSD horizontal position

OSD V. Position：Present the position of the OSD vertical position

Language: English / French / German / Japanese/ 繁體中文 / 簡體中文

Transparency: Adjust the OSD transparency shown on the display

Rotate: Default is “Off”, for others please request to your distributor or sales representative

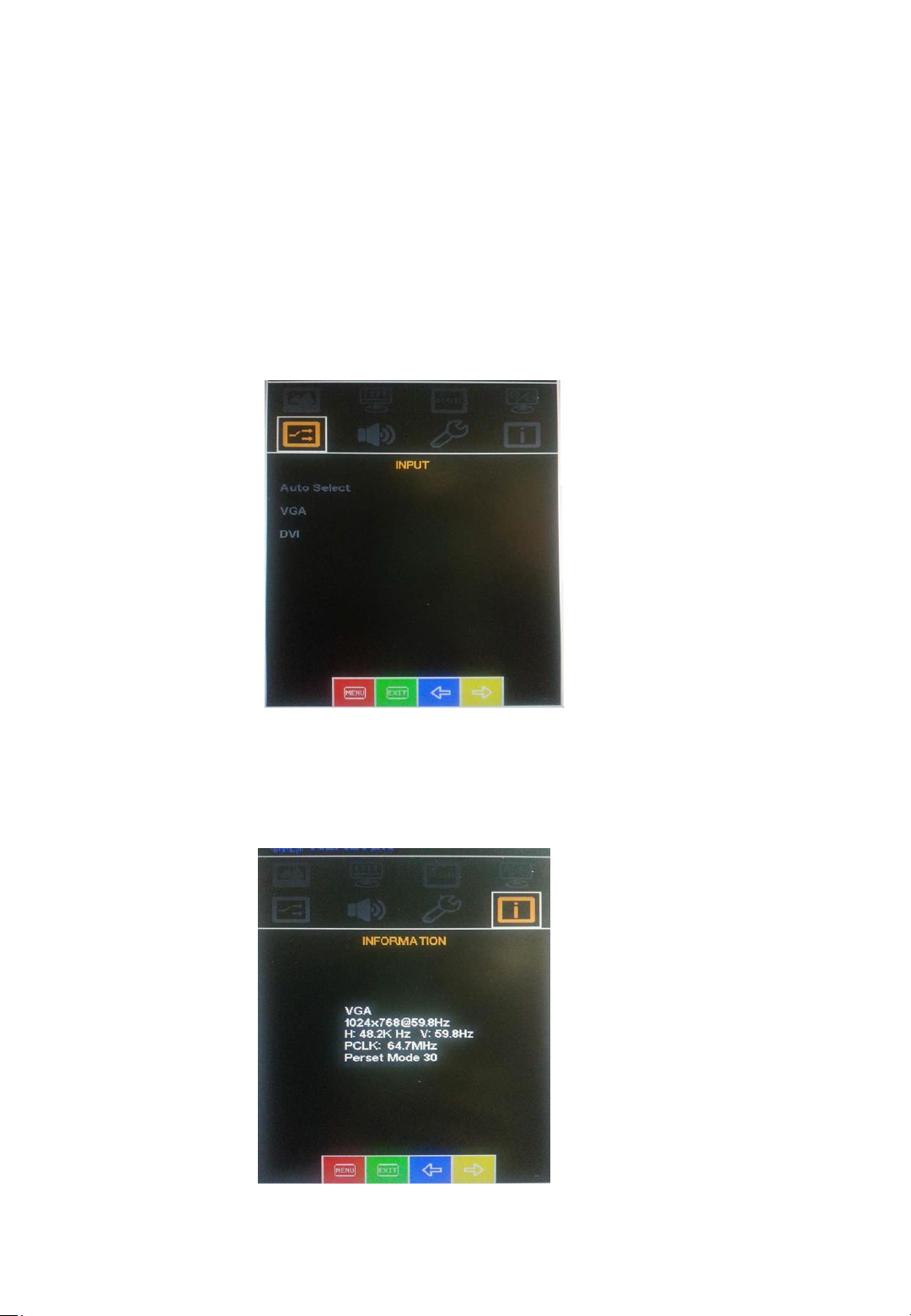

Source Selection

Input Signal Selection:

Two Input are supported: Digital and Analog

If both digital and analog are connected, use the switch to select either Digital or Analog input

Auto Select: Default the OSD should auto detect the signal input

D-SUB：Input analog signal.

DVI：Input digital signal.

Display the video information presenting to the current states.

Information
