Acer AC100 Server Specifications

Product Overview

The AC100 is a micro server in the true sense of the word. Sporting server-class specs including ECC

memory, Intel Xeon processor support, and an 80 PLUS

high-efficiency power supply, this tiny wonder

brings the datacenter to the desk.

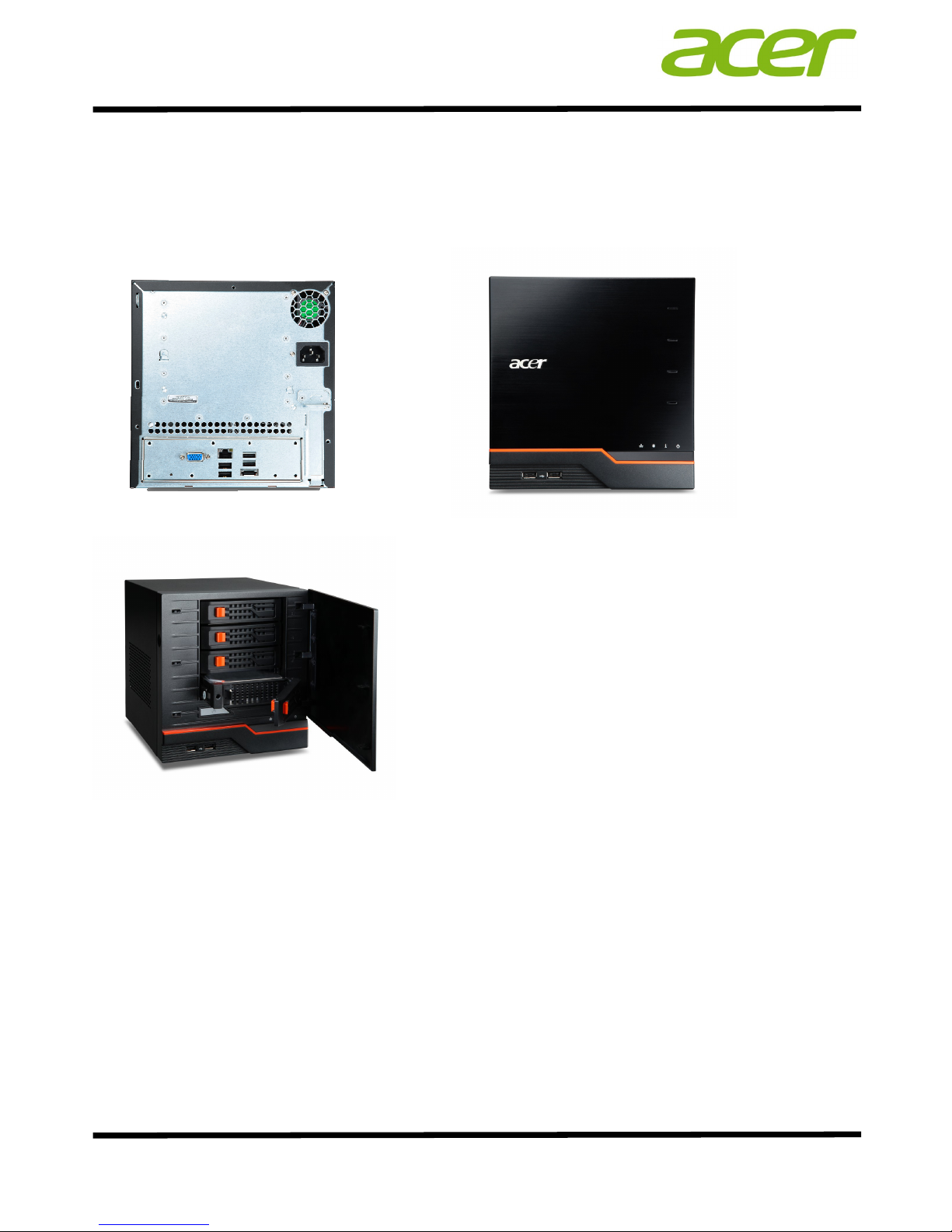

Rear view Front View

Front View – Door Open

Features

1 4 x hot-pluggable hard drives

2 Intel

Xeon

E3 or Core

™

i3 or Pentium

series processor

3 2 x DDR3 ECC unbuffered DIMMs

4 6 x USB ports

5 eSATA port

6 Gigabit LAN port (RJ-45)

7 Video port

8 Recovery button

9 Pad lock and Kensington lock slots

What’s New

•All new micro form factor that fits anywhere

•Intel

Xeon

E3-1200 series processors

•Standard 200 W 80 PLUS

bronze-level fixed power supply

Acer AC100 Server Specifications

Product Specifications

Processors and Chipset

•Intel

Xeon

E3-1200 series processors

•Intel

Core

™

i3 series processors

•Intel

Pentium

series processors

•Chipset: Intel

C206

Memory

•Memory capacity:



Unbufferred DIMM: 2, 4, 8 GB

•Maximum capacity: up to 16 GB unbuffered DIMMs when fully populated with 1 DIMM per channel in 2

slots

Note: 8 GB DIMM availability may vary by region.

Network Controllers

•Integrated single-port Intel

82579LM Gigabit Ethernet

Storage

•Hard disk form factor: 3.5”

•Type: SATA

•3.5” Maximum capacity:

Up to 8 TB SATA HDD (2 TB 3.5" x 4 HDDs)

Storage Controllers

•Intel

C206 onboard storage controller

Expansion slots

•1 x PCIe x8

Management

•System LAN LEDs, System Health LED

•System Health Monitoring

Note: available in AC100S SKU only

•Intel Active Management Technology (Intel vPro)

Note: available in AC100S SKU with Intel Xeon processor only

Security

•Front panel key lock

•Rear Kensington lock hole

•Chassis intrusion

Deployment/Serviceability

•Acer Smart Setup

•BIOS Update Tool

Acer AC100 Server Specifications

Operating Systems

•Windows Small Business Server 2011 Essentials

•Microsoft Windows Server 2008

•Microsoft Windows Server 2008 R2

•Red Hat Enterprise Linux 6

•SuSE Linux Enterprise Server 11 SP1

Input/output interface

Front

•2 x USB ports

•Power/off button

•LED indicators: power, system status, HDD activity, LAN

Rear

•4 x USB 2.0 ports

•eSATA port

•Video port

•Gigabit LAN port

Chassis/Form Factor

•Micro tower

Power Supply

•200 W 80 PLUS

bronze-level efficient fixed power supply

Regulatory Compliant Standards

•Energy Star

compliant

EMC

•FCC (Class B)

•CE (Class B)

•BSMI (Class B)

Safety

•UL/cUL

•CB

•Nemko/GS

Acer AC100 Server Specifications

Environmental Specifications

Dimensions 200 (W) x 205 (D) x 205 (H) mm (7.87 (W) x 8.07 (D) x 8.07 (H) inch)

Weight Maximum 7.35 kg (16.1 lbs)

Minimum (includes a single HDD, CPU and

RAM, and PSU)

4.7 kg (10.34 lbs)

System inlet

temperature

Operating

5°

40°C (41°

104°F)

Non-operating -20°- 60°C (-4°to 140°F)

Relative

humidity

Operating 30 ~ 80%

Non-operating 5 ~ 95%

Acoustics Idle

LWAd 5.2 BA

LpAm 34 dBA

Operating

LWAd 5.7 BA

LpAm

dBA

Power Range line voltage 90~135 VAC

180~264 VAC

Rated input current 3.5 A (at 100 ~ 127 VAC)

2 A (at 200 ~ 240 VAC)

Rated input frequency 50 ~ 60 Hz

Rated input power 200 W

Supplier to propose power budget for PSU spec setting

Fixed 200W 80 PLUS bronze-level high-efficiency power supply.

BTU rating

682.4

BTU/hr

Acer AC100 Server Specifications

Technical specifications

PCIe

specifications

The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the

PCI-E bus segments. Details about each bus segment follow the table.

NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one

direction per lane for Gen 2.

Expansion

slot

Number Type Bus width

Voltage Connector Location Length

PCIe x8 1 PCIe Gen2 x8 3.3V x8 Onboard low-profile

NOTE:

1. Indicates the number of physical electrical lanes running to a PCIe

connector.

2. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus

assignment number.

3. Slots are enumerated differently based on the operating system. Microsoft® operating systems

enumerate Device ID by bus starting from the lowest bus to the highest.

Onboard storage specifications

Item

Description

Controller Intel C206 onboard controller

Simultaneous drive transfer

channels

4 x onboard SATA ports

1 x eSATA port

Max throughput per channel 3 Gb/s

Data transfer method •Non-RAID mode

•RAID mode

Drive type supported Serial ATA

RAID levels support •RAID 0, 1, 10, 5 (Intel software RAID)

NOTE: Intel software RAID only supports Windows OS

RAID function support



Supports multiple logical volumes



Setup through ROM based Array Configuration Utility Installation

scripting support

NOTE: This controller does not support hot plug or LED functions

RAID OS support

•

Windows Small Business Server 2011 Essentials

•Windows Server

2008

•Windows Server 2008 R2

•Windows Server 2003

Additional features •NCQ (Native Command Queuing)

AHCI (Advanced Host Controller Interface)

Onboard LAN specifications

Item Description

Controller

Intel PHY 82579LM

Acer AC100 Server Specifications

Port number Single port

Network interface 10Base-T / 100Base-TX / 1000Base-T

Compatibility standards •IEEE 802.3 Ethernet interface for 10BASE-T

•IEEE 802.3ab Ethernet interface for 1000BASE-T

•IEEE 802.3u Ethernet interface for 100BASE-TX

Remote boot functionality Support PXE, iSCSI boot

Connector RJ-45

Supported cable type CAT 5e wire

Memory specifications and population

Supported memory types •Unbuffered DDR3 1066 / 1333 MHz

NOTE: Acer does not qualify mixed memory configurations of memory

type, capacity or make.

Population Acer’s validated memory populations are listed below.

Capacity DIMM1A DIMM2A

2 GB 2 GB

4 GB 2 GB 2 GB

4 GB 4 GB

8 GB 4 GB 4 GB

Acer AC100 Server Specifications

Power specifications

200 W Power Supply

Operational Input Voltage

Range (Vrms)

100 to 240

Frequency Range (Nominal)

(Hz)

50 / 60

Nominal Input Voltage (Vrms) 100 120 200 208 220 230 240

Max. Rated Output Wattage 200.83 200.85 200.87 200.83 200.65 200.65 200.643

Nominal Input Current (A

rms)

2.46 2.03 1.21 1.17 1.11 1.06 1.022

Max. Rated Input Wattage

Rating

245.37 242.45 237.64 237.34 236.99 236.65 236.389

Max. Rated VA (Volt-Amp) 246.35 244.16 242.98 242.93 243.82 244.72 245.472

Efficiency (%) at Max. Rated

Output Wattage

81.85 82.84 84.53 84.62 84.67 84.79 84.880

Power Factor 1.00 0.99 0.98 0.98 0.97 0.97 0.963

Leakage Current (mA) 0.26 0.30 0.56 0.57 0.57 0.61 0.620

Max. Inrush Current (A peak) 58.80 73.60 116.80 127.20 128.80 129.60 132.800

Max. Inrush Current Duration

(ms)

0.90 0.90 0.75 0.77 0.77 0.77 0.768

Max. British Thermal Unit

Rating (BTU/hr)

1912 1876 1836 1831 1832 1828 1835

Acer AC100 Server Specifications

Acer server software utilities

Smart Setup 2.0 Easy deployment via the latest version of Acer’s Smart Setup. Smart Setup is

available both in box as a driver packed installation DVD or a downloadable file to be

put into a USB 2.0 device, and eases the deployment of Acer servers for any certified

OS. Through its unique interface, users may select to have all the correct drivers be

pre-deployed for the OS of their choosing, as well as setup hardware RAID devices,

BMC settings (where available), and even clone the pre-settings to a bootable USB

device to ease mass server deployments.

IT Smart Acer IT Smart is an integrated environment available in the AC100 when preloaded

with the Windows Small Business Server 2011 Essentials. The software enables

quick network management, system health updates, the ability to set office power

saving times, and more. Seamlessly integrated with the Windows SBS 2011

Essentials dashboard, IT Smart is a powerful tool for small business.

Acer IT Smart contains:

•Acer Intel

vPro

™

Management*

•Acer Fax Notification

•Acer Printer Management

•Acer Health Monitoring

•Acer Power Scheduler

*Note: Acer Intel vPro Management functionality only available on SKUs with Intel Xeon processors

AC100 model options

AC100 AC100 standard comes in a wide range of specs to fit any customer need

AC100s AC100s is preloaded with pre-built RAID and Windows Small Business Server 2011

Essentials. The preload package is the simplest way to deliver strong server

functionality in an easy-to-use package, and is perfect for the small office and SOHO

environments.

Acer AC100 Server Specifications

Available options

Processors

Intel

Xeon

E3-1260L (4-core, 2.4 GHz, 45W)

Intel

Core

™

i3-2120 (2-core, 3.3 GHz, 65W)

Intel

Core

™

i3-2100 (2-core, 3.1 GHz, 65W)

Intel

Pentium

G850 (2

core, 2.9GHz 3M 1066FSB, 65W)

Intel

Pentium

G840 (2-core, 2.8GHz 3M 1066FSB, 65W)*

Intel

Pentium

G620 (2-core, 2.6GHz 3M 1066FSB, 65W)*

*Note: Intel Pentium CPUs available after July 2011.

Memory

Memory type Unbuffered DDR3 ECC memory

Capacities 2 / 4 / 8 GB DIMMs

DIMM number 2

Max memory

Note: 8 GB DIMM availability may vary by region.

Hard drives

Type Interface, bandwidth Capacities

Consumer SATA 3 Gb/s 500 GB

1 TB

1.5 TB

2.0 TB

Note: 2.0 TB disk availability may vary by region.

Wireless Ethernet network cards

Model

Wireless type

Ralink RT3090 WLAN 802.11 b/g/n 1x1 WLAN PCI-E x1 card

TPM module

TPM module with STMicro chip

Acer AC100 Server Specifications

Service and support

Acer Servers offer a comprehensive service suite to take care of daily IT needs. Users can select the 1-

year standard carry-in warranty or choose extended warranties and services.

In a continuing effort to improve the quality of our products, information in this document is subject to

change without notice. Images shown are only representations of some of the configurations available for

this model. Availability may vary depending on region.

Microsoft and Windows are registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and

Xeon Inside are trademarks of Intel

Corporation.

NOTE: Extension warranty services may vary by country. Please contact Acer authorized resellers for more information.

Autres manuels pour AC100

Table des matières

Autres manuels Acer Serveur

Acer

Acer Altos R920 Series Manuel utilisateur

Acer

Acer AT115 F1 Manuel utilisateur

Acer

Acer M9N System Manuel utilisateur

Acer

Acer Altos G520 series Manuel utilisateur

Acer

Acer HDS WMS100 Manuel utilisateur

Acer

Acer AR360 F1 Series Manuel utilisateur

Acer

Acer Ferrari 1100 Series Manuel utilisateur

Acer

Acer Altos S700 Series Manuel utilisateur

Acer

Acer Altos R510 Manuel utilisateur

Acer

Acer Altos 1200LP Manuel utilisateur

Acer

Acer AR320 F1 Series Manuel utilisateur

Acer

Acer AR380 F1 Series Manuel utilisateur

Acer

Acer G310 Altos Manuel utilisateur

Acer

Acer Altos G540 Series Manuel utilisateur

Acer

Acer Altos R520 M2 Manuel utilisateur

Acer

Acer Altos G300 Manuel utilisateur

Acer

Acer R310-U-P3200 - Altos - R310 Manuel utilisateur

Acer

Acer AR320 Manuel utilisateur

Acer

Acer Altos R480 F4 Manuel utilisateur

Acer

Acer AW2000ht-AW170ht F1 Manuel utilisateur

Acer

Acer Altos G310 MK2 Series Manuel utilisateur

Acer

Acer Altos G540 M2 Series Manuel utilisateur

Acer

Acer Altos 350 Manuel utilisateur

Acer

Acer Altos G520 series Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
